Gatemaster | Code Gate Lock | Bolt On | Quick Exit

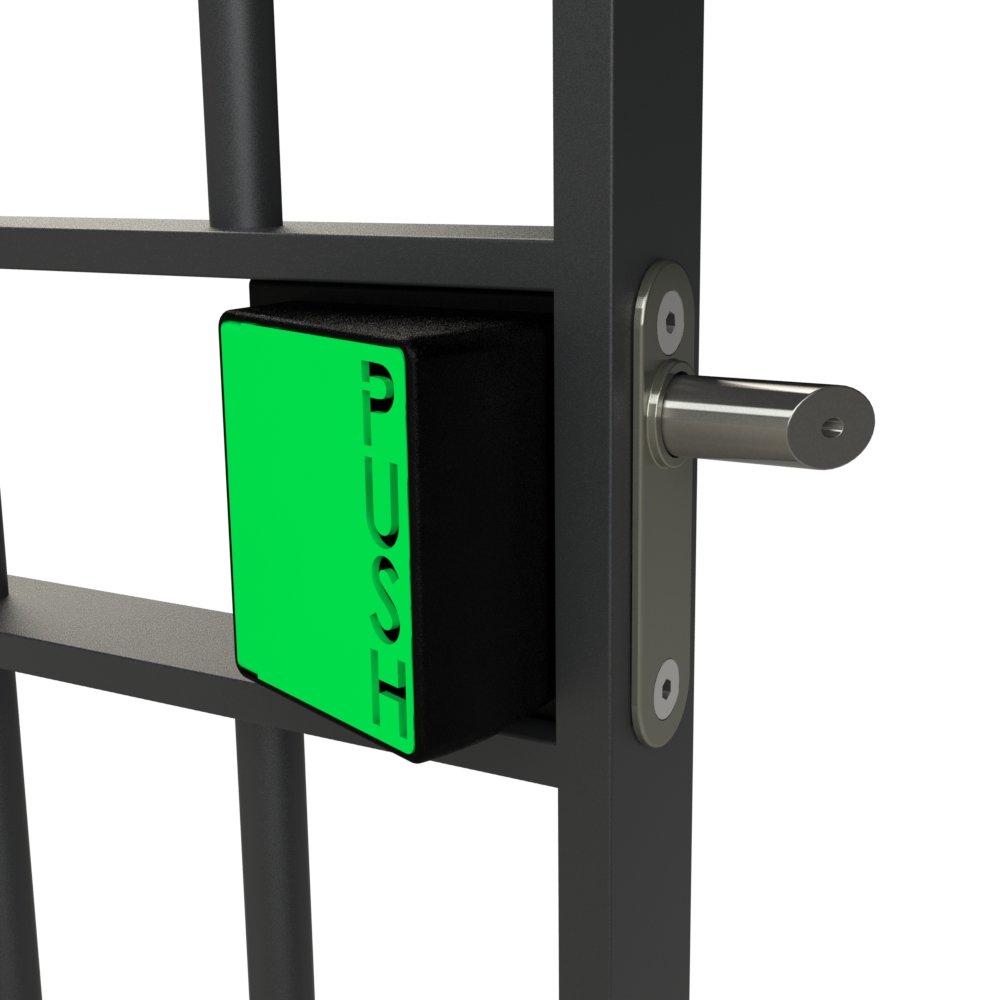

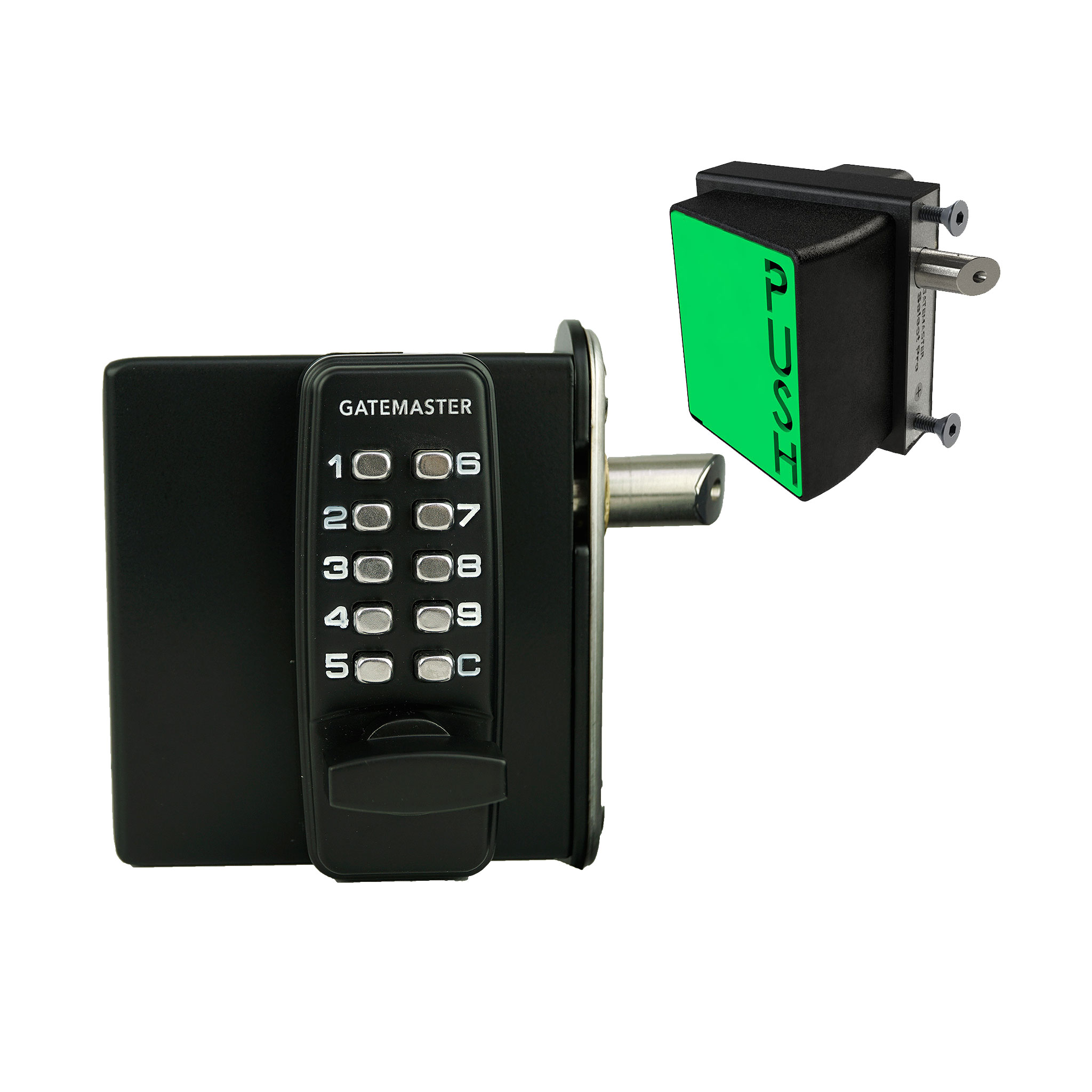

This code gate lock with keypad entry and quick-exit push button is designed to allow rapid exits through gates. Designed specifically for metal gates, the unit is simple to install yet robust. Entry from the outside is via a push button keypad. The unit will automatically latch shut when the gate is closed.
Key features
- Quick-exit push pad designed to allow rapid exits through gates
This code gate lock with keypad entry and quick-exit push button is designed to allow rapid exits through gates. Designed specifically for metal gates, the unit is simple to install yet robust. Entry from the outside is via a push button keypad. The unit will automatically latch shut when the gate is closed.
- Reliable - Supplied with bolt guide plate and gate post strike plate
- Adaptable - Latchbolt is adjustable in length for precise fitting on site
- Stainless steel 5/8" latchbolt which springs 3/4" into the gate post
- Quick exit/key access version also available
- Security shroud available to prevent access to the pad from the outside
Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Weight | 11 lb |
| Frame width | 3/8" to 1-3/16" |
| Hand | Left |
What's in the box
- 1x3mm hex key
- M8 fixing bolts
- Face plate
- Latchbolt
- Strike plate (self-drilling fasteners)
- Code changing pack
Article numbers
- SBQEDGLL01Frame width: 3/8" to 1-3/16" / Hand: Left$289.95Chosen
- SBQEDGLR01Frame width: 3/8" to 1-3/16" / Hand: Right$289.95
- SBQEDGLL02Frame width: 1-9/16" to 2-3/8" / Hand: Left$289.95
- SBQEDGLR02Frame width: 1-9/16" to 2-3/8" / Hand: Right$289.95
Installation
- 1Drill two 3/8" holes at 3-5/8" centers for the M8 fixing bolts provided
- 2Drill a 3/4" clearance hole for the latchbolt, centered 7/8" above the bottom fixing hole
- 3Fix the lock in place with the stainless steel clamp plate, the bolt support plate and the 2 stainless steel countersunk fixing bolts supplied.
- 4Drill a clearance hole in the keep or outer frame for the latchbolt. Slot the hole vertically to allow for gate sag, then fit the strike plate to the gate post by welding or screwing it on.
- 5Make sure the latchbolt moves freely without catching on the gate or frame.
Maintenance
Every 3 months: take the keypads off the lock, spray the inside of the lock through the tumbler holes at the back with WD-40 or an equivalent, and spray the fixings and the latchbolt as well. Then press every button and turn the handle a few times to check that the lock still runs smoothly.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
Can I change the code myself?
Yes, and you do not need a locksmith. Take the keypad off the lock, open it up and reposition the code pins for the digits you want; the printed instructions in the box walk through it step by step. Set a code you will remember, then test it a few times with the gate open before you close it.
Does this code lock need power or batteries?
No. The keypad is fully mechanical, so there is no wiring, no batteries and nothing to replace. That is what makes it suitable for gates at the far end of a site, allotments, bin stores and anywhere a cable run would be impractical - and it keeps working in a power cut.
How do I know whether I need a left-hand or a right-hand lock?
Stand on the outside of the gate - the side you approach from. If the hinges are on your left, you need a left-hand lock; if they are on your right, a right-hand lock. Gatemaster locks in this range are reversible: you loosen the locking screw in the end of the latchbolt with the 0.118" hex key supplied, turn the bolt through 180 degrees and tighten it again.
