Gatemaster | SelectPro Code Gate Lock | Single-Sided Keypad

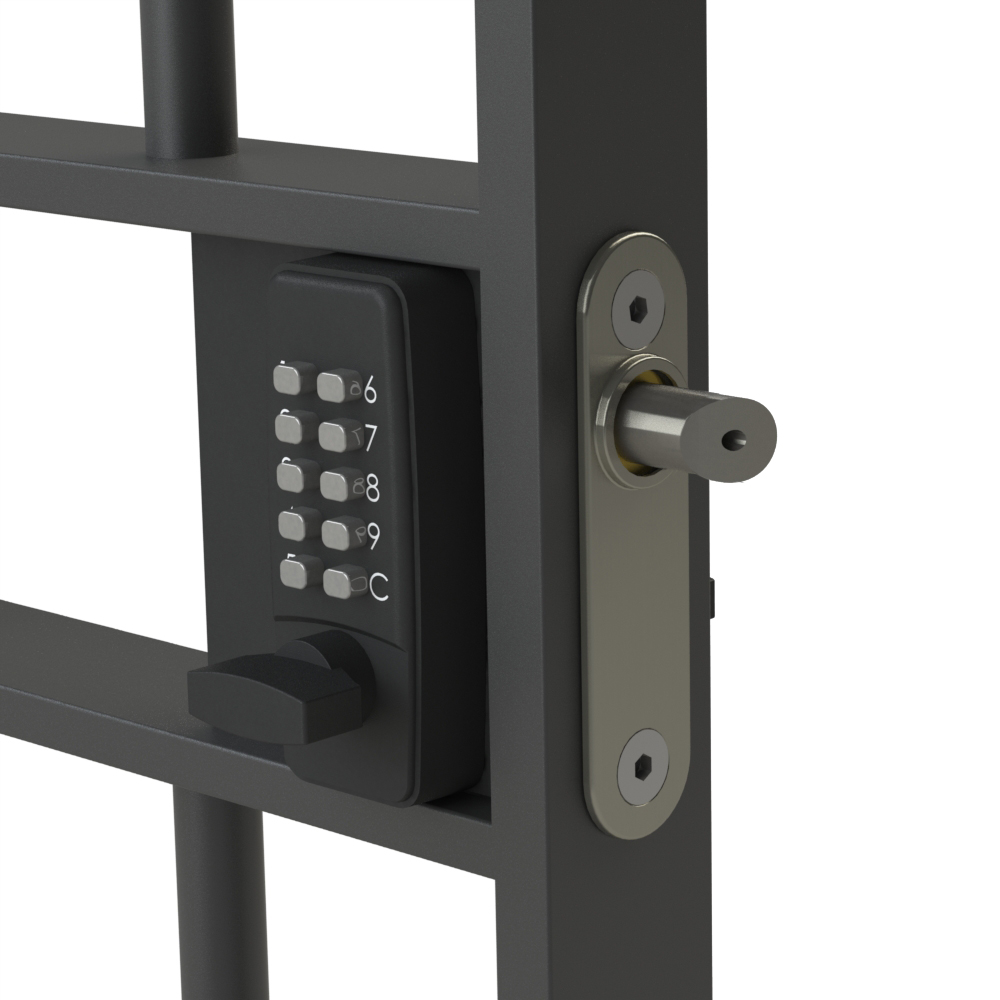

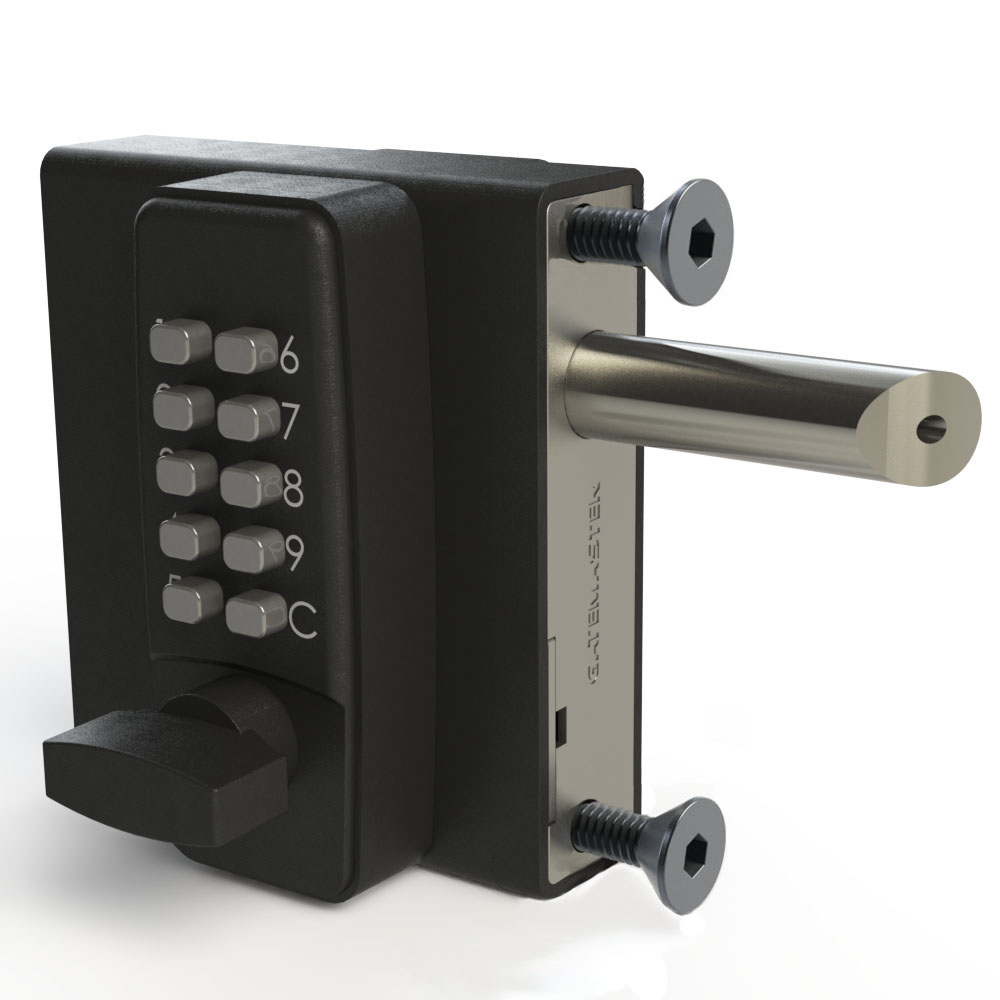

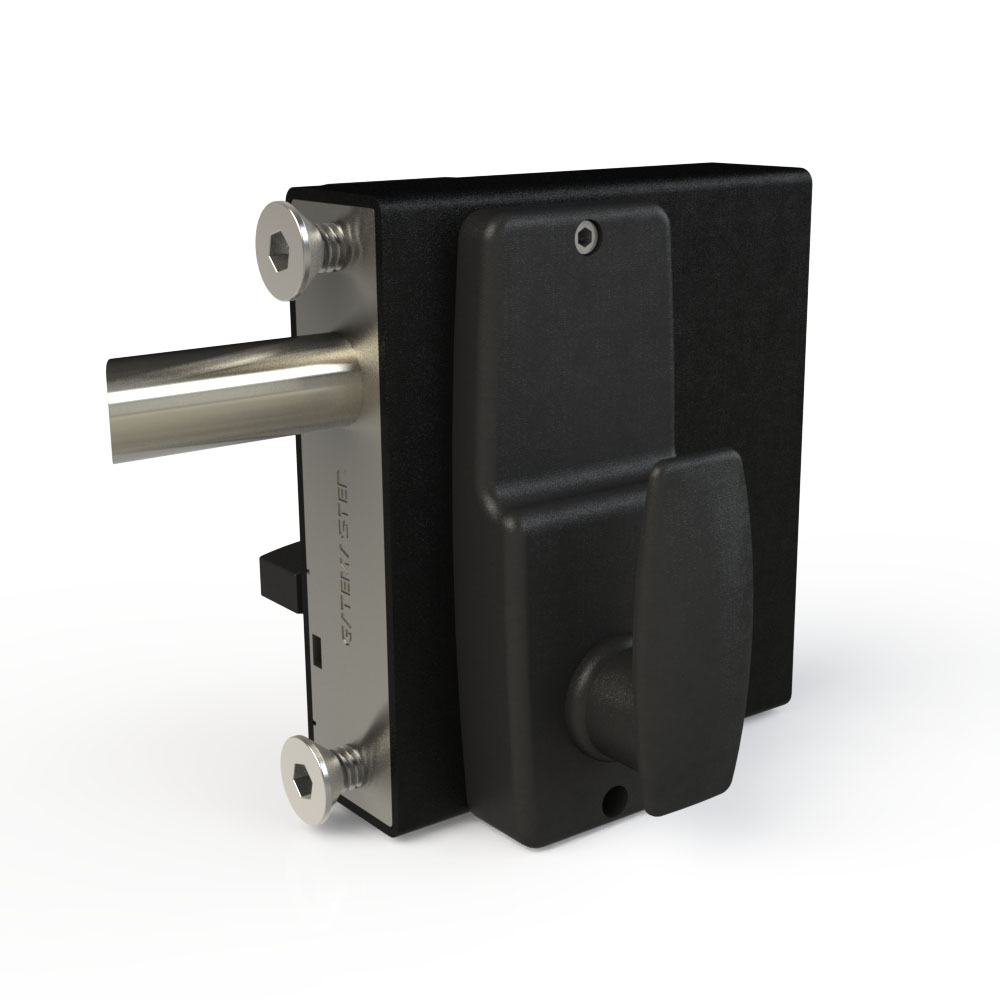

The SelectPro digital code gate lock single sided has a convenient mechanical keypad and a free exit turn handle on the inside. The lock is easy to install simply drill 3 holes in the gate frame and bolt the lock on with the fixings supplied. Digital gate locks are a convenient method of locking a gate as they require no keys. This lock auto-latches when the gate is closed, but also has a hold-back function for when you need to keep the gate unlocked. Just flip the switch on the rear handle to activate.
Key features
- No power needed - Mechanical keypads for a quick and easy install
- Long lasting - Brass bearing plate supports the latchbolt reducing wear and increasing product life
- Adaptable - The Latchbolt can be adjusted in length and both outward and inward opening gates
The SelectPro digital code gate lock single sided has a convenient mechanical keypad and a free exit turn handle on the inside. The lock is easy to install simply drill 3 holes in the gate frame and bolt the lock on with the fixings supplied. Digital gate locks are a convenient method of locking a gate as they require no keys. This lock auto-latches when the gate is closed, but also has a hold-back function for when you need to keep the gate unlocked. Just flip the switch on the rear handle to activate.
You can change the code on this combination lock with the code-changing pack that ships in the box.
- Durable - Tested to over 1000 hours salt spray, this product will survive the elements
- Auto-latching - close the gate and the latchbolt latches into the gate frame. Latchbolt projects up to 3/4" into the gate post for greater tolerance
- Keypad on one side, handle on the other - Also available with a Keypad on both sides
- Compatible with the Gapless Keep & SelectPro Security Shroud for extra protection
Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Patent | EP 3354825 |
| Throw | Up to 13/16" |
| Power | None required |
| Frame width | 3/8" to 1-3/16" |
| Hand | Left |
What's in the box
- 1x3mm hex key
- M8 fixing bolts
- Face plate
- Latchbolt
- Strike plate (self-drilling fasteners)
- Code changing pack
Article numbers
- DGLS02LFrame width: 1-9/16" to 2-3/8" / Hand: Left$272.95
- DGLS01RFrame width: 3/8" to 1-3/16" / Hand: Right$272.95
- DGLS02RFrame width: 1-9/16" to 2-3/8" / Hand: Right$272.95
- DGLS01LFrame width: 3/8" to 1-3/16" / Hand: Left$272.95Chosen
Installation
- 1Drill 2 x 9 mm diameter holes at 92 mm centres for the M8 fixing bolt.
- 2Drill an 11/16" clearance hole for the latchbolt, 7/8" below the top 0.354" hole.
- 3Fix the lock in place with the stainless steel clamp plate, the bolt support plate and the 2 stainless steel countersunk fixing bolts supplied.
- 4Drill a clearance hole in the gate post for the deadbolt/latchbolt. Slot the hole vertically to allow for gate sag, then fit the strike plate and bend it back so the latchbolt slides in smoothly.
- 5Make sure the latchbolt moves freely without catching on the gate or frame.
- 6To adjust the latchbolt length, put the 0.118" long-arm hex key supplied into the end of the bolt and release the locking screw. Turn the bolt as required and tighten the locking screw again. Lubricate with light oil from time to time.
Maintenance
Every 3 months: take the keypads off the lock, spray the inside of the lock through the tumbler holes at the back with WD-40 or an equivalent, and spray the fixings and the latchbolt as well. Then press every button and turn the handle a few times to check that the lock still runs smoothly.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
Can I change the code myself?
Yes, and you do not need a locksmith. Take the keypad off the lock, open it up and reposition the code pins for the digits you want; the printed instructions in the box walk through it step by step. Set a code you will remember, then test it a few times with the gate open before you close it.
Does this code lock need power or batteries?
No. The keypad is fully mechanical, so there is no wiring, no batteries and nothing to replace. That is what makes it suitable for gates at the far end of a site, allotments, bin stores and anywhere a cable run would be impractical - and it keeps working in a power cut.

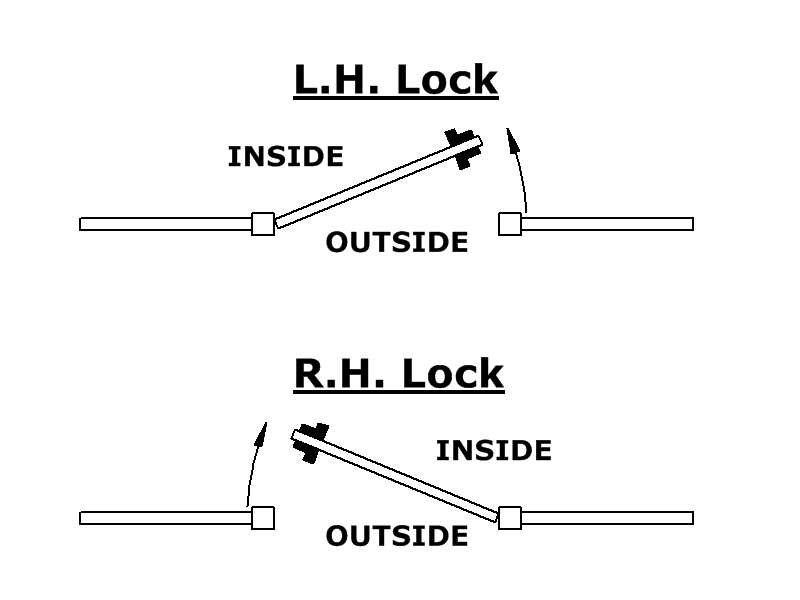

How do I know whether I need a left-hand or a right-hand lock?
Stand on the outside of the gate - the side you approach from. If the hinges are on your left, you need a left-hand lock; if they are on your right, a right-hand lock. Gatemaster locks in this range are reversible: you loosen the locking screw in the end of the latchbolt with the 0.118" hex key supplied, turn the bolt through 180 degrees and tighten it again.
