AES | Wireless e-Keypad | Coin Battery
The AES wireless e-Keypad (part EKPD) mounts with two screws and runs on a coin cell, sending codes over an encrypted 433.39 MHz link to an eTrans transceiver. Up to 200 codes, 4 to 8 digit PINs, three channels, waterproof housing.
Key features
- No wiring: two screws and a coin cell
- 200 access codes plus one supervisor code
- 4 to 8 digit PIN codes
- 3 channels
- AES 128-bit encrypted 433.39 MHz link
- Waterproof housing

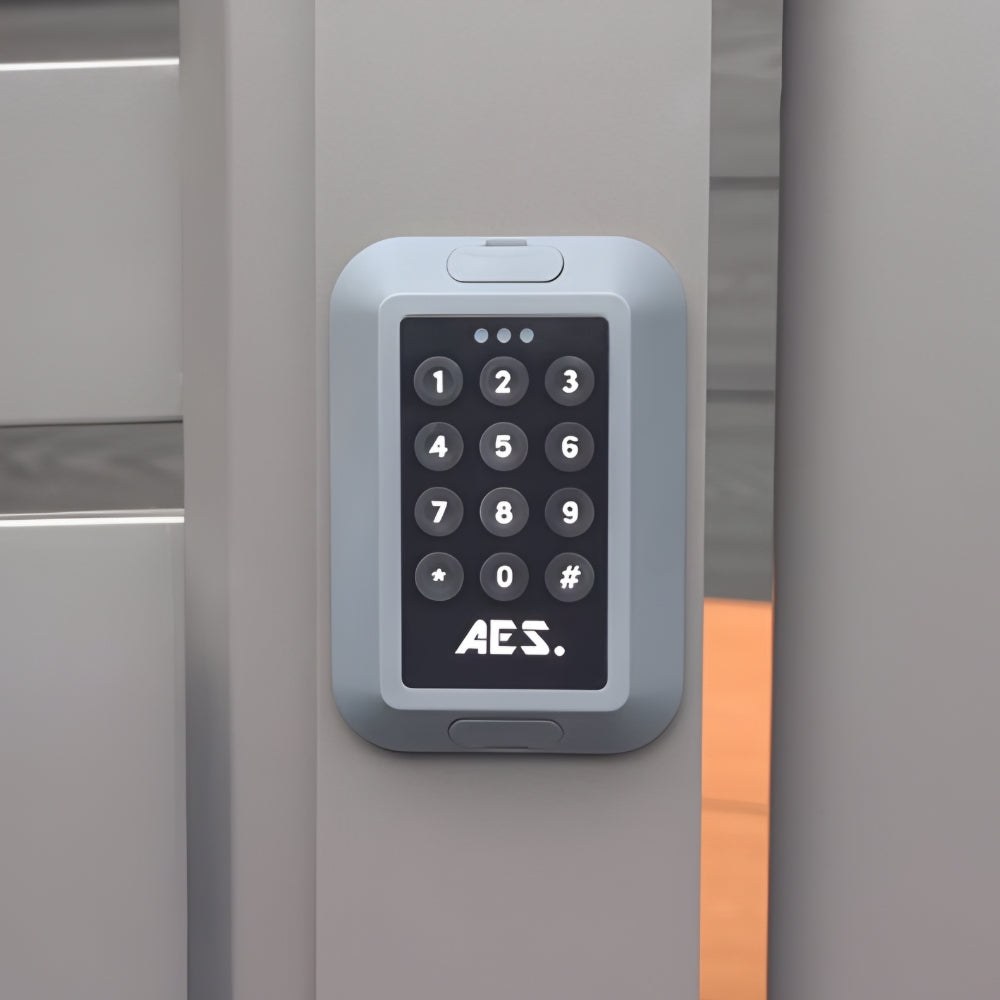

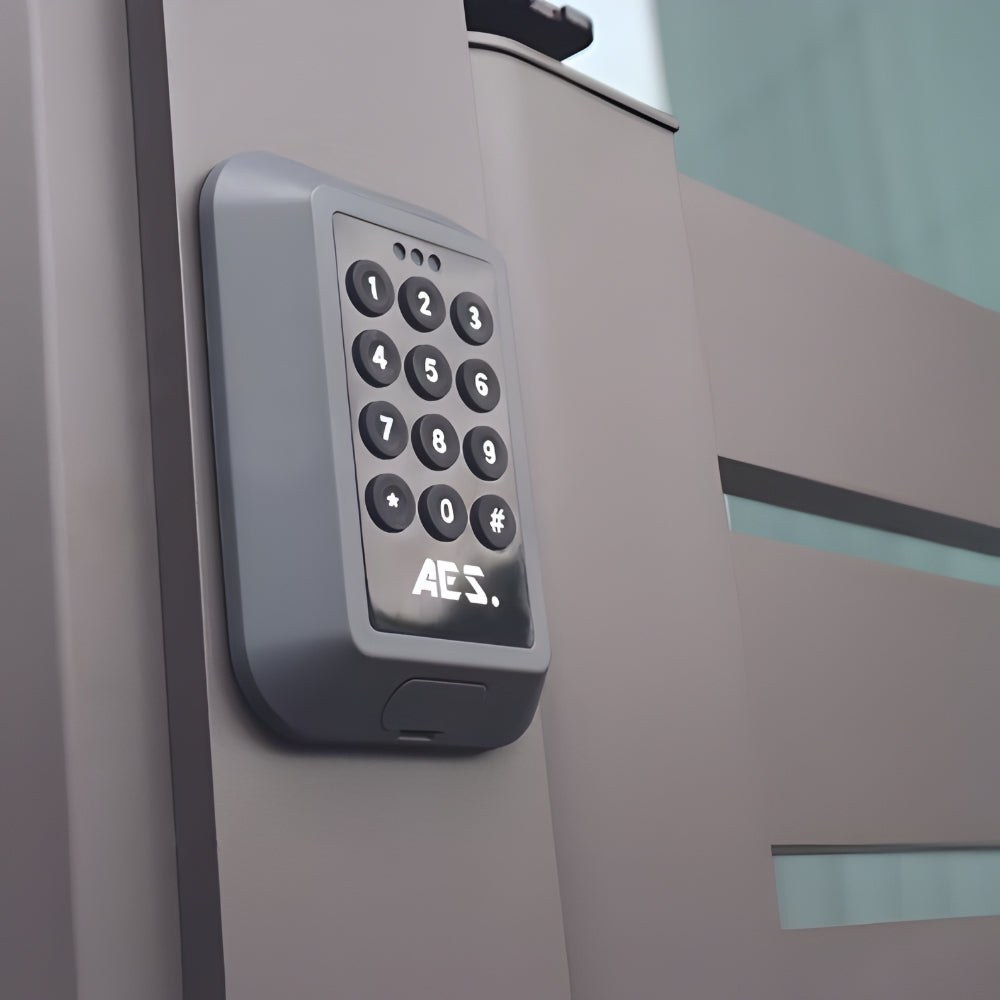

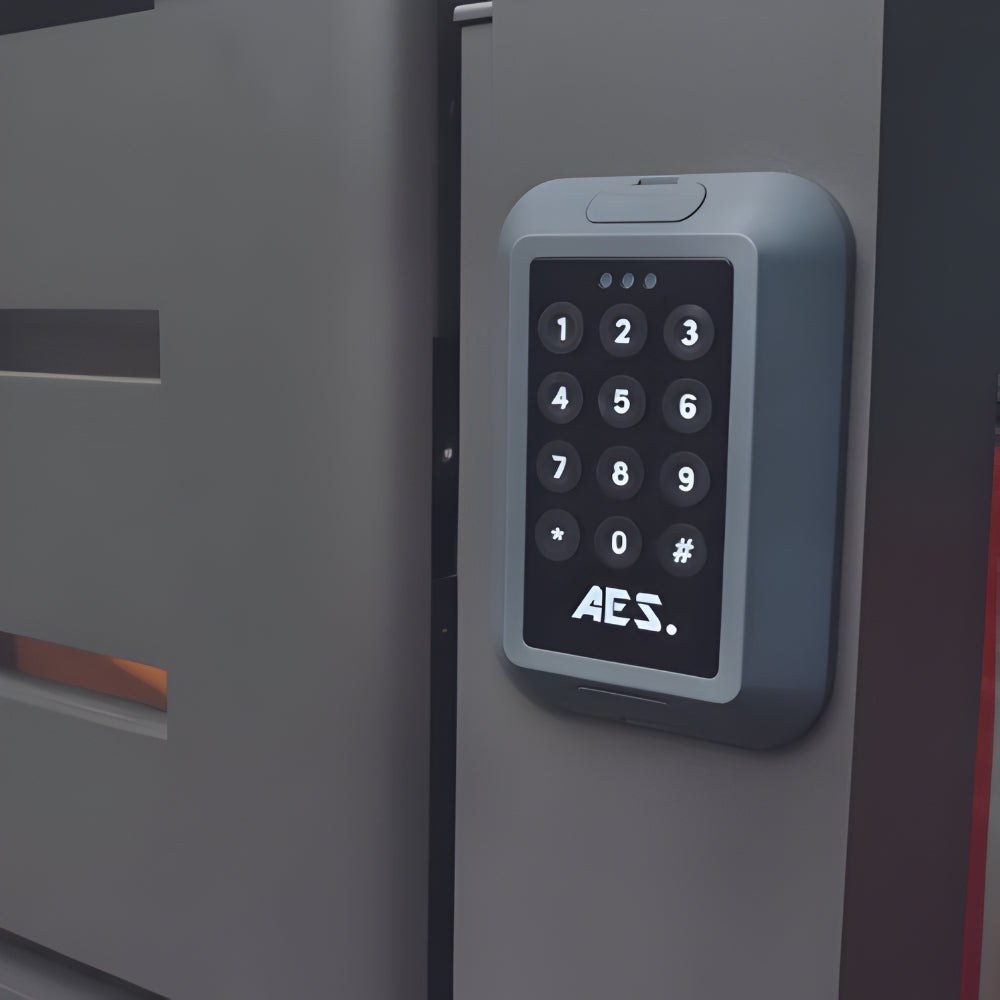

AES wireless e-Keypad, no cabling needed
The e-Keypad is a battery-powered wireless keypad that needs no cabling. It mounts with two screws, a CR2450 coin cell powers it, and a 433.39 MHz link with AES 128-bit encryption carries the signal to an eTrans transceiver, which does the relay switching.
Codes and channels
It holds up to 200 access codes plus a supervisor code, takes 4 to 8 digit PINs, and codes can be limited to a set number of uses. Three channels are available, and the housing is waterproof.
Where it fits
It is the straightforward answer for an entry or exit keypad where there is no cable and no wish to dig a trench. Its power consumption is 200 nA, from a 540 mAh coin cell.
Choosing a transceiver
The keypad works with an eTrans transceiver, which is wired to the gate operator. The eTrans 50 gives one normally-open relay, the eTrans 100 adds a second relay with normally-closed contacts, and the eTrans 200 adds an LCD display. Ordered under AES part number EKPD, with the two-year manufacturer's warranty.
Specifications
| Brand | AES Global |
| Voltage | 3 v |
| Warranty | 2 years, manufacturer |
| Product line | AES Wireless e-Keypad |
| Frequency | 433.39 MHz |
| Channels | 3 |
| Encryption | AES 128-bit |
| Power consumption | 200 nA |
| Battery | CR2450 coin cell, 540 mAh |
| Details | |
|---|---|
| Keypad codes | 200 plus supervisor code |
What's in the box
- Wireless e-Keypad
- CR2450 battery
- Fixing screws
Frequently asked questions
Does the keypad need any wiring?
No. It mounts with two screws and runs on a CR2450 coin cell; the signal goes wirelessly to an eTrans transceiver.
How many codes does it hold?
Up to 200 access codes plus a supervisor code, with PINs of 4 to 8 digits.
Which transceiver does it work with?
An eTrans transceiver: the eTrans 50, 100 or 200, depending on how many relays and how much feedback you want.
What warranty does it carry?
A two-year manufacturer's warranty from AES Global.
