Gardenode Accessories
Gardenode designs modular slat fences in aluminum and composite. Fenceweb stocks the Equinox system: posts, slats, louvers, laser-cut panels, gates and every part that holds them together, in anthracite gray, quartz gray, black and teak.

Aluminum Cap | 3-1/8" x 3-1/8"
from $9.00

Aluminum Cap | 2-3/4" x 2"
from $6.95

Spacers for openwork slats | 22 pieces
from $16.48

Adjusting block | Aluminum
$6.00

Gardenode

Aluminum | Toprail | Length 70-7/8"
from $18.95

Aluminum | Bottomrail | Length 70-7/8"
from $27.50

Installation block | Aluminum
$4.00

Gardenode Equinox Cap for Variable Angle Profile
Contact us for pricing

2-Part Variable Beater | Length 82-5/8"
from $30.85

Gardenode Equinox Aluminum Starter Profile with Cap | 82-5/8" Long
from $37.67

Gardenode Equinox Louver Slat Spacers | Intermediate | Pack of 24
Contact us for pricing

Gardenode Equinox Louver Slat Spacers | Starter | Pack of 10
Contact us for pricing

Gardenode Equinox Cap for Starter Profile
Contact us for pricing

Gardenode Equinox Louver Bottom Rail | 70-7/8" Long
Contact us for pricing
Showing 1-14 of 14 products
Highlights

Complete Equinox system
Every rail, profile and cap a bay needs.

Color matched
In the four colors of the posts and slats.

Order per bay
Spacer bags and rails are sized for one bay.

Caps for every post
For the 3-1/8" x 3-1/8" and 2-3/4" x 2" posts.
Which parts does one Equinox bay need?
- A bottom rail, or a louver bottom rail for a louver bay.
- The slats.
- Spacers for louver or openwork slats.
- Fixing blocks for composite bays, at least two per bay.
- A top rail above the last slat.
- A cap on each post.
Top, bottom and louver rails
- Bottom rail: aluminum, 70-7/8" long, carries the first slat of a bay. One per bay.
- Top rail: aluminum, 70-7/8" long, closes the bay above the last slat. One per bay.
- Louver bottom rail: aluminum, 70-7/8" long, sets the first louver slat of a bay.
Starter profiles for walls
Where the fence starts against a wall, the starter profile replaces the first post. It is aluminum, 82-11/16" long, and comes with its cap. A separate cap for the starter profile is also available.
Variable angle profiles for corners
A 90 degree corner uses a standard post. For any angle between 45 and 135 degrees, use the variable angle profile set: two aluminum parts, 82-11/16" long, that set the angle of the fence at the post. A cap for the profile is sold separately.
Post caps
Caps finish the top of each post. Choose the cap for the 3-1/8" x 3-1/8" post or for the 2-3/4" x 2" post. The larger post already comes with one cap, so its cap here is a spare; the smaller post comes without a cap.

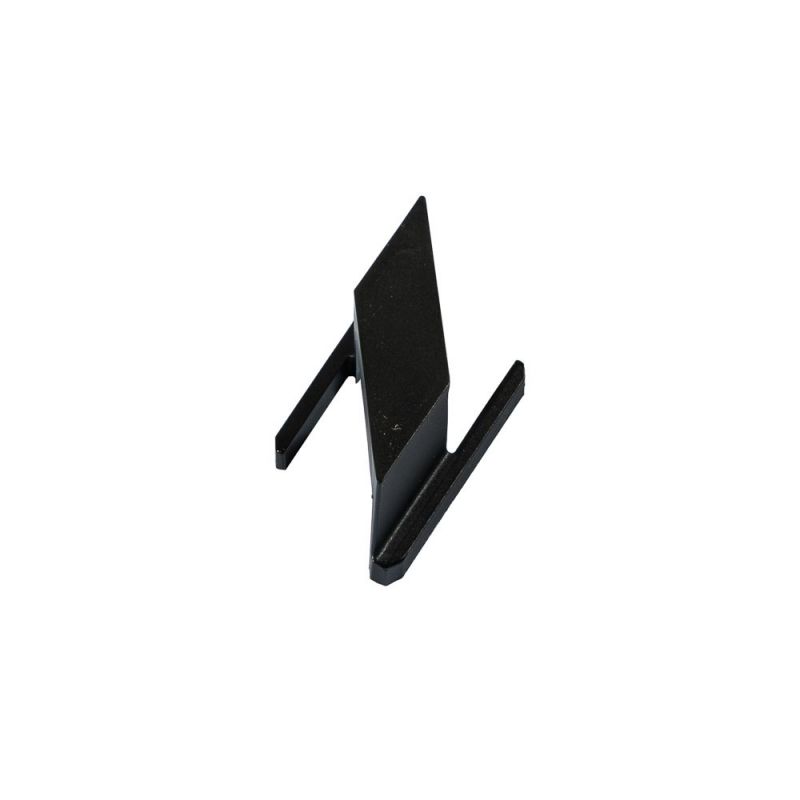

Slat spacers
- Louver starter spacers: a bag of 10 that sets the first louver slat of a bay.
- Louver intermediate spacers: a bag of 24 that builds one bay up to 72-7/8" tall, marked A and B for direction. They fit aluminum and composite louver slats.
- Openwork spacers: aluminum, a bag of 22 for one bay, holding openwork slats 5/8" apart. They fit aluminum and composite openwork slats.
Fixing and adjusting blocks
The fixing block holds the bottom rail in the post groove and keeps the expansion gap that composite needs; use at least two in every composite bay. The adjusting block is for sloping ground: fixed under the bottom rail with an Allen key, it lets you step the fence with the grade.
Matching colors
Rails, profiles, caps and openwork spacers come in Anthracite Gray (RAL 7016), Quartz Gray (RAL 7039), Black (RAL 9005) and Teak, and the louver spacers in Anthracite Gray, Quartz Gray, Black and Teak. Order accessories in the same color as your posts. A color without a price on its product page is sold on request.
Ordering and delivery
Fenceweb delivers to every US state and to Canada. Count per bay and per post, and order everything together so the colors match.
Frequently asked questions
What is the Gardenode Equinox fence system?
A modular slat fence: aluminum posts with grooves, slats that slide in from the top, and rails, profiles and caps that finish each bay. Slats come in aluminum and composite, in solid, louver and openwork styles, plus laser-cut aluminum panels.
Can I mix aluminum and composite slats?
Yes. Both are 70-7/8" long and 13/16" thick and slide into the same posts, so you can combine them in one bay or change from bay to bay.
How far apart are the posts?
72-7/8" on center. Every slat is 70-7/8" long and spans exactly one bay.
How deep do the posts go?
Gardenode's guide is a hole about 15-3/4" square and 19-5/8" deep, filled with concrete that is not too wet. Your soil and local frost depth decide the final depth.
Can I install Gardenode on a patio or low wall?
Yes, on steel base plates: 5-1/8" x 5-1/8" for the 3-1/8" post, 4-3/4" x 3-7/8" or a plate with cover for the 2-3/4" x 2" post. Keep a fence on base plates to 63" tall for wind load.
Do composite slats need a brace?
Yes: a galvanized steel brace in every third solid composite slat and in every composite louver and openwork slat. Aluminum slats need none.
Does the post come with a cap?
The 3-1/8" x 3-1/8" post comes with one cap and one clip. The 2-3/4" x 2" post comes with one clip; order its cap separately.
Can Gardenode parts be combined with other fence systems?
Assume not. The grooves, clips and profiles are made for the Gardenode system, so order posts, slats and accessories from the same range.
Still have questions? Call us at 214 878 1900
