Locinox | 12V DC Access Module with integrated timer
Locinox all-in-one Plug and Play access module with power supply and timer built in. It runs on mains AC power and powers one 12 V DC fail-open or fail-close device, with a switching time of 1 to 99 seconds set by push buttons and shown on a display.
Key features
- Power supply and timer in one unit
- Mains AC input, 12 V DC output, maximum 20 W
- Switching time of 1 to 99 seconds
- Push-button setting with display
- Mounts on a DIN rail or directly
- Encapsulated module, powder-coated aluminum housing

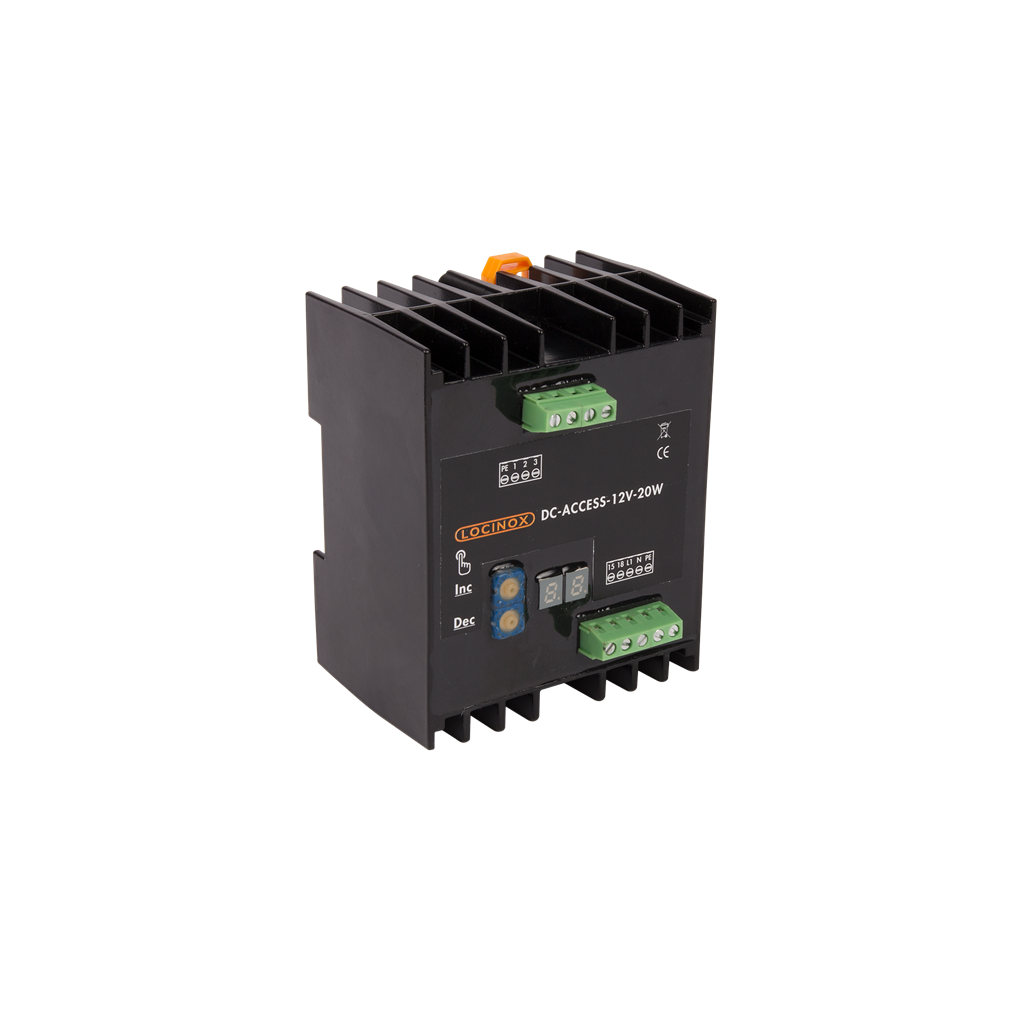

Locinox all-in-one 12 V DC access module with integrated timer
This Plug and Play access module from Locinox combines a power supply and a timer in one unit. It takes a mains AC input, and a 12 V DC fail-open or fail-close device, such as an electric lock or strike, connects to it easily.
Operation
The timer sets how long the connected device stays switched, from 1 to 99 seconds. You set the time with push buttons, and the display shows it clearly.
Power and wiring
- Input: mains AC; ask Fenceweb to confirm the voltage
- Output: 12 V DC, maximum output power 20 W
- For a fail-open or fail-close device
- Module and power supply joined by a Plug and Play connector
Construction and mounting
The module mounts on a DIN rail or directly on a surface. The control module is encapsulated for better resistance to humidity, the housing is powder-coated aluminum, and heat-dissipation fins on the back keep it cool.
Specifications
| Brand | Locinox |
| Width | 2-3/8" |
| Height | 4-1/8" |
| Length | 2-3/4" |
| Weight | 2.8 lb |
| EAN | 5414768018828 |
Frequently asked questions
Which devices can I connect?
A 12 V DC fail-open or fail-close device can be connected to the module.
How long can the device stay switched?
From 1 to 99 seconds, set with push buttons and shown on the display.
How is the module mounted?
On a DIN rail or directly on a surface.
