Locinox Sabo | Bolt-on off-centered ground stop
Locinox Sabo bolt-on ground stop for double swing gates with surface-mounted drop bolts. It takes drop bolts with an axle of up to Ø 13/16", is fixed onto the ground surface with the anchor pins supplied and adjusts in height and depth.
Key features
- Bolt-on ground stop for double swing gates
- For surface-mounted drop bolts up to Ø 13/16"
- Adjustable in height and depth
- Black anodized aluminum top plate
- Anchor pins supplied
Locinox Sabo bolt-on ground stop for double gates
The Sabo is a strong ground stop for double swing gates. It is fixed on top of the finished ground rather than set into concrete, and it receives the drop bolt that holds the standing gate leaf in place. Because the receiver sits off the center line, it lines up with drop bolts that are mounted on the surface of the gate.
Compatibility
The stop takes drop bolts with an axle of up to Ø 13/16" and is made for surface-mounted drop bolts. It works with the Locinox VSA, VSF and Keydrop drop bolts and with the Electradrop, with a different depth range for the Electradrop.
Sizes and fit
The Sabo is adjustable in height and in depth, so it can follow the gap under the gate and the depth of different gate profiles. The exact height and depth ranges are not yet confirmed, so ask Fenceweb before you order. The top plate is black anodized aluminum.
Installation
Place the stop under the drop bolt with the gates closed and fix it to the ground with the anchor pins that come with it.
Specifications
| Brand | Locinox |
| Width | 3-7/8" |
| Height | 2-3/8" |
| Length | 4-3/8" |
| Weight | 1.5 lb |
| EAN | 5414768060445 |

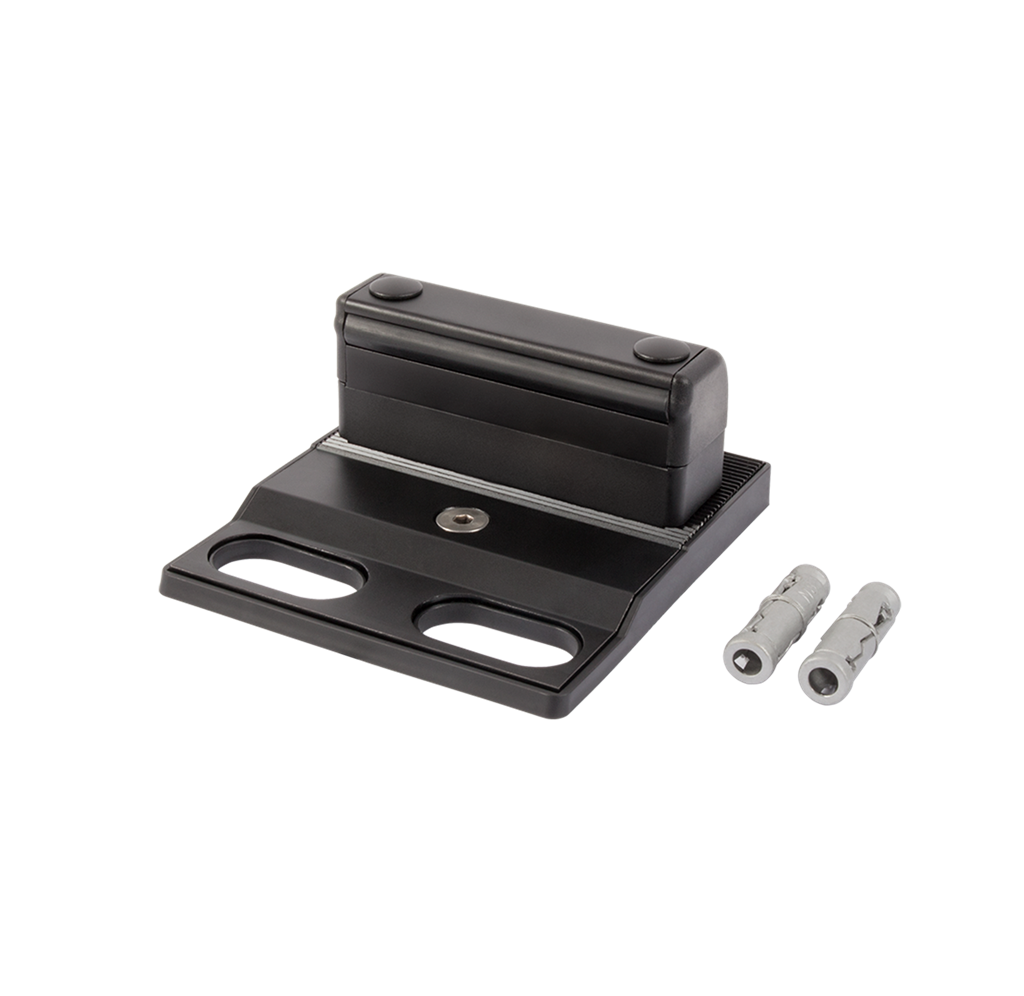

What's in the box
- Sabo ground stop
- Anchor pins
Frequently asked questions
Which drop bolts fit the Sabo?
Surface-mounted drop bolts with an axle of up to Ø 13/16", such as the Locinox VSA, VSF, Keydrop and Electradrop.
Does it need to be set in concrete?
No. The Sabo is bolted onto the ground surface with the anchor pins supplied.
Can it be adjusted?
Yes, in height to follow the gap under the gate and in depth to suit the gate profile.
