Locinox Tiger
Locinox Tiger, a compact 180° hydraulic hinge and gate closer in one. Speed and final snap are precisely adjustable, the powder-coated aluminum housing works in any weather, and the Puma hinge is included to complete the gate.
Key features
- Hinge and gate closer in one, 180° opening
- Patented hydraulic damping, consistent speed at any temperature
- Adjustable closing speed and final snap
- Powder-coated aluminum housing for exterior use
- Quick-Fix bolts, Puma hinge included
- Black RAL 9005 or silver
Locinox Tiger, hinge and hydraulic gate closer in one
The Tiger combines a hinge and a gate closer in a single compact unit. It opens to 180° and closes the gate by itself, with patented hydraulic damping that keeps the closing speed consistent regardless of the temperature. It works on left and right turning gates.
Operation
Both the closing speed and the final snap can be adjusted precisely. The speed sets how fast the gate swings shut, and the final snap gives the last part of the movement extra force so the latch engages reliably.
Materials and finish

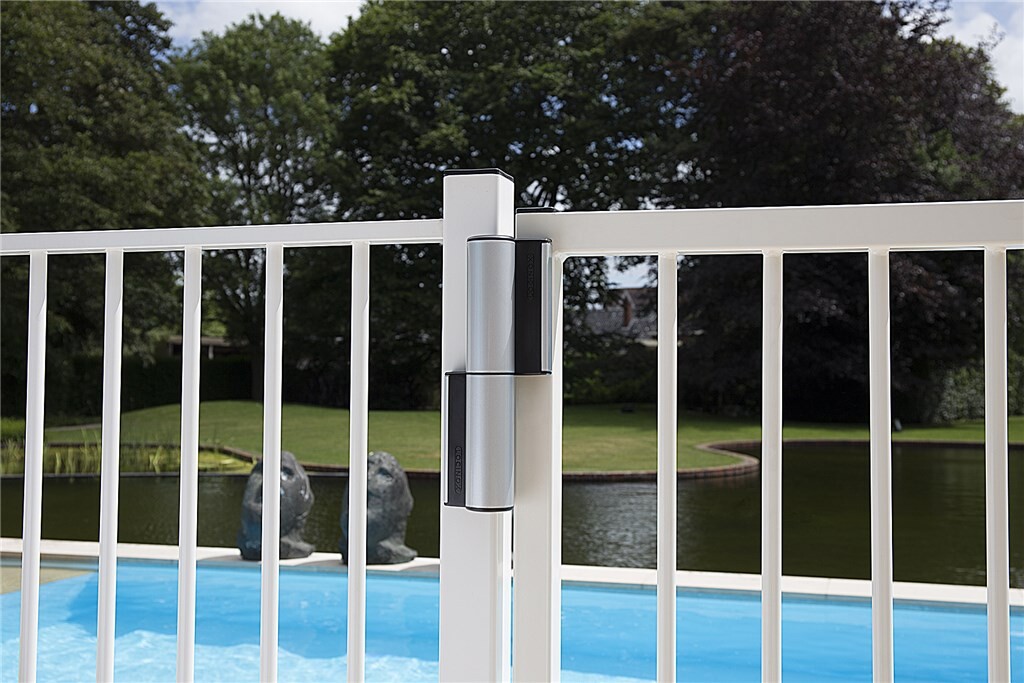

The powder-coated aluminum housing and high-tech components are made for exterior use and let the Tiger work in any weather. Choose black RAL 9005 or silver.
Installation

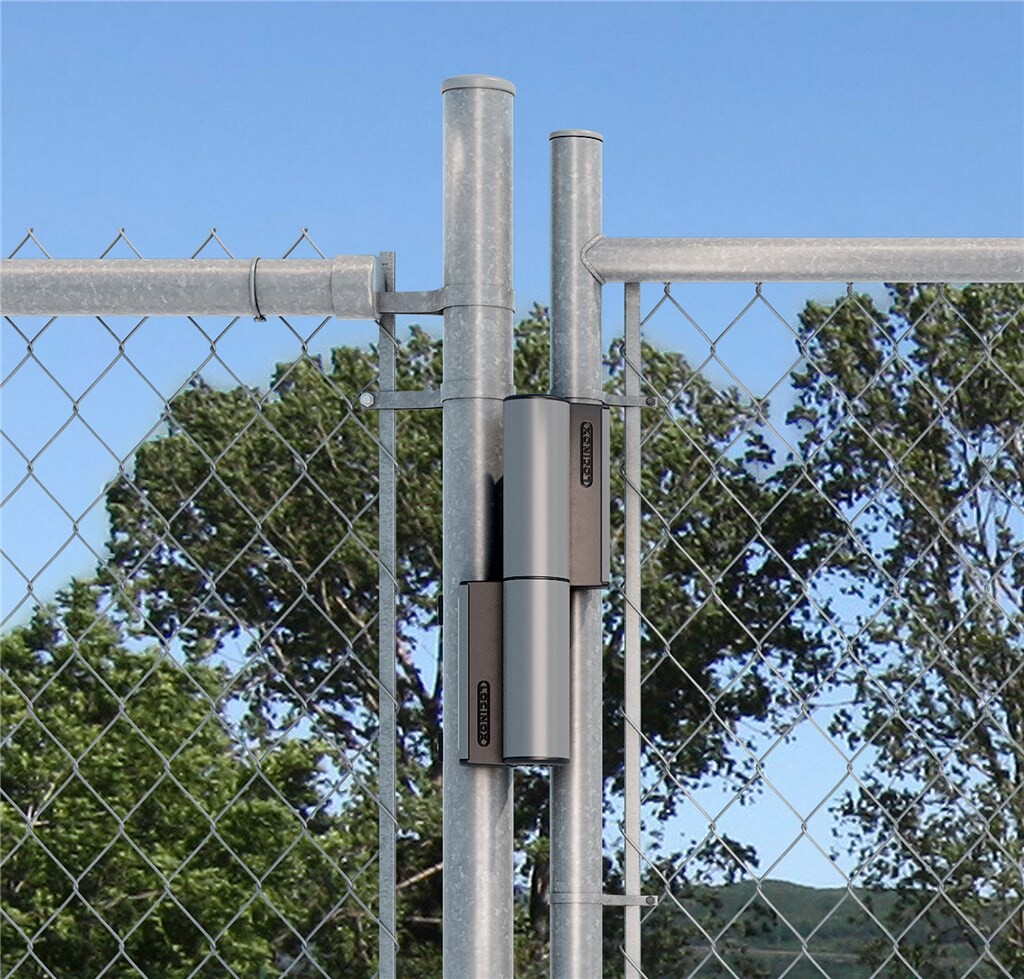

The Tiger is fixed with Locinox Quick-Fix bolts and is adjustable vertically. The Puma hinge comes with it for the second hinge position. Locinox recommends the Tigerdrill drilling jig for an even more efficient installation, and the CLB-TIGER bracket mounts the Tiger on round chain link posts.
Specifications
| Brand | Locinox |
| Width | 7-1/8" |
| Height | 3-7/8" |
| Length | 1'2" (14-1/8") |
| Weight | 5.5 lb |
| EAN | 5414768032572 |
| Color | RAL9005 |
What's in the box

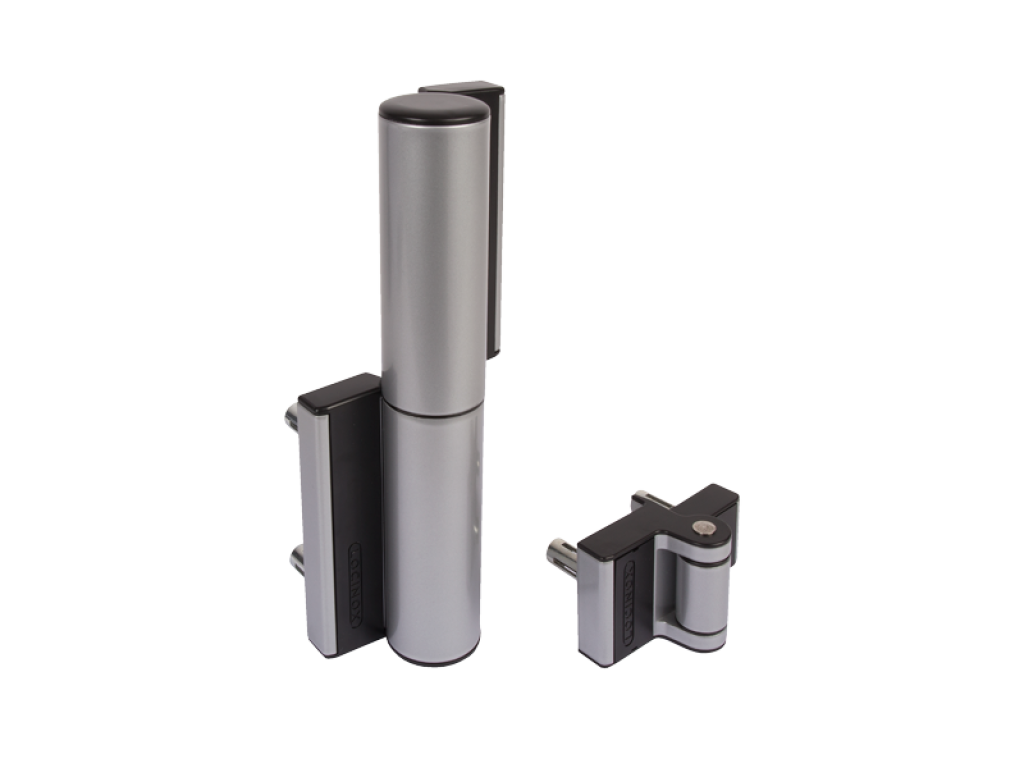

- Tiger hinge and gate closer
- Puma hinge
Article numbers
- P00008665-9005Color: RAL9005$399.88Chosen
- P00008665-SILVColor: Silver$399.88
Frequently asked questions
Is a second hinge included?
Yes. The Puma hinge is included with the Tiger.
Can I adjust how the gate closes?
Yes. Both the closing speed and the final snap are adjustable.
Does the temperature affect the closing speed?
The patented hydraulic damping keeps the closing speed consistent regardless of temperature.
