Double wire fence | 0/4/0 GA | Without Spikes | Mesh 2" x 8" | Width 8'2"
Heavy 0/4/0 GA double wire mesh panel without spikes: two 0 GA horizontal wires and a 4 GA vertical wire, 2" x 8" mesh. Smooth top and bottom edges. Ten heights from 600 to 7'10", galvanized or powder coated in four RAL colors. Ask Fenceweb to confirm the panel width.
Only this value fits the rest of your configuration, so it is set for you.
Key features
- Heavy 8/6/8 wire: 2 x 8 mm horizontal, 6 mm vertical
- No spikes: smooth top and bottom edges
- Mesh 2" x 8"
- Ten heights from 600 to 7'10"
- Galvanized, or galvanized and powder coated in four RAL colors
- 10-year warranty on the powder coating
Heavy 0/4/0 GA double wire panel with a safe, spike-free edge

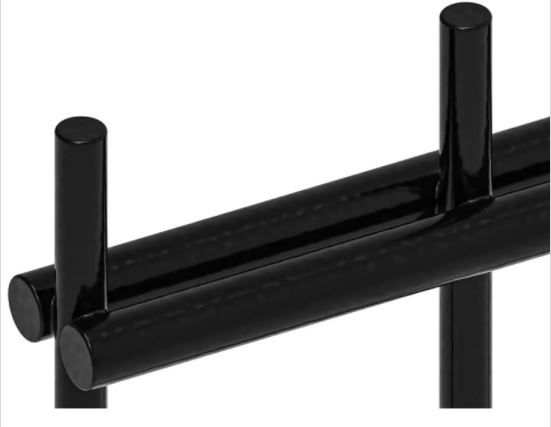

This heavy-duty double wire panel is built from two horizontal 0 GA steel wires and one vertical 4 GA wire, welded at every crossing. Unlike the standard panel, the vertical wires do not stick out at the top or bottom, so both edges are smooth. That makes it the panel for places where people, children or animals come close to the fence, without giving up the rigidity of the 0/4/0 GA construction.
Sizes and finishes
- Wires: 2 x 8 mm horizontal, 6 mm vertical
- Mesh: 50 x 200 mm
- Heights: 600, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200 and 2400 mm
- Finishes: hot-dip galvanised, or galvanised and powder coated in moss green RAL 6005, fir green RAL 6009, anthracite grey RAL 7016, black RAL 9005
Typical uses

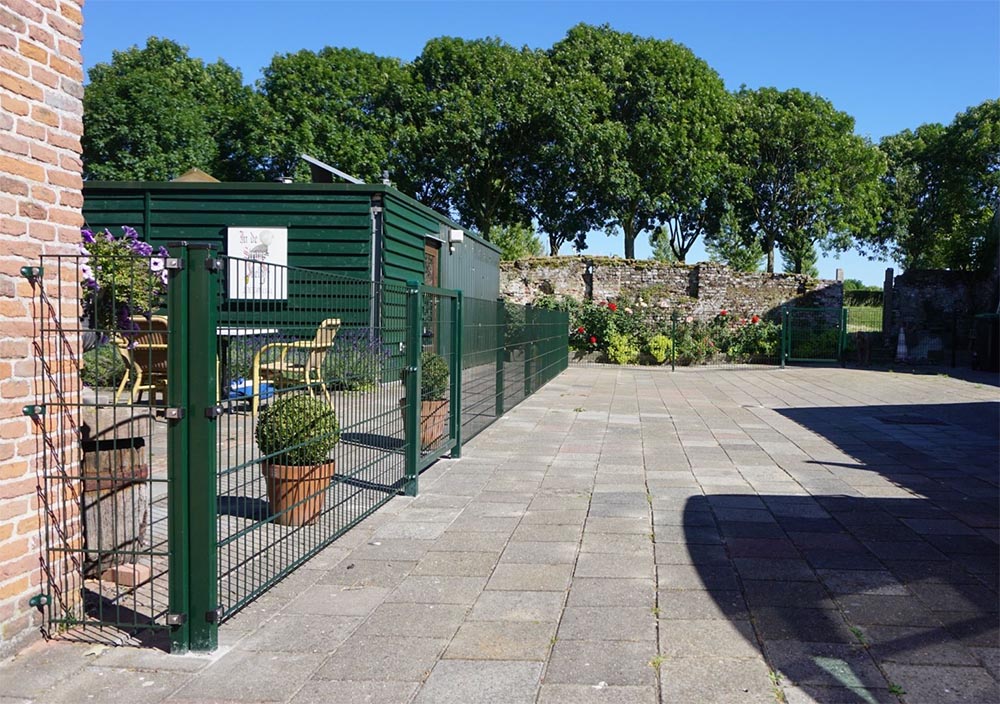

Schools, childcare and sports facilities, hospitals and care settings, car parks and footpaths, business premises with public areas, and driveways and boundaries with regular traffic. The open mesh keeps a clear line of sight while the heavy wires keep the panel stiff. Woven privacy strips in matching colors can be threaded through the mesh.
Installation and warranty
This is the panel only. A complete fence also needs matching posts, brackets or clamp sets, post caps and, on hard surfaces, base plates. Posts are set in concrete or quick-setting concrete. The powder coating carries a 10-year warranty, and matching repair spray is available for small damage.
Specifications
| Brand | Fenceweb |
| Width | 8'2" (98-3/4") |
| Height | 4' (47-1/4") |
| Length | 1-1/8" |
| Weight | 55 lb |
| Color | RAL9005 |
Article numbers
- 001130Color: RAL9005 / Height: 4'$90.00Chosen
- 001299Color: Hot-dip galvanised / Height: 4'$90.00
Frequently asked questions
What does 'without spikes' mean?
The vertical wires end flush with the panel at the top and bottom, so there are no sharp wire ends sticking out.
Which heights are available?
Ten heights: 2', 2'8", 3'4", 4', 4'8", 5'2", 5'10", 6'6", 7'2" and 7'10". Ask Fenceweb to confirm the panel width.
Are posts and brackets included?
No. The product is the panel only; order posts, brackets or clamp sets and post caps separately.
Which colors can I choose?
Hot-dip galvanized, or galvanized and powder coated in moss green RAL 6005, fir green RAL 6009, anthracite gray RAL 7016 or black RAL 9005.
What types of fencing products does Fenceweb offer?
Fenceweb offers a complete range of fencing products, including welded wire fence panels, chain link fence, ornamental and metal fencing, security fencing, fence posts, swing and farm gates, gate hardware and temporary fencing. We also carry trusted brands such as Locinox, Gatemaster, ZND, AES Global, D&D Technology and Tarter.
Are all products in stock and ready for shipment?
The majority of our catalog is kept in stock and ships quickly from our warehouse. We do not publish a stock figure on the product pages, so ask our team and they will confirm availability and lead times for your order, especially a larger or custom one.
Still have questions? Call us at 214 878 1900
