Capra
Capra's temporary safety fencing combines maximum protection with flexibility and easy relocation: mobile fencing for construction sites, events and temporary site security.
7 products

Capra | Temporary Security Fence | Straight
from $1,399.95

Capra | Temporary Security Fence | Boom
from $1,499.95

Capra | Temporary Security Fence | Y-Boom
from $1,599.95

Capra | Single-Leaf Gate System
from $2,550.00

Capra

Capra | Corner system | Y-model | Left inside
from $1,449.00

Capra | Corner system | Y-model | Right outside
from $1,449.00

Capra | Connectors incl. bolts
$21.90
Showing 1-7 of 7 products
Highlights

1,875 lb interlocking base

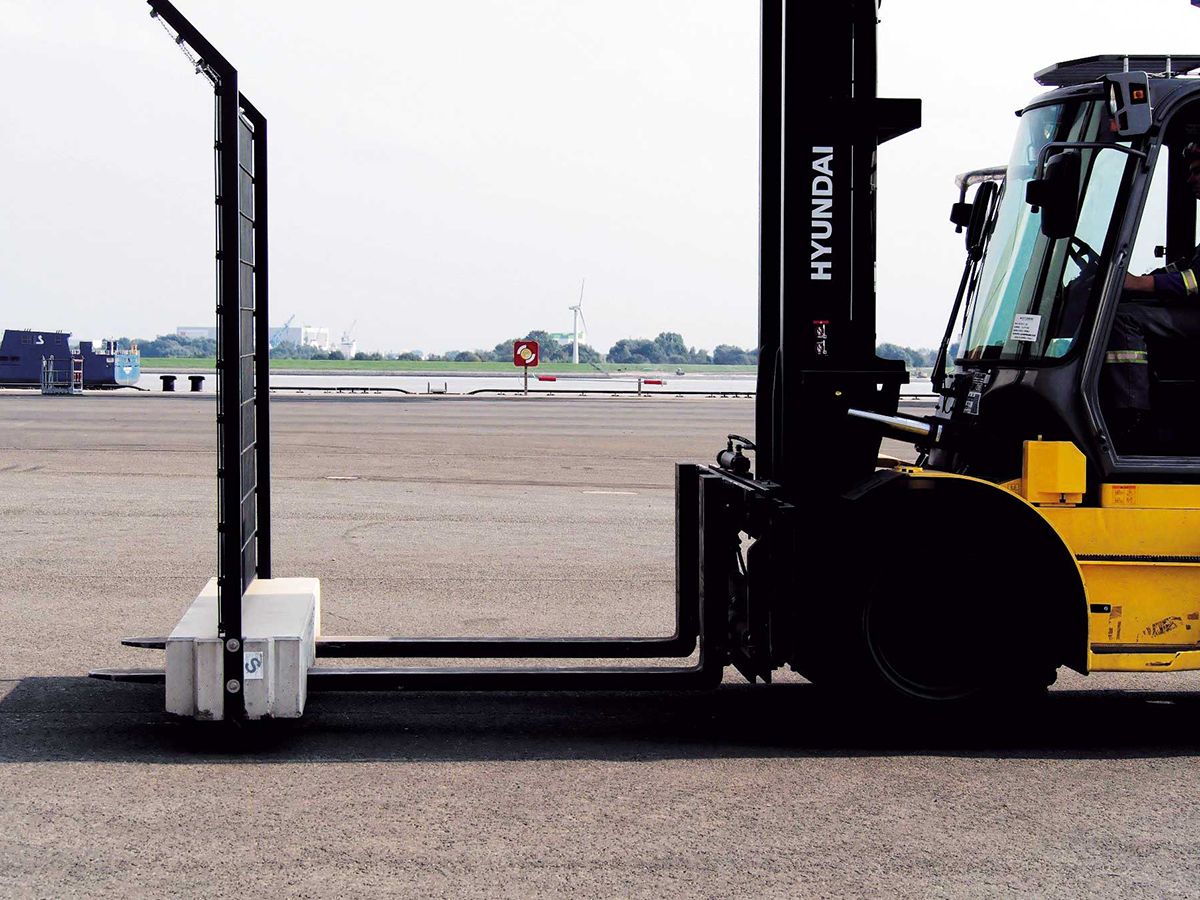

Placed by forklift. No digging, no anchors, no concrete.

Barbed or razor wire
Boom and Y-Boom arms, NATO razor wire optional.

Airports and ports
Meets ICAO and ISPS requirements, CAPRA states.

Corners at 90 and 45 degrees
Left and right corner elements for the Y-Boom line.
What is the Capra fence?
Capra is a mobile high-security fence system made by CAPRA GmbH in Arnsberg, Germany. Each element is a double-wire mesh panel on two posts, bolted to a steel-reinforced concrete base of about 1,875 lb. The base is patented (DE 10 2015 107 273): its ends are toothed, so the bases of two elements lock into each other. The weight keeps the line standing and the interlock keeps it closed, which is what lets a temporary perimeter do the job of a permanent security fence.

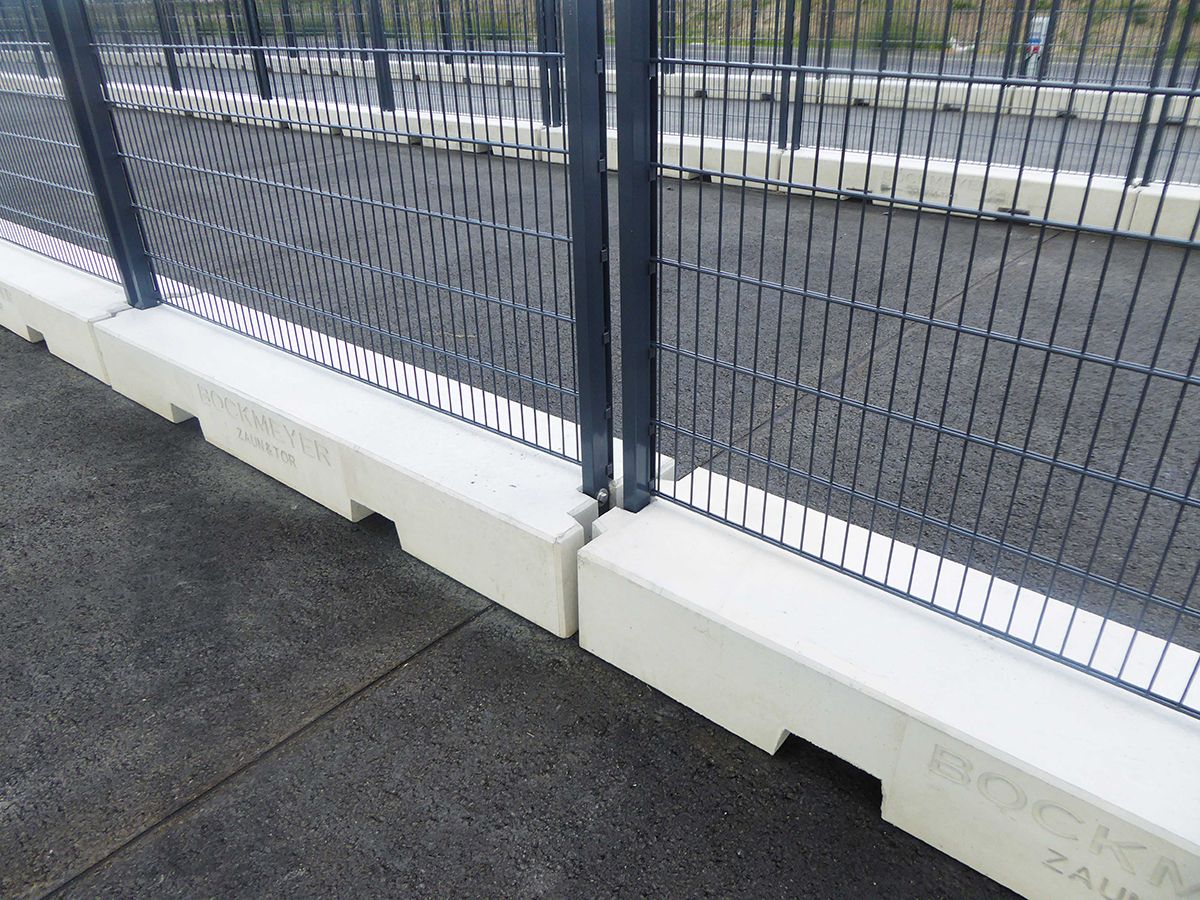

How the interlocking base works
The base measures 8' 7" x 19-11/16" x 11-13/16" including the interlock and has forklift pockets. Set an element down on level ground, set the next one against it so the teeth engage, and the two can no longer be pushed apart or knocked over. There is nothing to dig, anchor or pour, and level ground is the only requirement. To change the perimeter, lift the elements out and set them down again, on the same site or the next one.
Which Capra element do I need?
- Straight (Capra Protection DOUBLE): 7' 10" tall, no arm. The plain element for a heavy line without barbed wire.

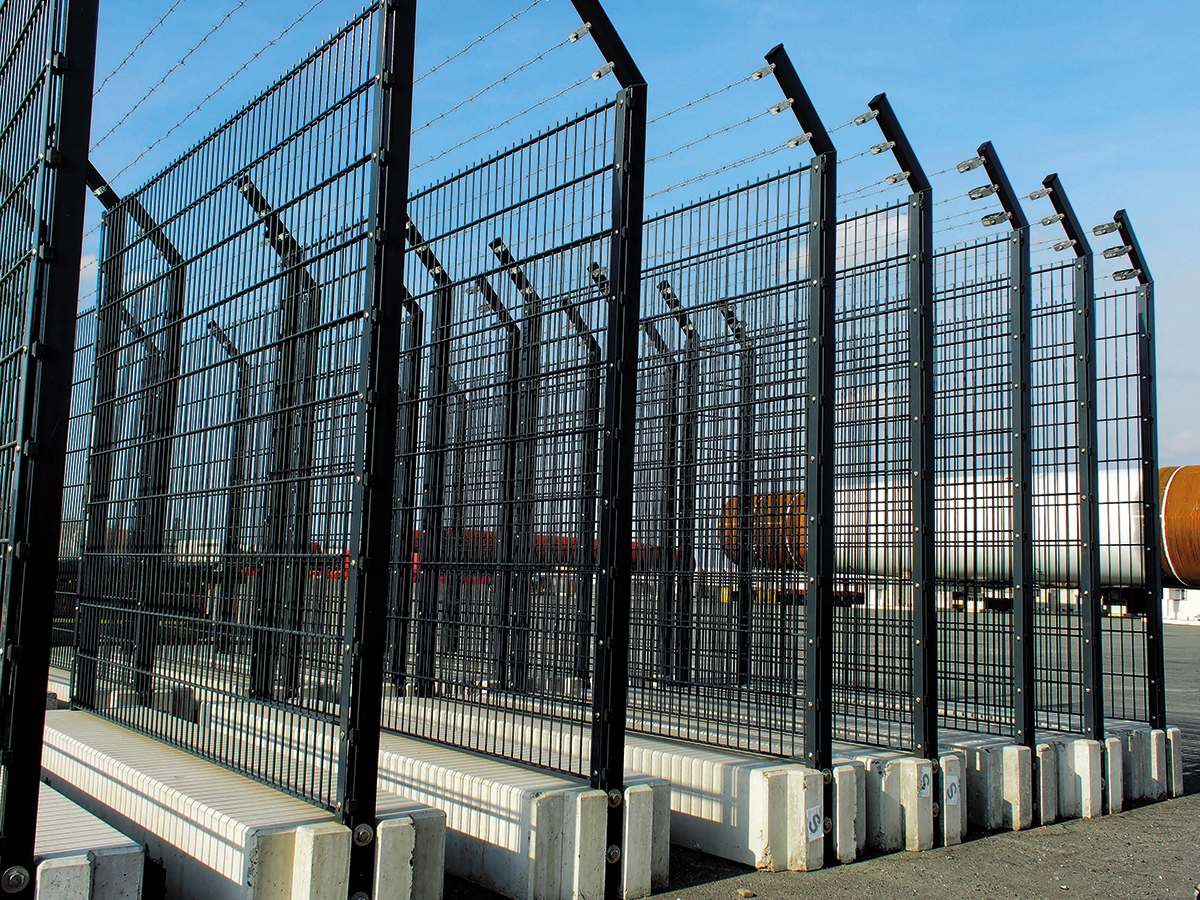

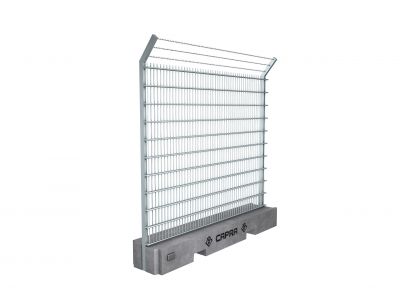

- Boom: 8' 11-11/16" tall, with an angled arm carrying three rows of barbed wire.

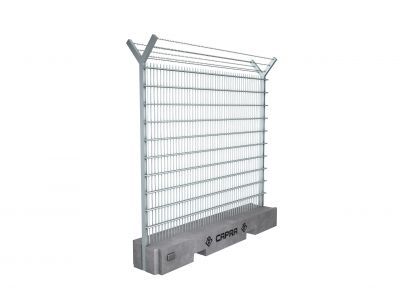

- Y-Boom: 9' 1-5/8" tall, with a Y arm carrying three rows of barbed wire on each side. NATO razor wire can be laid on top.

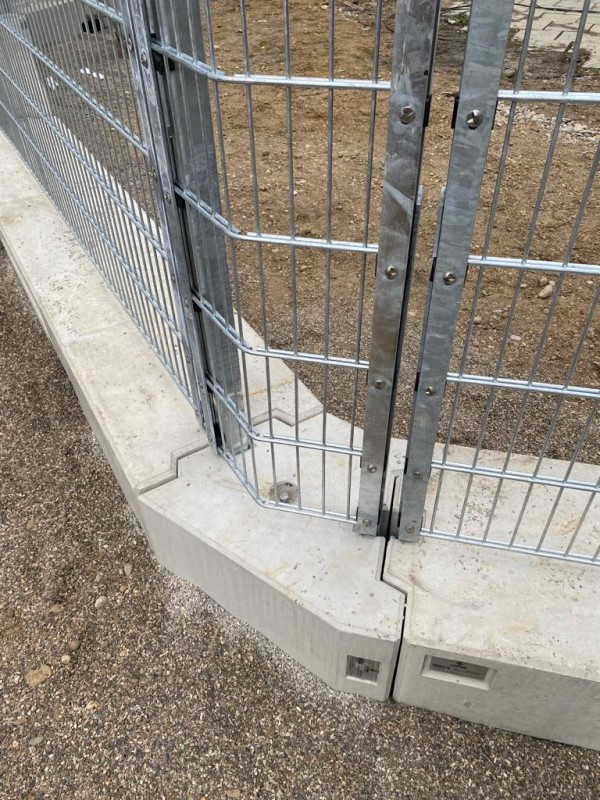

- Corner element: turns a Y-Boom line at 90 or 45 degrees, in a left and a right version.
- Single-leaf gate system: a 4' 1-1/4" opening for people, set into the line.
- Post connector with bolts: joins the posts of two adjoining elements at the top.
Specifications
- Base: steel-reinforced concrete, 8' 7" x 19-11/16" x 11-13/16" including the interlock, about 1,875 lb, with forklift pockets.
- Mesh: 8/6/8 (5/16", 1/4", 5/16") double-wire panel, 2" x 7-7/8" openings, 8' 2-13/16" x 6' 7-15/16".
- Posts: 2-3/8" x 1-9/16" x 1/8" steel, bolted into the ends of the base.
- Cover strips: 6' 8-5/16" x 1-9/16" x 3/16" over each panel edge, with M8 carriage bolts.
- Post connector: 1-9/16" x 5/16" x 6-5/16" with a 7/16" x 5-1/8" slot.
- Corner element base: 23-5/8" x 19-11/16" x 11-13/16", about 485 lb.
- Finish: hot-dip galvanized to DIN EN ISO 1461, or galvanized and powder-coated jet black RAL 9005.
Where is Capra used?

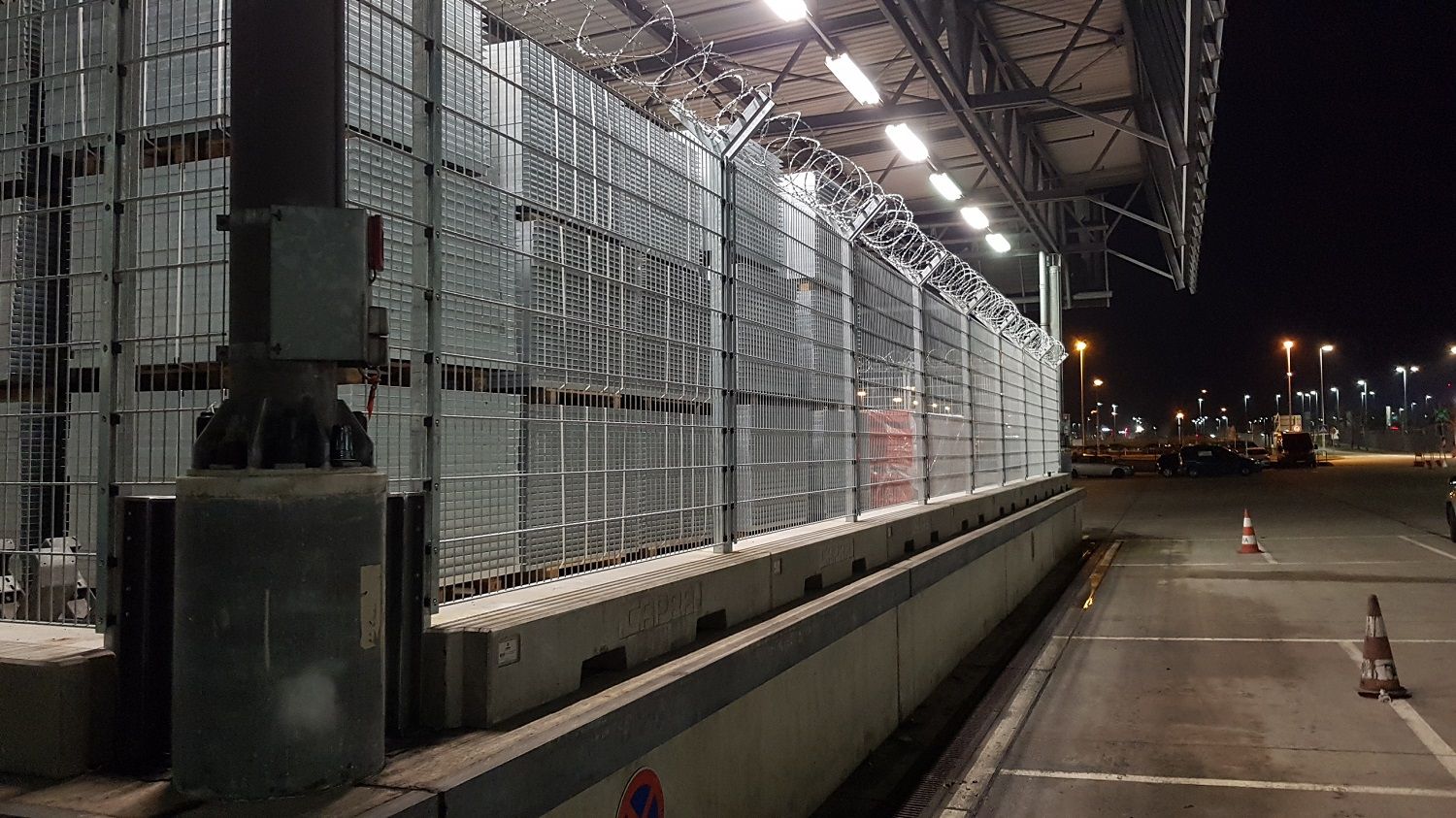

Capra is built for sites that need a strong perimeter quickly and need to move it later: cargo, transit and customs areas at ports and airports, data centers, power plants and LNG terminals under construction, logistics yards and outdoor storage, events, and police and government cordons. CAPRA states that the system meets the ICAO and ISPS requirements for airports and ports.
Capra compared with temporary fence panels
A standard temporary fence panel stands in a light foot and is clamped to the next panel: it marks a boundary. A Capra element stands on about 1,875 lb of concrete that locks into the next base, carries an 8/6/8 (5/16", 1/4", 5/16") double-wire mesh bolted between steel posts, and takes barbed or razor wire on top: it secures a boundary. Choose Capra where the fence has to stop people, not only guide them.
How do I plan a Capra perimeter?
- Measure every straight run. Each base is 8' 7" long including the interlock; send us the layout and we count the exact number of elements.
- Choose the element: Straight for a plain line, Boom or Y-Boom where the top needs barbed wire.
- Mark every corner and choose 90 or 45 degrees, and the left or right version.
- Mark where people need to get through and place a single-leaf gate there.
- Add a post connector for every joint between two elements.
- Check that the ground is level and that a forklift can reach the line.
Ordering and delivery
Each product page shows its price. Capra elements travel on a truck, so delivery is quoted for your address: send us the layout and the site address and we put together the parts list and the freight. We deliver to every US state and to Canada.
