Fortress V2 Commercial Steel Arched Drive Gate Leaf 8' | 3 Rail
Fortress V2 Commercial steel arched drive gate leaf, 3-rail, 8' wide, in 7 top styles, in heights of 3' (34"), 3.5' (40"), 4' (46"), 4.5' (54"), 5' (58"), 6' (70"), 7' (82") or 8' (94").
Key features
- 7 top styles: Flat Top, Flat Top/Flat Bottom, Pressed Spear, Pressed Spear/Flat Bottom, Extended Picket, Extended Picket/Flat Bottom and Pool Flat Top/Flat Bottom
- Heights 3' (34"), 3.5' (40"), 4' (46"), 4.5' (54"), 5' (58"), 6' (70"), 7' (82") or 8' (94")
- 8' nominal, 96" outside the uprights
- Rail 1-9/16" x 1-3/16", picket 3/4"
- 3-7/8" air space between pickets
- Marked by Fortress as meeting the pool code at the pool-code heights
- Gloss black, Fortress 20-year limited warranty
Fortress V2 Commercial Steel Arched Drive Gate Leaf 8': choose the top style and the size
Top styles

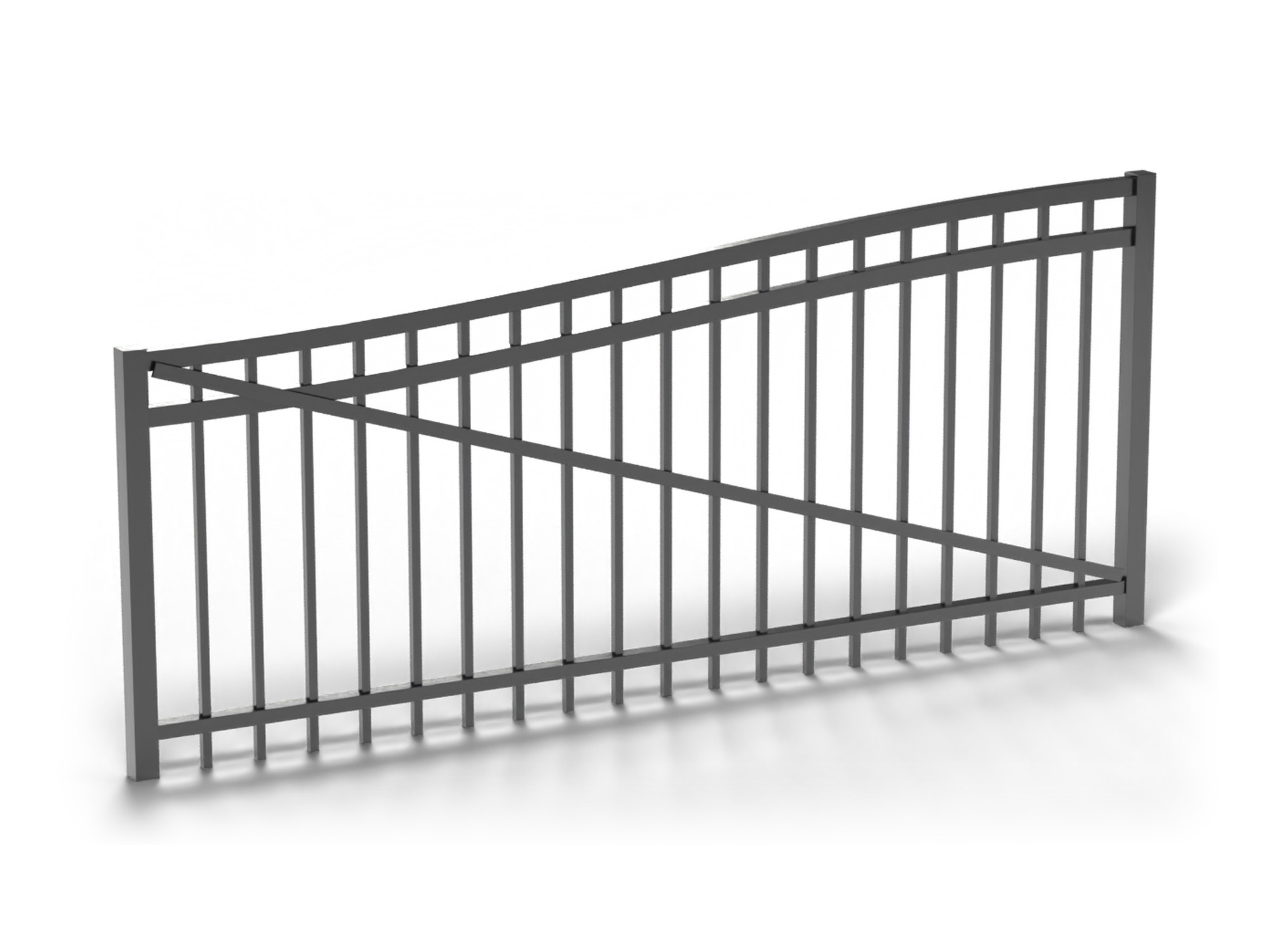

Flat Top: The pickets stop flush with the top rail for a clean, modern line.
Flat Top/Flat Bottom: The pickets stop at the top and the bottom rail, so both edges of the fence are straight and closed.
Pressed Spear: Each picket rises above the top rail to a pressed spear point, the classic ornamental look.
Pressed Spear/Flat Bottom: Pressed spear points above the top rail, and a flat bottom rail that closes the fence at ground level.
Extended Picket: The pickets run through and past the top rail and end square, a cleaner take on the spear top.
Extended Picket/Flat Bottom: Square-cut pickets extend above the top rail, with a flat bottom rail at ground level.

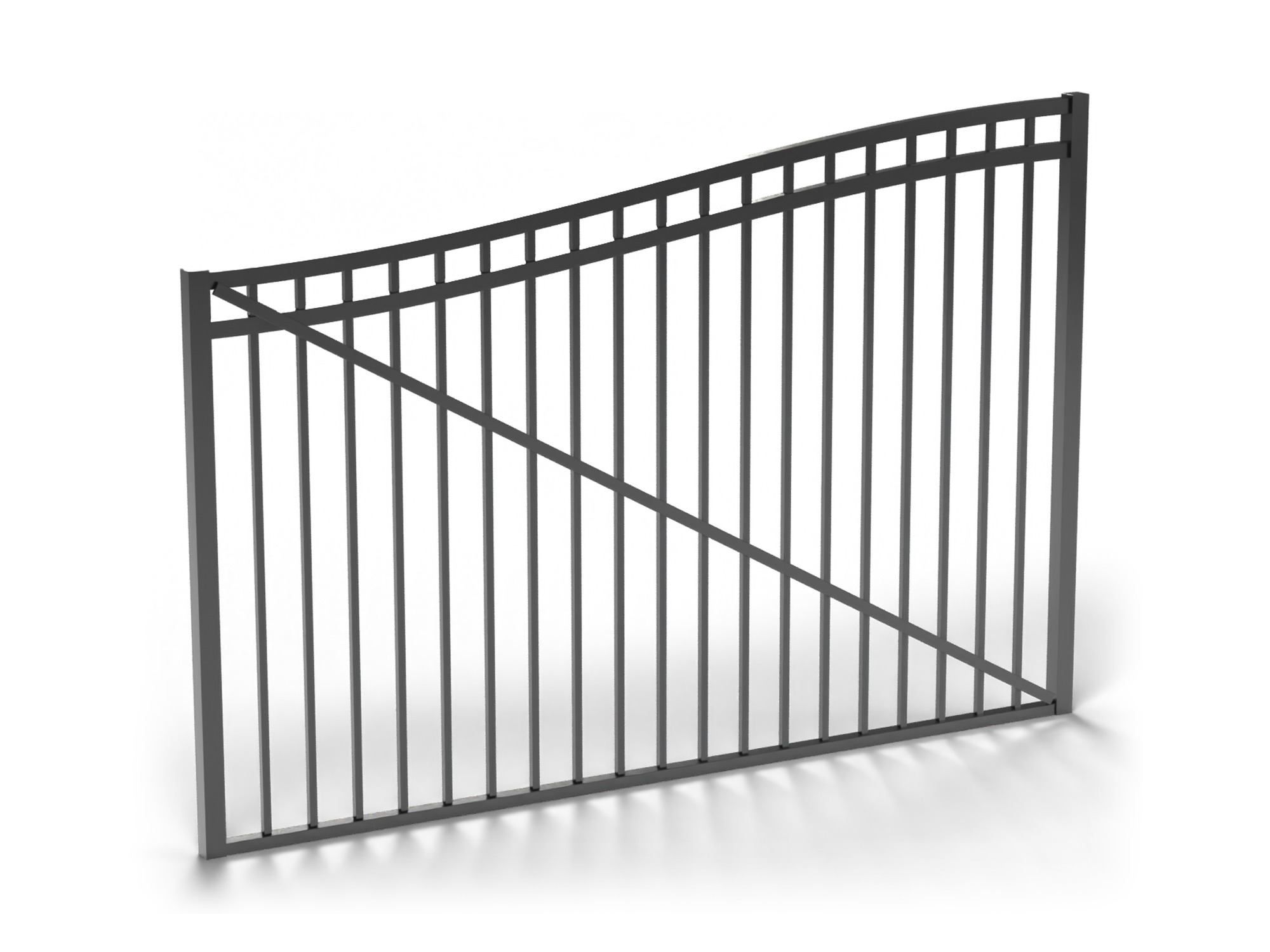

Pool Flat Top/Flat Bottom: A flat top and flat bottom panel made for pool enclosures and marked by Fortress as meeting the pool code.
V2 panels are rackable up to 30" over a panel, so the fence follows a slope instead of stepping down it.
Sizes and system
Materials and finish
Gloss black powder coat over pre-galvanized, e-coated steel, with a Fortress 20-year limited warranty. A rinse with water is all the upkeep it needs.
Specifications
| Brand | Fortress |
| Manufacturer | Fortress Building Products |
| Finish | Gloss black |
| Width | 8' (96") |
| Height | 2'10" (34") |
| Warranty | 20-year limited |
| Product line | V2 |
| Suitable for | Pool enclosures (pool code heights) |
| Top style | Flat Top |
| Details | |
|---|---|
| Rail size | 1-5/8" |
| Picket size | 3/4" |
Article numbers
- 723400848Top style: Flat Top / Height: 3'4"Price on request
- 723460846Top style: Flat Top / Height: 3'10"Price on request
- 723340848Top style: Flat Top / Height: 2'10"Price on requestChosen
- 723400849Top style: Flat Top/Flat Bottom / Height: 3'4"Price on request
- 723460849Top style: Flat Top/Flat Bottom / Height: 3'10"Price on request
Maintenance
Rinse with water now and then. Touch up a scratch with Fortress gloss black touch-up paint.
Frequently asked questions
Which posts do I need?
Use 2-1/2 or 3" Fortress V2 posts. The post length depends on the fence height; the matching posts are linked on this page.
Does it need painting?
No. The finish is powder coated over a galvanized and e-coated base; rinse it with water now and then.
Does it meet the pool code?
Fortress marks this product as meeting the pool code at the heights its product guide flags. Check your local code before you build.
