Gatemaster | Superlock 2.0 Code Gate Lock | RapidReset | Single-Sided Keypad
The Gatemaster Superlock 2.0 RapidReset code gate lock has a mechanical keypad on the outside whose code can be changed in about ten seconds without taking the lock off the gate. The one-piece die-cast casing needs no power and comes in black or green, for 3/8" to 1-3/16" or 1-9/16" to 2-3/8" frames.
Key features
- Change the code in about 10 seconds with RapidReset
- Code changed on the keypad, the lock stays on the gate
- Mechanical keypad outside, handle inside, no power needed
- One-piece die-cast casing in black or green
- 13/16" latchbolt throw
- 5-year warranty
Gatemaster Superlock 2.0 RapidReset: change the code in seconds
Traditional keypad gate locks have to come off the gate to change the entry code, and the pins inside are adjusted by hand before the lock is refitted. RapidReset changes that: the code is updated with a four-step process on the keypad itself, so the lock stays on the gate and keeps up with changing security needs.
Keypad on one side

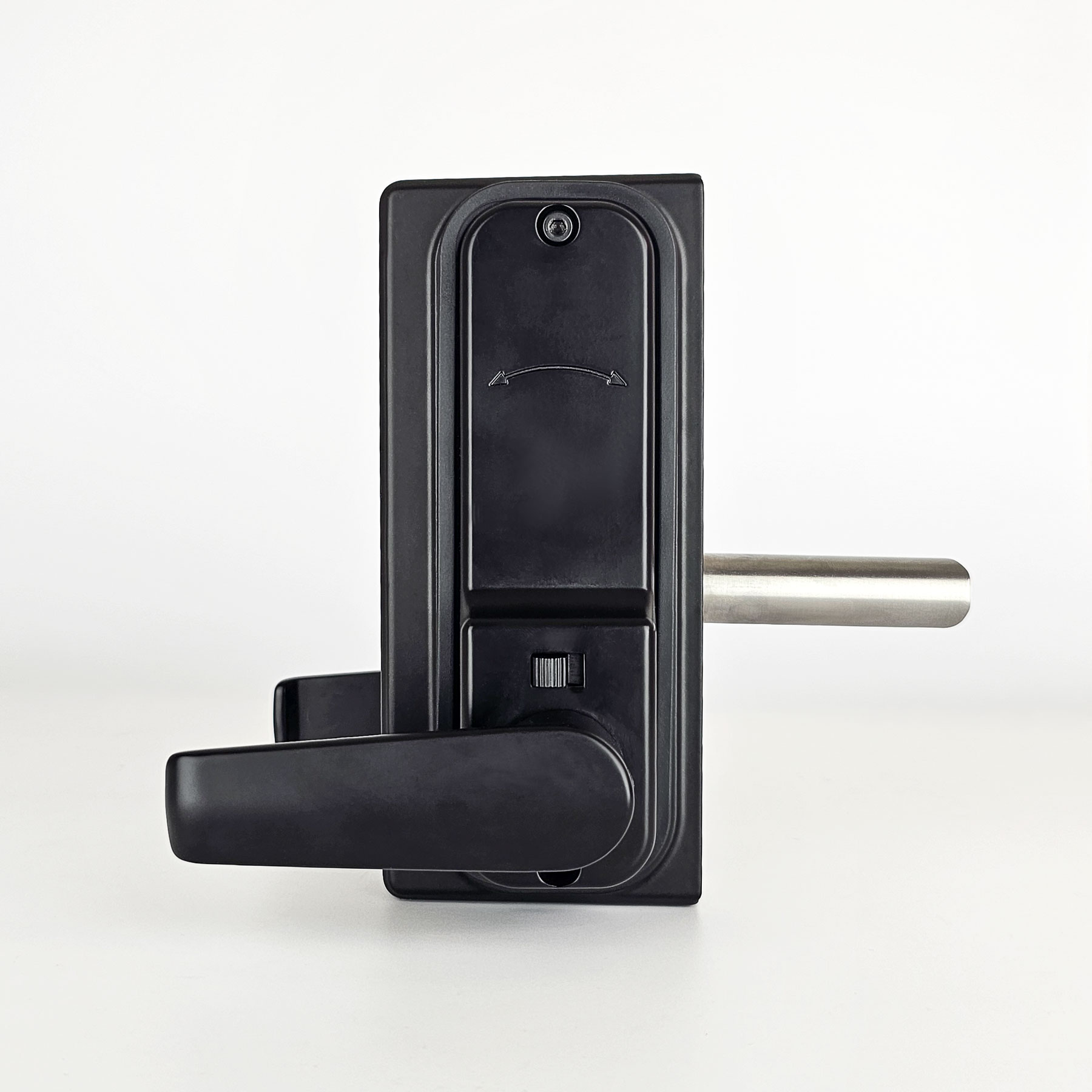

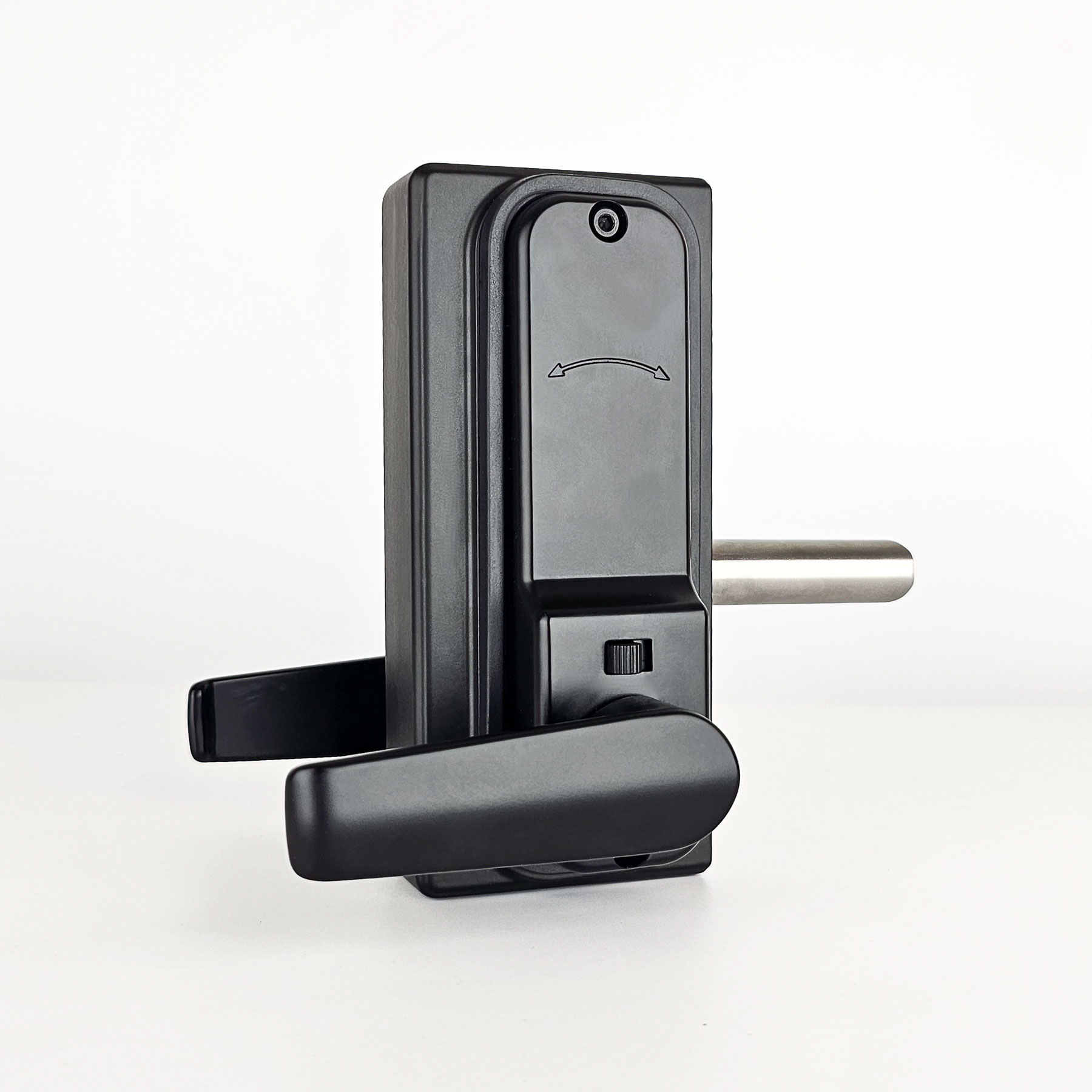

This version has a keypad on the outside of the gate and a handle on the inside, in a one-piece die-cast casing. The keypad and the locking mechanism need no electricity, which means low maintenance and long-lasting durability.
Finish and warranty
The casing comes in standard black or green. Gatemaster gives a 5-year warranty on the Superlock 2.0 range. Certain features are protected under European Patent No. 3354825.
Sizes and installation
Versions are made for 3/8" to 1-3/16" and 1-9/16" to 2-3/8" gate frames, each left or right-handed. The latchbolt throws 13/16". To fit, drill two 3/8" holes at 5-1/2" centers for the fixing bolts and an 11/16" clearance hole for the latchbolt, then bolt the lock on and fix the strike plate to the gate post by welding or with screws.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Patent | EP 3354825 |
| Material | One-piece die-cast casing |
| Finish | Anti-corrosion; available in black or green casing |
| Throw | 3/4" |
| Power | No battery or power needed |
| Lock type | Mechanical keypad gate lock |
| Keypad type | RapidReset double-sided |
| Fixing method | 3-hole drilling. Bolt-on |
| Warranty | 5 years |
| Frame width | 3/8" to 1-3/16" |
| Hand | Left |
What's in the box
- 0.098" hex key + 0.118" hex key
- M8 fixing bolts
- Face plate
- Latchbolt
- Strike plate (self-drilling fasteners)
Article numbers
- BDGSRR1030RFrame width: 3/8" to 1-3/16" / Hand: Right$354.95
- BDGSRR4060RFrame width: 1-9/16" to 2-3/8" / Hand: Right$354.95
- BDGSRR4060LFrame width: 1-9/16" to 2-3/8" / Hand: Left$354.95
- BDGSRR1030LFrame width: 3/8" to 1-3/16" / Hand: Left$354.95Chosen
Installation
- 1Check the handing of the gate. For a left-hand gate, reverse the handing as described below; for a right-hand gate, go straight to step 2.
- 2Drill two 3/8" holes at 5-1/2" centers for the fixing bolts provided
- 3Drill a 3/4" clearance hole for the latchbolt, centered 2-3/8" above the bottom fixing hole
- 4Hold the lock against the back of the box section and screw the latchbolt on through the larger hole.
- 5Lock the latchbolt by inserting the hex key supplied into the end of the latchbolt.
- 6Fix the lock in place with the stainless steel bolt support plate and the countersunk screws supplied, and check that the latchbolt still moves freely.
- 7Fix the strike plate to the gate post, either by welding or with screws.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
How fast can I change the code on a RapidReset model?
In about ten seconds, without taking the lock off the gate and without tools. That matters where the code has to change often - a building site, a holiday let, a shared bin store or after a contractor leaves. The mechanism stays mechanical, so there is still nothing to power or charge.
Does this code lock need power or batteries?
No. The keypad is fully mechanical, so there is no wiring, no batteries and nothing to replace. That is what makes it suitable for gates at the far end of a site, allotments, bin stores and anywhere a cable run would be impractical - and it keeps working in a power cut.
How do I know whether I need a left-hand or a right-hand lock?
Stand on the outside of the gate - the side you approach from. If the hinges are on your left, you need a left-hand lock; if they are on your right, a right-hand lock. Gatemaster locks in this range are reversible: you loosen the locking screw in the end of the latchbolt with the 1/8" hex key supplied, turn the bolt through 180 degrees and tighten it again.
Which version fits my gate frame?
Measure the depth of the gate frame, the box section or flat bar the lock bolts onto. Versions are made for 3/8" to 1-3/16" and 1-9/16" to 2-3/8" frames. Pick the version that matches your frame; a lock made for a deeper frame will not sit flush on a shallow one. The product codes are BDGSRR1030L, BDGSRR1030R, BDGSRR4060L and BDGSRR4060R.
