Hinge set | Aluminum plugs, for garden gates

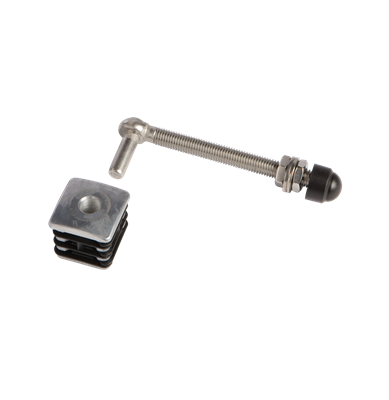

Locinox stainless steel garden gate hinge with aluminium plug
Locinox hot-dip galvanised M16 hinge axle with a reinforced aluminium plug
1 / 2
$31.23
Art. no. P00011601

Locinox garden gate hinge set with reinforced aluminum plugs for extra stability. Choose stainless steel M12 hinges with a 5-1/8" or 5-7/8" pin, for 1-9/16" square profiles, or hot-dip galvanized M16 hinges with a 6-5/16" or 7-1/16" pin, for 1-9/16" or 1-15/16" square profiles. An economical quality solution for garden and pedestrian gate projects.


Pin length

Thread

Only this value fits the rest of your configuration, so it is set for you.

Profile dimension

Key features

  • Hinge set for garden and pedestrian gates
  • M12 hinges in stainless steel, M16 hinges hot-dip galvanized
  • Reinforced aluminum plugs for extra stability
  • Pin length 5-1/8" or 5-7/8" (M12), 6-5/16" or 7-1/16" (M16)
  • Plugs for 1-9/16" or 1-15/16" square profiles
  • Economical quality solution
Quantity

Buying in bulk or need custom sizes?Free quote →
Delivery from stock
In-house production
Nationwide delivery

Garden gate hinge set with reinforced aluminum plugs

This Locinox hinge set is an economical quality solution for garden gates and pedestrian gates. The hinges, M12 in stainless steel or M16 in hot-dip galvanized steel, are combined with reinforced aluminum plugs that give the gate extra stability.

Materials and finish

Stainless steel and hot-dip galvanized hinges both resist corrosion and keep working smoothly on gates outdoors. The plugs are aluminum and are reinforced.

Sizes and fit

The M12 set is available with a hinge pin length of 5-1/8" or 5-7/8", for 1-9/16" square profiles. The M16 set comes with a 6-5/16" or 7-1/16" pin, for 1-9/16" or 1-15/16" square profiles. Choose the length that suits the distance between the gate and the post on your project.

Typical uses

Use the set on garden gates and pedestrian gates in residential projects, where a reliable hinge at a sensible price is wanted. Because it is a complete set, it is a practical choice for installers who fit many gates of the same type.

Specifications

BrandLocinox
Width5-7/8"
Height2"
Length11-3/4"
Weight1.9 lb
EAN5414768013229
Pin length6-5/16"
ThreadM16
Profile dimension40 x 40 mm

Article numbers

  • P00008825Pin length: 5-1/8" / Thread: M12$33.15
  • P00008826Pin length: 5-7/8" / Thread: M12$35.66
  • P00011600Pin length: 7-1/16" / Thread: M16$33.75
  • P00011601Pin length: 6-5/16" / Thread: M16$31.23Chosen
  • P00011602Pin length: 7-1/16" / Thread: M16$37.82
  • P00011603Pin length: 6-5/16" / Thread: M16$35.30
Good to know

Frequently asked questions

Which pin lengths are available?

5-1/8" and 5-7/8" for the M12 set, 6-5/16" and 7-1/16" for the M16 set.

What are the hinges made of?

Stainless steel (M12) or hot-dip galvanized steel (M16), with reinforced aluminum plugs.

What types of fencing products does Fenceweb offer?

Fenceweb offers a complete range of fencing products, including welded wire fence panels, chain link fence, ornamental and metal fencing, security fencing, fence posts, swing and farm gates, gate hardware and temporary fencing. We also carry trusted brands such as Locinox, Gatemaster, ZND, AES Global, D&D Technology and Tarter.

Are all products in stock and ready for shipment?

The majority of our catalog is kept in stock and ships quickly from our warehouse. We do not publish a stock figure on the product pages, so ask our team and they will confirm availability and lead times for your order, especially a larger or custom one.

Does Fenceweb provide installation services or recommendations?

Fenceweb supplies products rather than installation, but our specialists are happy to recommend the right materials for your project and can connect you with experienced fencing contractors in our partner network.

How can I calculate the total cost of my order, including shipping?

Add the products you need to your cart and shipping is calculated at checkout based on your delivery address and order size. For large projects, request a quote and we will prepare a detailed price including freight.
