Top and Bottom Rail System | 96" | 2" x 2" | Galvanized & Powder Coated | including 4 L-Brackets
1 / 7
$66.00
Art. no. FW-2602045
Two 2" x 2" 16 ga rails, 96" long, with four 11 ga rail brackets and screws. Adds a top and bottom rail to the back of your security fence.
Key features
- 2 rails, 2" x 2" square tube, 16 ga, 96" long
- Mounted on the back of the fence, between the posts
- Galvanized and powder coated black
- For fence heights of 6, 8 and 10 ft
- Posts, mesh panels, spider brackets and bolts not included
Quantity
Buying in bulk or need custom sizes?Free quote →
Delivery from stock
In-house production
Nationwide delivery
Horizontal rails for a stiffer security fence

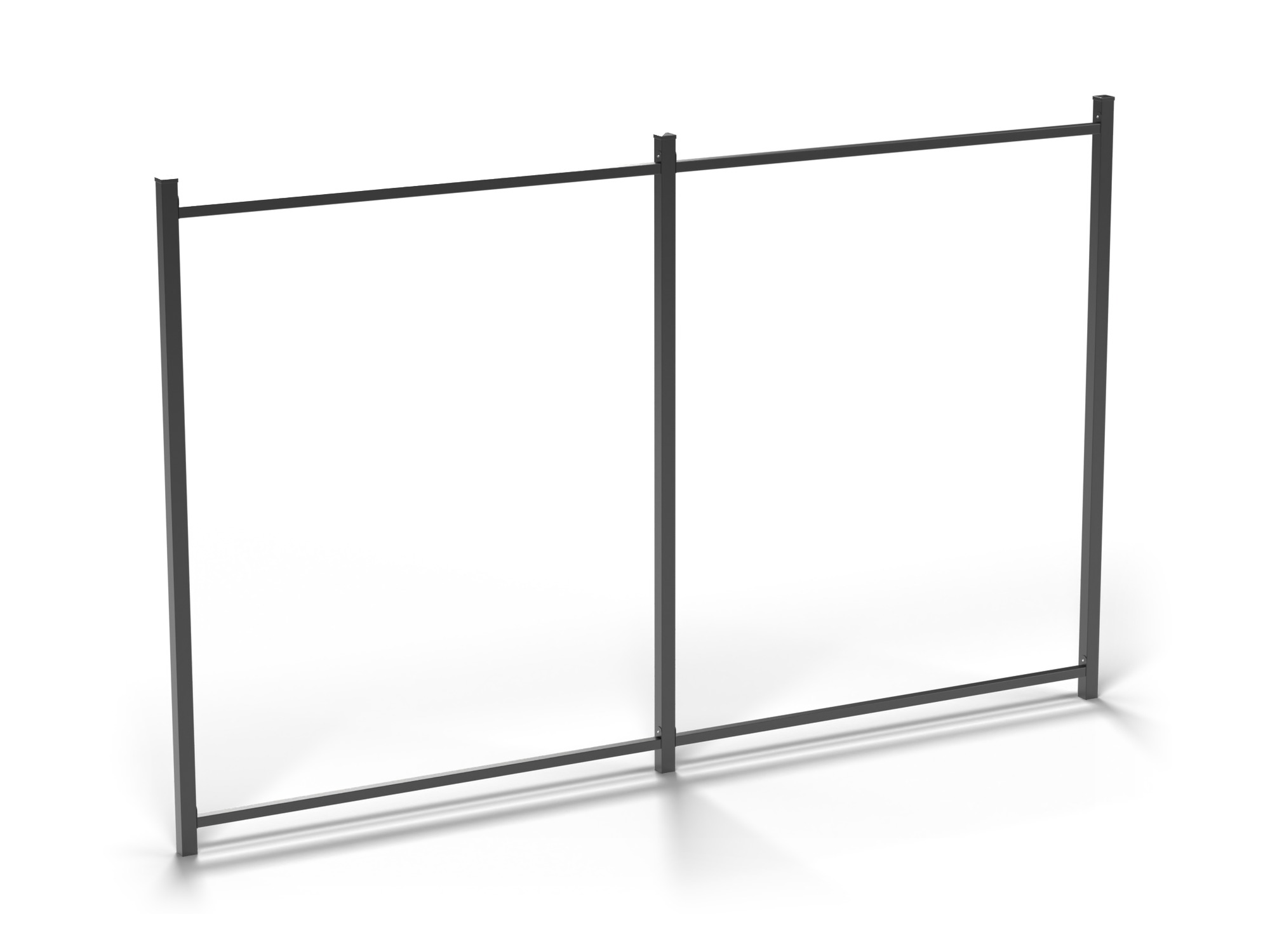

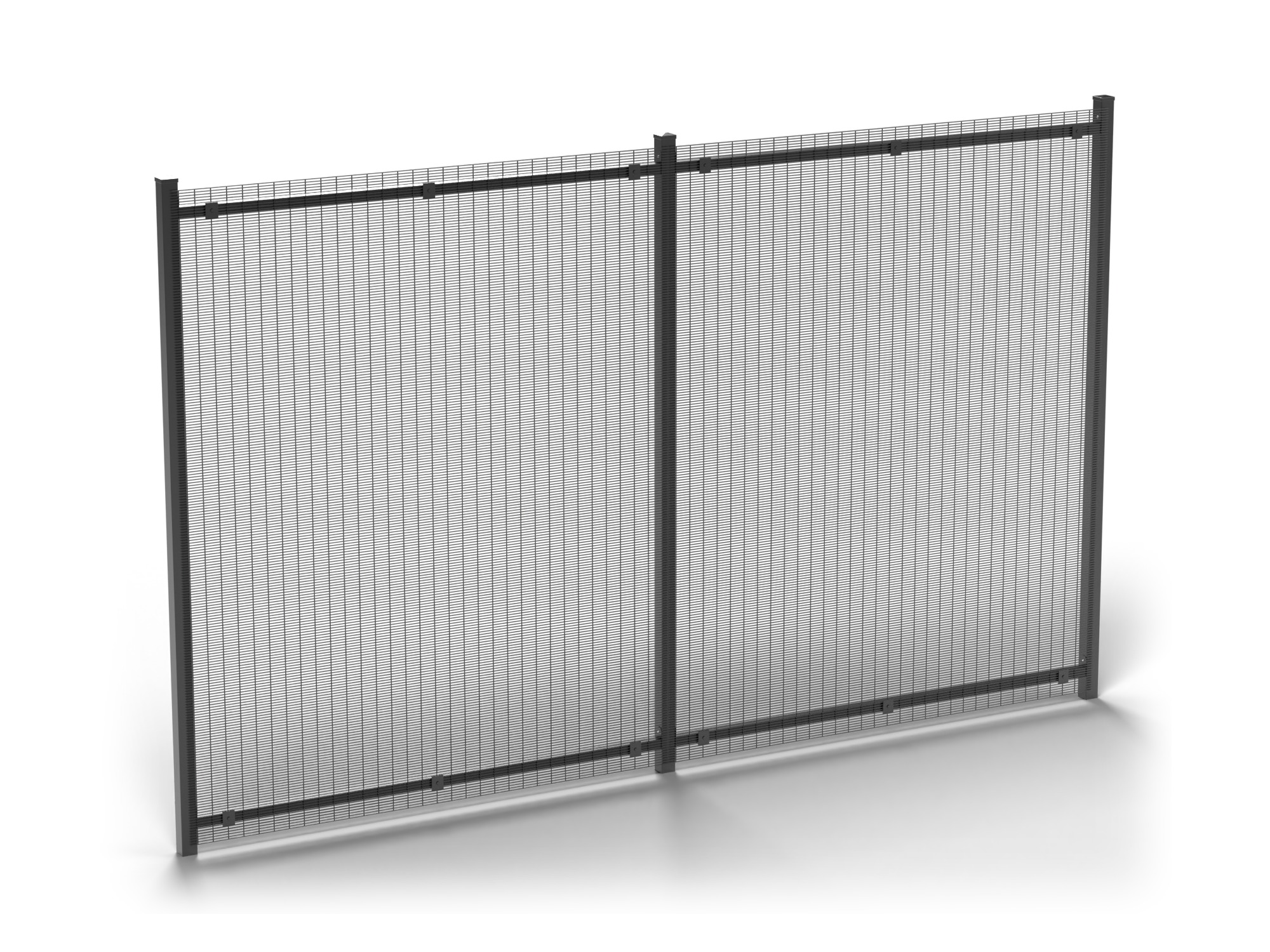

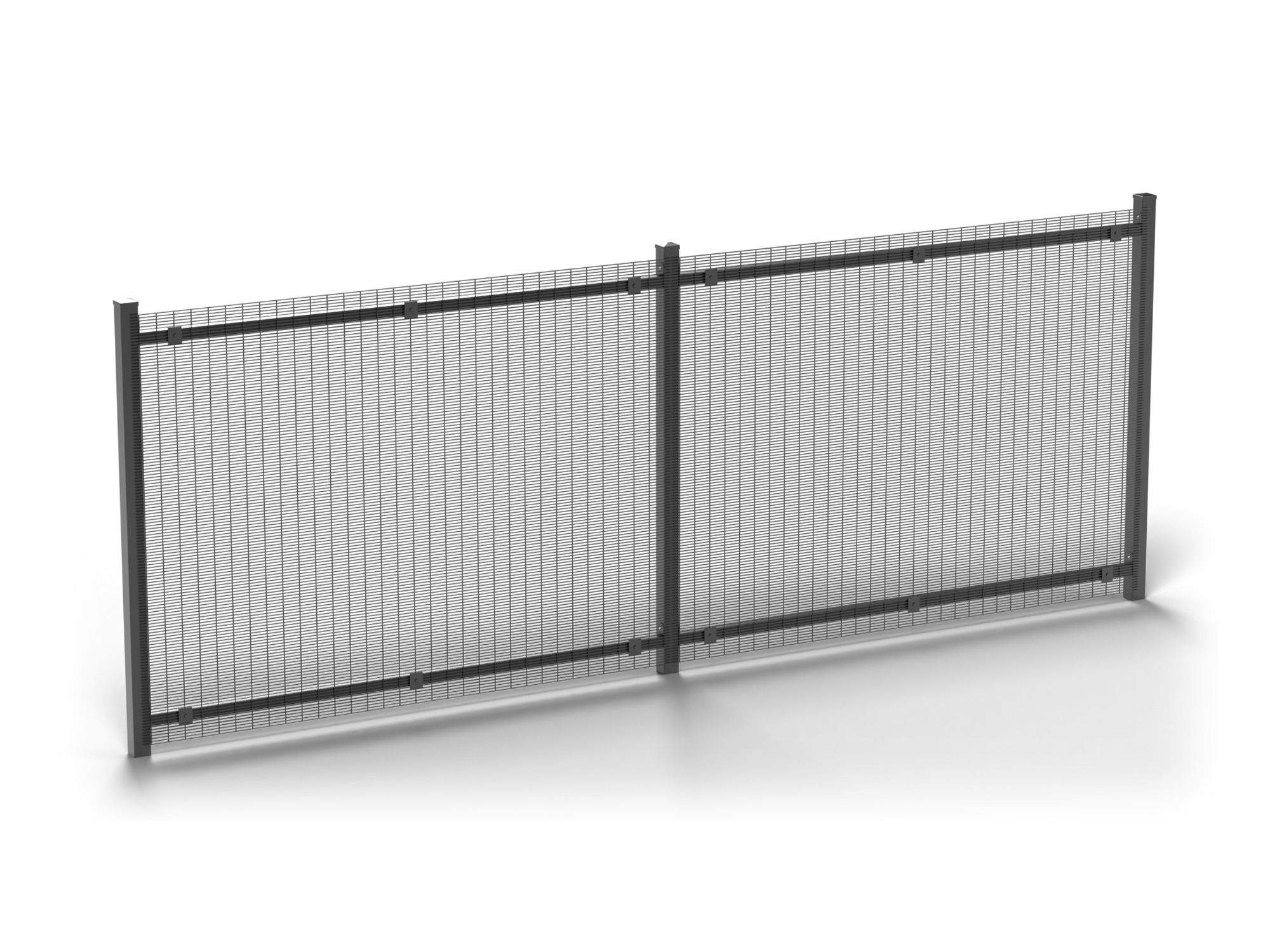

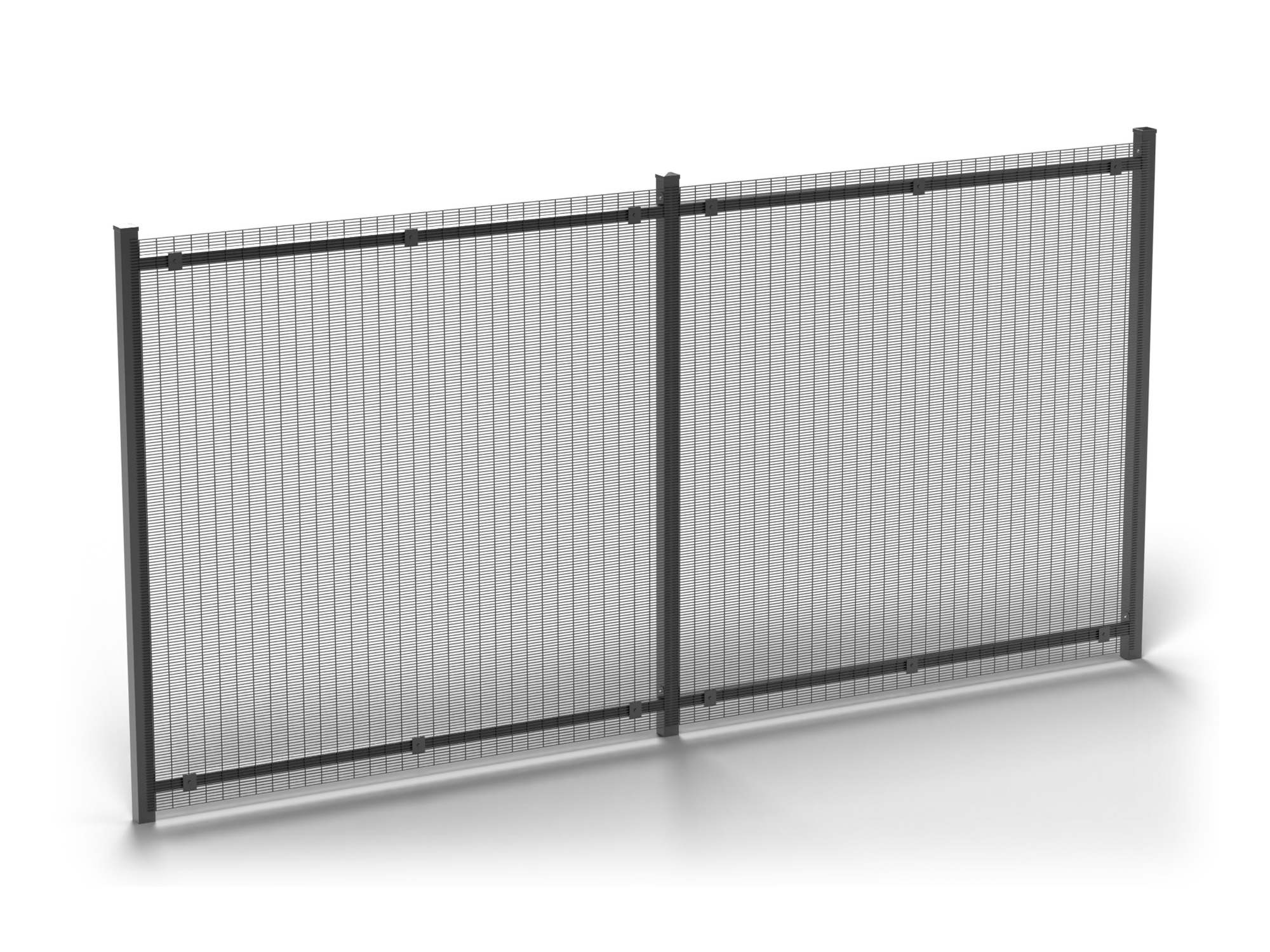

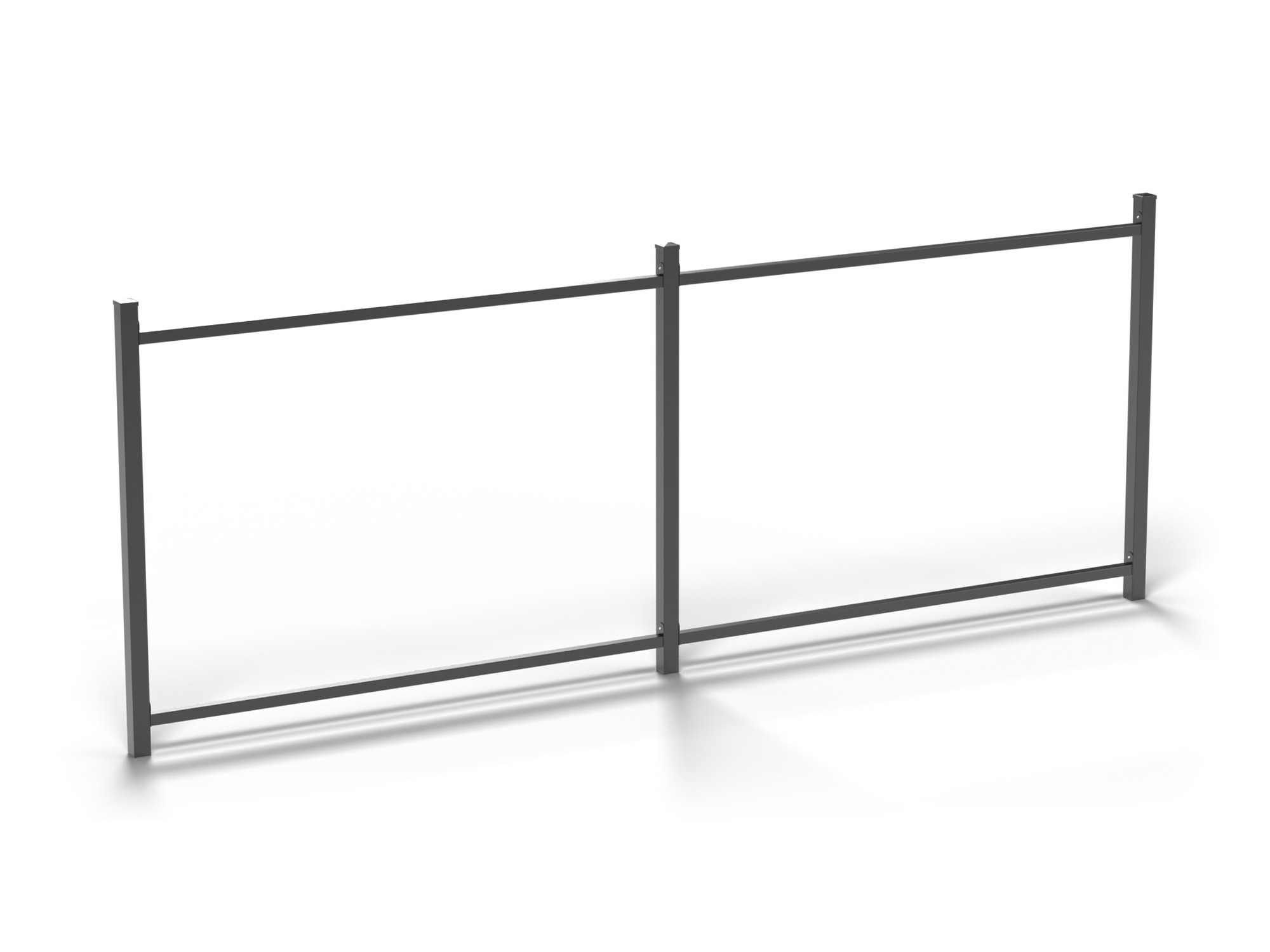

The Horizontal Rail System stiffens a security fence and makes it harder to tamper with. The 2" x 2" rails are mounted horizontally on the back of the fence, between the posts. Each rail end slides over an 11 ga rail bracket that is screwed to the side of the post, so the connection is concealed inside the tube. The mesh panel is then fixed to the rails with spider brackets. The system works for fence heights of 6, 8 and 10 ft.
Not included
Posts, mesh panels, spider brackets and bolts. They are shown in the images for illustration only and are available separately.
Specifications
| Brand | Fenceweb |
| Manufacturer | Fenceweb |
| Material | Steel |
| Finish | Galvanized and powder coated black |
| Width | 2" |
| Length | 8' (96") |
| Fixing method | Rail bracket 11 ga, for 2" tubing, 1 self-drilling screw 1/4" x 1-1/2" per bracket |
| Suitable for | Security fence 358, fence heights 6, 8 and 10 ft |
| Sold as | Set of 2 rails, 4 brackets and 4 screws |
| Details | |
|---|---|
| Rail size | 2" |
| Gauge | 16 ga |
What's in the box
- 2 x rail 2" x 2", 16 ga, 96", galvanized and powder coated black
- 4 x rail bracket 11 ga for 2" tubing
- 4 x self-drilling screw 1/4" x 1-1/2"
Installation
- 1Slide a bracket into each end of the rail.
- 2Hold the rail at the required height between the posts, with the bracket plates flat against the sides of the posts.
- 3Fix each bracket to the post with one self-drilling screw through the hole in the plate. No pre-drilling needed.
- 4Repeat for every rail, then fix the mesh panel to the rails with spider brackets.
