Fence Rails
Horizontal rails that stiffen a security fence and make it harder to tamper with. Mounted on the back of the fence between the posts, in 2 rail and 3 rail sets for fence heights of 6, 8 and 10 ft. Read more
2 products
Top and Bottom Rail System | 96" | 2" x 2" | Galvanized & Powder Coated | including 4 L-Brackets
$66.00
Horizontal Rail System - 3 Rail | 2" x 2" | 16 GA | 96" | Black
$99.00
Fence Rails
Looking for a strong, versatile fencing solution? FenceWeb's Fence Rails offers the perfect balance of security and style.
Showing 1-2 of 2 products
Horizontal rails for security fence

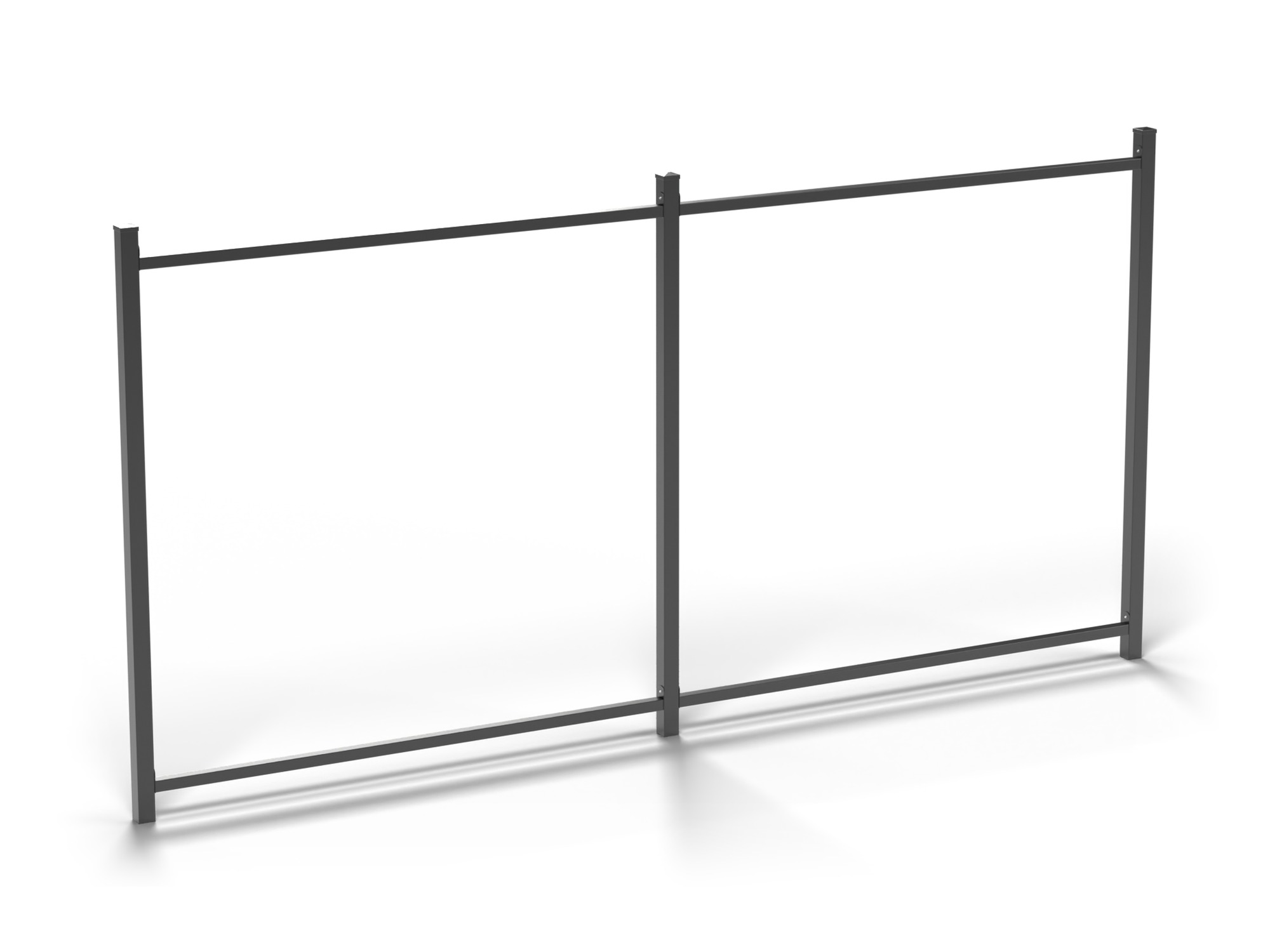

The Horizontal Rail System stiffens a security fence and makes it harder to tamper with. The 2" x 2" rails are mounted horizontally on the back of the fence, between the posts. Each rail end slides over an 11 ga rail bracket that is screwed to the side of the post, so the connection is concealed inside the tube. The mesh panel is then fixed to the rails with spider brackets.
2 rail or 3 rail
- 2 rail: a top and a bottom rail, with four rail brackets and four screws
- 3 rail: a top, a mid and a bottom rail, with six rail brackets and six screws
Posts, mesh panels, spider brackets and bolts are not included. They are shown in the images for illustration only and are available separately.
Frequently asked questions
Which fence heights does the rail system fit?
Fence heights of 6, 8 and 10 ft. The set is the same for each height; only the position of the rails on the posts differs.
What is included in a set?
The 2" x 2" 16 ga rails, 96" long and galvanized and powder coated black, with one 11 ga rail bracket per rail end and one self-drilling screw 1/4" x 1-1/2" per bracket.
What else do I need?
Posts and 358 security mesh panels, and spider brackets with bolts to fix the mesh to the rails. All are available separately.
