Horizontal Rail System - 3 Rail | 2" x 2" | 16 GA | 96" | Black

Name: Horizontal Rail System - 3 Rail | 2" x 2" | 16 GA | 96" | Black
Brand: Fenceweb
SKU: FW-2602046
Price: 99.00 USD

Horizontal Rail System with 3 rails on a 2438 mm fence frame, render. Posts and mesh panels shown for illustration only - not included.

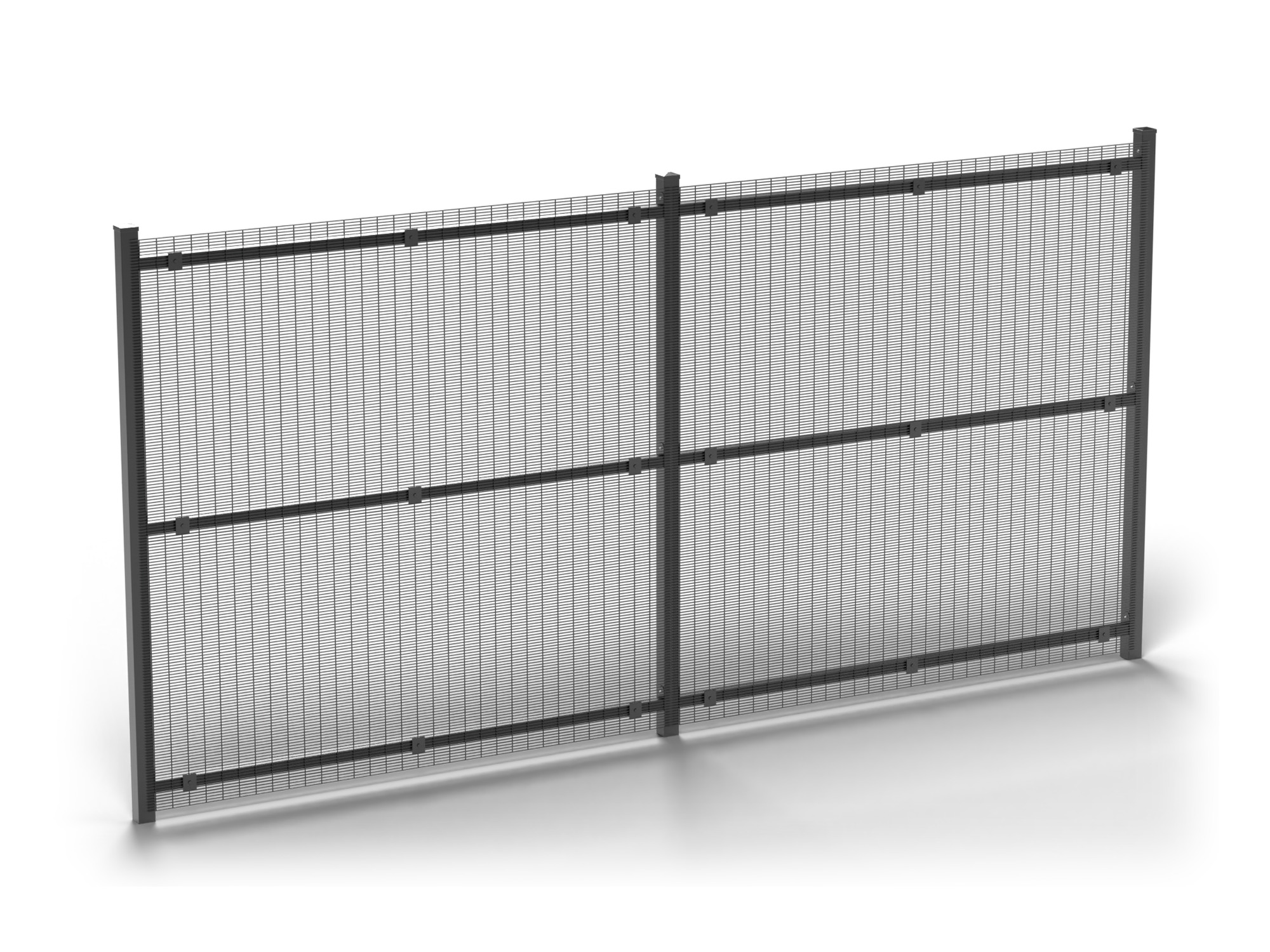

Horizontal Rail System with 3 rails behind a 2438 mm 358 security mesh fence, render. Posts and mesh panels shown for illustration only - not included.

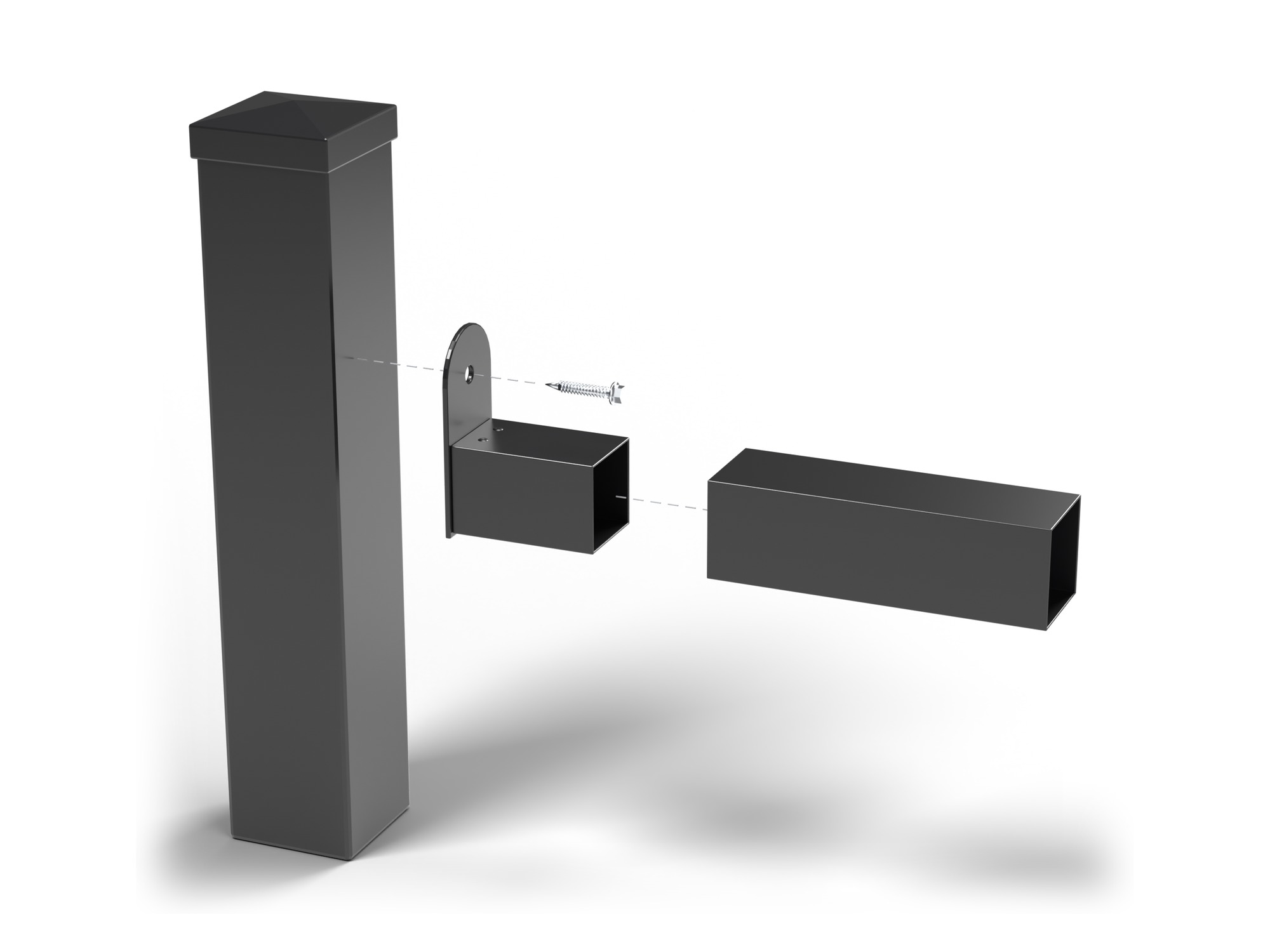

Connection detail: bracket screwed to the post, rail slides over the bracket - post not included.

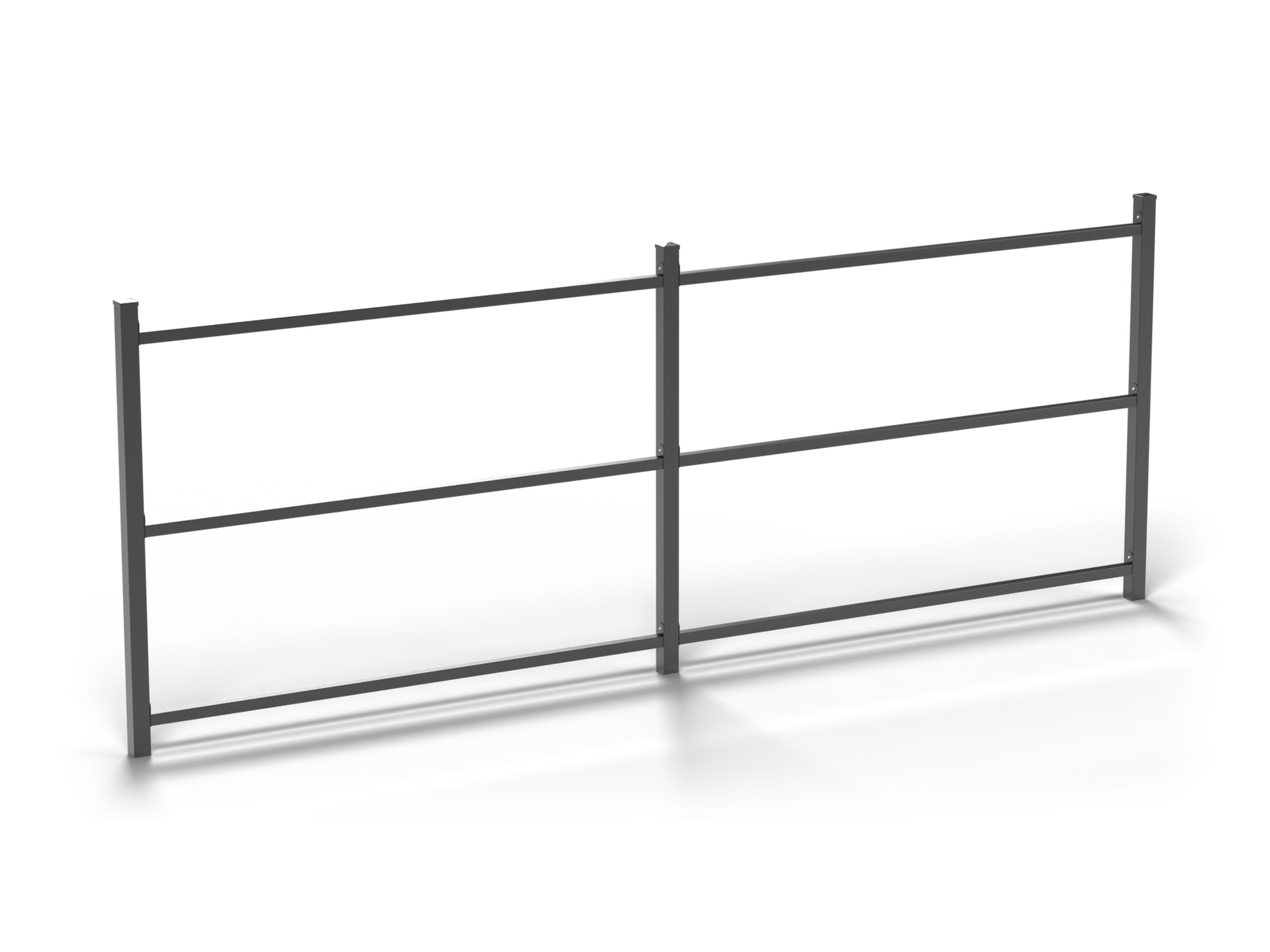

Horizontal Rail System with 3 rails on a 1829 mm fence frame, render. Posts and mesh panels shown for illustration only - not included.

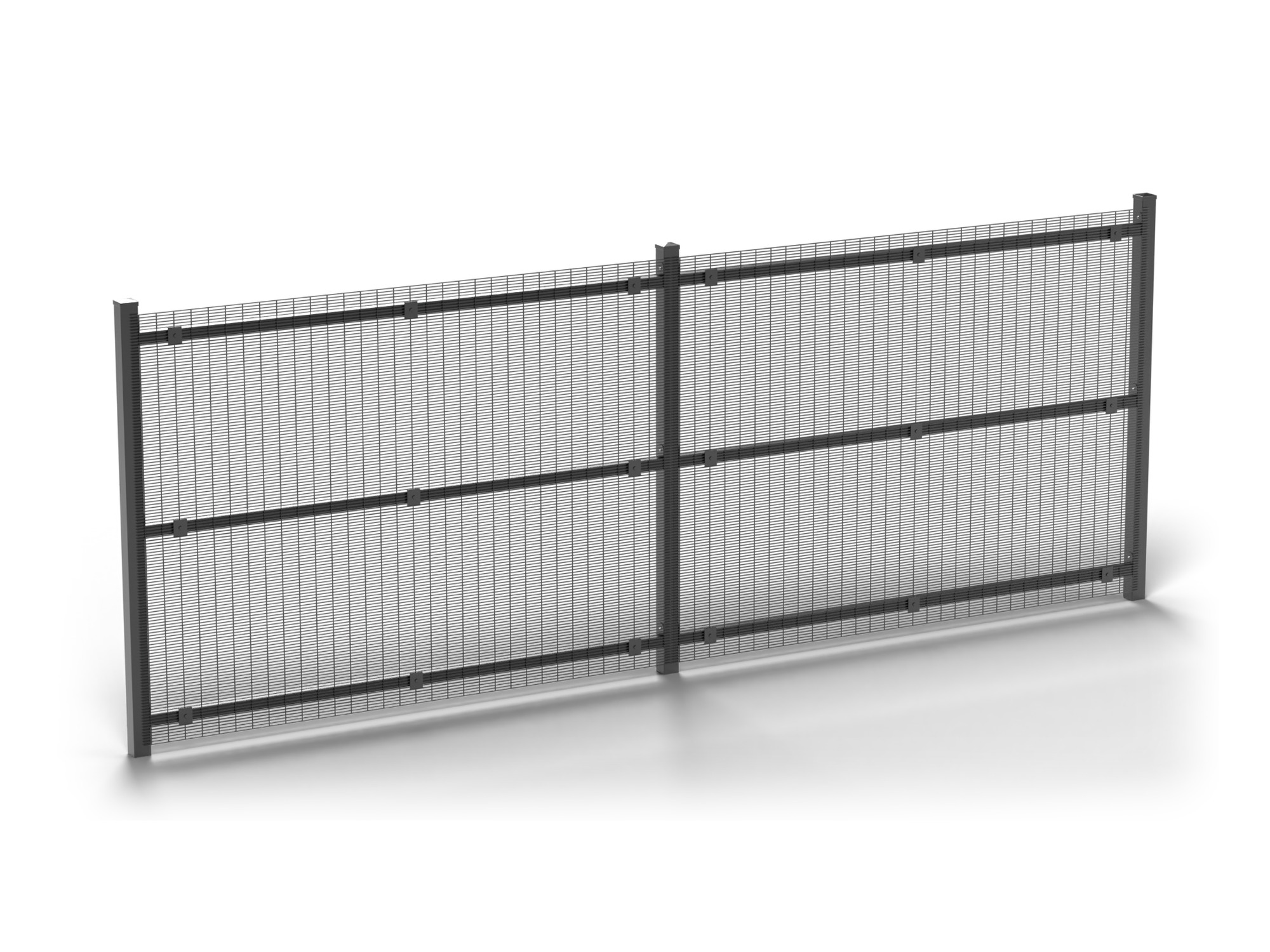

Horizontal Rail System with 3 rails behind a 1829 mm 358 security mesh fence, render. Posts and mesh panels shown for illustration only - not included.

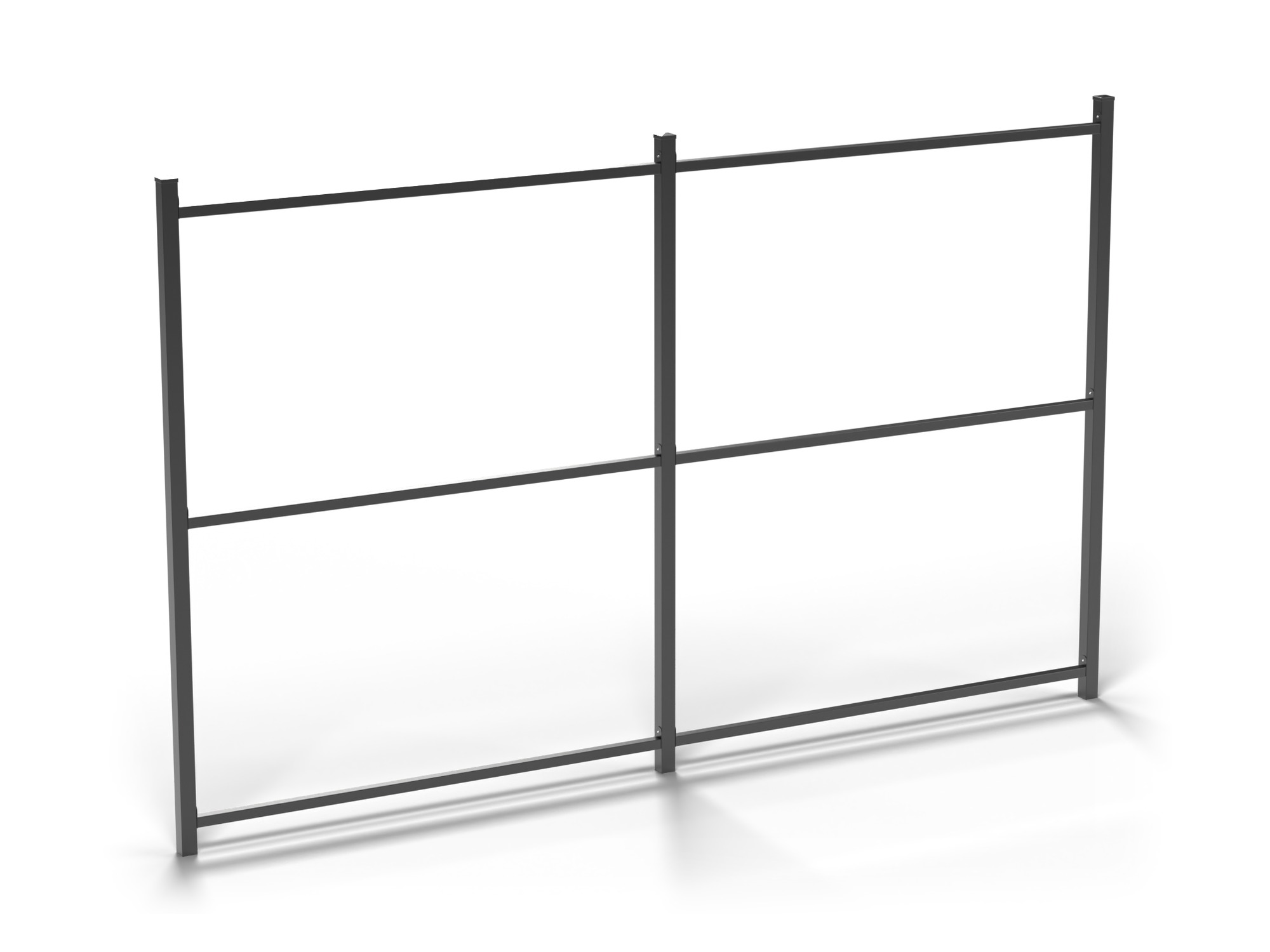

Horizontal Rail System with 3 rails on a 3048 mm fence frame, render. Posts and mesh panels shown for illustration only - not included.

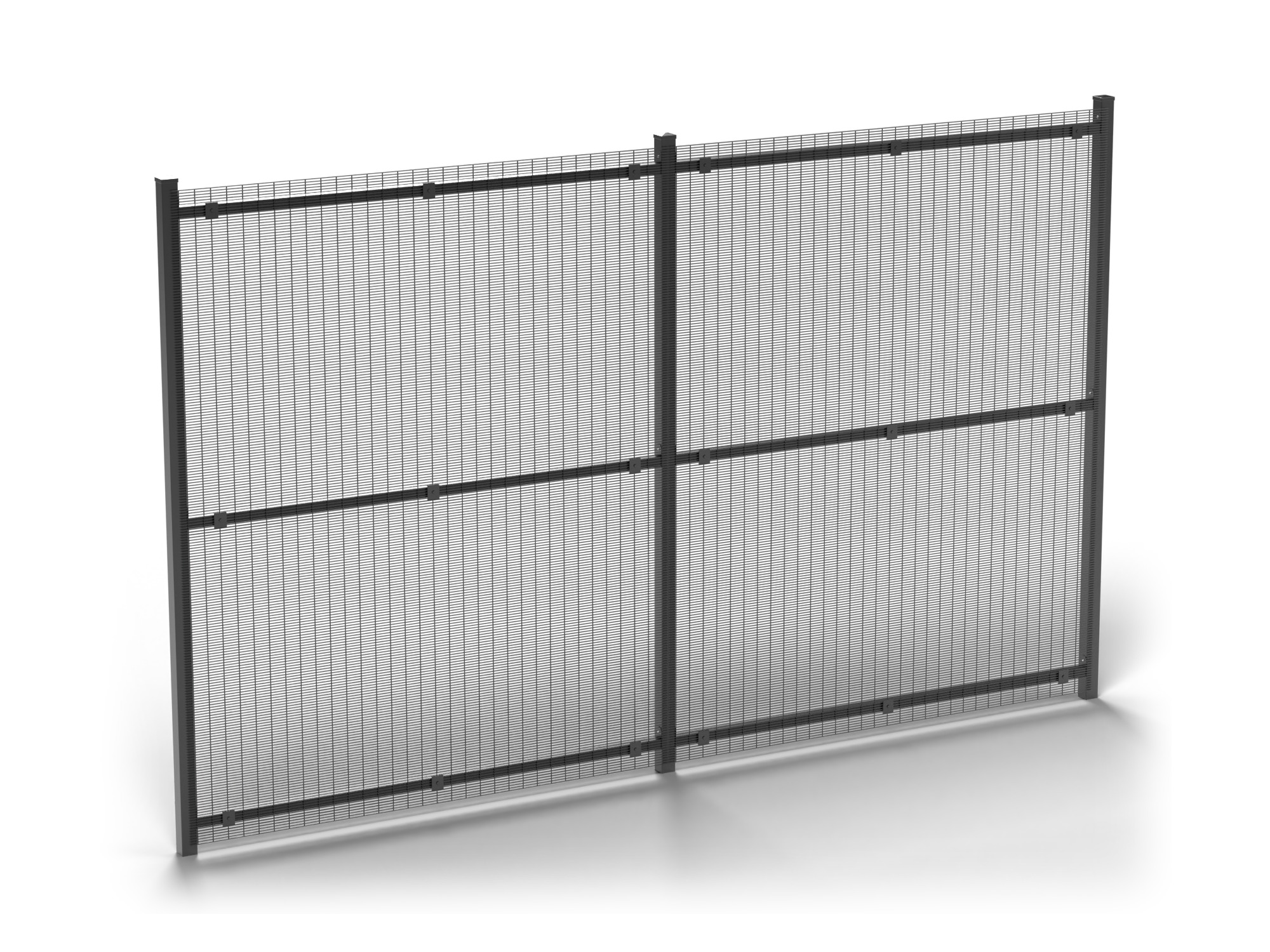

Horizontal Rail System with 3 rails behind a 3048 mm 358 security mesh fence, render. Posts and mesh panels shown for illustration only - not included.

1 / 7

$99.00

Art. no. FW-2602046

Three 2" x 2" 16 ga rails, 96" long, with six 11 ga rail brackets and screws. Adds a top, mid and bottom rail to the back of your security fence.

Key features

3 rails, 2" x 2" square tube, 16 ga, 96" long
Mounted on the back of the fence, between the posts
Galvanized and powder coated black
For fence heights of 6, 8 and 10 ft
Posts, mesh panels, spider brackets and bolts not included

Quantity

Buying in bulk or need custom sizes?Free quote →

Delivery from stock

In-house production

Nationwide delivery

Horizontal rails for a stiffer security fence

The Horizontal Rail System stiffens a security fence and makes it harder to tamper with. The 2" x 2" rails are mounted horizontally on the back of the fence, between the posts. Each rail end slides over an 11 ga rail bracket that is screwed to the side of the post, so the connection is concealed inside the tube. The mesh panel is then fixed to the rails with spider brackets. The system works for fence heights of 6, 8 and 10 ft.

Not included

Posts, mesh panels, spider brackets and bolts. They are shown in the images for illustration only and are available separately.

Specifications

Details
Brand	Fenceweb
Manufacturer	Fenceweb
Material	Steel
Finish	Galvanized and powder coated black
Width	2"
Length	8' (96")
Fixing method	Rail bracket 11 ga, for 2" tubing, 1 self-drilling screw 1/4" x 1-1/2" per bracket
Suitable for	Security fence 358, fence heights 6, 8 and 10 ft
Sold as	Set of 3 rails, 6 brackets and 6 screws
Rail size	2"
Gauge	16 ga

What's in the box

3 x rail 2" x 2", 16 ga, 96", galvanized and powder coated black
6 x rail bracket 11 ga for 2" tubing
6 x self-drilling screw 1/4" x 1-1/2"

Installation

1Slide a bracket into each end of the rail.
2Hold the rail at the required height between the posts, with the bracket plates flat against the sides of the posts.
3Fix each bracket to the post with one self-drilling screw through the hole in the plate. No pre-drilling needed.
4Repeat for every rail, then fix the mesh panel to the rails with spider brackets.
