Locinox Interio | built-in hydraulic gate closer
Locinox Interio hydraulic gate closer with matching hinge set, built completely into the gate frame so it stays invisible. Closing speed and final snap are adjustable, the speed stays constant in all weather, and it suits left and right turning gates up to 331 lb and 5' wide.
Key features
- Built completely into the gate frame
- Matching hinge set
- Adjustable closing speed and final snap
- Constant speed in all weather, 100% mechanical
- Gates up to 331 lb and 5' wide
- Left or right turning, maintenance free
Locinox Interio invisible, built-in hydraulic gate closer

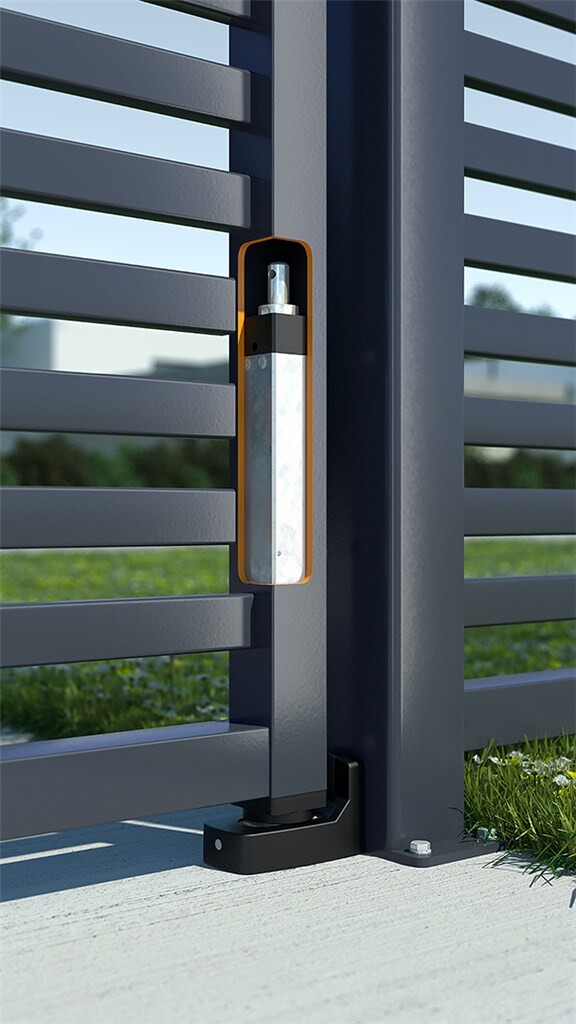

Interio is a hydraulic gate closer that is built completely into the gate frame, together with a matching hinge set. Nothing is visible from the outside, which makes it a highly aesthetic and vandal resistant way to close a gate comfortably.
Operation
Closing speed is set with an Allen key and can be fine-tuned continuously. A final snap can be activated to make sure the gate latches, or switched off for silent closing, for example with a magnetic lock. The closer is 100% mechanical, and the closing speed stays constant in all weather without summer or winter adjustment.
Sizes and fit
Interio closes gates up to 331 lb and up to 5' wide, turning either left or right. Optional sets are available for ground and wall installation, and Locinox recommends using it with a gate stop.
Materials and installation
The mechanism uses stainless steel and aluminum components in a powder-coated aluminum housing. Integrated pre-tension makes installation efficient, fixing is with Quick-Fix bolts without welding, and drilling templates are included. Tested for 500,000 movements, it needs no greasing or oil refills.
Specifications
| Brand | Locinox |
| Width | 7-1/8" |
| Height | 3-1/8" |
| Length | 1'6" (18-3/4") |
| Weight | 8.8 lb |
| EAN | 5414768061879 |

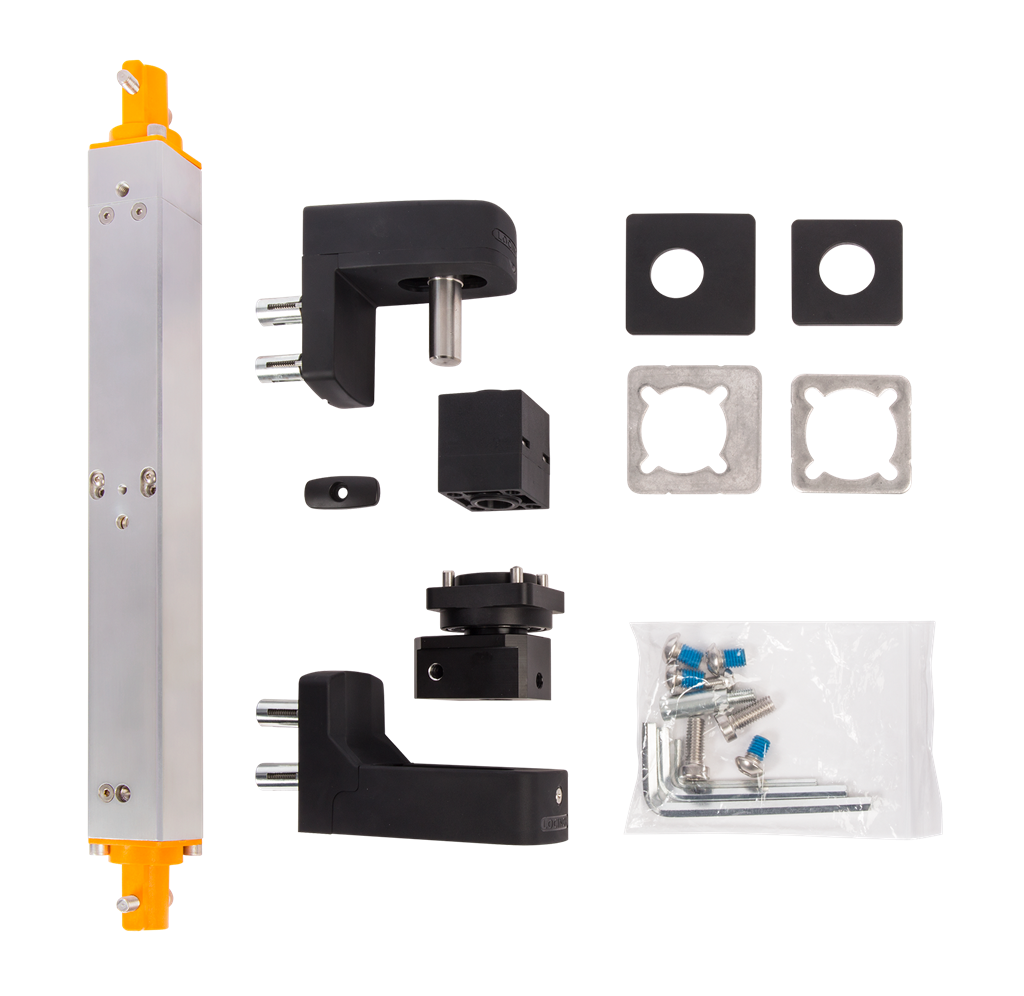

What's in the box

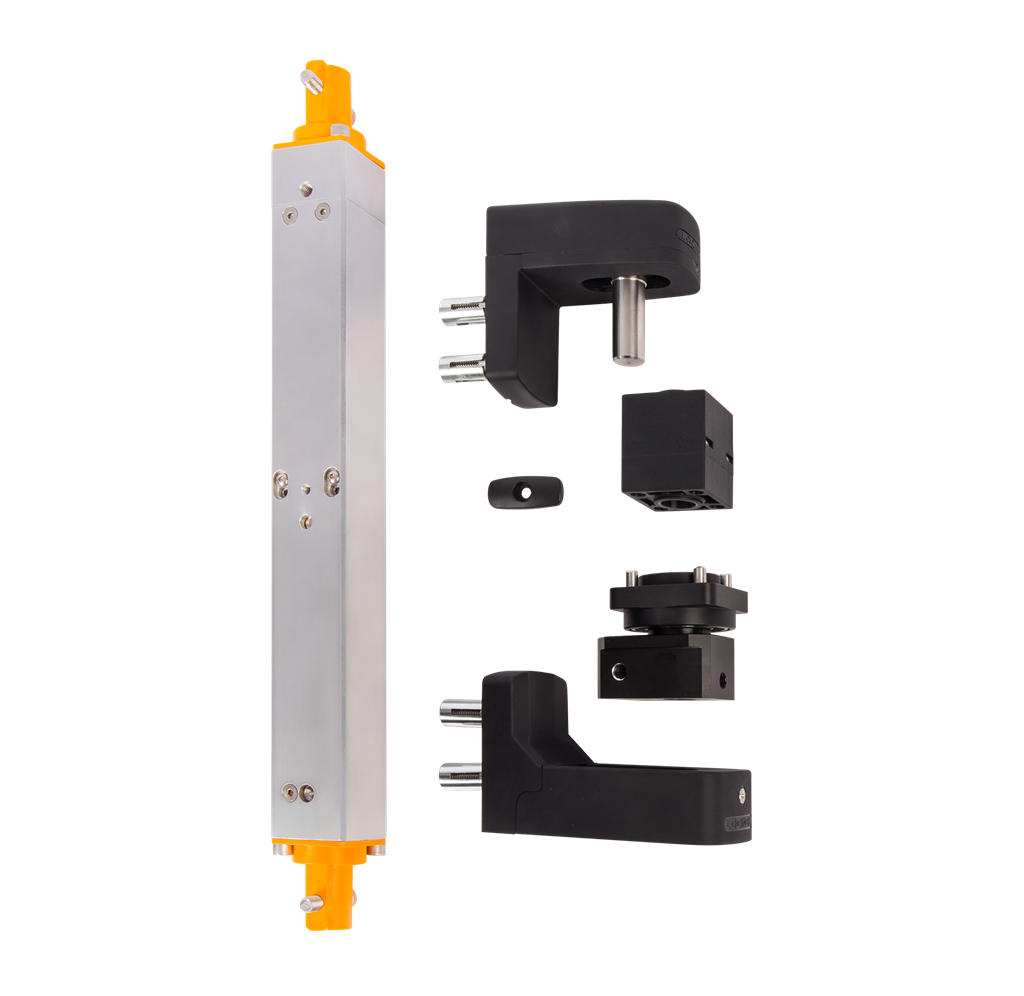

- Interio gate closer
- Matching hinge set
- Drilling templates
Frequently asked questions
Is the gate closer visible?
No. Interio is built completely into the gate frame.
Can it close silently with a magnetic lock?
Yes. The final snap can be switched off completely for silent closing.
How heavy and wide can the gate be?
Up to 331 lb and up to 5' wide.
Does it need maintenance?
No. It is maintenance free, with no greasing or oil refills.
