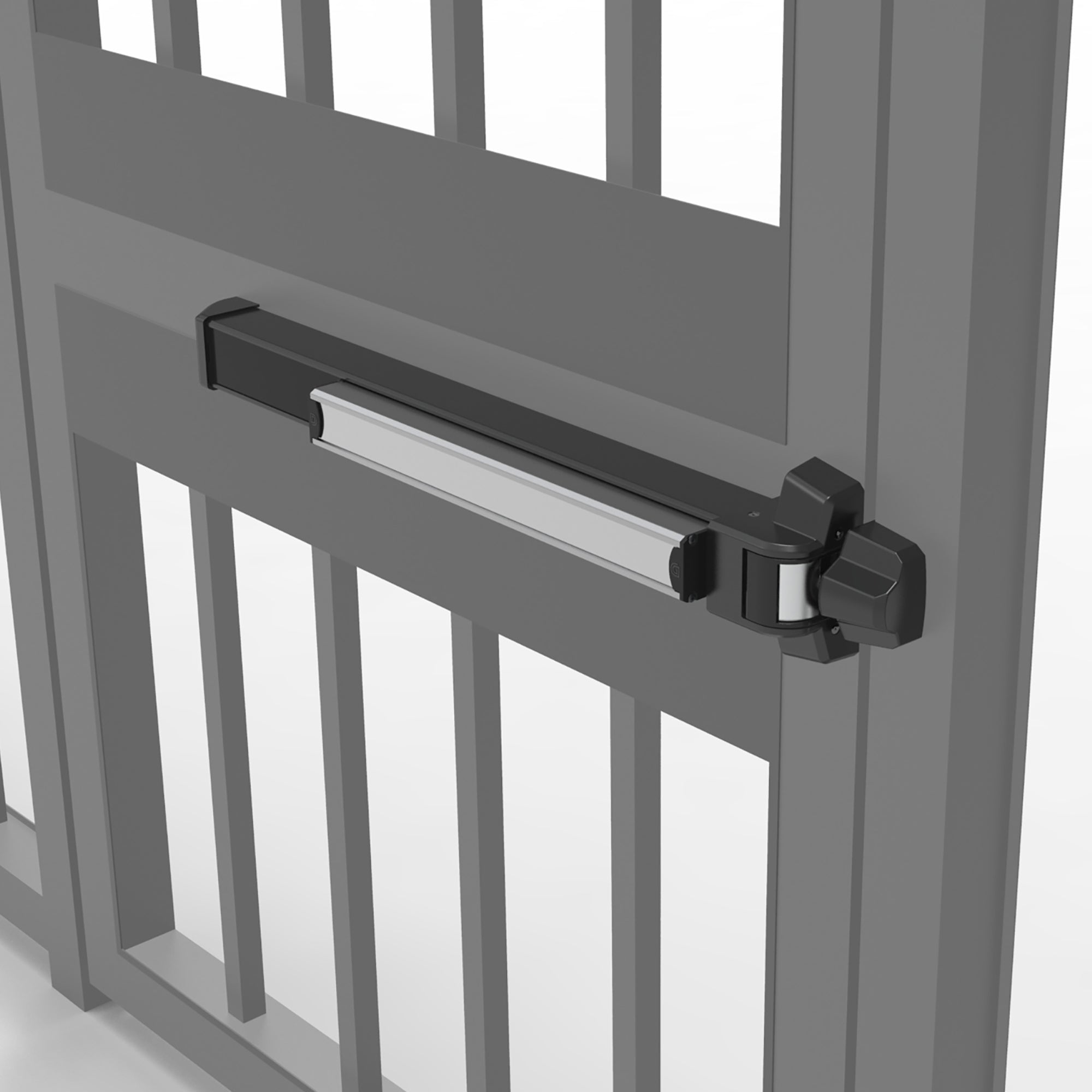

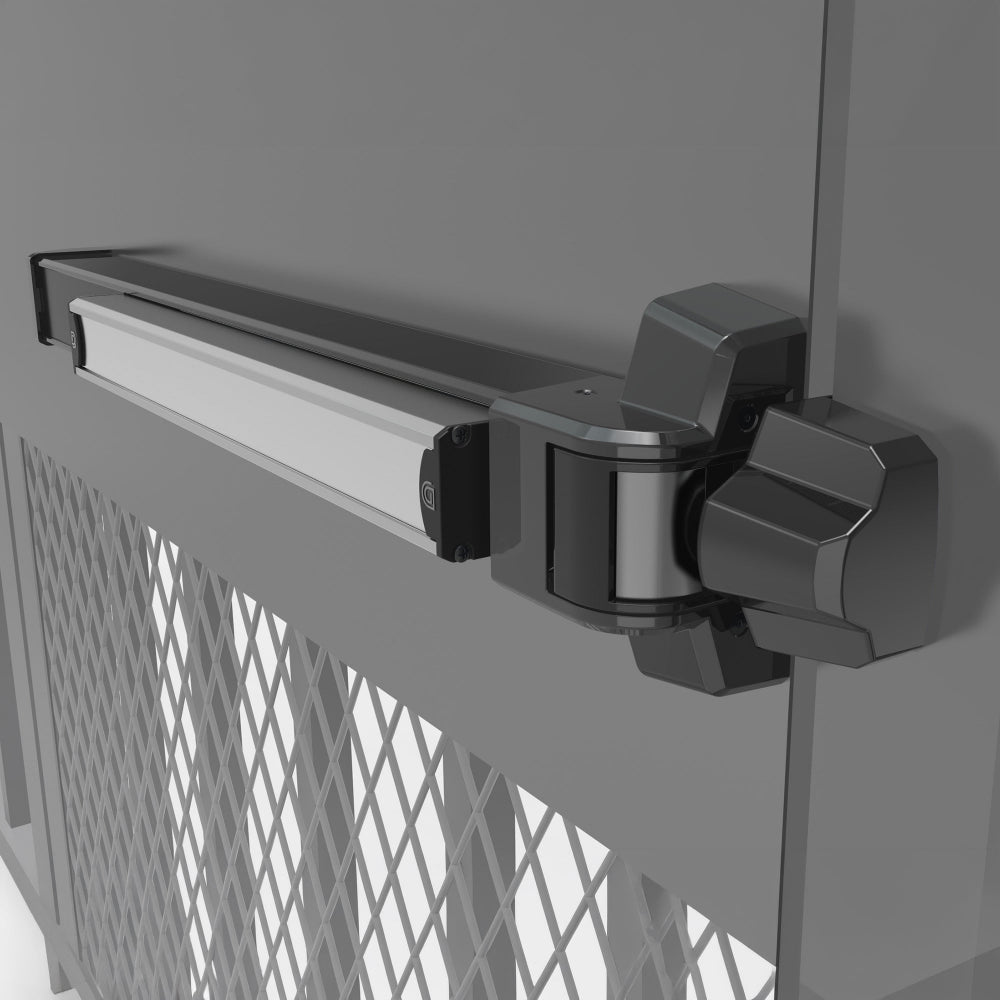

MagnaLatch Panic Bar
The MagnaLatch Panic Bar from D&D Technologies is the first magnetic latching panic bar made for outdoor gates: one push opens a self-latching pool, school or exit gate from the inside. Choose the panic bar on its own, or with the MagnaLatch ACCESS kit for a lockable latch on the outside.
Key features
- Magnetic latching, no mechanical resistance
- For indoor and outdoor gates, corrosion resistant components
- Horizontally adjustable
- Takes a wide range of gate gaps
- Suitable for ADA standards
- Panic bar only, or with the lockable MagnaLatch ACCESS kit
- Made in Australia
MagnaLatch Panic Bar: a magnetic panic bar for outdoor gates

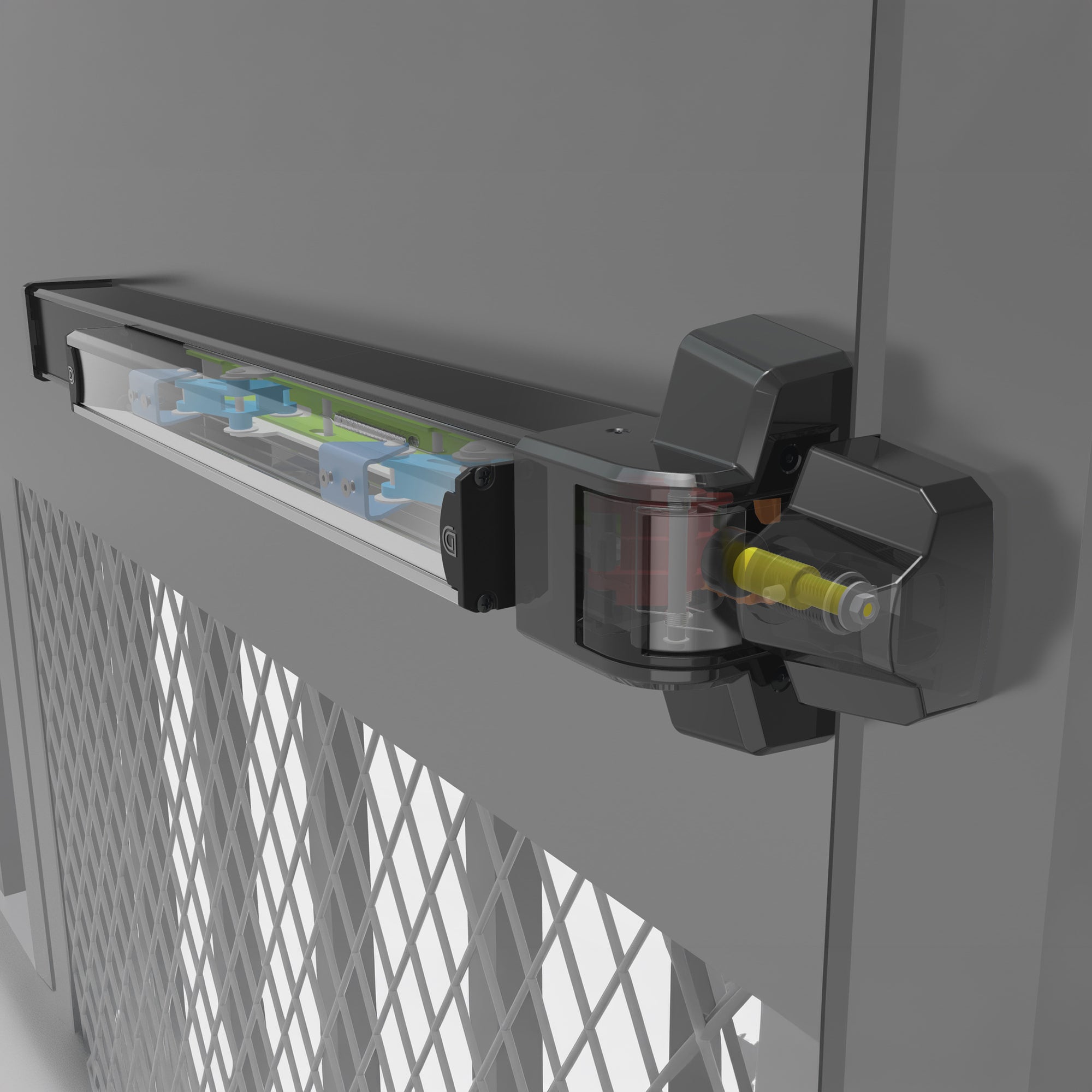

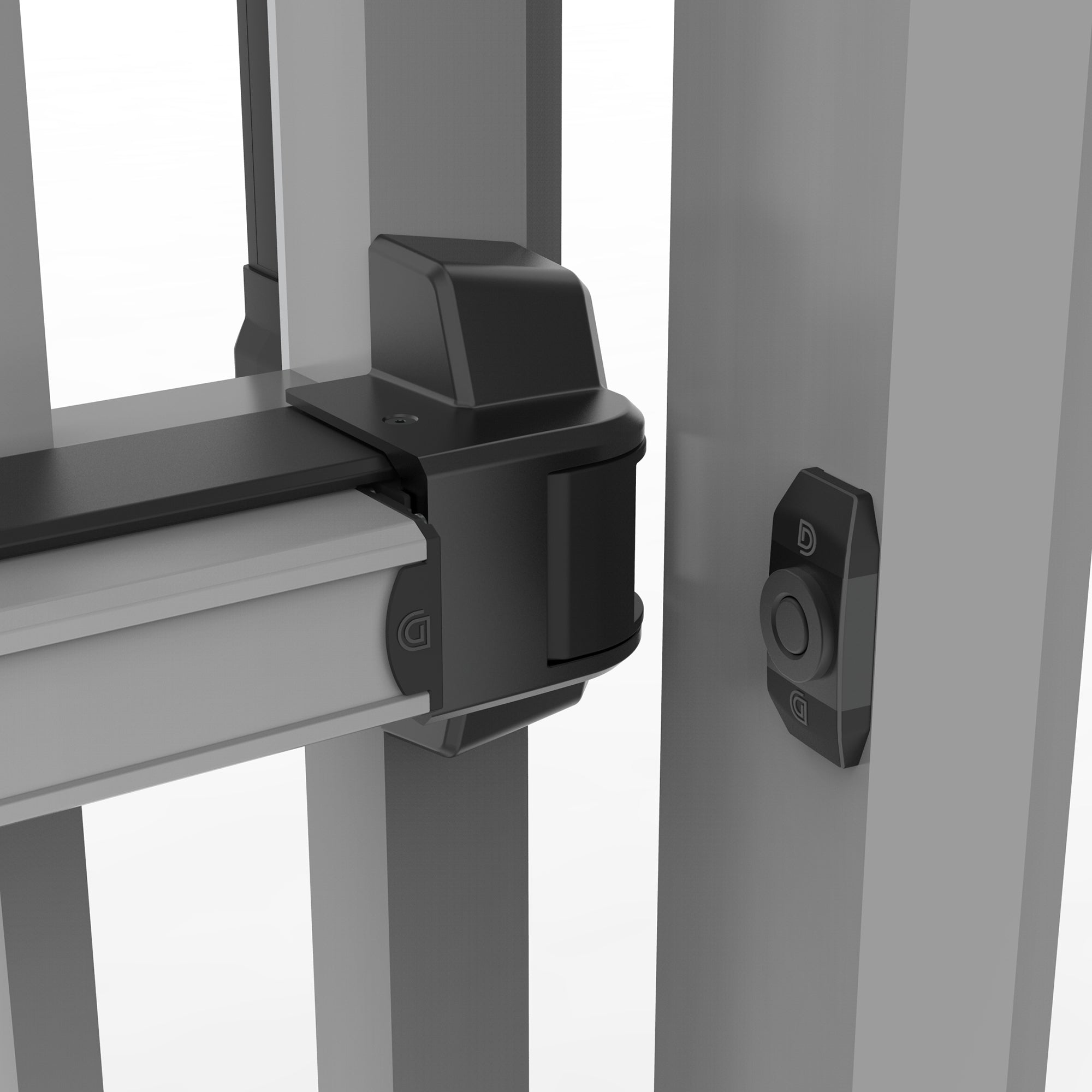

D&D Technologies calls the MagnaLatch Panic Bar the world's first magnetic latching panic bar made for outdoor use. A magnet latches the gate, so there is no mechanical resistance and the gate latches securely every time, which matters on a public pool gate. The bar is UV stabilized and built with corrosion resistant components for indoor and outdoor gates.
Two models
- ML3PB36R - 36" panic bar with rim strike plate, panic bar only
- ML3PB36RVPKA - the same panic bar with the MagnaLatch ACCESS kit: a lockable Vertical Pull latch on the outside
The ACCESS kit
The ACCESS Vertical Pull adds a lockable latch with a universal release knob on the outside of the gate. D&D designed it to meet ADA requirements for operating force, so it opens without tight grasping or twisting, and it can be locked when the gate is not in use.
Fit and adjustment
The panic bar adjusts horizontally by up to 1/2" and takes a gate gap from 7/16" to 15/16". It fits square posts from 2" on aluminum and steel gates, and D&D lists it as suitable for ADA standards. The panic bar only model also works with a range of common locks, including lever, coded, electronic and smart locks.
On a pool or safety gate, always confirm the requirements with your local authority before you fit it.
Watch the video
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Finish | Black |
| Fixing method | Screw-On |
| Fixings included | Yes |
| Weight | 17 lb |
| Product line | MagnaLatch |
| Type | Panic Bar |
| Function | Square-to-Square |
| Gate material | Aluminum, Steel/Ornamental Iron |
| Suitable for | Pool Gate, Child Safety Gate, Public/Commercial Gate, Security Gate, Safety Gate |
| Min post size | 2"+ |
| Horizontal adjustment | Up to 1/2" |
| Gate gap variance | 7/16 - 15/16" |
| Sold as | Each |
| Packaging | Boxed |
| Model | Panic Bar only |
Article numbers
- ML3PB36RModel: Panic Bar only$581.00Chosen
- ML3PB36RVPKAModel: Panic Bar + ACCESS Kit$661.00
Downloads
- Panic Bar - installation instructions (D&D)View onlineOpens on the manufacturer's website
- Panic Bar - dimensional drawing (D&D)View onlineOpens on the manufacturer's website
- Panic Bar - brochure (D&D)View onlineOpens on the manufacturer's website
- Panic Bar + ACCESS Kit - installation instructions (D&D)View onlineOpens on the manufacturer's website
- Panic Bar + ACCESS Kit - dimensional drawing (D&D)View onlineOpens on the manufacturer's website
- Panic Bar + ACCESS Kit - brochure (D&D)View onlineOpens on the manufacturer's website
Frequently asked questions
What is the difference between the two models?
ML3PB36R is the panic bar only. ML3PB36RVPKA adds the MagnaLatch ACCESS kit: a lockable Vertical Pull latch with a release knob on the outside of the gate.
Can I use it on a pool gate?
D&D designed it for public pool and safety gates, where the gate must latch every time. Always confirm the requirements with your local authority before you fit it.
Which gate gap does it need?
A gate gap from 7/16" to 15/16", on square posts from 2".
