Noisecare Soundproof Fence | Extreme | 21 dB
Noisecare Extreme soundproof fence module: the heavy-duty acoustic fence panel that blocks 21 dB, with a steel plate between two layers of stone wool. For industrial sites, rail lines and busy roads; stack 31″ or 39″ modules between 3″ × 3″ posts.
Key features
- Sound insulation DLR 21 dB · Rw 24 dB (EN 1793-2)
- Heights 2'8" and 3'4"
- Black RAL 9005 or hot-dip galvanized
- Module 94″ wide (97″ with flanges) × 2″ thick
Noisecare Extreme soundproof fence module: the heavy-duty acoustic fence panel that blocks 21 dB, with a steel plate between two layers of stone wool. For industrial sites, rail lines and busy roads; stack 31″ or 39″ modules between 3″ × 3″ posts.
Heavy-duty noise barrier for industry and roads
Noisecare Extreme has the same look as Premium, with a 0.8 mm steel plate between two layers of stone wool. That raises sound insulation to 21 dB (DLR), the highest in the Noisecare range, for the loudest places.
Two heights are available, 2'8" and 3'4", in both finishes. The module width is not yet confirmed, so ask Fenceweb for it when you plan the fence line.
- Sound insulation 21 dB DLR, Rw 24 dB (EN 1793-2)
- Sound absorption 10 dB DLα, class C (EN 1793-1)
- Width 94″ (97″ with flanges), thickness 2″, height 31″ or 39″
- Weight 121 lb (31″) or 132 lb (39″)
- 30-year frame durability, corrosion class C3

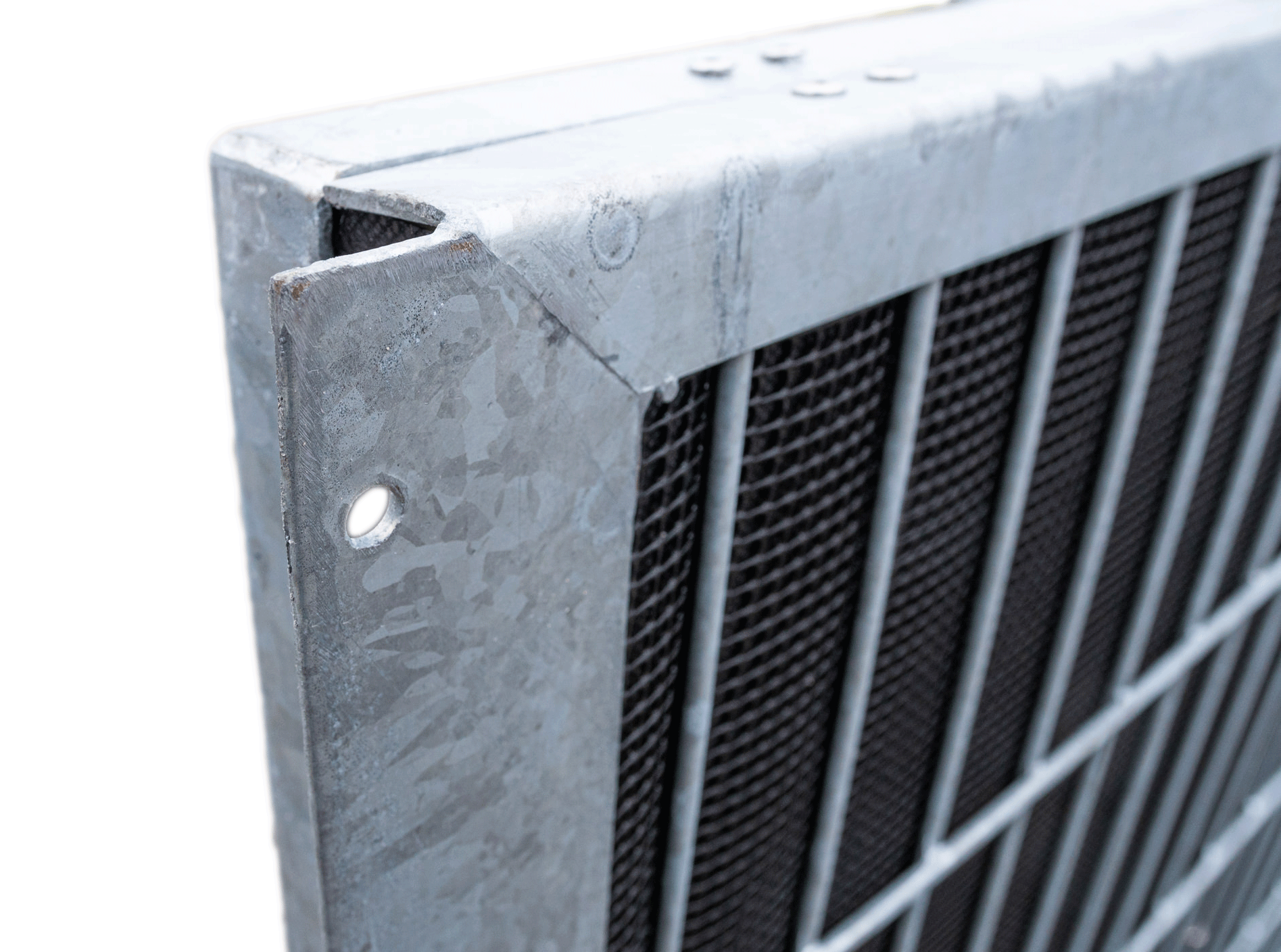

Choose black RAL 9005 or hot-dip galvanized. The fitting pieces and the single-leaf Noisecare swing gate come in the same finishes, so the whole fence line matches.

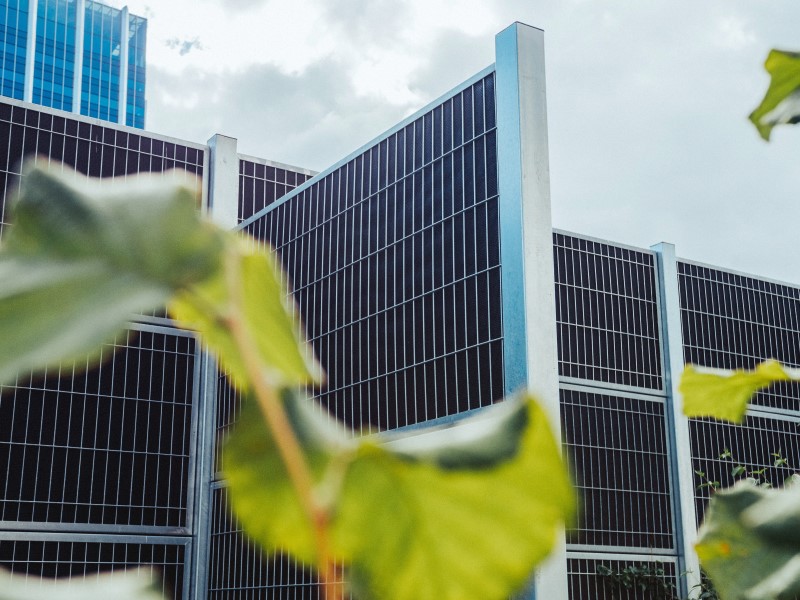

Industrial sites next to homes, recycling centers, rail lines, highways and sports fields where insulation matters more than absorption.
Specifications
| Brand | Noisecare |
| Width | 8'2" (97") |
| Height | 2'7" (31") |
| Length | 2" |
| Weight | 121 lb |
| Color | Hot-dip galvanized |
Article numbers
- NCEF21082Color: Anthracite gray (RAL 7016) / Height: 2'7"$785.00
- NCEF21102Color: Anthracite gray (RAL 7016) / Height: 3'3"$870.00
- NCEF21081Color: Black (RAL 9005) / Height: 2'7"$785.00
- NCEF21101Color: Black (RAL 9005) / Height: 3'3"$870.00
- NCEF21100Color: Hot-dip galvanized / Height: 3'3"$718.00
- NCEF21080Color: Hot-dip galvanized / Height: 2'7"$647.00Chosen
Related products
Frequently asked questions
How much noise does it reduce?
Noisecare Extreme insulates 21 dB (DLR, EN 1793-2): the most of the Noisecare range: and absorbs 10 dB (DLα). On site the result also depends on height, length and distance to the noise.
How tall can the fence be?
Each module is 31″ or 39″ high. Stack two for 5′3″, 5′11″ or 6′7″, three for up to 9′10″. For fences taller than 5′3″ we size the posts and footing for your site: request a project quote.
Is there a matching gate?
Yes. Noisecare single gates (3′3″ wide) and double gates (9′10″ wide) have the same acoustic infill and finish, 5′11″ or 6′7″ high, with their gate posts included.
Which posts do I need?
Our 3″ × 3″ steel posts with a 3″ steel cap. The post centres are 8′1″ apart; the flanges screw onto the face of the post with 8 self-tapping screws per module.
Can I cut a module to length?
Yes. Cut the frame with an angle grinder, trim the wool with a knife and close the end with a Noisecare adjustment profile in the same height and color.
What is the lead time?
Noisecare makes the modules to order in Denmark: 6 to 8 weeks plus ocean freight to Dallas, TX. Posts and caps ship from stock.
Still have questions? Call us at 214 878 1900
