Noisecare Soundproof Fence | Premium | 17 dB

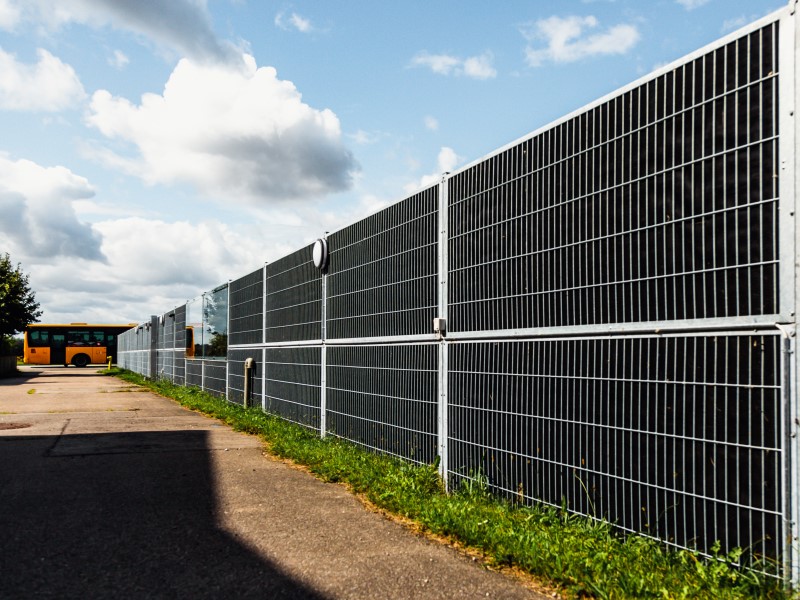

Noisecare Premium soundproof fence module: an acoustic fence panel that absorbs noise (class A) and blocks 17 dB, made of hot-dip galvanized steel mesh with a stone-wool core. For backyards, schools, HVAC equipment and parking areas; stack 31″ or 39″ modules between 3″ × 3″ posts.
Key features
- Absorption class A · DLα 20 dB (EN 1793-1)
- Heights 2'8" and 3'4"
- Stone-wool core, UV-stable membrane, steel mesh 2″ × 8″
- Module 94″ wide (97″ with flanges) × 2″ thick
Noisecare Premium soundproof fence module: an acoustic fence panel that absorbs noise (class A) and blocks 17 dB, made of hot-dip galvanized steel mesh with a stone-wool core. For backyards, schools, HVAC equipment and parking areas; stack 31″ or 39″ modules between 3″ × 3″ posts.
Soundproof fence panel that absorbs noise
A hard wall reflects noise back to the street or the neighbors. Noisecare Premium absorbs it: a dense stone-wool core behind a breathable membrane soaks up traffic, machinery and HVAC noise, so it gets quieter on both sides of the fence.
Two heights are available, 2'8" and 3'4", in both finishes. The module width is not yet confirmed, so ask Fenceweb for it when you plan the fence line.
- Sound insulation 17 dB DLR, Rw 20 dB (EN 1793-2)
- Sound absorption 20 dB DLα, class A (EN 1793-1)
- Width 94″ (97″ with flanges), thickness 2″, height 31″ or 39″
- Weight 88 lb (31″) or 99 lb (39″)
- Wind load rated to 1.25 kN/m² (67 mph)
Choose black RAL 9005 or hot-dip galvanized. The fitting pieces and the single-leaf Noisecare swing gate come in the same finishes, so the whole fence line matches.
Backyards along busy roads, schoolyards and daycare centers, parking areas, outdoor HVAC units, heat pumps and generators. For heavy industry and rail, choose Noisecare Extreme.
Specifications
| Brand | Noisecare |
| Width | 8'2" (97") |
| Height | 2'7" (31") |
| Length | 2" |
| Weight | 88 lb |
| Color | Hot-dip galvanized |
Article numbers
- NCF21082Color: Anthracite gray (RAL 7016) / Height: 2'7"$702.00
- NCF21102Color: Anthracite gray (RAL 7016) / Height: 3'3"$780.00
- NCF21101Color: Black (RAL 9005) / Height: 3'3"$780.00
- NCF210810Color: Black (RAL 9005) / Height: 2'7"$702.00
- NCF21080Color: Hot-dip galvanized / Height: 2'7"$557.00Chosen
- NCF21100Color: Hot-dip galvanized / Height: 3'3"$606.00
Related products
Frequently asked questions
How much noise does it reduce?
Noisecare Premium insulates 17 dB (DLR, EN 1793-2) and absorbs 20 dB (DLα, EN 1793-1), class A. On site the result also depends on height, length and distance to the noise.
How tall can the fence be?
Each module is 31″ or 39″ high. Stack two for 5′3″, 5′11″ or 6′7″, three for up to 9′10″. For fences taller than 5′3″ we size the posts and footing for your site: request a project quote.
Is there a matching gate?
Yes. Noisecare single gates (3′3″ wide) and double gates (9′10″ wide) have the same acoustic infill and finish, 5′11″ or 6′7″ high, with their gate posts included.
Which posts do I need?
Our 3″ × 3″ steel posts with a 3″ steel cap. The post centres are 8′1″ apart; the flanges screw onto the face of the post with 8 self-tapping screws per module.
Can I cut a module to length?
Yes. Cut the frame with an angle grinder, trim the wool with a knife and close the end with a Noisecare adjustment profile in the same height and color.
What is the lead time?
Noisecare makes the modules to order in Denmark: 6 to 8 weeks plus ocean freight to Dallas, TX. Posts and caps ship from stock.
Still have questions? Call us at 214 878 1900
