Locinox OGS | Gate ground stop | Off-centered

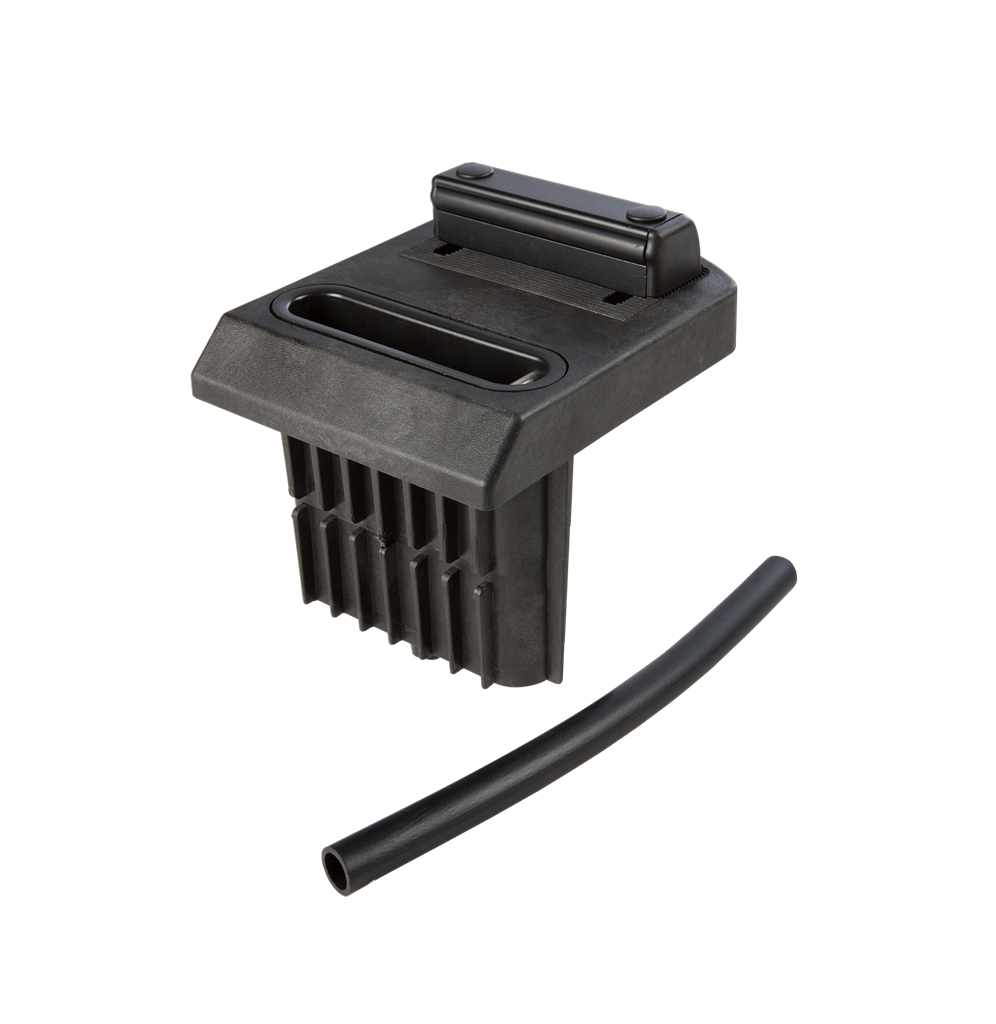

Locinox OGS off-centred ground stop for double gates, made of glass fibre reinforced polypropylene. It receives the drop bolt of a surface-mounted drop bolt such as VSF, VSA, Electradrop or Keydrop. A removable cleaning tray and water drain hose keep it free of dirt.
Key features
- Strong ground stop for double gates
- For VSF, VSA, Electradrop and Keydrop drop bolts
- Glass fiber reinforced polypropylene
- Removable polyamide cleaning tray
- Water drain hose
- Adjustable stop plate
Locinox OGS off-centred ground stop for double gates
On a double gate the passive leaf is held in place by a drop bolt that drops into a ground stop. The OGS is a strong ground stop for exactly that job, designed for the Locinox surface-mounted drop bolts.
Compatibility
The OGS is recommended in combination with the external Locinox drop bolts VSF and VSA and the lockable Keydrop, and it also suits the Electradrop. Its stop plate is adjustable to the size of the gate frame.
Materials
The ground stop is made of glass fiber reinforced polypropylene, with a removable polyamide cleaning tray.
Maintenance
A ground stop collects dirt, gravel and leaves, which can stop the drop bolt from dropping fully. The OGS has a removable tray, so it is easy and fast to clean, and a water drain hose leads water away.
Specifications
| Brand | Locinox |
| Width | 5-7/8" |
| Height | 6-7/8" |
| Length | 9-7/8" |
| Weight | 2.7 lb |
| EAN | 5414768010716 |
Frequently asked questions
Which drop bolts does the OGS work with?
The Locinox surface-mounted drop bolts VSF, VSA, Electradrop and Keydrop.
How do I clean it?
Lift out the removable tray and empty it.
What happens to rainwater?
A water drain hose leads it away.
