AES OPYN 4G intercom
AES OPYN 4G video intercom with keypad for gates and doors. It connects over 4G LTE, so it works where WiFi is weak, and lets you see, talk to and admit visitors from the Opyn app. 1080p camera with night vision, two relays, IP54.
Key features
- 4G LTE video intercom with keypad
- 1080p camera with infrared night vision
- Up to 150 keypad codes and 150 QR codes
- Two relays for two gates or doors
- Opyn app, Alexa and Google Assistant
- IP54, -20 to +55 °C

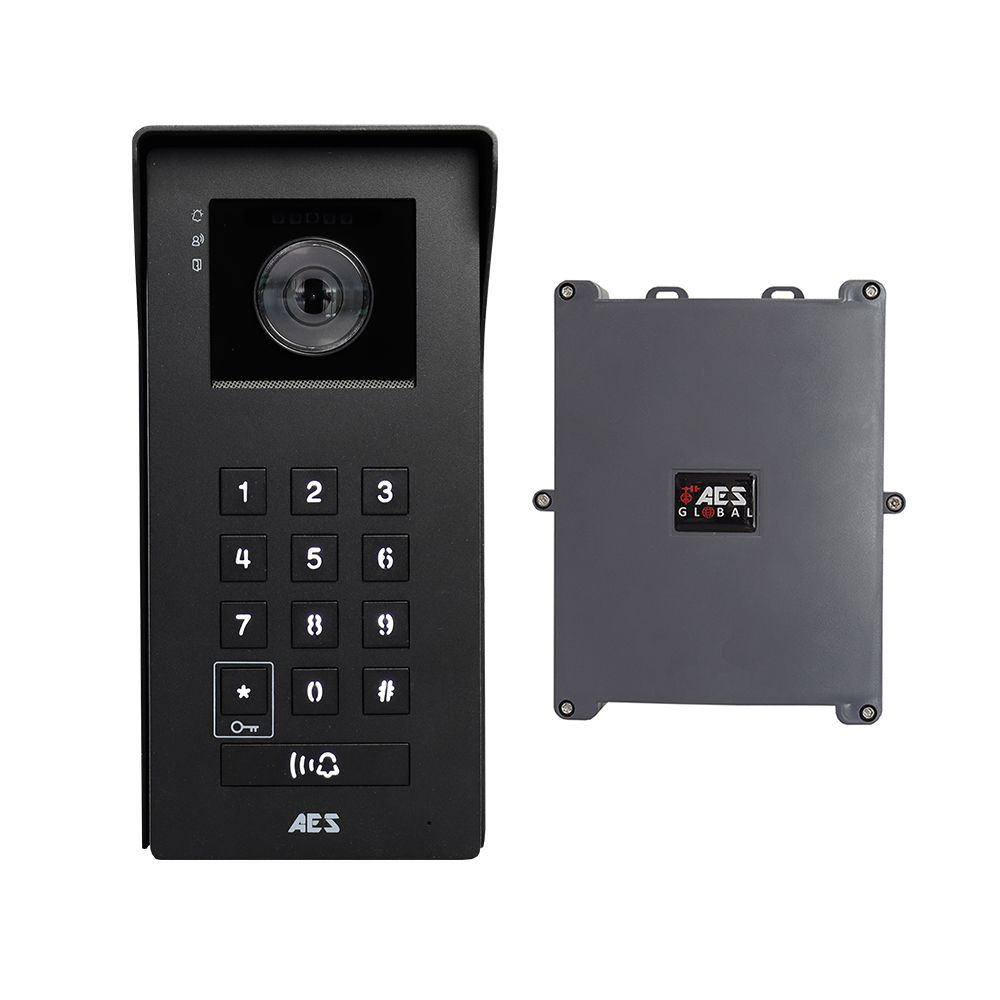

AES OPYN 4G video intercom with keypad for remote gate access
The OPYN-4G-IBK from AES is a video intercom with keypad that connects over 4G LTE. It suits homes, gated communities and small commercial sites, and works where WiFi is limited or not available at the gate.
Operation
The Opyn app shows live video and lets you open a gate or door from anywhere. Visitors can enter with a keypad code or a QR code, up to 150 of each, and the number of app users is unlimited. Motion detection and a tamper alarm send alerts, and the unit works with Alexa and Google Assistant.
Camera and audio
The 1080p camera has a wide-angle lens of 130 degrees horizontal, 70 degrees vertical and 150 degrees diagonal, with infrared night vision. Two-way audio lets you speak to visitors, and an SD card of up to 128 GB stores recordings.
Power and wiring
- Power: 24 V DC or 48 V PoE
- Current: 300 mA in operation, 2 A peak
- Two relays, N/C and N/O, for two gates or doors
- LAN connection available
- Operating temperature -20 to +55 °C
- Weather-resistant to IP54
Specifications
| Brand | AES Global |
| Width | 5-7/8" |
| Height | 2-3/8" |
| Length | 9-7/8" |
| Weight | 6.6 lb |
What's in the box
- Black powder-coated intercom with illuminated hood
- 4G modem
- Power supply
Frequently asked questions
Does the intercom need WiFi?
No. It connects over 4G LTE, which makes it a good fit where WiFi does not reach the gate. A LAN connection is also possible.
How many codes can it store?
Up to 150 keypad codes and 150 QR codes; the number of app users is unlimited.
How is it powered?
From 24 V DC or 48 V PoE. It draws 300 mA in operation and up to 2 A at peak.
Can it control two gates?
Yes. It has two relay outputs, N/C and N/O, for two gates or doors.
