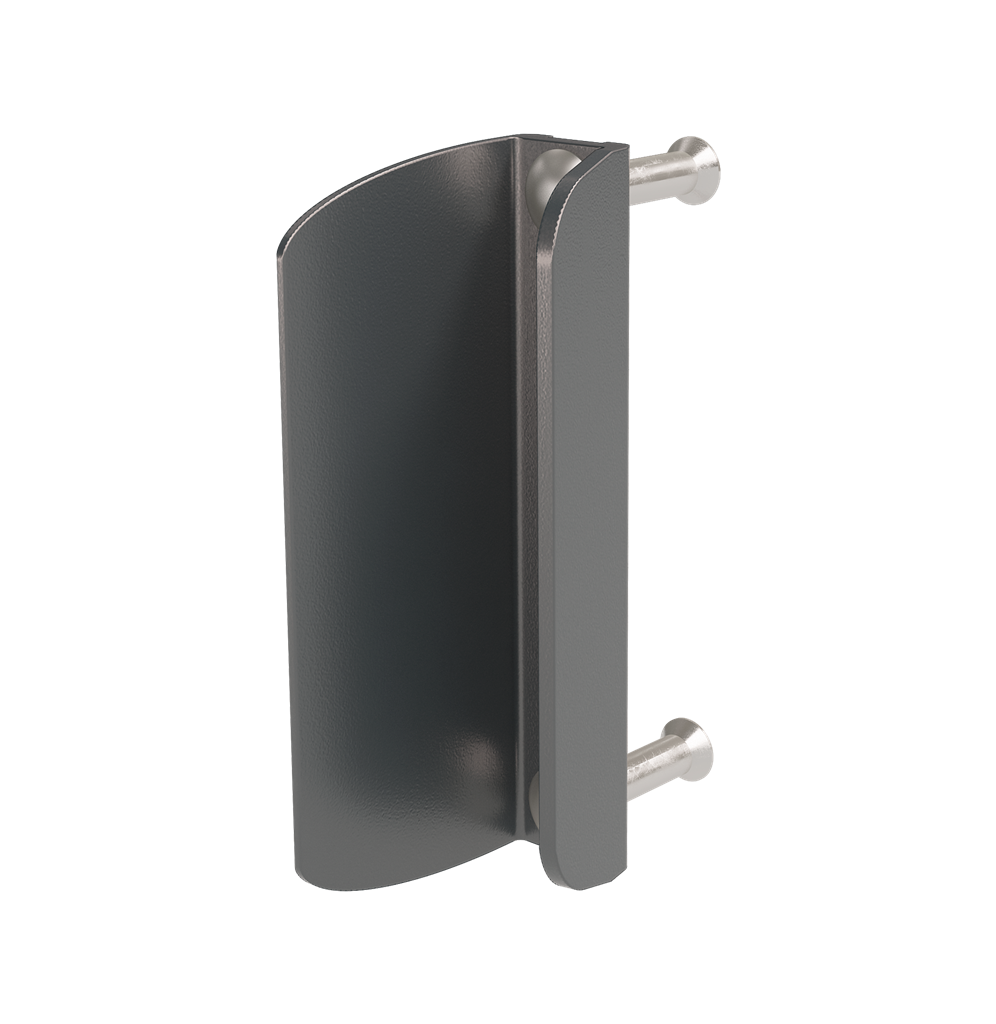

Locinox 3006PC | Pull counter box
Locinox Pull Counter Box in aluminum for building symmetric double swing gates with a Locinox keep. Used with Locinox 4D hinges, it lets you produce one identical gate wing for both the left and right side; the box fills the symmetric lock opening in the other wing.
Key features
- Aluminum pull counter box
- For symmetric double swing gates
- Works with the Locinox keep
- One identical wing for left and right with 4D hinges
- Fills the symmetric lock opening
- Five colors
Locinox Pull Counter Box for symmetric double gates
Building a double swing gate usually means making two different wings: one for the lock and one for the keep. The Pull Counter Box is an aesthetic aluminum solution that lets both wings be identical.
How it works
When used with the Locinox 4D hinges, you can simplify production of double gates to one single, identical gate wing that can be used on either the left or the right side. Each wing has the same lock opening. On the wing that does not carry the lock, the Pull Counter Box fills that symmetric lock opening, working in combination with the Locinox keep.
Typical uses
The box is aimed at gate manufacturers and fabricators who want to reduce the number of different parts they make. One wing design covers both sides of a double gate, which simplifies production, stock and installation.
Materials and finish
The Pull Counter Box is made of aluminum. Choose green RAL 6005, green RAL 6009, anthracite gray RAL 7016, black RAL 9005 or silver to match the gate.
Specifications
| Brand | Locinox |
| Width | 2" |
| Height | 2" |
| Length | 5-7/8" |
| Weight | 0.6 lb |
| EAN | 5414768014967 |
| Color | RAL9005 |
Article numbers
- P00006080-9005Color: RAL9005$26.02Chosen
- P00006080-SILVColor: Silver$26.02
Frequently asked questions
What is the Pull Counter Box for?
It fills the lock opening in the second wing of a symmetric double gate, so both wings can be built the same.
Do I need special hinges?
Using one identical wing on both sides works with the Locinox 4D hinges.
Which colors are available?
RAL 6005, RAL 6009, RAL 7016, RAL 9005 and silver.
