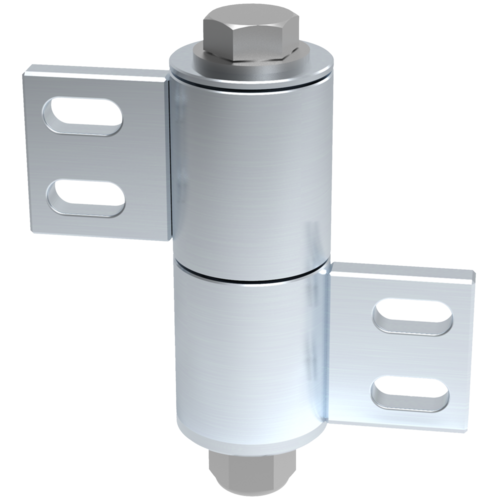

ShutIT BadAss Barrel Hinge
The Shut It BadAss Barrel Hinge from D&D Technologies is a heavy duty barrel hinge for bolt-on or weld-on fitting. It swings 180 degrees where required, keeps the gap between gate and post at 1/2" and carries gates up to 1,499 lb on nearly all flat post installations.
Key features
- Bolt-on or weld-on installation
- Swings 180 degrees where required
- Fixed 1/2" gap between gate and post
- High temperature sealed bearings, safe to powder coat
- Load rating 1,360 kg per gate, maximum gate weight 680 kg
- Zinc finish
Shut It BadAss Barrel Hinge: strength and versatility for heavy gates
D&D Technologies describes the BadAss Barrel Hinge as the strongest and most versatile hinge in its range. It is ideal for nearly all heavy duty, flat post gate installations, and it can be bolted on or welded on.
Operation
The hinge can be installed where a full 180 degree gate opening is required. High temperature sealed bearings need no greasing and no maintenance, and they are safe to powder coat with the hinges installed on the gate. Horizontal adjustment lets you set the gate precisely.
Sizes and fit
The gap between end post and gate is fixed at 13 mm. D&D rates the hinges at a load of 1,360 kg per gate and a maximum gate weight of 680 kg. They suit square posts of 40 mm and up and have a zinc finish.
Typical uses
The barrel hinge is specified for pedestrian, pet, privacy, security and commercial gates, including heavy single and double drive gates. It is not self-closing.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technology |
| Weight | 4.4 lb |
Frequently asked questions
How far does the gate open?
The barrel hinge allows a full 180 degree opening where the installation requires it.
Can it be bolted on as well as welded?
Yes. The BadAss Barrel Hinge suits both bolt-on and weld-on installations.
How heavy a gate can it carry?
D&D gives a maximum gate weight of 680 kg and a load rating of 1,360 kg per gate.
