SureClose MK180
The SureClose MK180 from D&D Technologies is a compact hydraulic hinge-closer set with 180-degree self-closing control for aluminum and steel gates up to 330 lb. Closing and latching speeds adjust separately, no gate stop is needed, and the matte black anodized finish suits coastal sites. Sold as a left or right hand set.
Key features
- 180-degree hydraulic self-closing control
- Closing and latching speeds adjust separately
- For heavy aluminium and steel gates
- No gate stop required
- Marine-grade black finish for coastal sites
- Compact, low-profile design
- Meets ADA requirements
SureClose MK180: 180-degree hydraulic closing in a compact hinge

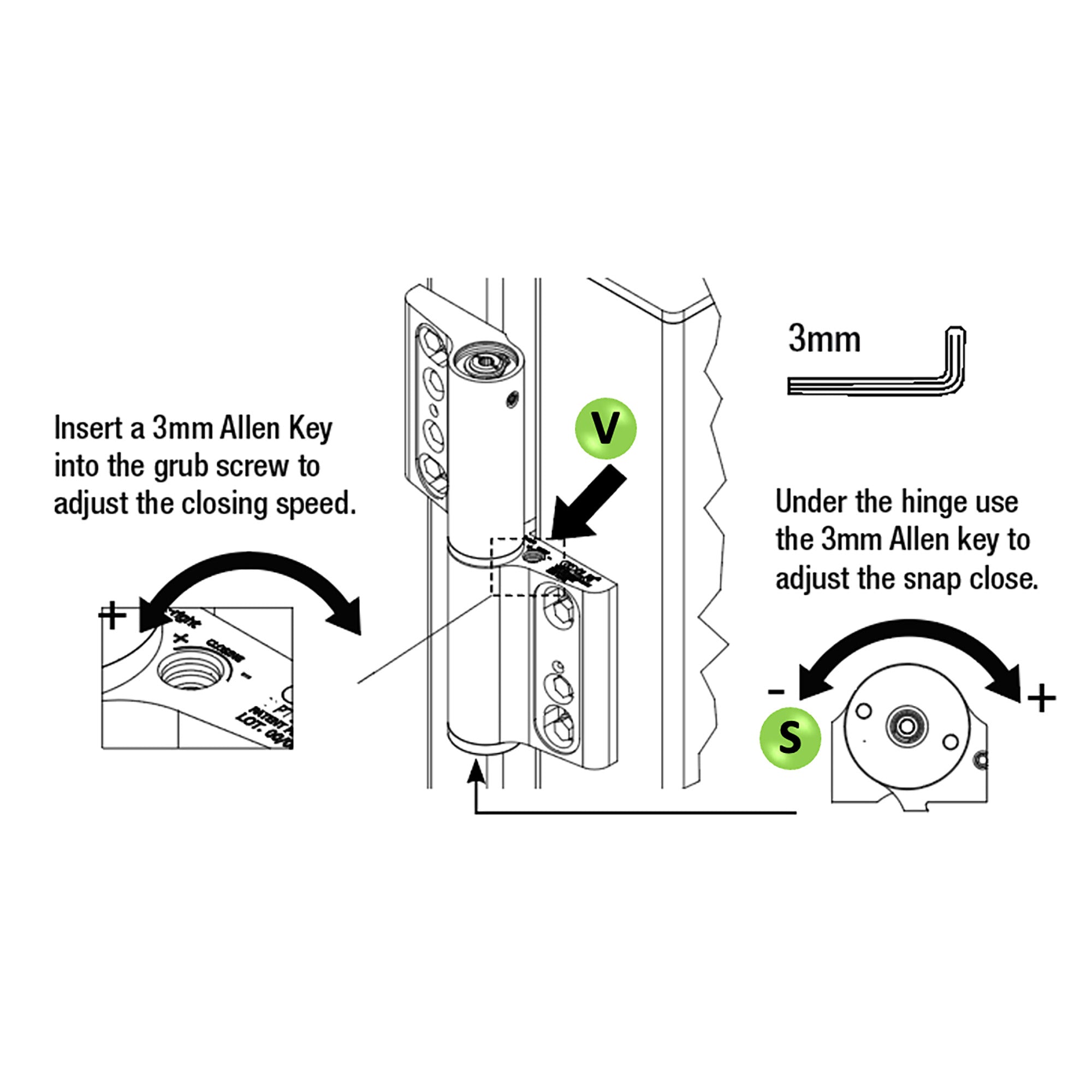

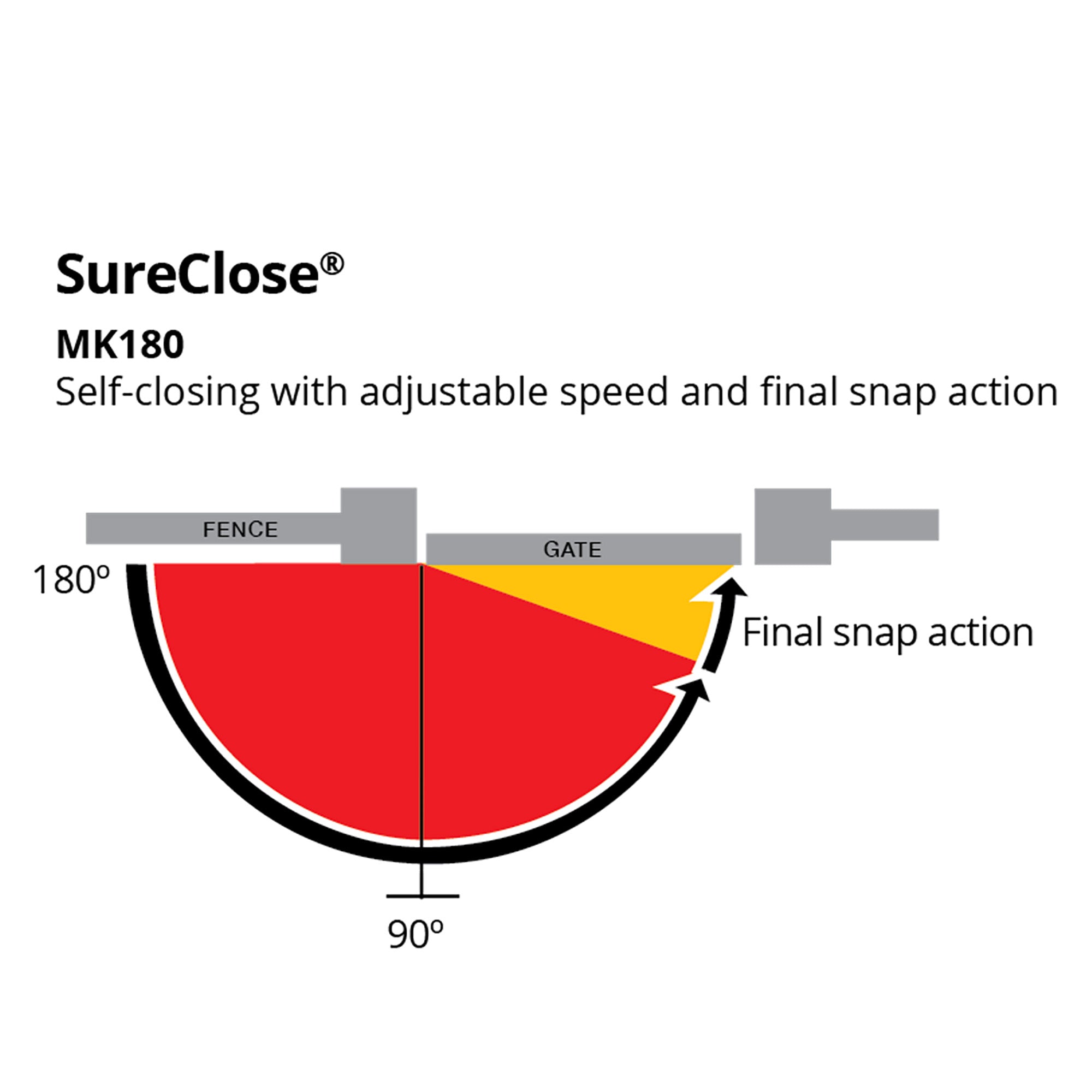

The SureClose MK180 is a compact hydraulic hinge-closer from D&D Technologies. It controls the gate smoothly through 180 degrees and returns it safely to the closed position, with a self-latching speed that adjusts separately from 20 degrees. MotionKinetic fluid keeps the closing speed consistent as the temperature changes.
For heavy gates
A pair is rated for aluminum and steel gates up to 330 lb, around 4' wide and 6' high, and D&D states it meets ADA requirements. No gate stop is needed, which saves cost and installation time.
Finish and fit
At 7-1/2" tall it keeps a low profile on the gate. The marine-grade matte black anodized finish resists corrosion, so it suits coastal and harsh environments. It screws on to square posts from 2", takes a hinge gap of 9/16" to 13/16" and adjusts by about 1/4". Order the left or right hand set to match the opening direction of the gate.
Watch the video
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Finish | Matte Black Anodized |
| Fixing method | Screw-On |
| Fixings included | Yes |
| Weight | 3.8 lb |
| Product line | SureClose |
| Type | Hinge-Closer |
| Function | Self-Closing, Square-to-Square |
| Gate material | Aluminum, Steel/Ornamental Iron |
| Suitable for | Front Gate, Side Gate, Pedestrian Gate, Driveway Gate, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate |
| Hinge gap | 9/16 - 13/16" |
| Min post size | 2"+ |
| Horizontal adjustment | 1/4" (+/- 1/8") |
| Max self-closing gate weight | 330 lb per pair |
| Self-closing from | 180° |
| Sold as | Pair |
| Hand | Left |
Article numbers

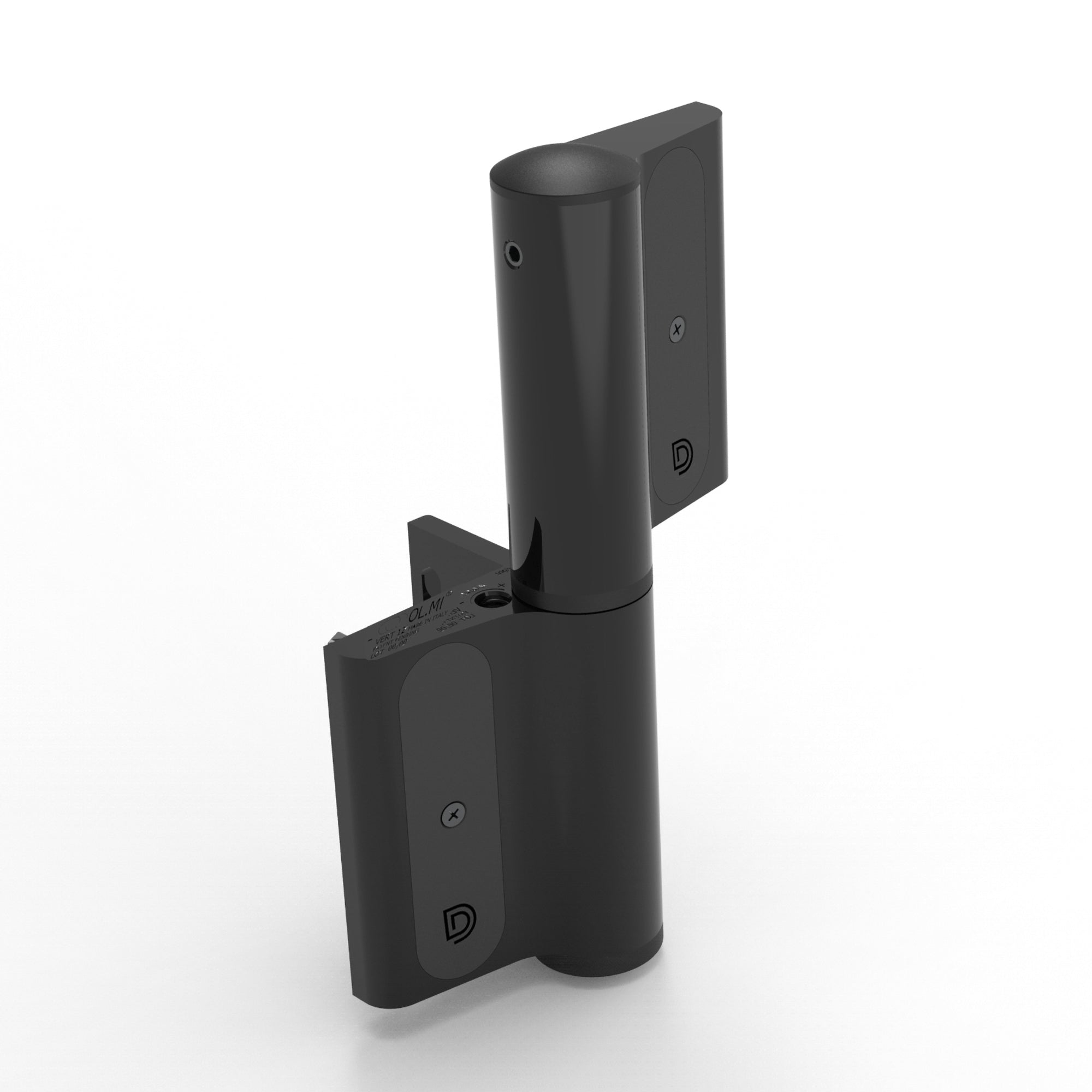

- 77180743LHand: Left$540.00Chosen
- 77180743RHand: Right$540.00
Frequently asked questions
Do I need the left or the right hand set?
Order the set that matches the opening direction of your gate: 77180743L for a left hand opening, 77180743R for a right hand opening.
How heavy a gate can it close?
A pair is rated for aluminum and steel gates up to 330 lb.
Do I need a gate stop?
No. D&D states that no gate stop is required with the MK180.
