Locinox Drillfix | Tool case with drilling jig for surface mounted locks and corresponding keeps
Locinox Drill-Fix tool case with a self-centring drilling jig for installing Locinox surface mounted locks and keeps quickly and accurately. It aligns on round, square or rectangular profiles from 30 to 3" and includes three drill bits, a hex key and a positioning pin.
Key features
- Self-centring drilling jig
- For Locinox surface mounted locks and keeps
- Round, square and rectangular profiles from 30 to 3"
- Drills the 4-hole lock pattern and 2 keep holes
- Three drill bits included
Drill-Fix jig for fast, accurate lock and keep installation
Installing a surface mounted lock means drilling a precise hole pattern in the gate profile and matching holes for the keep in the post. The Locinox Drill-Fix jig makes that quick and accurate. It centers itself on the profile and guarantees correct alignment, so the holes end up in the right place first time.
How it works

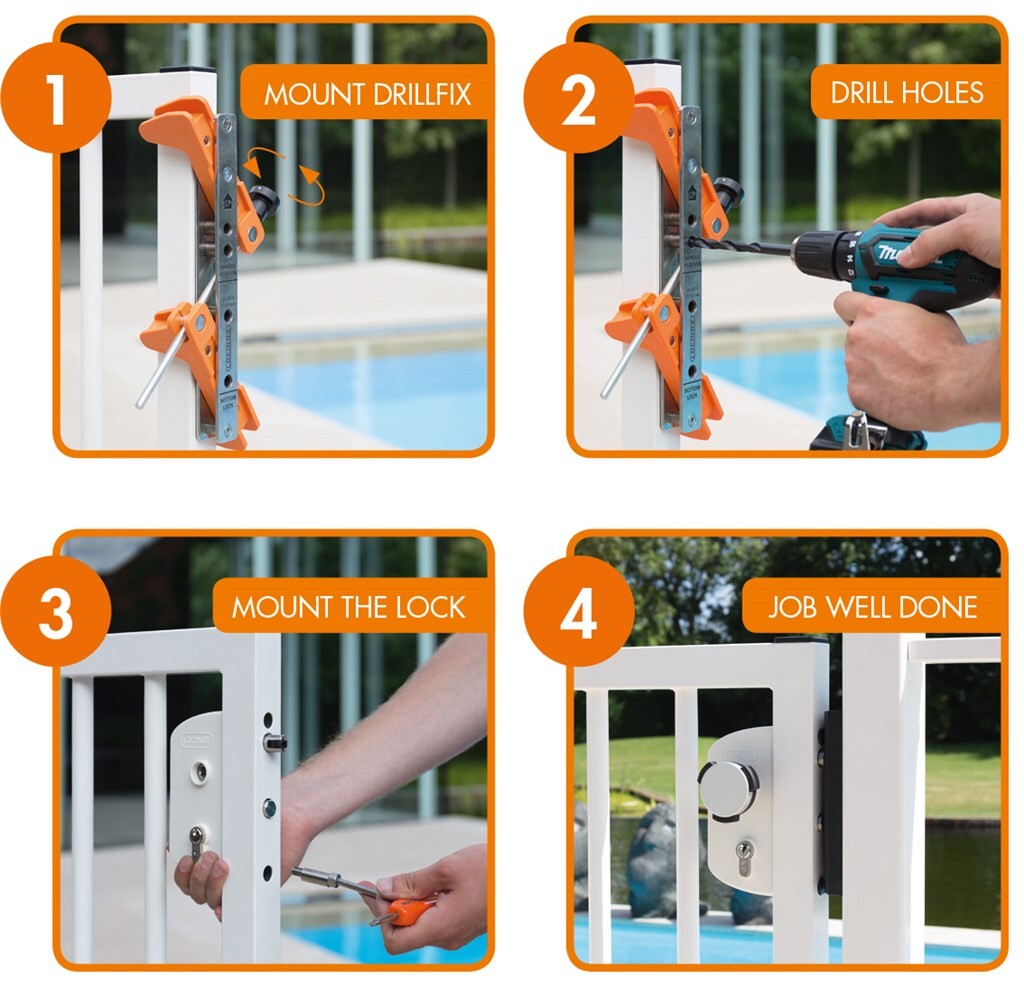

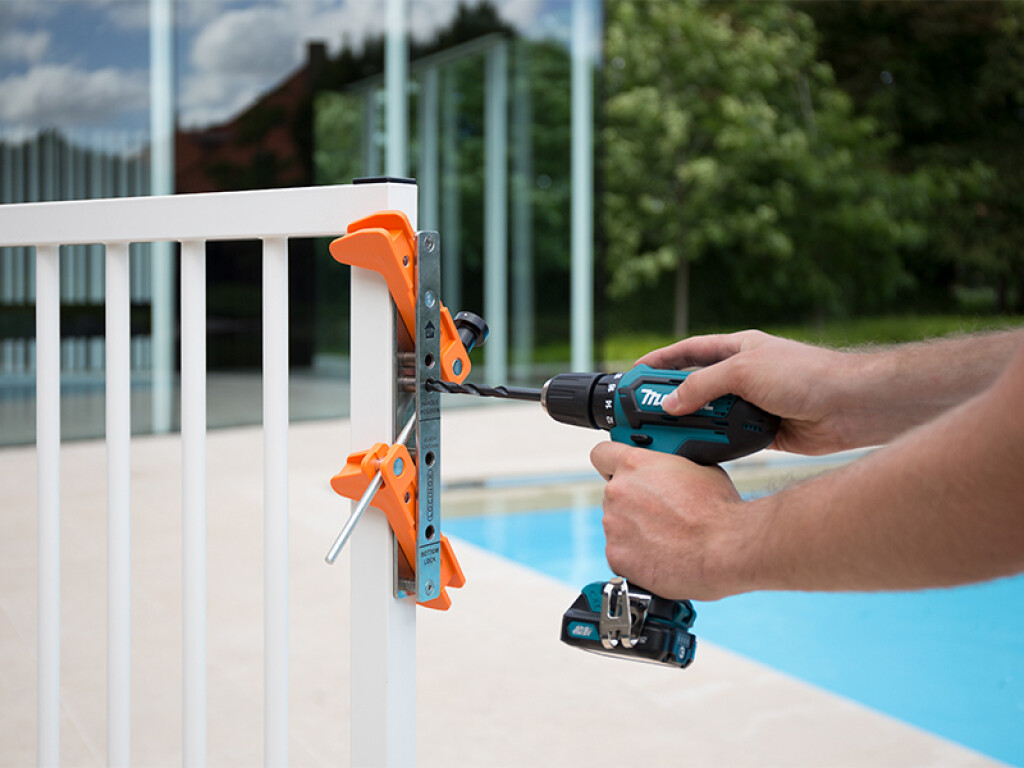

Clamp the jig on the profile and drill through its guides: the four-hole pattern for the lock, or the two holes needed for the keep. Locinox describes installation in four steps: mount the Drill-Fix, drill the holes, mount the lock and check the result.
Sizes and fit
The jig works on round, square and rectangular profiles from 30 to 3". It is made for Locinox bolt-on locks and keeps.
In the case

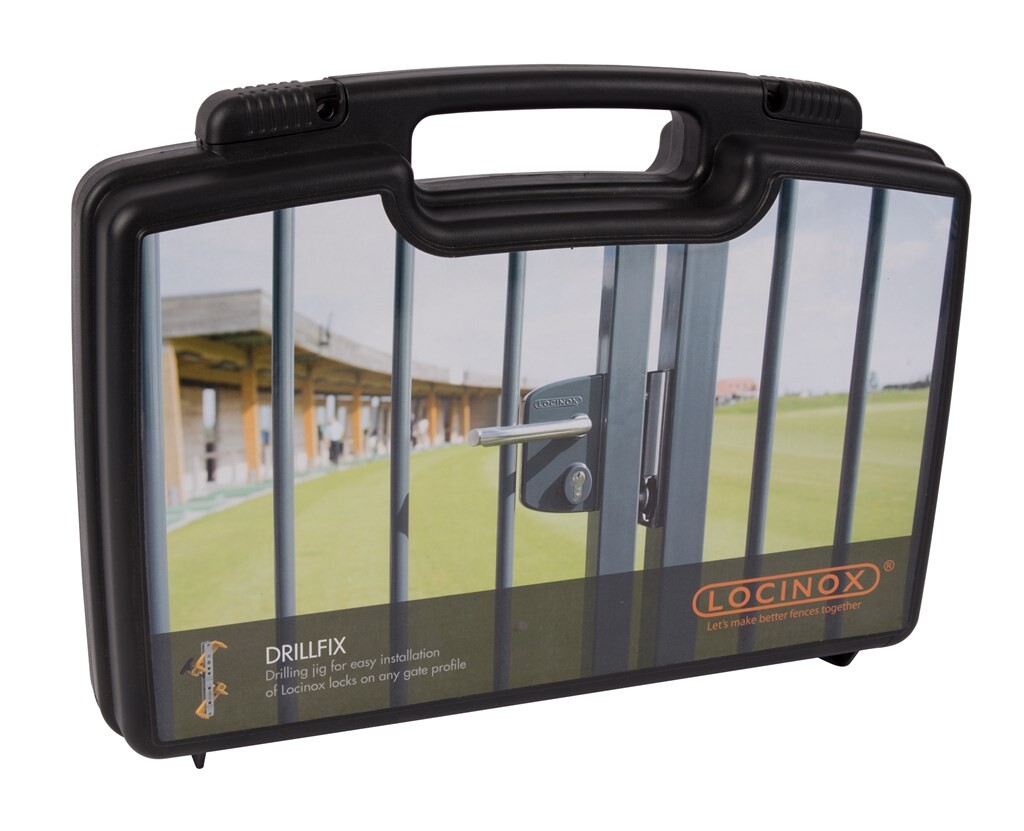

Everything comes in a sturdy carry case: the self-centring drilling jig, three drill bits of Ø 0.374", Ø 9/16" and Ø 11/16", the LA Locitool, a hex key and a positioning pin. Installation instructions are available from Locinox.
Specifications
| Brand | Locinox |
| Width | 1' (12-5/8") |
| Height | 3-7/8" |
| Length | 1'4" (16-1/2") |
| Weight | 6.2 lb |
| EAN | 5414768032190 |
What's in the box
- Self-centring drilling jig
- 3 drill bits: Ø 0.374", Ø 9/16" and Ø 11/16"
- LA Locitool
- Hex key
- Positioning pin
- Carry case
Frequently asked questions
Which profiles does the jig fit?
Round, square and rectangular profiles from 30 to 3".
Which drill bits are included?
Three: Ø 0.374", Ø 9/16" and Ø 11/16".
Which locks is it for?
Locinox surface mounted (bolt-on) locks and their keeps.
