AES | Wireless e-Keypad with eTrans 100 Transceiver
The AES wireless e-Keypad (part EKPD-KT) mounts with two screws and runs on a coin cell, sending codes over an encrypted 433.39 MHz link to an eTrans transceiver. Up to 200 codes, 4 to 8 digit PINs, three channels, waterproof housing, supplied with the eTrans 100 transceiver.
Key features
- No wiring: two screws and a coin cell
- 200 access codes plus one supervisor code
- 4 to 8 digit PIN codes
- 3 channels
- AES 128-bit encrypted 433.39 MHz link
- Waterproof housing
Wireless e-Keypad with eTrans 100 transceiver

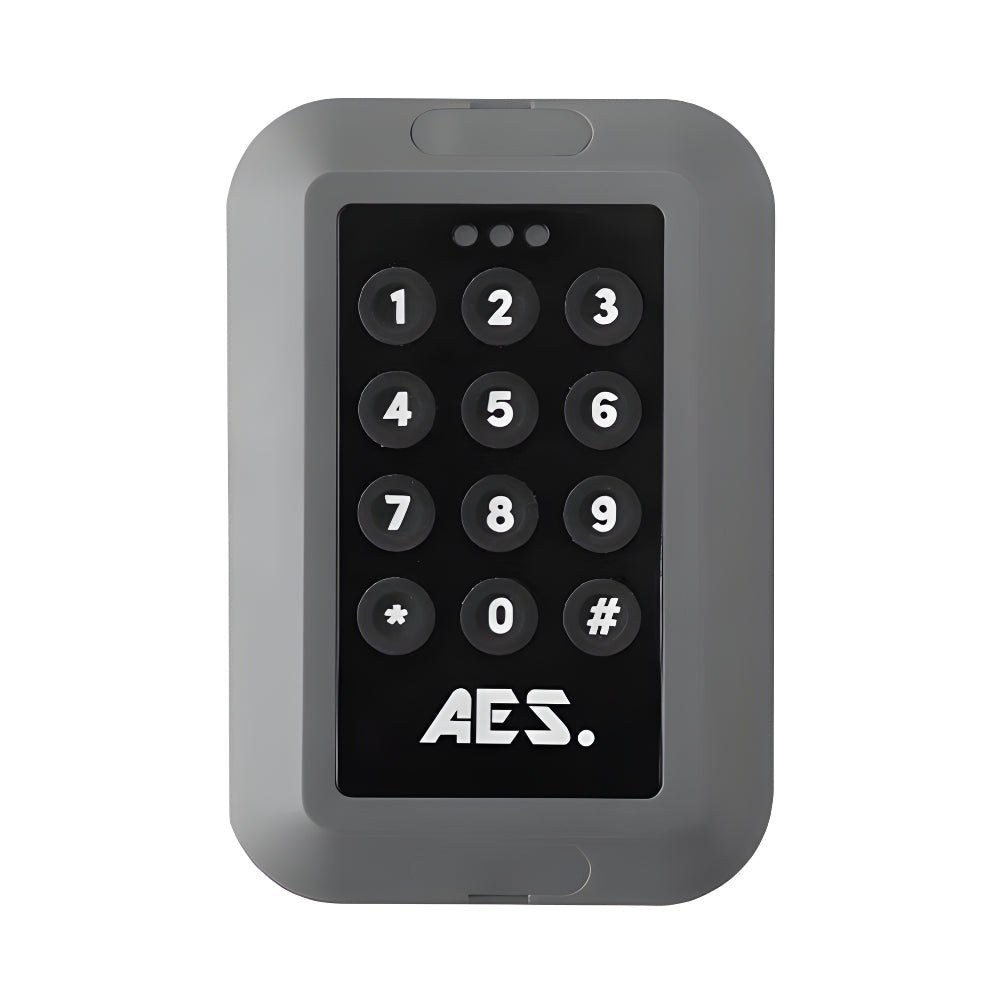

The e-Keypad is a battery-powered wireless keypad that needs no cabling. It mounts with two screws, a CR2450 coin cell powers it, and a 433.39 MHz link with AES 128-bit encryption carries the signal to an eTrans transceiver, which does the relay switching.
Codes and channels
It holds up to 200 access codes plus a supervisor code, takes 4 to 8 digit PINs, and codes can be limited to a set number of uses. Three channels are available, and the housing is waterproof.
Where it fits
It is the straightforward answer for an entry or exit keypad where there is no cable and no wish to dig a trench. Its power consumption is 200 nA, from a 540 mAh coin cell.

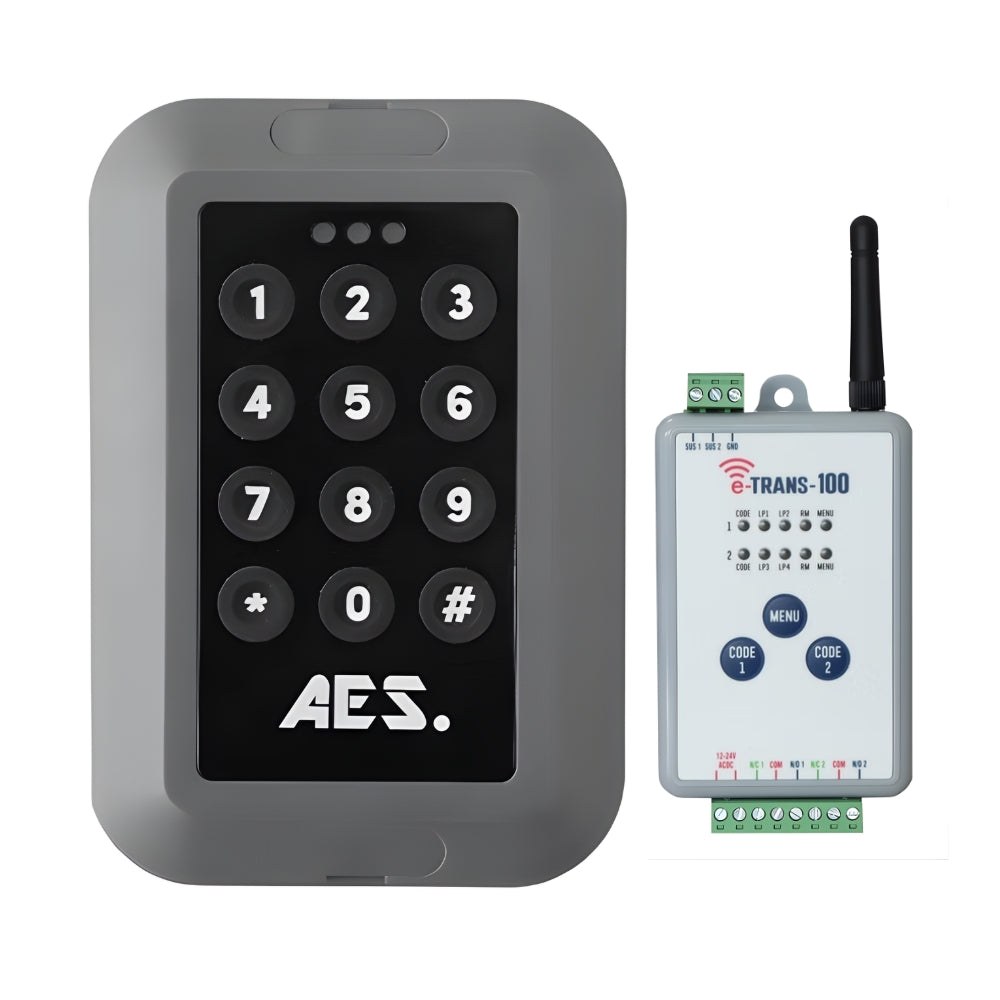

The eTrans 100 transceiver
This kit pairs the keypad with an eTrans 100 transceiver, which is wired to the gate operator and switches it when a valid code arrives. The eTrans 100 gives two relays, the second with normally-closed contacts. Ordered under AES part number EKPD-KT, with the two-year manufacturer's warranty.
Specifications
| Brand | AES Global |
| Voltage | 3 v |
| Warranty | 2 years, manufacturer |
| Product line | AES Wireless e-Keypad |
| Frequency | 433.39 MHz |
| Channels | 3 |
| Encryption | AES 128-bit |
| Power consumption | 200 nA |
| Battery | CR2450 coin cell, 540 mAh |
| Details | |
|---|---|
| Keypad codes | 200 plus supervisor code |
| Supplied transceiver | eTrans100 |
What's in the box
- Wireless e-Keypad
- CR2450 battery
- Fixing screws
Frequently asked questions
Does the keypad need any wiring?
No. It mounts with two screws and runs on a CR2450 coin cell; the signal goes wirelessly to an eTrans transceiver.
How many codes does it hold?
Up to 200 access codes plus a supervisor code, with PINs of 4 to 8 digits.
Which transceiver does it work with?
An eTrans transceiver; this kit includes the eTrans 100.
What warranty does it carry?
A two-year manufacturer's warranty from AES Global.
