SureClose ConcealFit Drill Jig & Receivers
Parts for the D&D Technologies SureClose ConcealFit concealed hinge-closer: the drill jig that cuts an accurate ConcealFit pocket in a timber gate, the ConcealFit closer itself, the hydraulic-side closer receiver assembly and the receiver bracket for door or frame side.
Key features
- Drill jig for an accurate ConcealFit pocket in timber gates
- ConcealFit closer available on its own
- Hydraulic-side closer receiver assembly
- Receiver bracket for door side or frame side
- Limited lifetime warranty
SureClose ConcealFit Drill Jig and Receivers: the parts for a concealed install

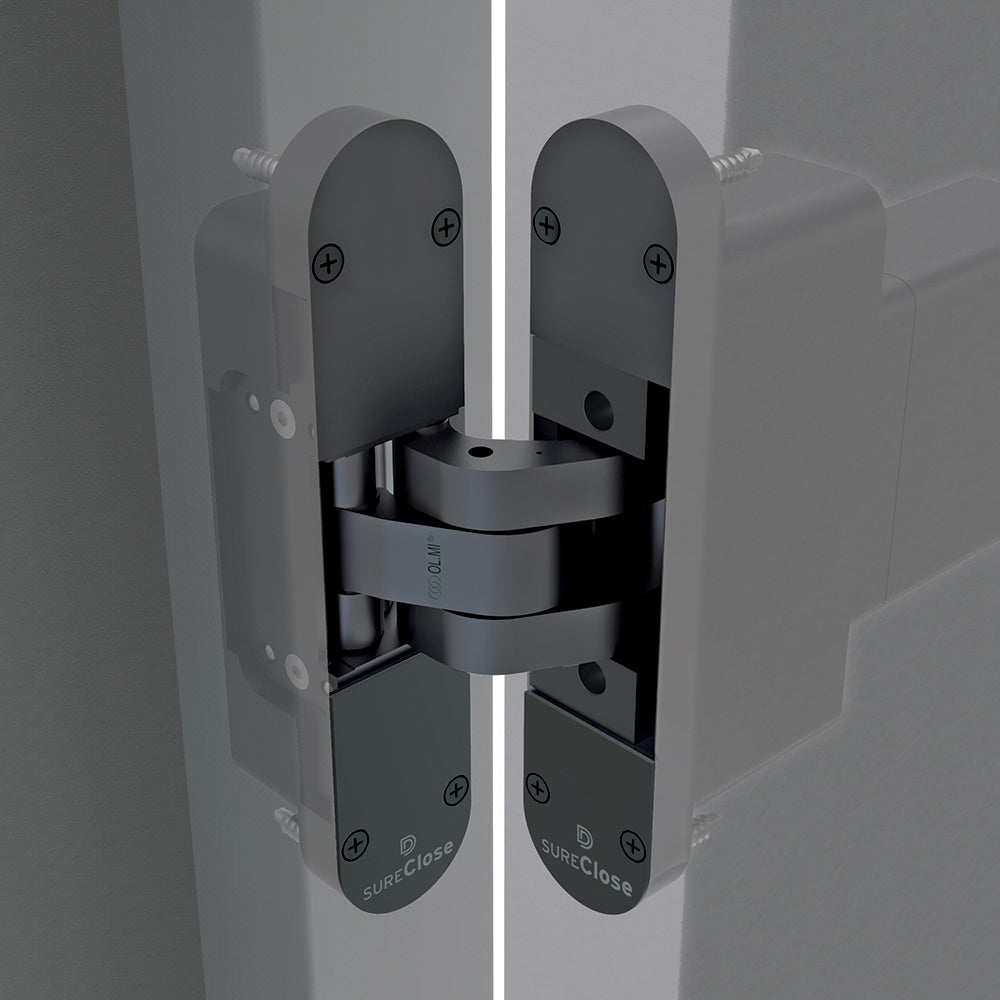

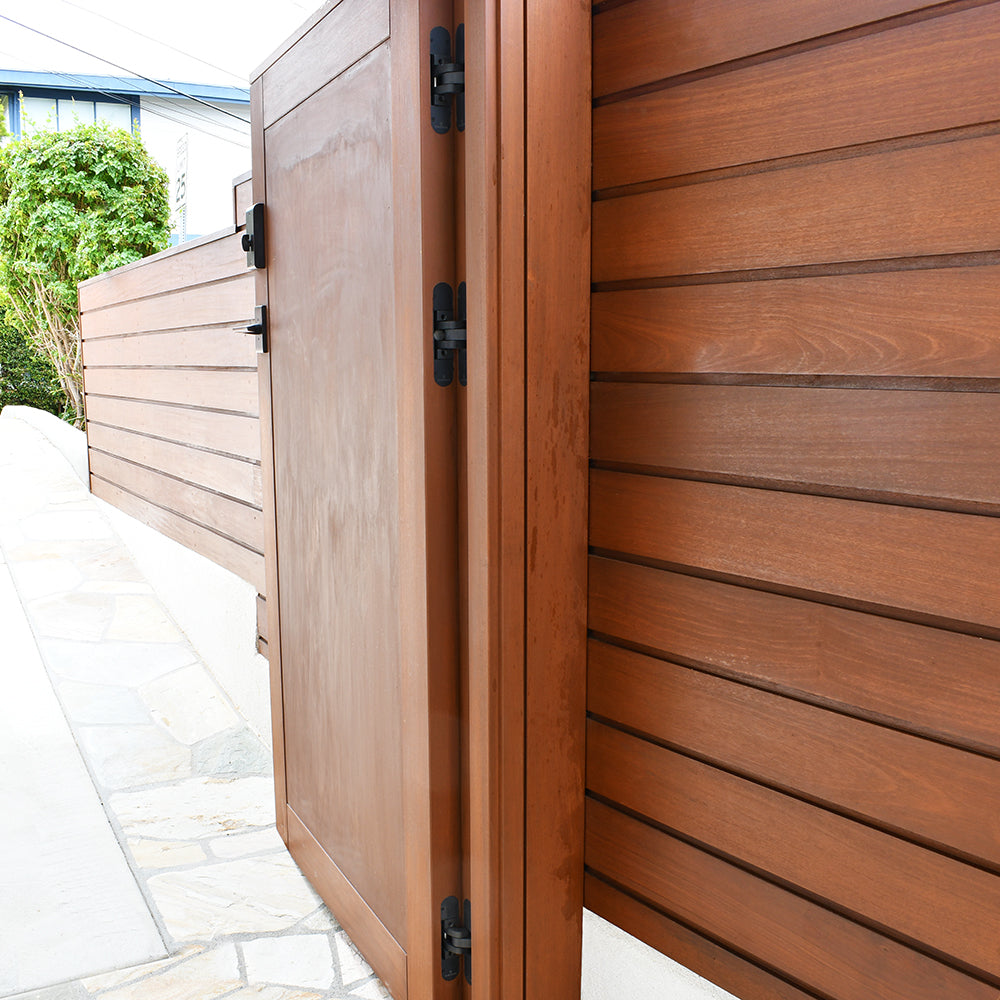

SureClose ConcealFit from D&D Technologies is a hinge-closer hidden inside the gate. This page sells the closer and the parts around it, including the jig that cuts an accurate pocket for it in a timber gate.
Choosing the right one
- 7801 - ConcealFit closer drill jig
- 78108523 - ConcealFit closer
- 7802 - closer receiver assembly, hydraulic side
- 7803 - closer or hinge receiver bracket, door side or frame side
Ordering
Every option is a separate D&D part number, sold each with the D&D limited lifetime warranty. The video on this page shows a SureClose ConcealFit concealed hinge-closer installation. For a project quantity, request a quote with your quantities and we will price it including freight.
Watch the video
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Warranty | Limited lifetime |
| Product line | SureClose |
| Sold as | Each |
| Part | Closer or Hinge Receiver Bracket -Door Side or Frame Side |
Article numbers
- 7801Part: ConcealFit Closer Drill Jig$276.00
- 78108523Part: ConcealFit Closer$470.00
- 7802Part: Closer Receiver Assembly -Hydraulic Side$79.00
- 7803Part: Closer or Hinge Receiver Bracket -Door Side or Frame Side$30.00Chosen
Frequently asked questions
Which part number do I need from the SureClose ConcealFit Drill Jig & Receivers?
Each option on this page is its own D&D part number, listed next to the option name: 7803 (Closer or Hinge Receiver Bracket -Door Side or Frame Side), 7802 (Closer Receiver Assembly -Hydraulic Side), 7801 (ConcealFit Closer Drill Jig), 78108523 (ConcealFit Closer).
Are these genuine D&D Technologies parts?
Yes. They are ordered against the D&D Technologies USA trade price list and ship as the original manufacturer's part, with the D&D limited lifetime warranty.
Do I need to order fasteners separately?
Check the option: D&D supplies some items with fasteners and some without, because the right screw depends on whether you fix into metal, wood or vinyl. We stock the screw packs per material.
Can I get a volume price?
Yes. D&D sets a minimum order quantity per item for the volume price; request a quote with your quantities and we will price it including freight.
What types of fencing products does Fenceweb offer?
Fenceweb offers a complete range of fencing products, including welded wire fence panels, chain link fence, ornamental and metal fencing, security fencing, fence posts, swing and farm gates, gate hardware and temporary fencing. We also carry trusted brands such as Locinox, Gatemaster, ZND, AES Global, D&D Technology and Tarter.
Are all products in stock and ready for shipment?
The majority of our catalog is kept in stock and ships quickly from our warehouse. We do not publish a stock figure on the product pages, so ask our team and they will confirm availability and lead times for your order, especially a larger or custom one.
