Double wire fence | 0/4/0 GA | Mesh 2" x 8" | Width 8'2"
Heavy-duty 0/4/0 GA twin wire mesh panel, 8'2" wide with a 2" x 8" mesh. Two horizontal 0 GA wires and one vertical 4 GA wire, welded at every crossing, make a rigid panel for business sites, schools and secure boundaries. Ten heights from 630 to 8', five finishes.
Key features
- 2 x 8 mm horizontal and 6 mm vertical wires, welded
- 2" x 8" mesh, 8'2" panel width
- Ten heights from 630 to 8'
- Hot-dip galvanized, or galvanized and powder coated in four RAL colors
- 10-year warranty on the powder coating

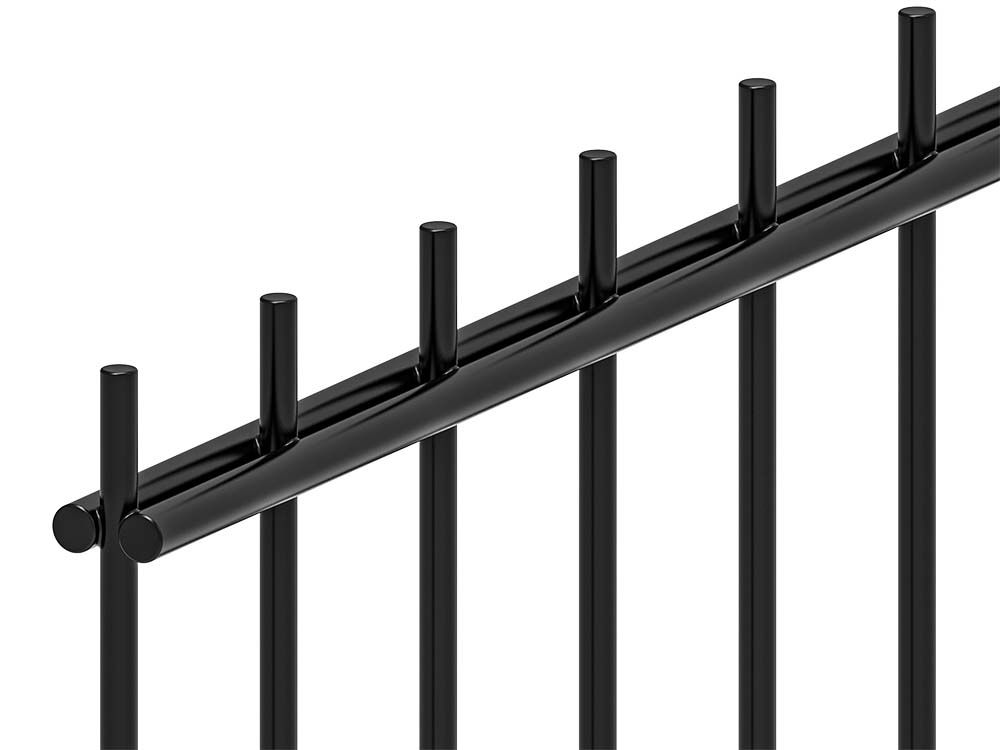

- 30 mm wire ends at the top, reversible
0/4/0 GA twin wire mesh panel: the heavy-duty choice for secure boundaries

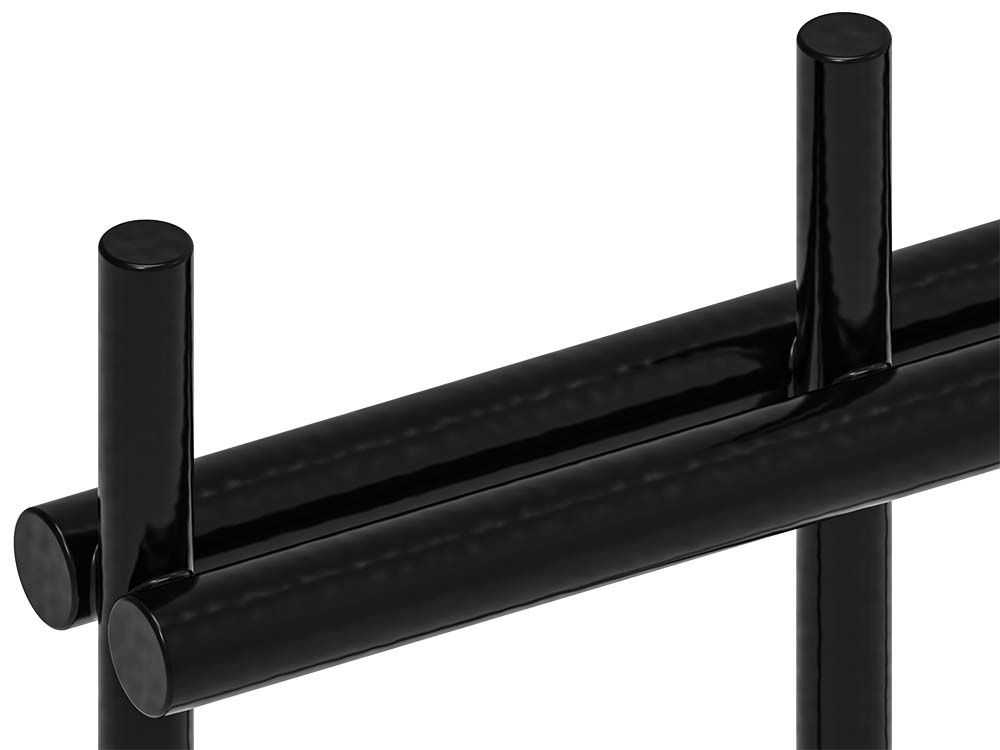

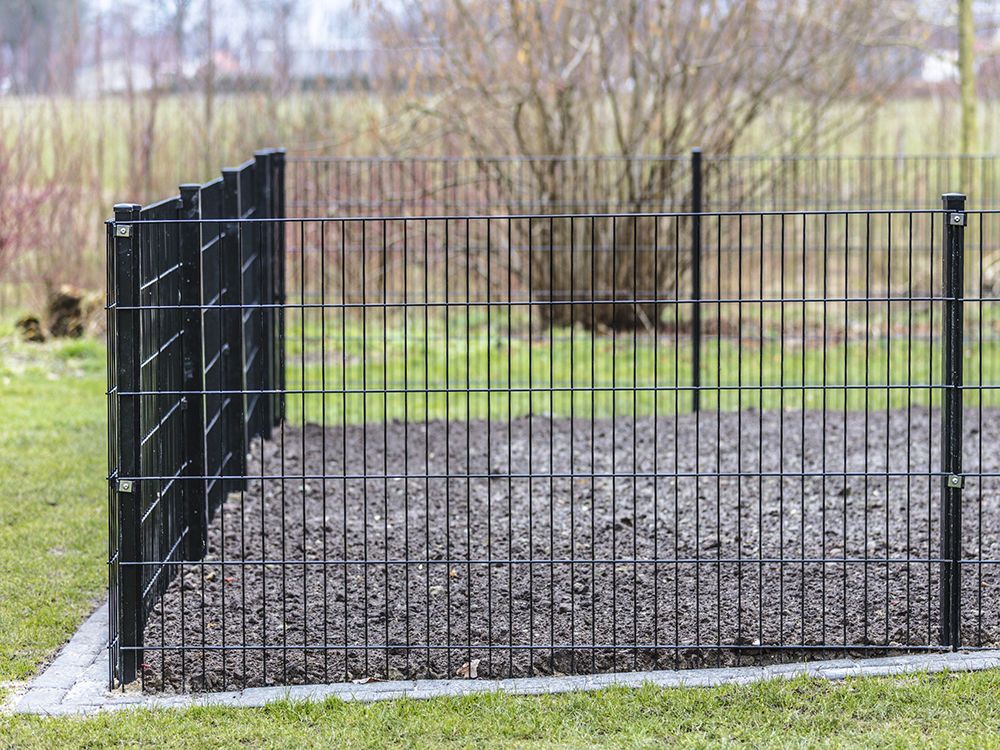

The 0/4/0 GA panel is the heavy version of the twin wire system. Each panel combines two horizontal 0 GA wires with one vertical 4 GA wire, welded at every crossing. The result resists bending, cutting and climbing while keeping a clean, open look.
Specifications

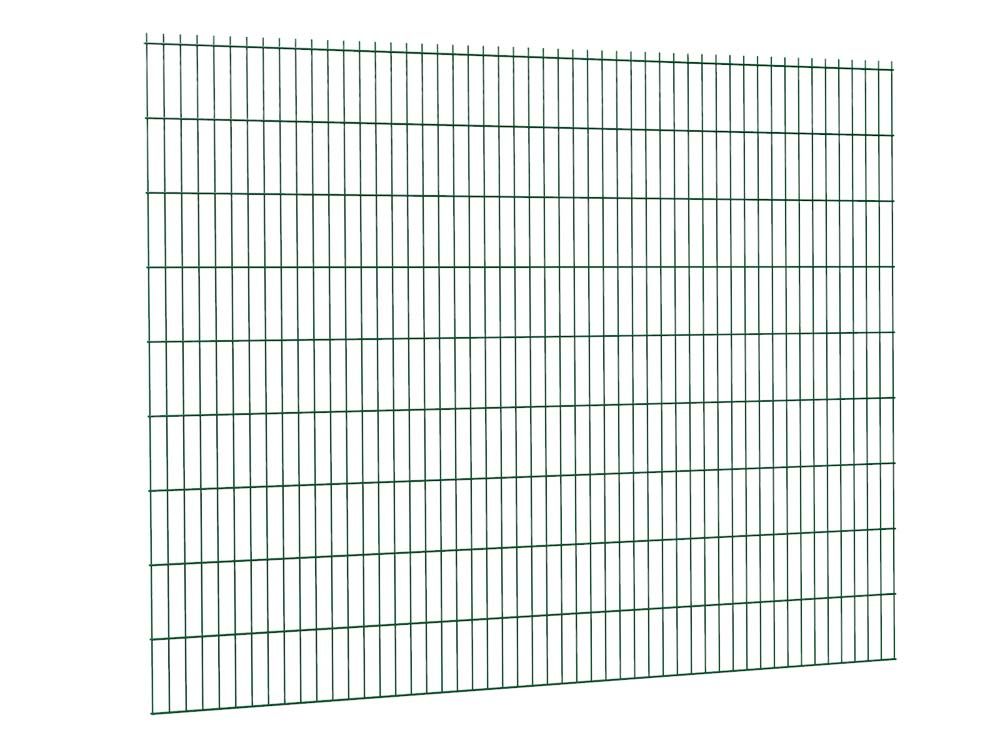

- Wires: 2 x 8 mm horizontal, 6 mm vertical
- Mesh: 50 x 200 mm
- Panel width: 2508 mm
- Heights: 630 to 2430 mm in 200 mm steps

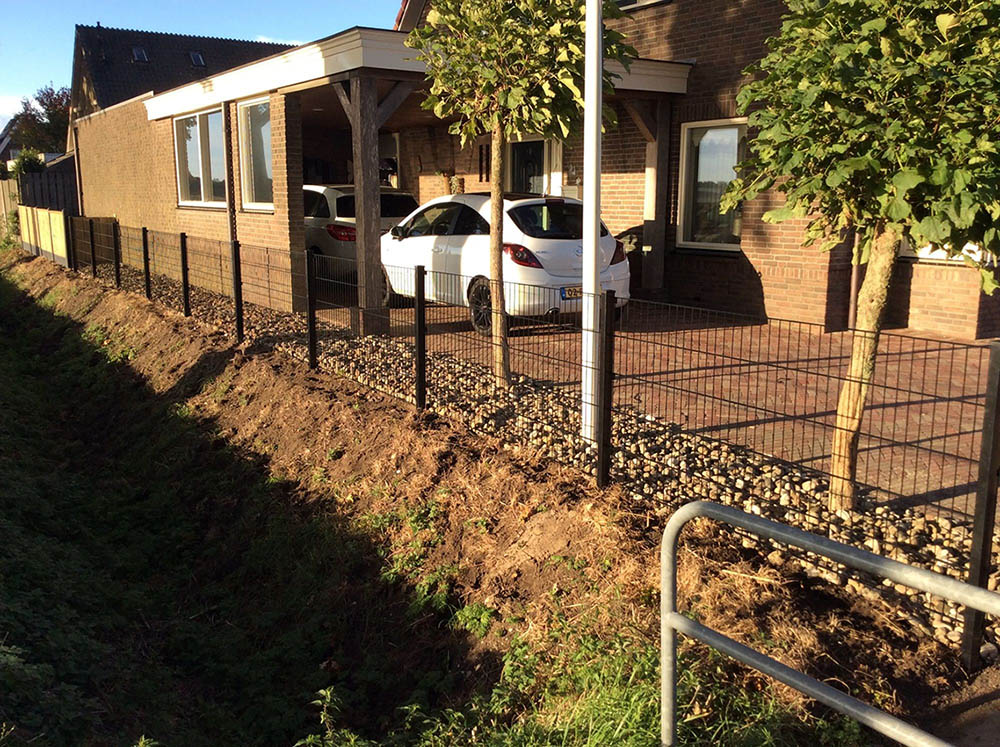

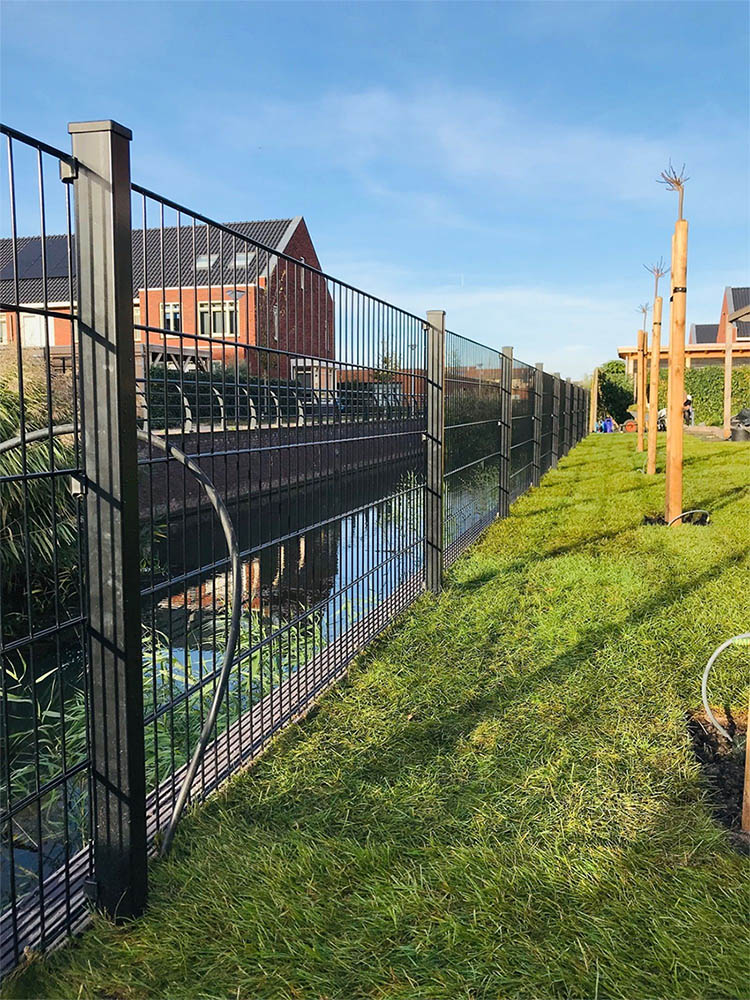

- Finishes: hot-dip galvanised, moss green RAL 6005, fir green RAL 6009, anthracite grey RAL 7016 and black RAL 9005
Materials and finish
The steel is hot-dip galvanized and then powder coated, or supplied hot-dip galvanized only. This double protection resists weather, corrosion and wear. The powder coating carries a 10-year warranty, and small scratches can be touched up with matching repair spray.
Typical uses

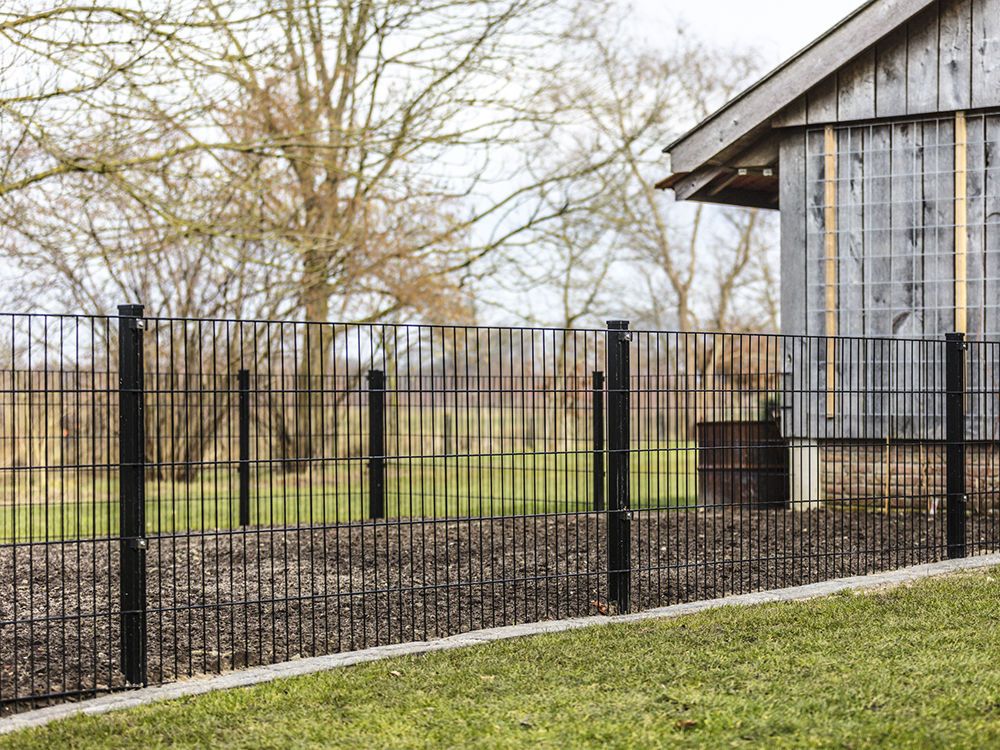

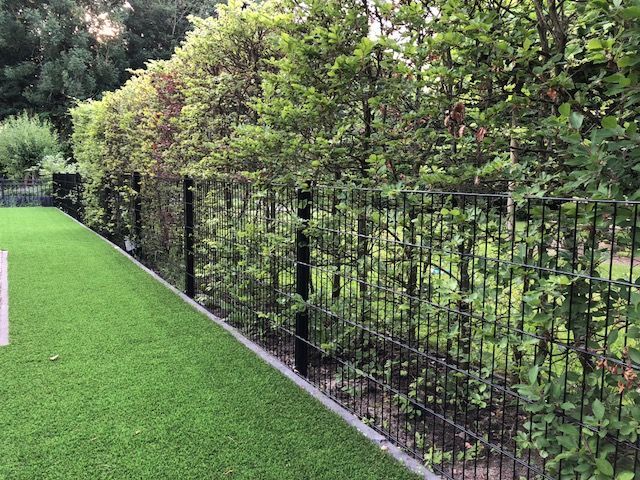

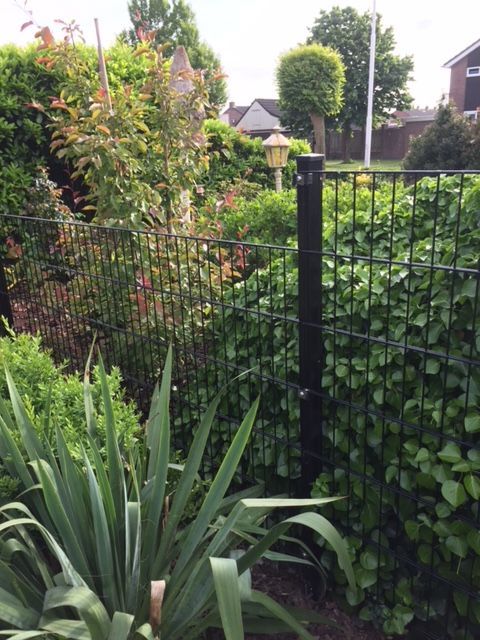

Business premises and logistics sites, public buildings, schools, sports grounds, car parks, industrial zones and rail perimeters. The open mesh keeps a clear line of sight for camera surveillance, and the 30 mm wire ends at the top make the fence hard to climb; mount the panel upside down if you prefer the points at the bottom.
Installation
This is the panel only. You also need posts, brackets to suit the post system, post caps and, on hard surfaces, base plates. Posts are about 2' longer than the fence height and set in concrete. Single and double gates fit straight into the system, and weave-in privacy strips add screening.
Specifications
| Brand | Fenceweb |
| Width | 8'2" (98-3/4") |
| Height | 6' (72") |
| Length | 1-1/8" |
| Weight | 55 lb |
| Color | RAL9005 |
Article numbers
- 001329Color: Hot-dip galvanised / Height: 8'$185.00
- 001156Color: RAL9005 / Height: 6'$125.00Chosen
- 001320Color: Hot-dip galvanised / Height: 6'$145.00
- 001161Color: RAL9005 / Height: 8'$160.00
Frequently asked questions
What does 0/4/0 GA mean?
Each panel has two horizontal wires of 0 GA and one vertical wire of 4 GA, welded at every crossing.
Are posts and brackets included?
No. This product is the panel only. Posts, brackets, post caps and, where needed, base plates are ordered separately.
How long should the posts be?
About 2' longer than the fence height, set in concrete or quick-setting concrete.
Is there a warranty on the coating?
Yes. The powder coating carries a 10-year warranty.
What types of fencing products does Fenceweb offer?
Fenceweb offers a complete range of fencing products, including welded wire fence panels, chain link fence, ornamental and metal fencing, security fencing, fence posts, swing and farm gates, gate hardware and temporary fencing. We also carry trusted brands such as Locinox, Gatemaster, ZND, AES Global, D&D Technology and Tarter.
Are all products in stock and ready for shipment?
The majority of our catalog is kept in stock and ships quickly from our warehouse. We do not publish a stock figure on the product pages, so ask our team and they will confirm availability and lead times for your order, especially a larger or custom one.
