Double wire fence | 4/6/4 GA | Mesh 2" x 8" | Width 8'2"
Double wire fence panel 4/6/4 GA, 8'2" wide with a 2" x 8" mesh. Two 4 GA horizontal wires and one 6 GA vertical wire are welded at every crossing for a stable panel. Ten heights from 630 to 8', hot-dip galvanized or powder coated in four RAL colors.
Key features

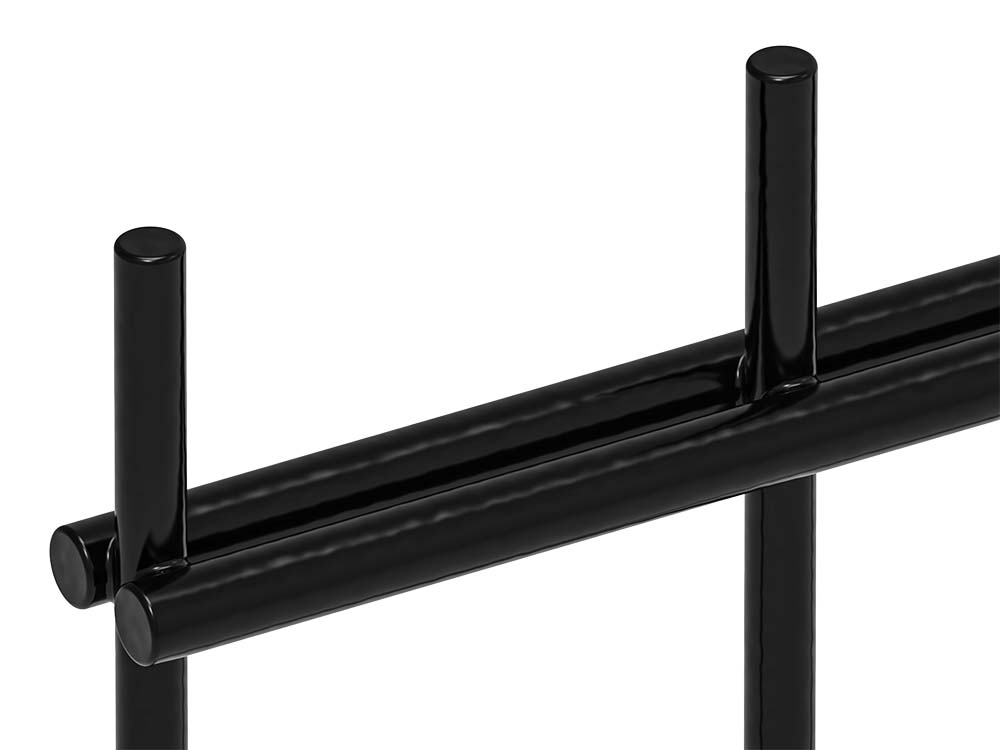

- Wire 4/6/4 GA, welded at every crossing
- Mesh 2" x 8", panel width 8'2"
- Heights 630 to 8' in 7-7/8" steps
- Hot-dip galvanized, or galvanized and powder coated
- 10-year warranty on the coating
- Can be mounted with the points up or down

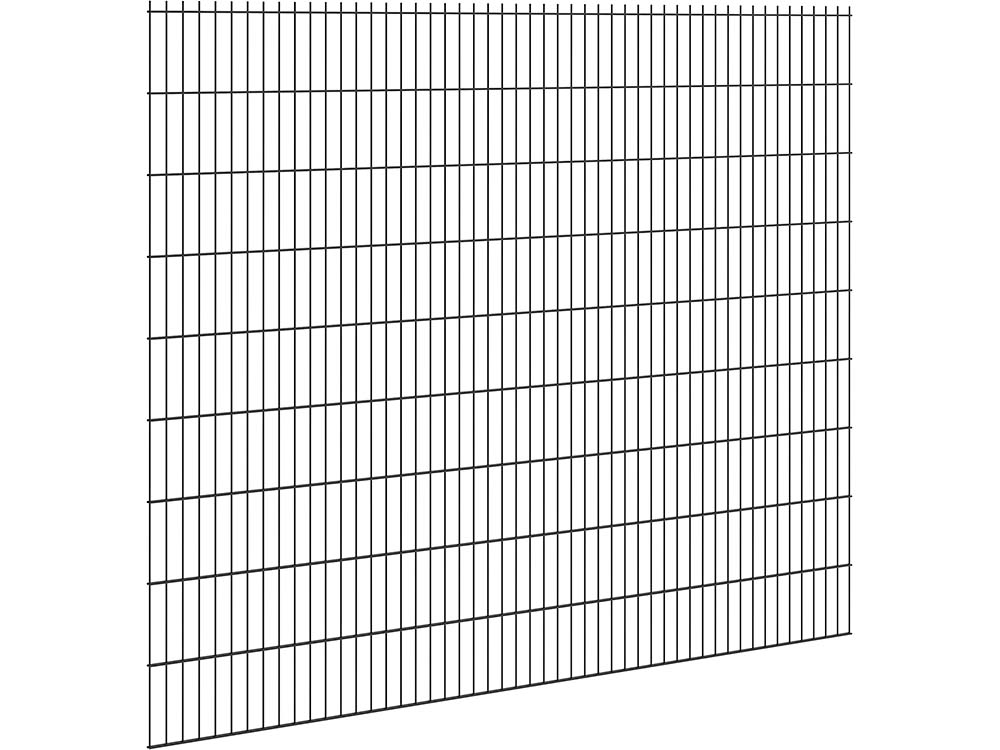

Double wire fence panel 4/6/4 GA, strong and versatile
The 4/6/4 GA double wire panel is a versatile, cost-effective fence for gardens, private properties, schools and business premises that do not need a high-security specification. Two horizontal 4 GA wires and one vertical 6 GA wire are welded at every crossing, giving a light yet stable panel that keeps its shape.
Sizes and fit
- Wire diameter: 2 x 6 mm horizontal, 5 mm vertical
- Mesh size: 50 x 200 mm
- Panel width: 2508 mm
- Heights: 630 to 2430 mm in 200 mm steps
- Finishes: hot-dip galvanised, or galvanised and powder coated in green RAL 6005, green RAL 6009, anthracite grey RAL 7016 or black RAL 9005
The 30 mm wire ends at the top make climbing difficult. The panels can also be mounted upside down if you prefer the points at the bottom.
Materials and finish
The steel wires are hot-dip galvanized and then powder coated, protecting against corrosion and giving a smooth surface. The coated panels carry a 10-year warranty on the coating. Minor scratches can be touched up with matching repair spray.
Installation

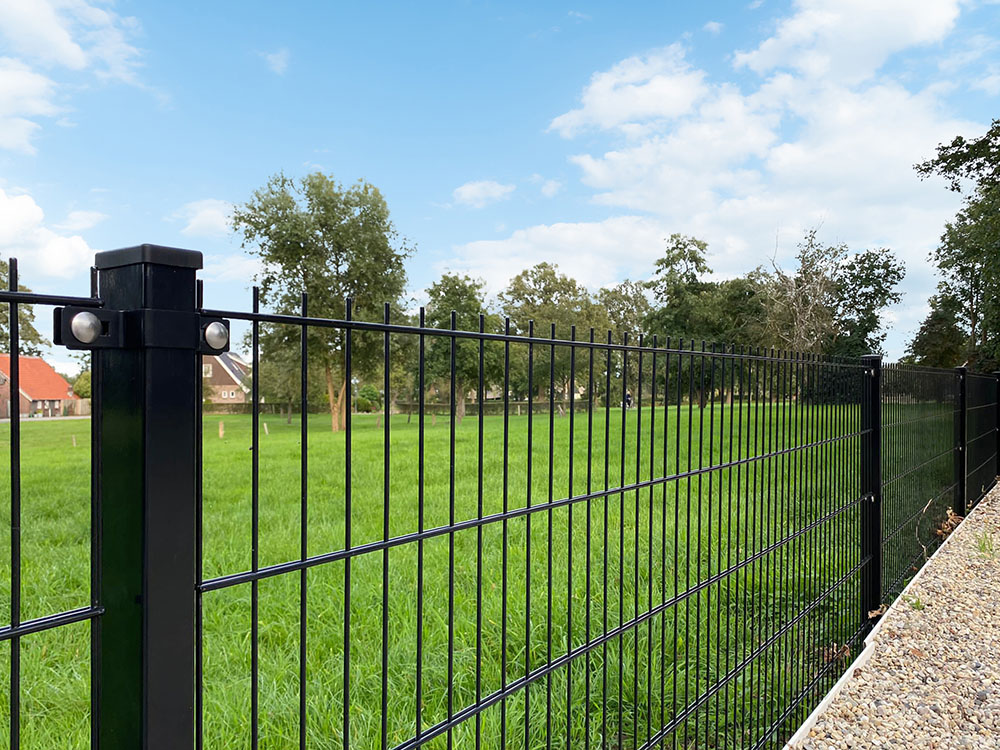

This product is the panel only. A complete fence also needs posts, brackets, post caps and, on hard surfaces, base plates. Posts should be about 2' longer than the fence height and set in concrete. Single and double gates integrate directly into the system.
Specifications
| Brand | Fenceweb |
| Width | 8'2" (98-3/4") |
| Height | 6' (72") |
| Length | 1-1/8" |
| Weight | 49 lb |
| Color | RAL9005 |
Article numbers
- 005178Color: RAL9005 / Height: 6'$105.00Chosen
- 005196Color: RAL9005 / Height: 8'$130.00
- 001323Color: Hot-dip galvanised / Height: 8'$150.00
- 000395Color: Hot-dip galvanised / Height: 6'$120.00
Frequently asked questions
What is included?
The panel only. Posts, brackets, post caps and, on hard surfaces, base plates are ordered separately.
How long should the posts be?
About 2' longer than the fence height, set in concrete or quick-setting concrete.
Which height should I choose?
1030 to 4' suits front gardens and schoolyards, 1430 to 5'4" suits dogs and garden boundaries, 6' gives back-garden privacy and 6'8" and higher suits company premises.
Can I add privacy screening?
Yes. Privacy strips in the fence colors can be woven through the mesh.
What types of fencing products does Fenceweb offer?
Fenceweb offers a complete range of fencing products, including welded wire fence panels, chain link fence, ornamental and metal fencing, security fencing, fence posts, swing and farm gates, gate hardware and temporary fencing. We also carry trusted brands such as Locinox, Gatemaster, ZND, AES Global, D&D Technology and Tarter.
Are all products in stock and ready for shipment?
The majority of our catalog is kept in stock and ships quickly from our warehouse. We do not publish a stock figure on the product pages, so ask our team and they will confirm availability and lead times for your order, especially a larger or custom one.
