Aluminum Post | 3-1/8" x 3-1/8"

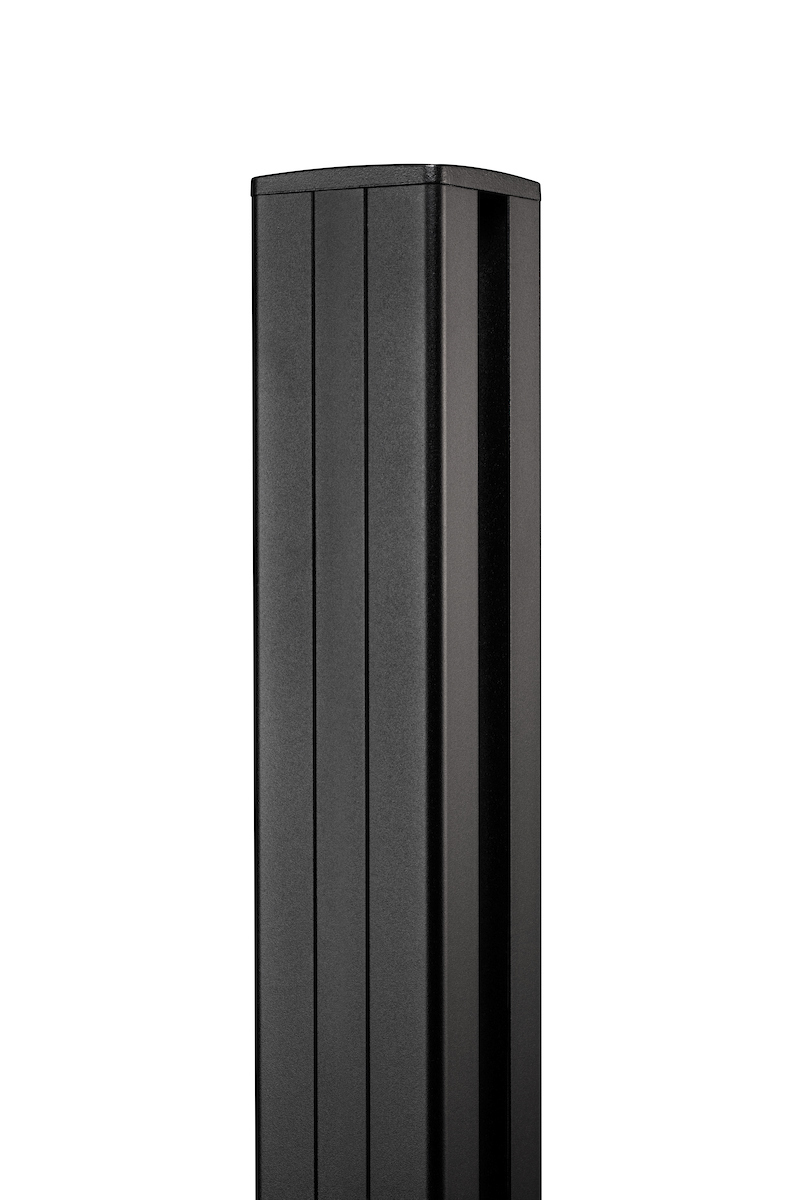

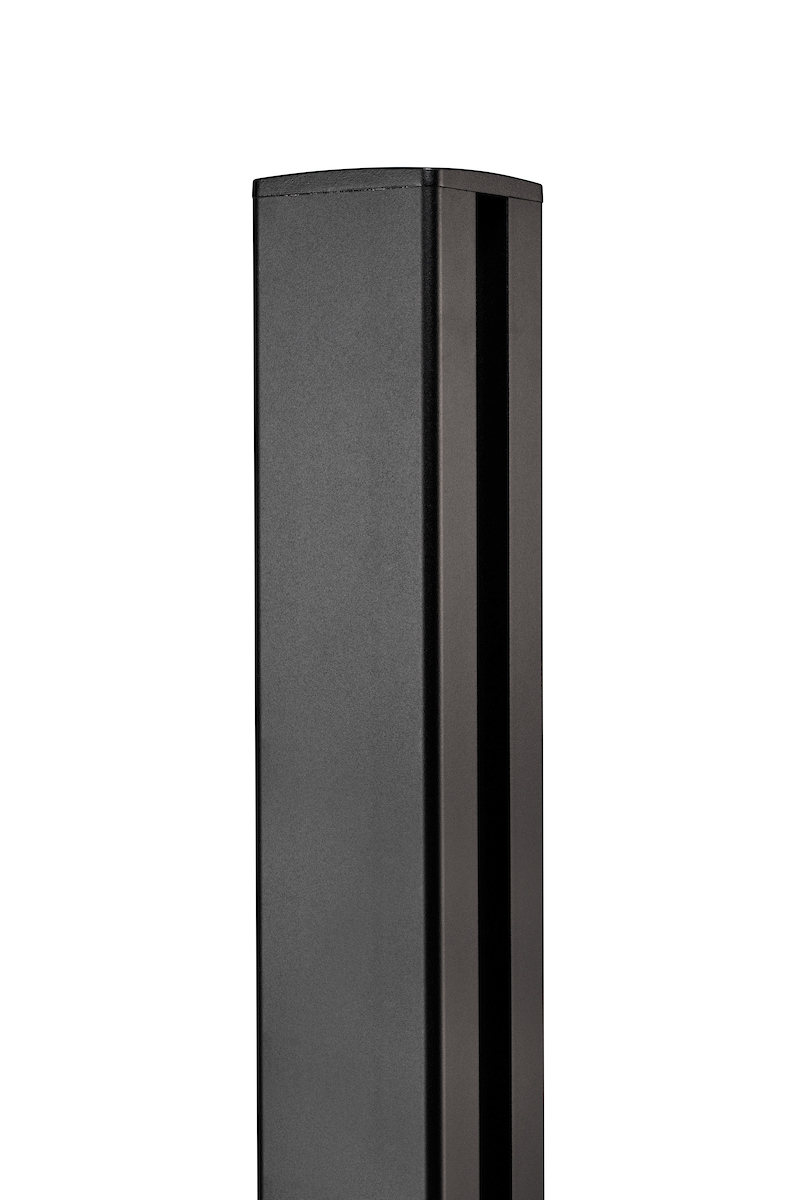

Gardenode Equinox aluminum fence post, 3-1/8" x 3-1/8", the top-of-the-range upright of the Equinox slat fence. Powder coated in Anthracite Gray RAL 7016, Quartz Gray RAL 7039, Black RAL 9005 or Teak, in lengths from 6'2" to 10'6", with a cap and a clip included.
Key features
- Extruded aluminum, powder coated

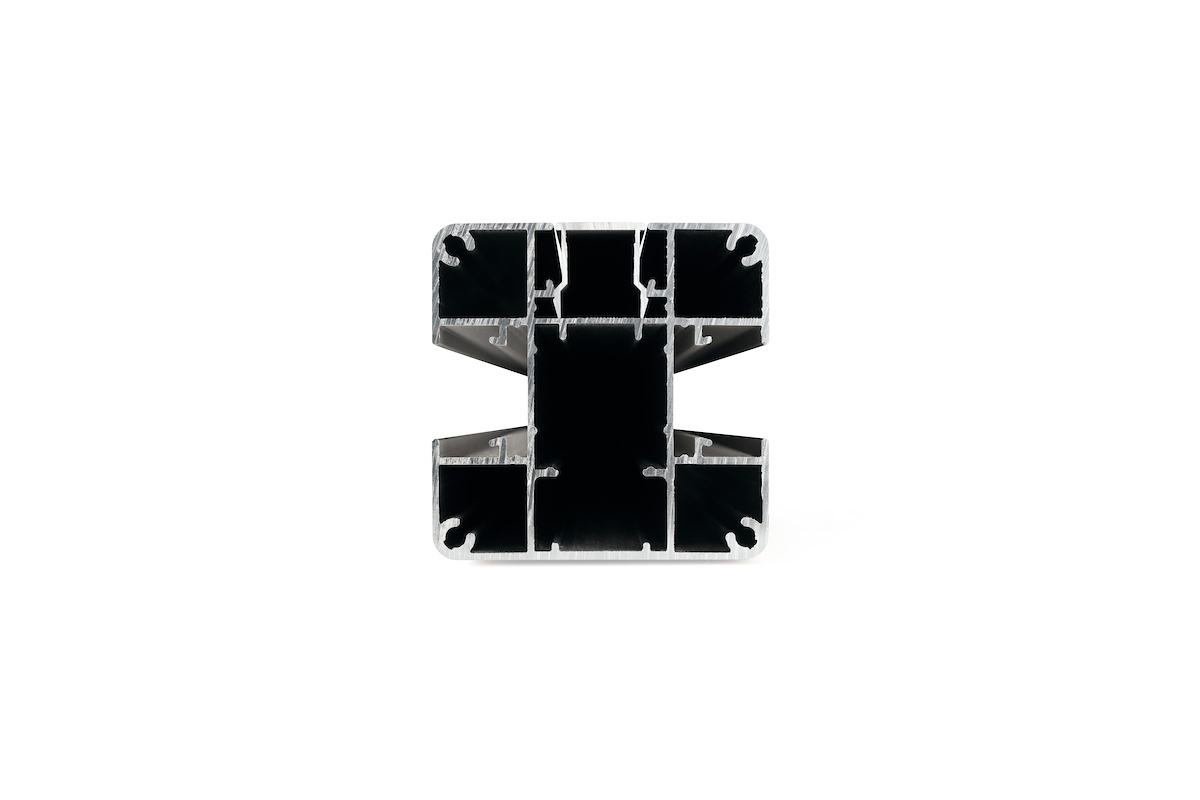

- 3-1/8" x 3-1/8" profile
- Lengths 6'2", 7'6-1/2", 8'6-3/8" and 10'6"
- Set in concrete or on a steel base plate
- Fits every Gardenode Equinox slat and panel
The main post of the system
Aluminum and composite slats, louvers and laser-cut panels slide into the grooves of this post from the top, and the included cap closes it off. It is the heavier of the two Equinox posts and the one to use for tall privacy screens.
Choosing the length

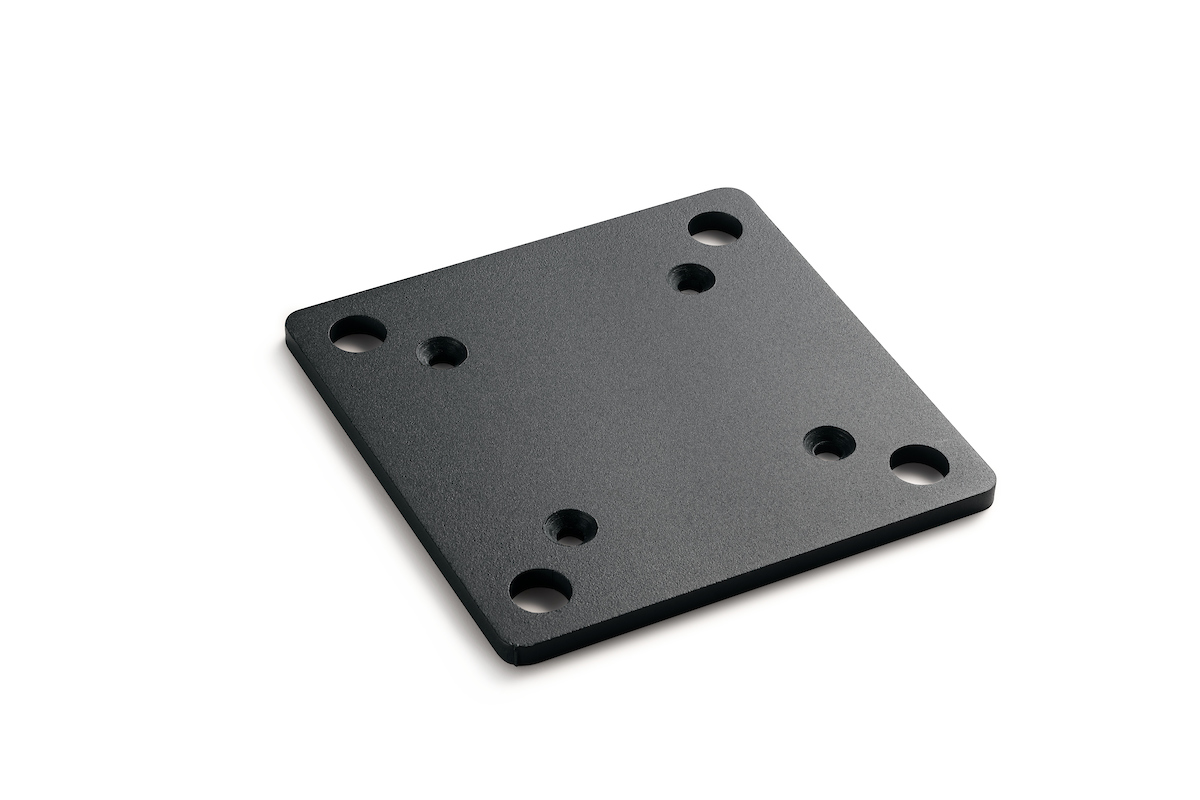

Pick the fence height plus the part you set in concrete: Gardenode's guide is a hole about 15-3/4" square and 19-5/8" deep. On a slab or low wall, mount the post on the 5-1/8" x 5-1/8" steel base plate, pick the fence height alone, and keep the fence to 63".
Spacing and reinforcement
Set the posts 72-7/8" apart on center, so one 70-7/8" slat spans each bay. For fences taller than 70-7/8", add the aluminum post insert.
Watch the video
Specifications
| Brand | Gardenode |
| Manufacturer | Gardenode |
| Material | Aluminum |
| Finish | Powder coated |
| Width | 3-1/8" |
| Height | 3-1/8" |
| Length | 6'2" (74") |
| Post size | 3-1/8" x 3-1/8" |
| Weight | 13 lb |
| Product line | Equinox |
| Type | Fence post |
| Color | RAL9005 |
| Details | |
|---|---|
| Mounting | In concrete or on a steel base plate |
What's in the box
- 1 aluminum post
- 1 post cap
- 1 clip
Article numbers
- 045961Color: RAL9005 / Length: 11'$160.00
- 044953Color: RAL7039 / Length: 7'6"$130.00
- 238151Color: Teak / Length: 8'6"$140.00
- 034387Color: RAL9005 / Length: 6'2"$120.00Chosen
- 044954Color: RAL9005 / Length: 7'6"$130.00
Frequently asked questions
Which length do I need?
The fence height plus the depth you set in concrete. On a base plate, the fence height alone.
Is the cap included?
Yes, one cap and one clip come with every post. Spare caps are sold separately.
How far apart do the posts go?
72-7/8" on center, so one slat spans each bay.
