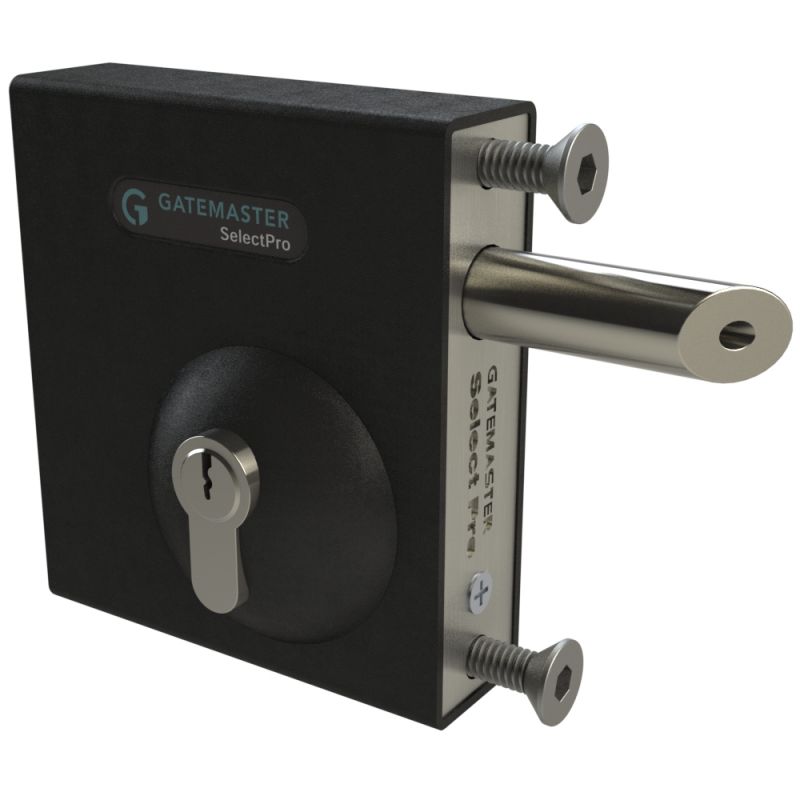

Gatemaster | Bolt-On | Long Throw Keylatch
The Select Pro Long Throw Keylatch is ideal for use on communal gates where the gate needs securing every time it is shut. When the gate is closed the lock latches shut and can only be opened with a key.
Key features
- Adaptable - Latchbolt can be adjusted in length and for left and right handed gates
- Secure - The stainless steel latchbolt springs 13/16" into the gate post, for increased security.
- Convenient - Keyed both sides for easy access.
The Select Pro Long Throw Keylatch is ideal for use on communal gates where the gate needs securing every time it is shut. When the gate is closed the lock latches shut and can only be opened with a key.
- Reliable - Supplied with a guide plate with brass bearing to ensure the lock lasts
- Available in two sizes - 01 for 3/8" to 1-3/16" flat bar or box section gate frames and 02 for 1-9/16" to 2-3/8" gate frames
- Compatible with the Superlock Gapless Keep for extra security and protection.
Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Weight | 2.8 lb |
| Frame width | 3/8" to 1-3/16" |
What's in the box
- 1x3mm hex key
- M8 fixing bolts
- Face plate
- Latchbolt
- Strike plate (self-drilling fasteners)
- A set of keys (3)
Article numbers
- SBKLLT1601Frame width: 3/8" to 1-3/16"$138.95Chosen
- SBKLLT1602Frame width: 1-9/16" to 2-3/8"$138.95
Installation
- 1Drill two 3/8" holes at 3-5/8" centers for the fixing bolts provided
- 2Drill a 3/4" clearance hole for the latchbolt, centered 7/8" below the top fixing hole
- 3Fix the lock in place with the stainless steel clamp plate, the bolt support plate and the 2 stainless steel countersunk fixing bolts supplied.
- 4Drill a clearance hole in the keep or outer frame for the latchbolt. Slot the hole vertically to allow for gate sag, then fit the strike plate to the gate post by welding or screwing it on.
- 5Make sure the latchbolt moves freely without catching on the gate or frame.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
Which version fits my gate frame?
Measure the depth of the gate frame, the box section or flat bar the lock bolts onto. Versions are made for 3/8" to 1-3/16" and 1-9/16" to 2-3/8" frames. Pick the version that matches your frame; a lock made for a deeper frame will not sit flush on a shallow one. The product codes are SBKLLT1601 and SBKLLT1602.
What types of fencing products does Fenceweb offer?
Fenceweb offers a complete range of fencing products, including welded wire fence panels, chain link fence, ornamental and metal fencing, security fencing, fence posts, swing and farm gates, gate hardware and temporary fencing. We also carry trusted brands such as Locinox, Gatemaster, ZND, AES Global, D&D Technology and Tarter.
Are all products in stock and ready for shipment?
The majority of our catalog is kept in stock and ships quickly from our warehouse. We do not publish a stock figure on the product pages, so ask our team and they will confirm availability and lead times for your order, especially a larger or custom one.
