Gatemaster | Narrow Latch Deadlock
The Gatemaster narrow latch deadlock is a slim mortise gate lock for box section bigger than 1-9/16" x 1-9/16". Like a standard door lock it has a separate latch and deadbolt, and its fixings and mechanism cannot be reached while the gate is locked.
Key features
- Slim lock design for a neat finish
- Separate latch and deadbolt, like a standard door lock
- Unobtrusive - Fits inside any box section bigger than 40 x 1-9/16" (40 mm)
- Fits inside any box section bigger than 1-9/16" x 1-9/16"
- Supplied with a double sided eurocylinder and three keys
For a neat and unobtrusive finish to your gate, the narrow latch deadlock can be mortised into a box section of anything bigger than 40 x 1-9/16" (40 mm) box section.
For a neat and unobtrusive finish, the narrow latch deadlock is mortised into the gate's box section. It has a separate latch and deadbolt, similar to a standard door lock.
Security
The lock fixings and mechanism cannot be accessed while the gate is locked. The handing of the latch can be changed on site: undo the slotted screw at the back of the lock, turn the latch round and tighten the screw again.

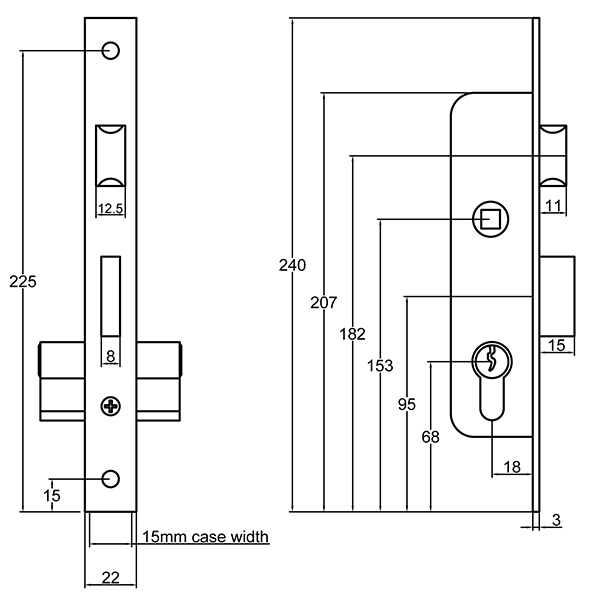

Sizes and fit
The lock fits inside any box section bigger than 1-9/16" x 1-9/16". It is supplied with a double sided eurocylinder, three keys, two eurocylinder escutcheons and countersunk screws.
Installation
Slot the gate frame to take the lock body and cut two holes for the eurocylinder. Fix the lock and the forend plate in position, insert the cylinder and secure it with the M5 countersunk screw, then fit the two escutcheons and check that the lock operates smoothly.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |

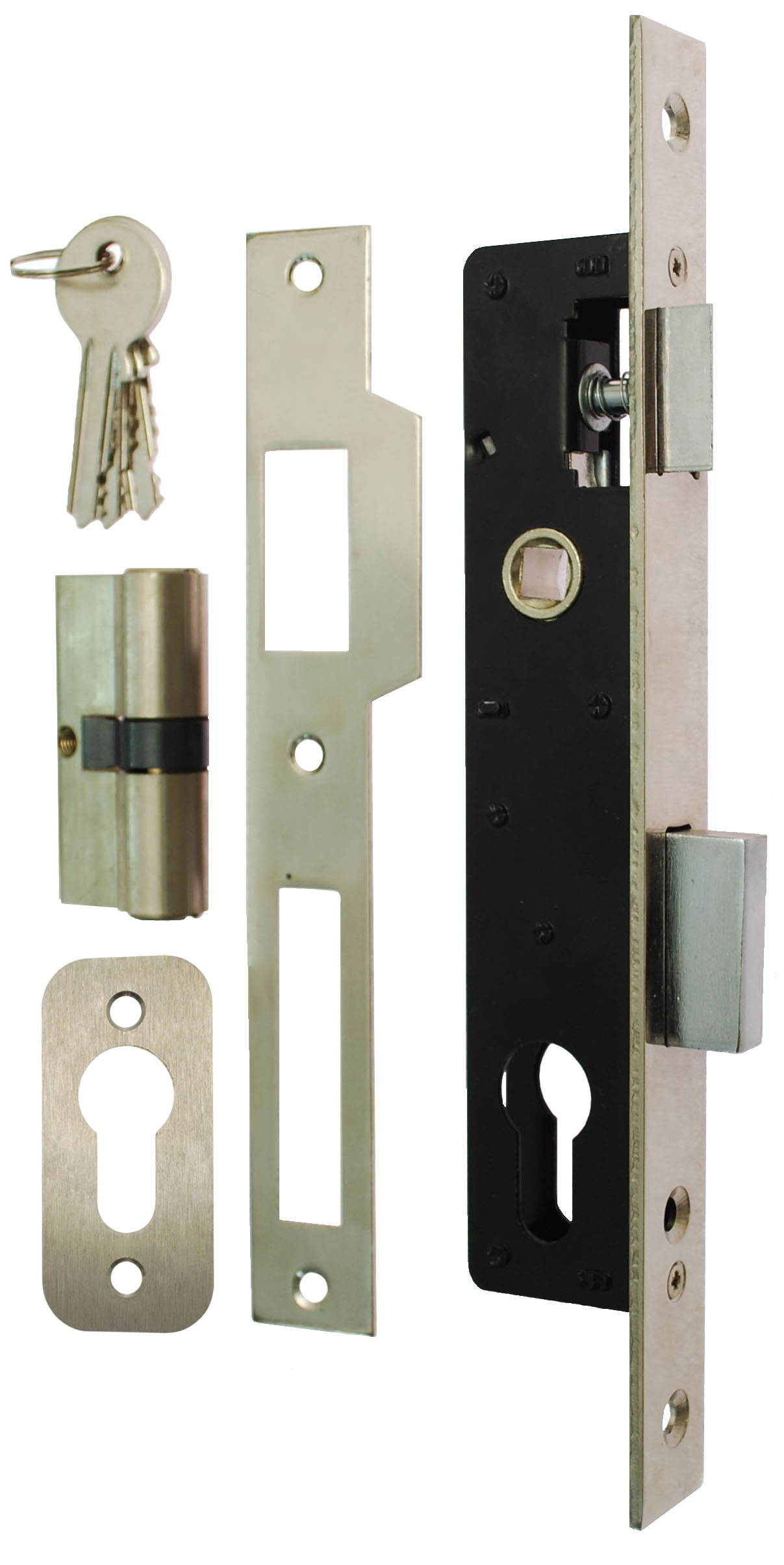

What's in the box
- Stirke plate
- A set of keys (3)
- Double sided eurocylinder
- 2 x eurocylinder escutcheons
- Countersunk screws
Installation
- 1Slot the gate frame to take the lock body and cut two holes for the euro cylinder.
- 2Fix the lock and the forend plate in position, insert the euro cylinder and secure it with the M5 countersunk screw.
- 3Fit the 2 euro cylinder escutcheons.
- 4Check that the lock operates smoothly.
- 5To change the handing of the latch: undo the slotted screw at the back of the lock, turn the latch round and tighten the screw again.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
Can I change the handing myself?
Yes. Undo the slotted screw at the back of the lock, turn the latch round and tighten the screw again.
