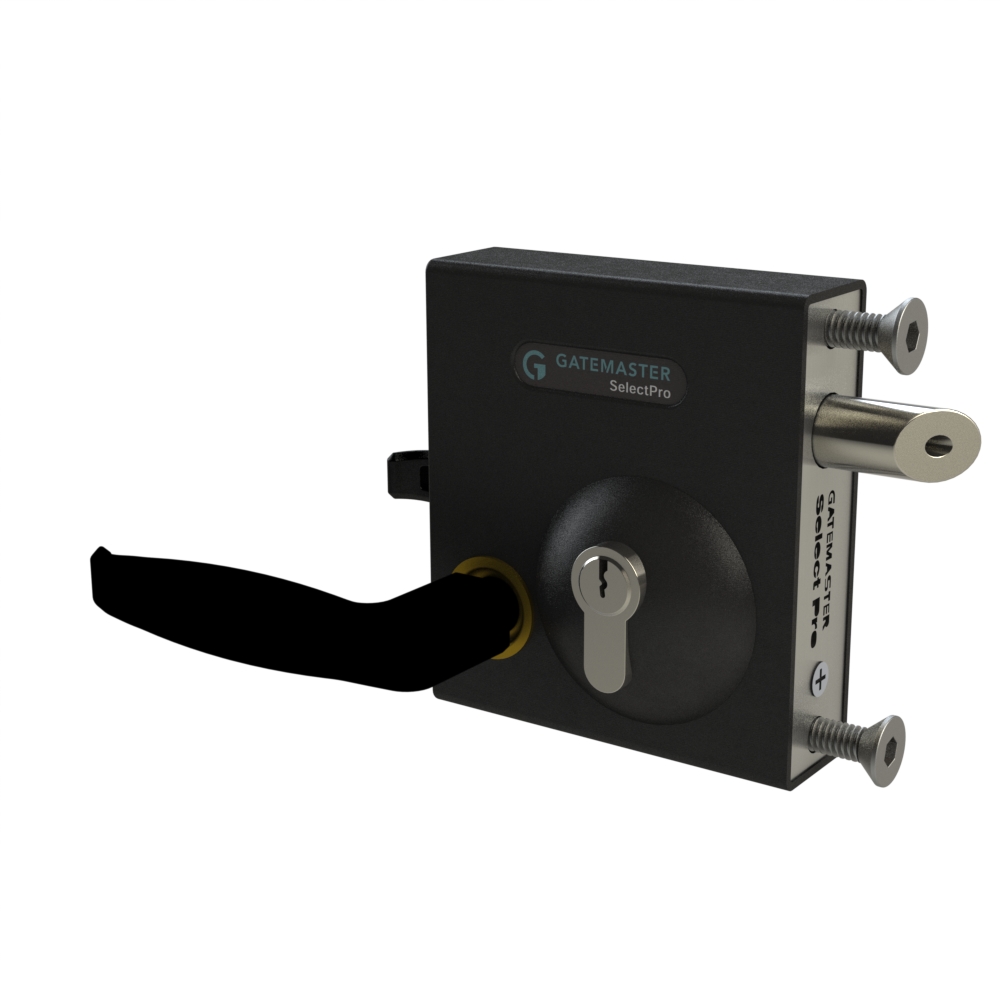

Gatemaster | SelectPro Keyed Gate Lock | Bolt-On | Latch Deadlock

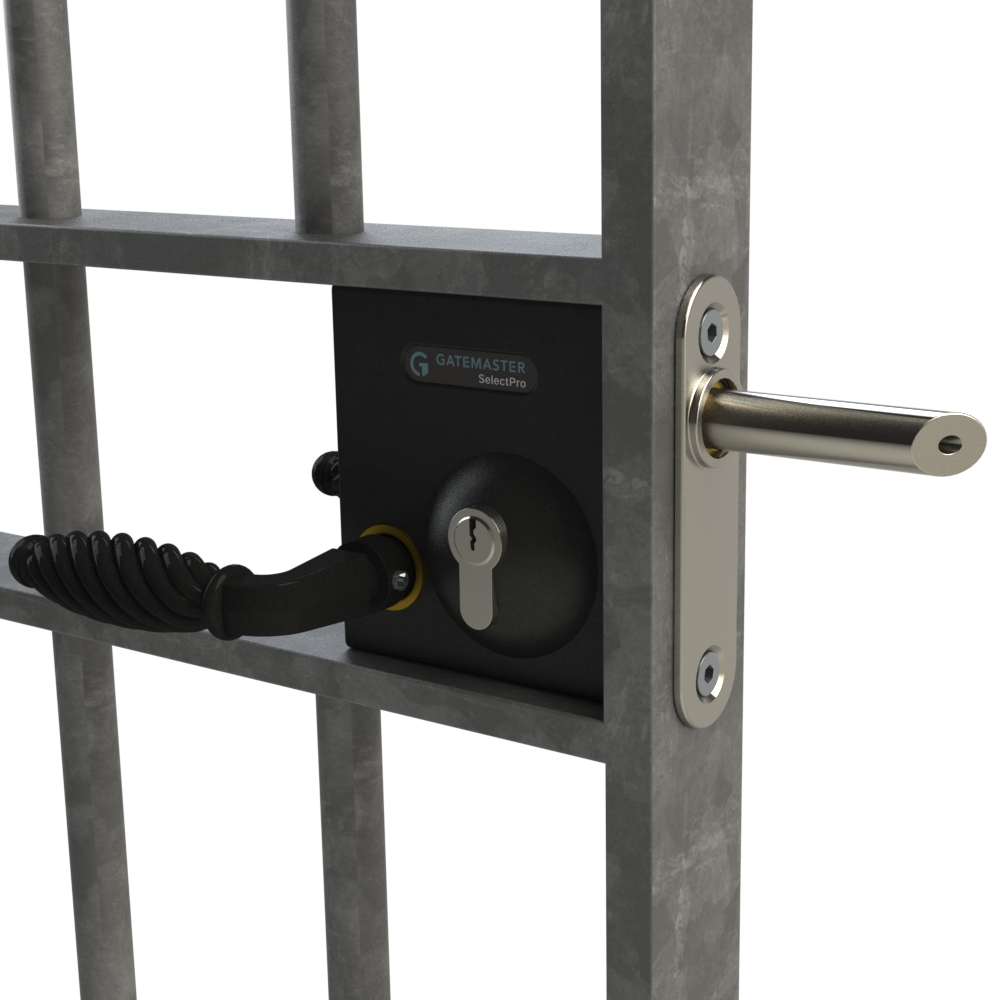

The bolt on latch deadlock combines the convenience of a latch for day to day use with the security of a deadlock. Use the handles to operate the latch then turn the key to extend the latchbolt to secure the gate.
Key features
- Secure - Stainless steel latchbolt that latches 1/2" into the gate post and then extends to 1-3/16" when deadlocked
- Adaptable - Latchbolt is adjustable in length and can be rotated for left or right handed gates
- Convenient - Handle and key can be operated from both sides
- Reliable - Supplied with a guide plate with brass bearing to ensure the lock lasts

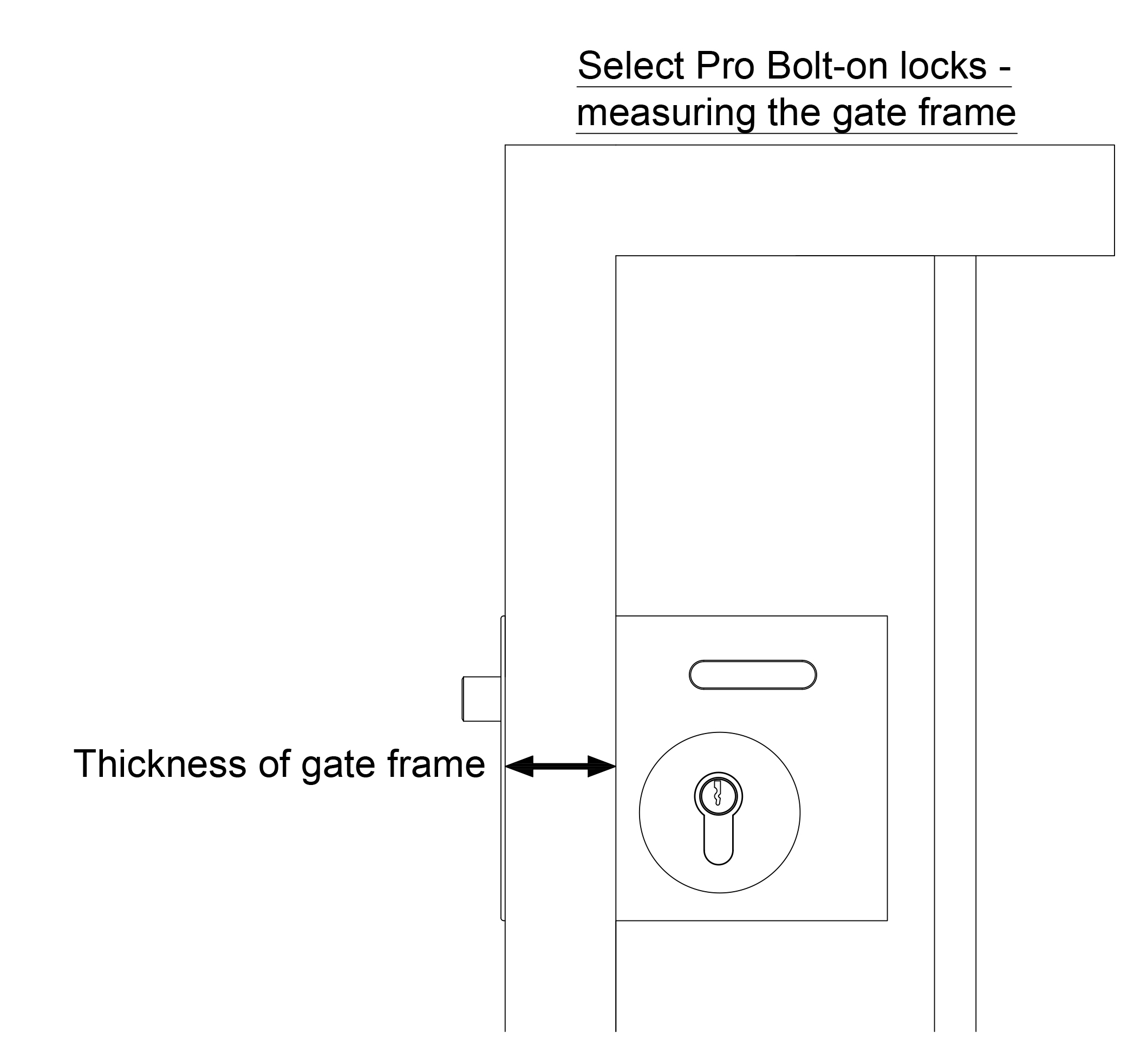

- Available in two sizes - 01 for 3/8" to 1-3/16" flat bar or box section gate frames and 02 for 1-9/16" to 2-3/8" gate frames
- Supplied with handles - Two styles available: a plain lever style (AH) or a more traditional looking handle (TDH)
- Compatible with the Superlock Gapless Keep for extra security and protection
- Explore the other gate lock handle options, available at an additional cost
Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Patent | EP 3354825 |
| Material | Stainless steel latchbolt |
| Throw | 1/2" latched; 1-3/16" deadlocked |
| Handing | Adjustable for left or right handed gates |
| Frame width | 3/8" to 1-3/16" |
| Handle | Modern |
What's in the box
- 1x3mm hex key
- M8 fixing bolts
- Face plate
- Latchbolt
- Strike plate (self-drilling fasteners)
- A set of keys (3)
- Set of handles (AH or TDH styles)
Article numbers
- SBLD1602TDHFrame width: 1-9/16" to 2-3/8" / Handle: Traditional$142.95
- SBLD1601TDHFrame width: 3/8" to 1-3/16" / Handle: Traditional$142.95
- SBLD1601AHFrame width: 3/8" to 1-3/16" / Handle: Modern$142.95Chosen
- SBLD1602AHFrame width: 1-9/16" to 2-3/8" / Handle: Modern$142.95
Installation

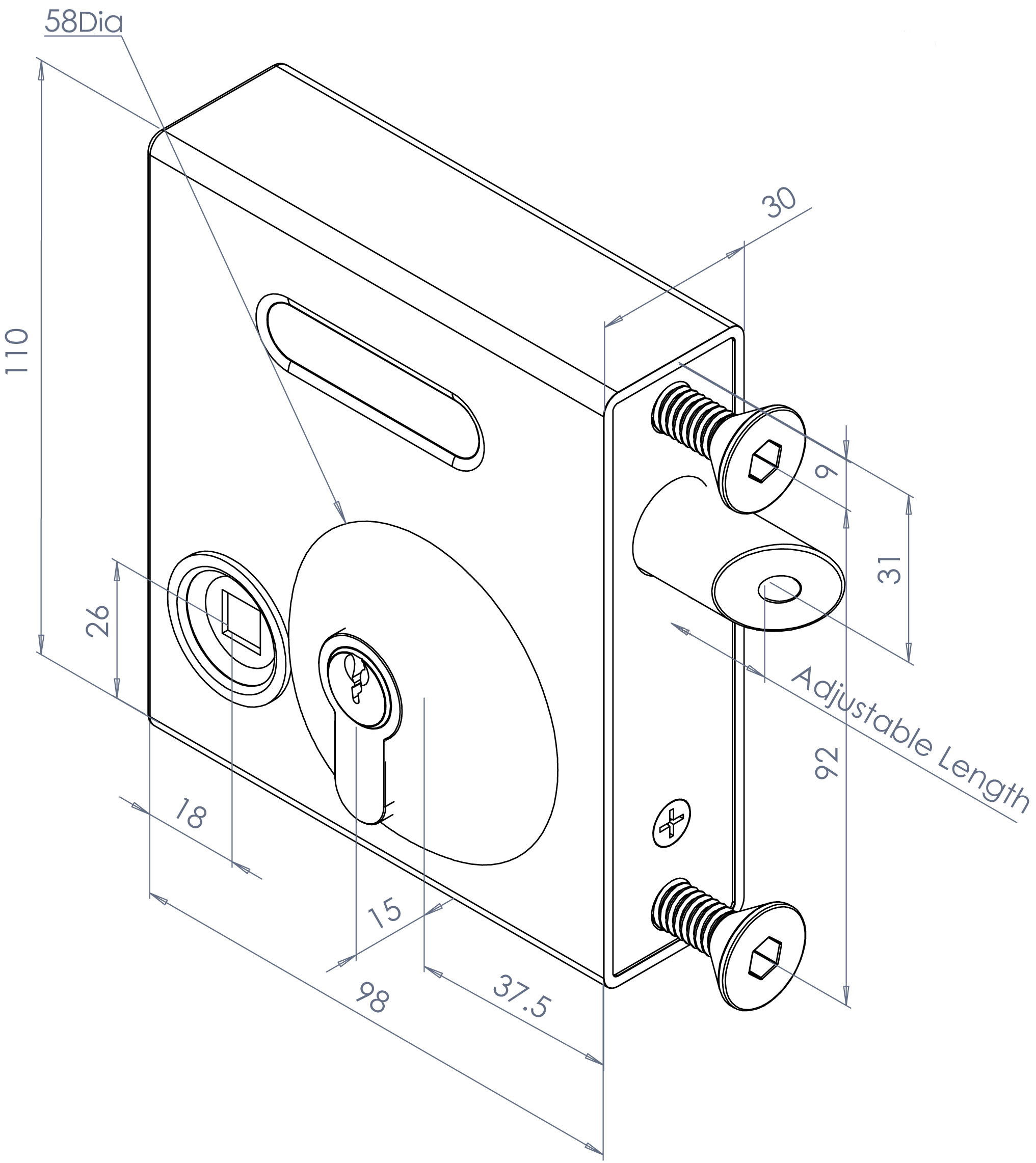

- 1Drill two 3/8" holes at 3-5/8" centers for the fixing bolts provided
- 2Drill a 3/4" clearance hole for the latchbolt, centered 7/8" below the top fixing hole
- 3Fix the lock in place with the stainless steel clamp plate, the bolt support plate and the 2 stainless steel countersunk fixing bolts supplied.
- 4Drill a clearance hole in the keep or outer frame for the latchbolt. Slot the hole vertically to allow for gate sag, then fit the strike plate and bend it back so the latchbolt slides in smoothly.
- 5Make sure the latchbolt moves freely without catching on the gate or frame.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
How do I know whether I need a left-hand or a right-hand lock?
Stand on the outside of the gate - the side you approach from. If the hinges are on your left, you need a left-hand lock; if they are on your right, a right-hand lock. Gatemaster locks in this range are reversible: you loosen the locking screw in the end of the latchbolt with the 0.118" hex key supplied, turn the bolt through 180 degrees and tighten it again.
What types of fencing products does Fenceweb offer?
Fenceweb offers a complete range of fencing products, including welded wire fence panels, chain link fence, ornamental and metal fencing, security fencing, fence posts, swing and farm gates, gate hardware and temporary fencing. We also carry trusted brands such as Locinox, Gatemaster, ZND, AES Global, D&D Technology and Tarter.
Are all products in stock and ready for shipment?
The majority of our catalog is kept in stock and ships quickly from our warehouse. We do not publish a stock figure on the product pages, so ask our team and they will confirm availability and lead times for your order, especially a larger or custom one.
Still have questions? Call us at 214 878 1900
