Gatemaster | Stop Hinge with Bottom Pivot
The Gatemaster stop hinge with bottom pivot is a weld-on hinge kit with an integral stop that keeps a gate from opening more than 100 degrees. No ground stop is needed, which reduces trip hazards, and both hinges adjust for precise fitting on site.
Key features
- Integral stop limits opening to 100 degrees
- No ground stop needed, reducing trip hazards
- Reduces pinch points
- Top and bottom hinges adjustable on site
- Changes between left and right-hand gates
- Weld-on brackets, spigot and bottom pivot

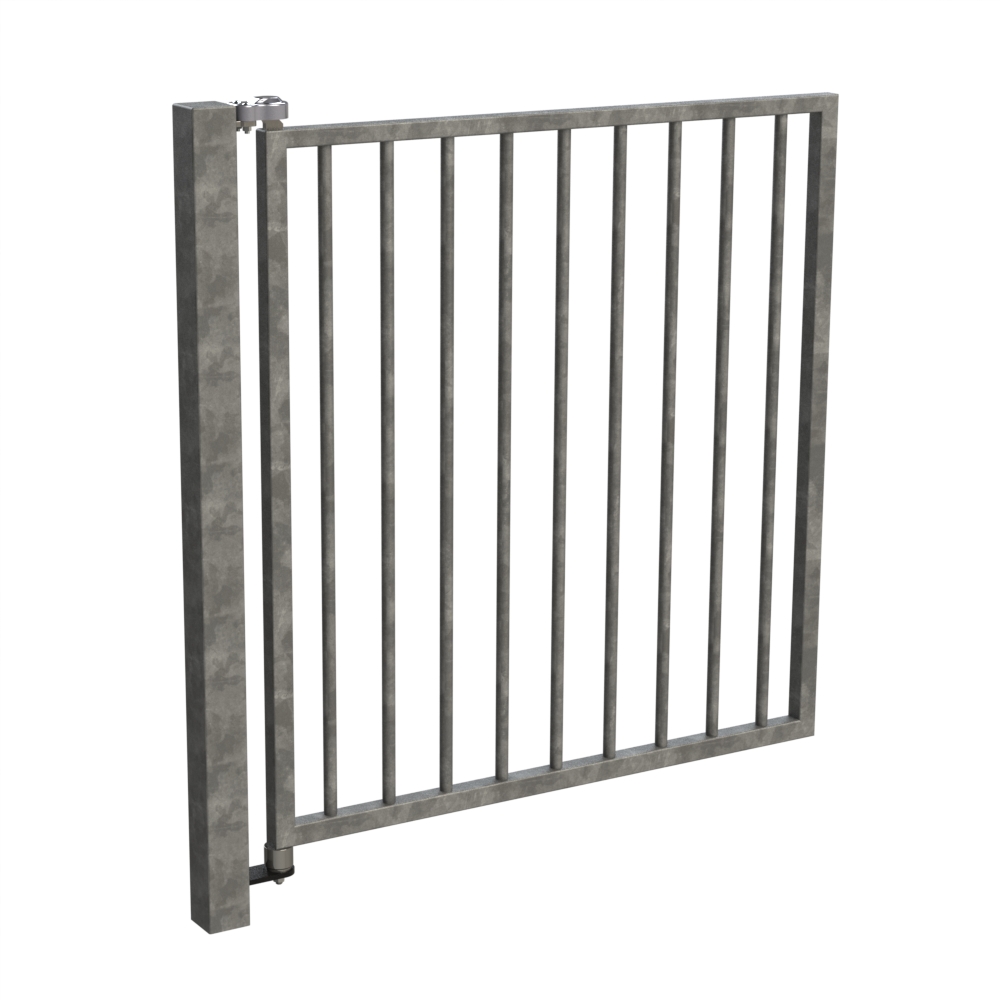

Gatemaster stop hinge with bottom pivot: a hinge and gate stop in one
This durable hinge kit is designed for welding to gates and has an integral stop, so the gate does not open more than 100 degrees. A patent is pending on the design.
Safety
Because the stop is built into the hinge, no stop has to be fitted into the ground, which reduces trip hazards. Limiting the opening to 100 degrees also keeps gaps to a minimum and reduces pinch points.

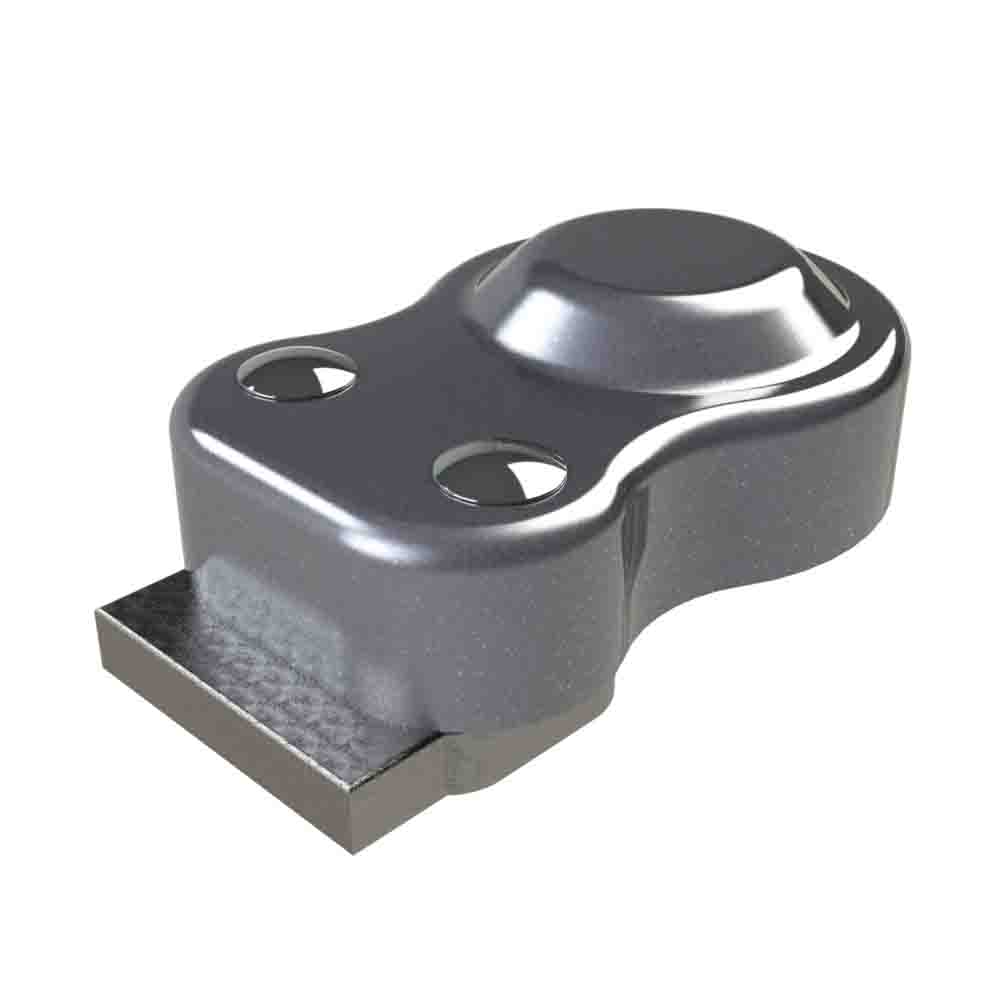

Adjustment and handing
Both the top and the bottom hinge can be adjusted for precise fitting on site, and the gate pivot can be set in the center of the gate stile. The top hinge can be changed between left and right-hand gates by turning over one of its plates.
Installation
Weld the slotted adjusting bracket to the post near the top and the spigot to the top of the gate, lining up the pivot center with the bottom pivot. For the bottom hinge, weld the bracket to the post and the pivot to the bottom of the gate. Once the gate is galvanized or painted, drop the hinge onto the spigot, bolt it to the bracket and grease the unit.

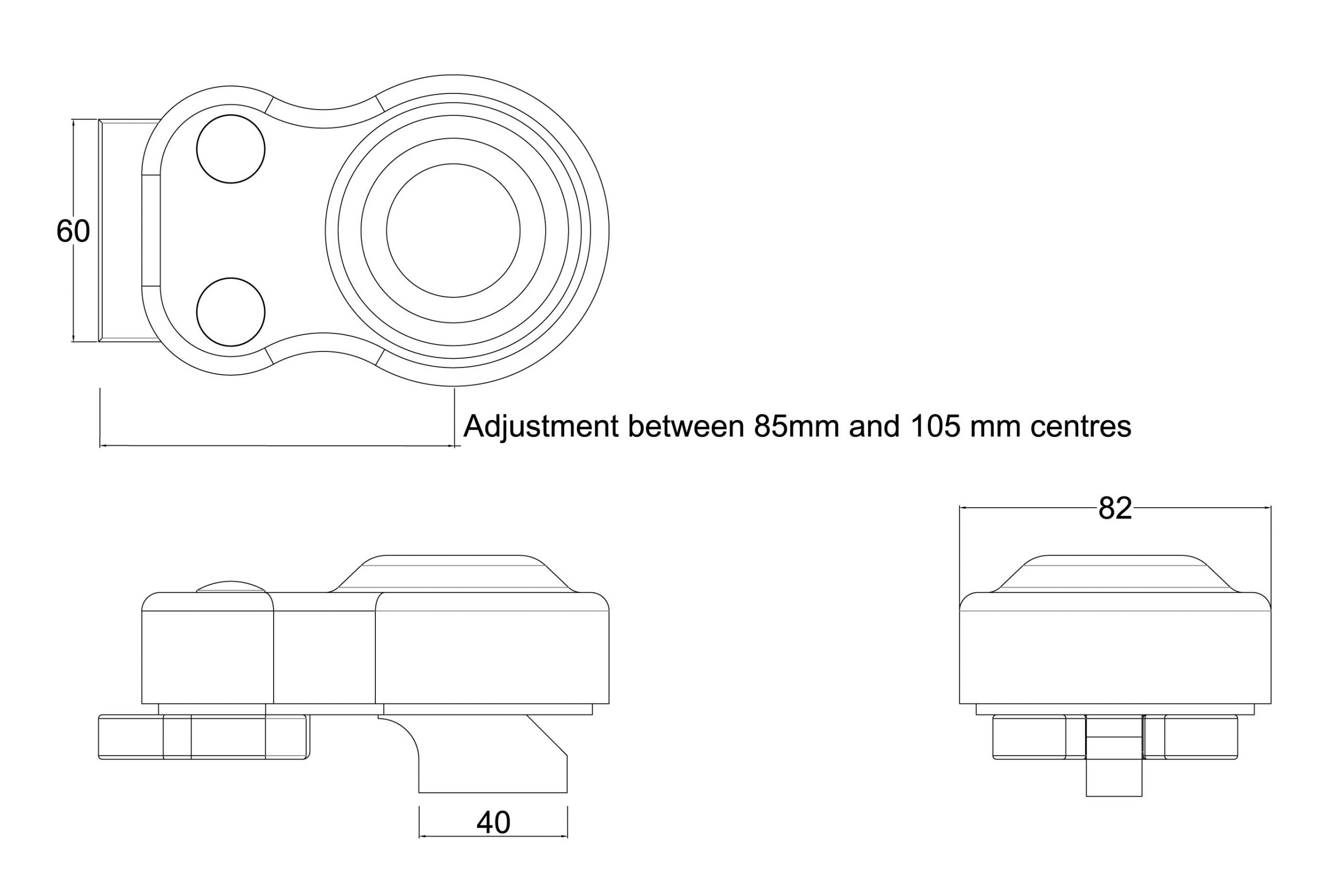

Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Patent | Patent Pending |
Installation
- 1Take the slotted adjusting bracket off the hinge and weld it to the gate post near the top. Weld the spigot to the top of the gate, making sure the center of the pivot lines up vertically with the bottom pivot - the small cut-out in the underside of the spigot marks the pivot center.
- 2Once the gate is galvanized or painted, drop the hinge onto the spigot and bolt it to the bracket with the fixings supplied. The slots in the bracket let you adjust the gate. Grease the unit when you fit it.

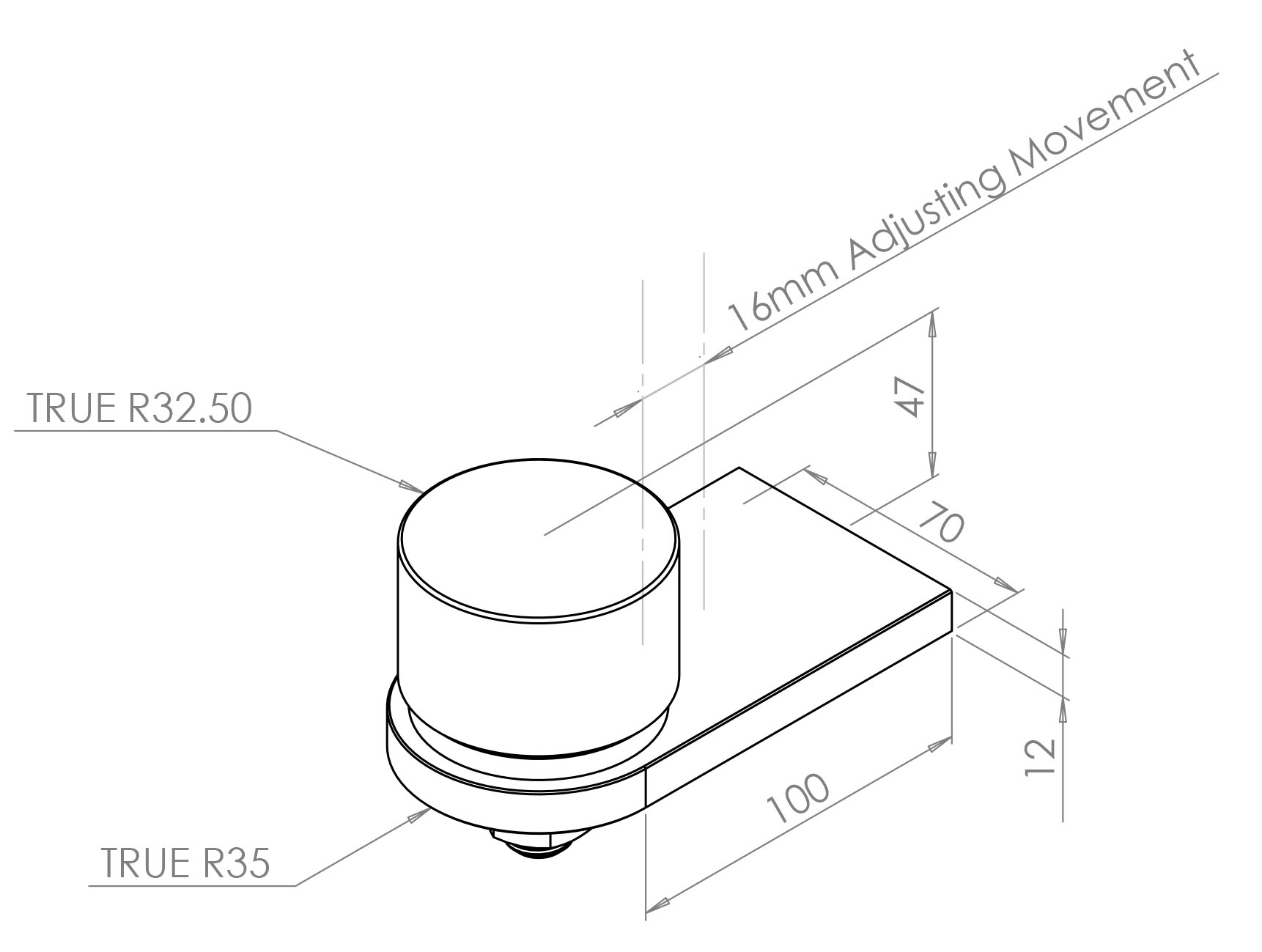

- 3For the bottom hinge, simply weld the bracket to the post and the pivot to the bottom of the gate; once galvanized it can be lined up with the top hinge.

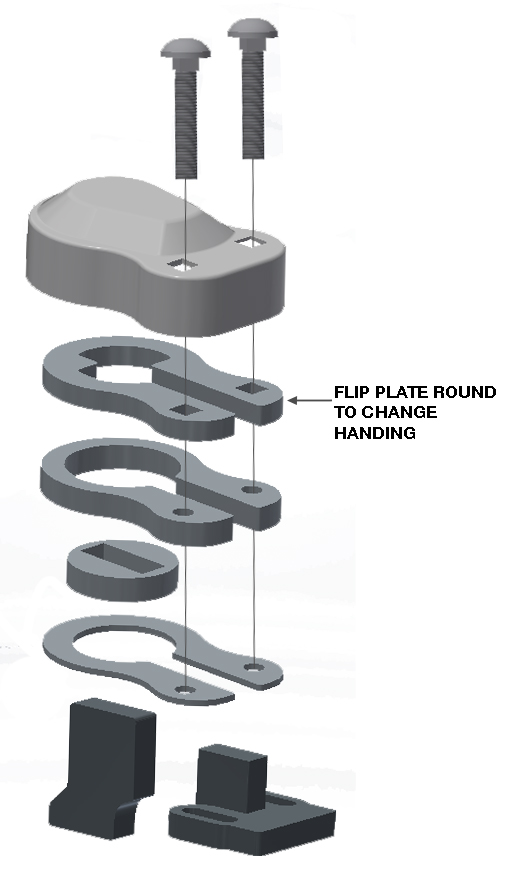

- 4To change the handing of the top hinge, take the two bolts out of the hinge and remove the first two U-shaped plates and the round plate. Take out the last plate, turn it over and reassemble the unit. The gate can then swing 90 degrees the other way.
