Gatemaster | Gate Maglock System | Electric Magnetic Lock Kit
The Gatemaster gate maglock system is an electric magnetic lock kit with a stainless steel maglock holding 1,202 lb, a status switch and pull handles. It bolts to the gate and post and can be operated by a separate keypad, switch or proximity fob in any access control system.
Key features
- Stainless steel maglock with 1,202 lb holding force
- Switch provides a locked or unlocked status signal
- Powder-coated attachment plates
- Pull handles included
- Bolts to the gate and post with the fixings supplied
- Works with a keypad, switch or proximity fob
Gatemaster gate maglock system: the simple way to fit a maglock
This kit is the simplest way to fit a maglock to a gate. It brings the magnet, the armature and the pull handles together, so the gate can be locked electrically and opened and closed by hand.
Strength and status
The maglock is made from stainless steel with a holding force of 1,202 lb, and the attachment plates are powder-coated for durable, smooth operation. A built-in switch provides a locked or unlocked status signal to the access control system.
Operation
The maglock can be driven by a separate keypad, switch or proximity fob and fits into any access control system. The gate is opened and closed with the pull handles included.
Installation

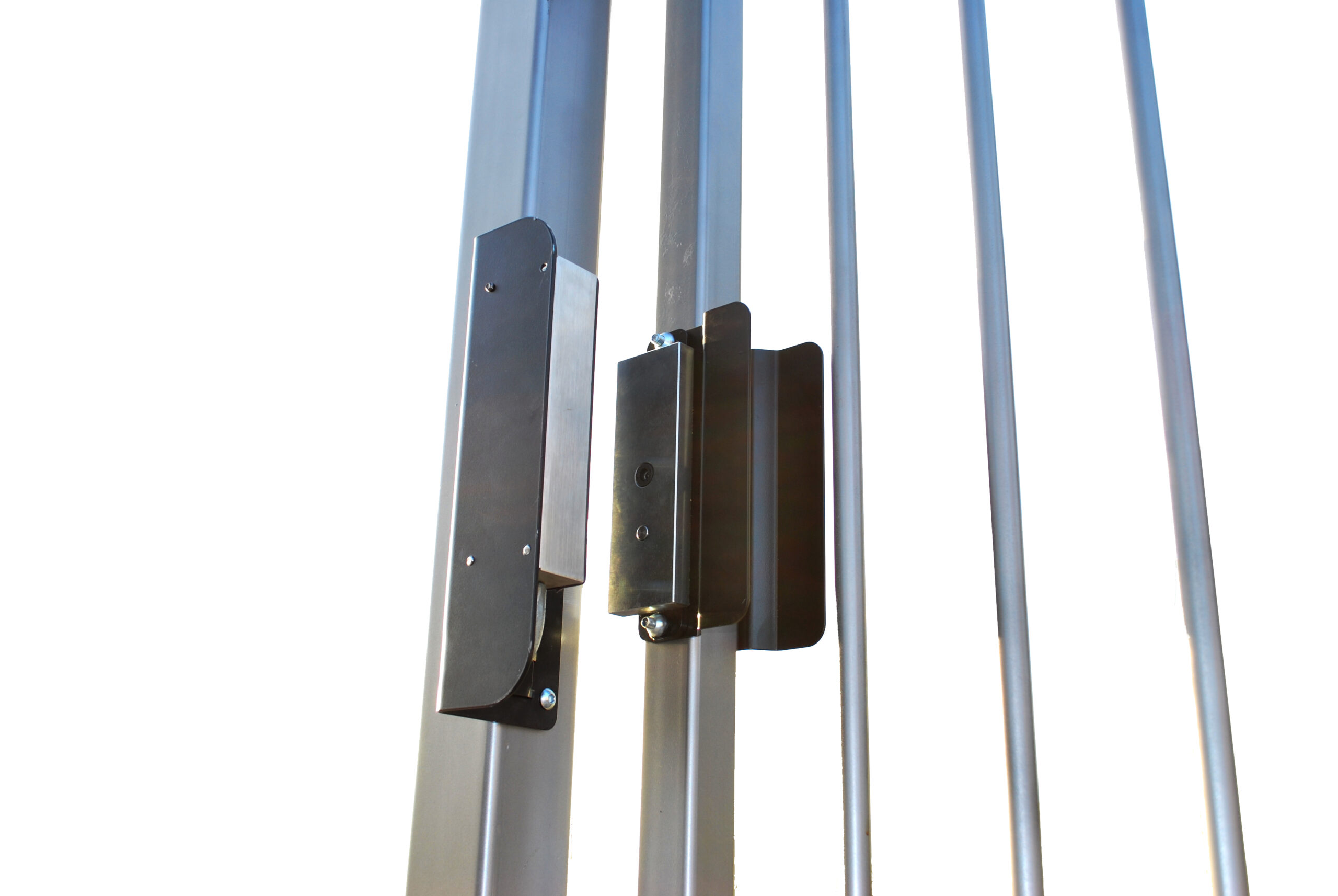

For the armature, drill three holes through the gate and bolt the armature and the pull handles in place with the two coach bolts and break-off nuts supplied; the third hole gives clearance for the nut on the back of the armature plate. Close the gate, position the maglock against the post and fix it with the M8 screws supplied. Depending on the type of post, another fixing method may be needed.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
What's in the box
- Fixing plate
- Pull handles
Installation
- 1Maglock armature: drill 3 holes through the gate and bolt the armature and the pull handles in place with the 2 coach bolts and the break-off nuts supplied. The third hole gives clearance for the nut on the back of the armature plate.
- 2Maglock: close the gate, position the maglock assembly against the gate post and fix it with the M8 screws supplied. Depending on the type of post, another fixing method may be needed.
- 3Operation: the maglock can be driven by a separate keypad, switch or proximity fob and fits into any access control system. The gate opens and closes with the pull handles included.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
Is a keypad or fob reader included?
No. The kit contains the maglock, its fixing plate and the pull handles. It is operated by a separate keypad, switch or proximity fob, which you choose to suit your access control system.
What types of fencing products does Fenceweb offer?
Fenceweb offers a complete range of fencing products, including welded wire fence panels, chain link fence, ornamental and metal fencing, security fencing, fence posts, swing and farm gates, gate hardware and temporary fencing. We also carry trusted brands such as Locinox, Gatemaster, ZND, AES Global, D&D Technology and Tarter.
Are all products in stock and ready for shipment?
The majority of our catalog is kept in stock and ships quickly from our warehouse. We do not publish a stock figure on the product pages, so ask our team and they will confirm availability and lead times for your order, especially a larger or custom one.
Still have questions? Call us at 214 878 1900
