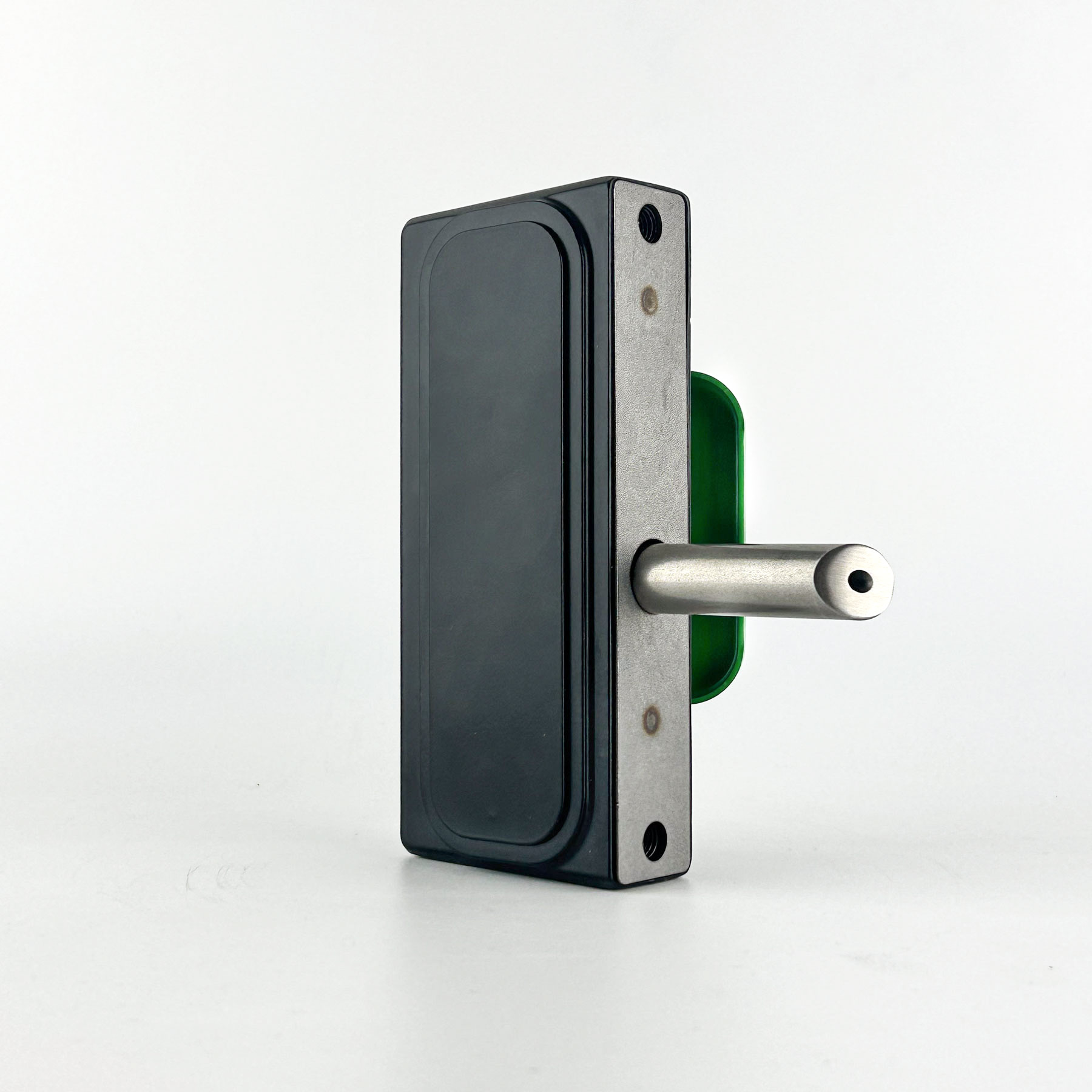

Gatemaster | Superlock 2.0 | Quick Exit | No Outside Access Gate Lock

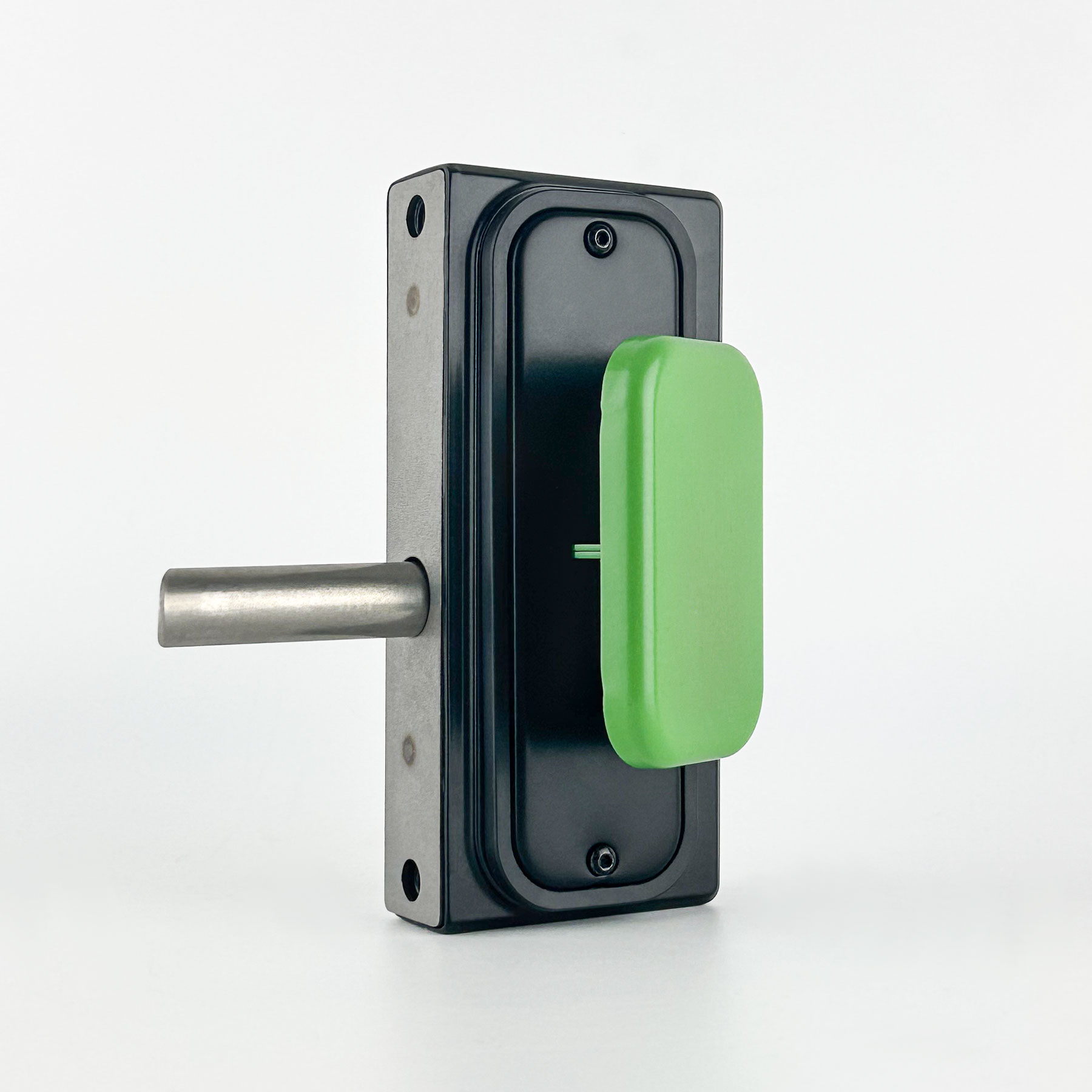

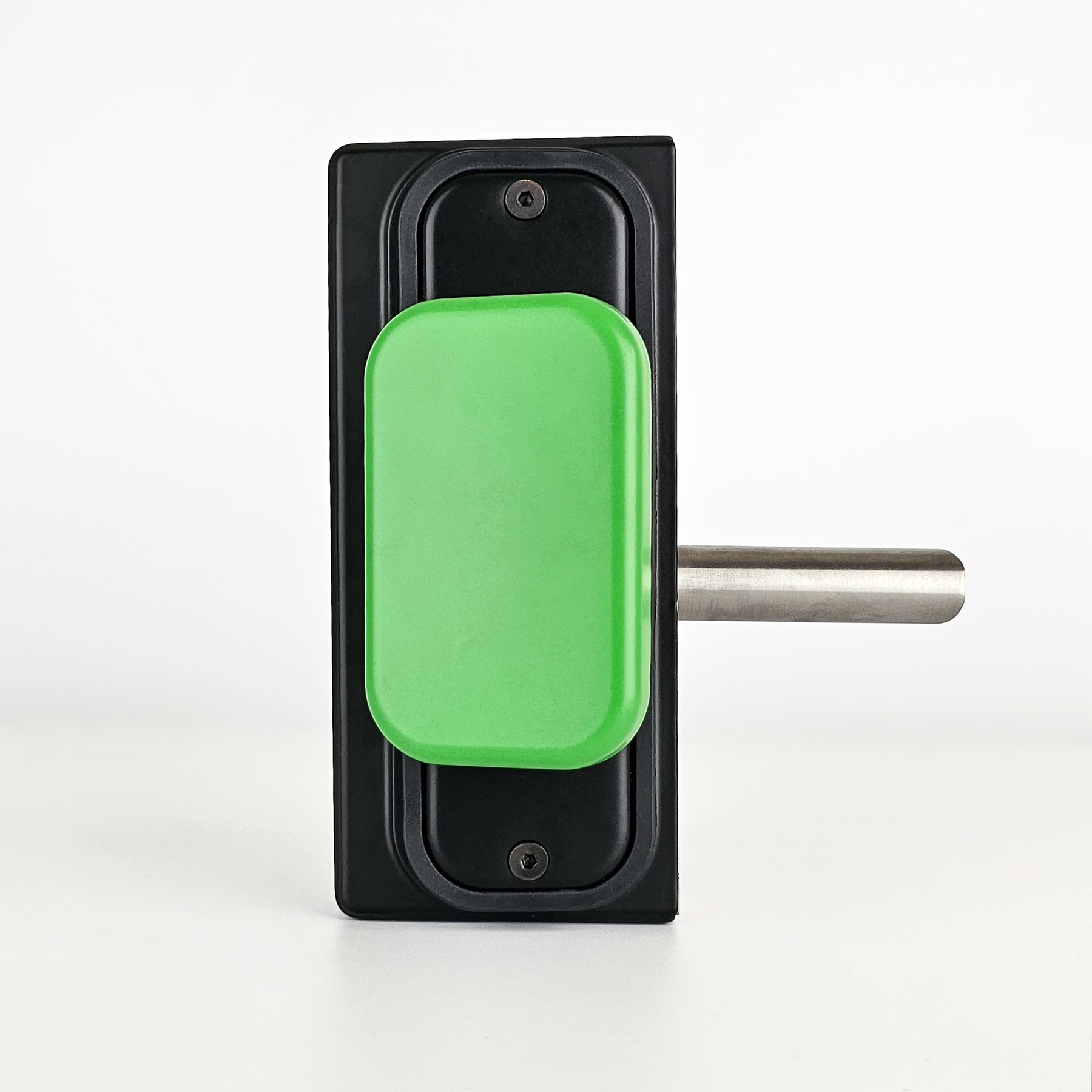

Ensure fast and secure one-way exit with our Superlock 2.0 Quick Exit, No Outside Access gate lock. Featuring a green push pad for effortless exits, this lock is ideal for gates that require fast and reliable egress such as external emergency exit points.
Key features
- Adaptable - Slim 2-3/4" case means this lock can suit a variety of different gate styles.
- Secure - Latchbolt latches 13/16" into the gate post for solid security.
- Built tough - Corrosion-resistant one-piece case design for longer lasting durability.
- Use the Superlock Quick Exit shroud with this lock to restrict access to the pushpad from outside the gate.
- Enhanced security- Pair this lock with out Superlock Secure Keep to maximise security. This gate lock is also compatible with our Superlock Gapless Keep & Superlock Interlocking Keep.
- Available in a digital keypad version or a key entry version .

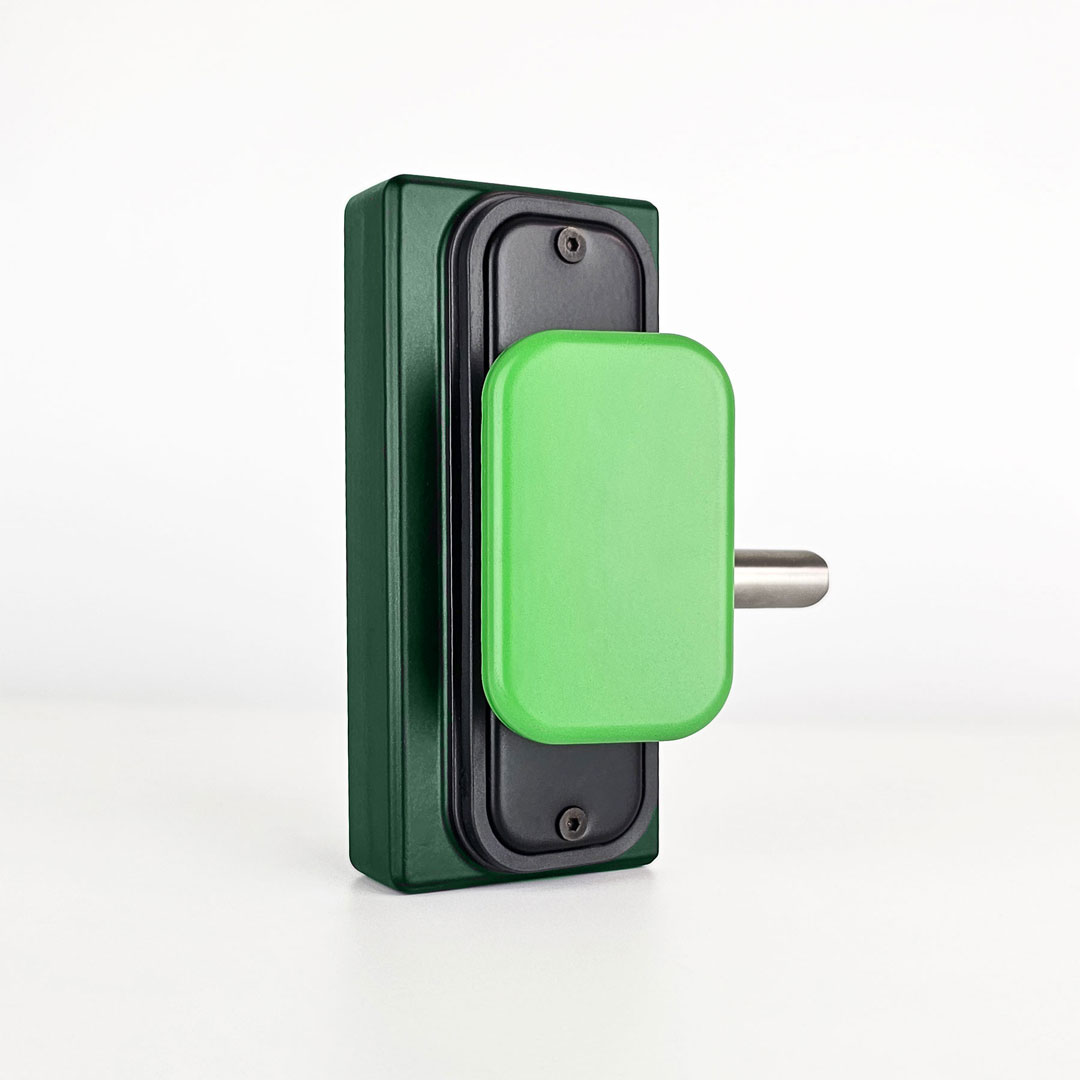

- Also available in a green casing
Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Patent | EP 3354825 |
| Throw | 3/4" |
| Handing | Reversible, supplied right-handed |
| Lock type | No access gate lock |
| Fixing method | 3 hole drilling. Bolt-on |
| Warranty | 5 years |
| Frame width | 3/8" to 1-3/16" |
What's in the box
- 0.098" hex key + 0.118" hex key
- M8 fixing bolts
- Face plate
- Latchbolt
- Strike plate (self-drilling fasteners)
Article numbers
- BQ1030NAFrame width: 3/8" to 1-3/16"$154.95Chosen
- BQ4060NAFrame width: 1-9/16" to 2-3/8"Price on request
Installation
- 1Check the handing of the gate. For a left-hand gate, reverse the handing as described below; for a right-hand gate, go straight to step 2.
- 2Drill two 3/8" holes at 5-1/2" centers for the fixing bolts provided
- 3Drill a 3/4" clearance hole for the latchbolt, centered 2-3/8" above the bottom fixing hole
- 4Hold the lock against the back of the box section and screw the latchbolt on through the larger hole.
- 5Lock the latchbolt by inserting the hex key supplied into the end of the latchbolt.
- 6Fix the lock in place with the stainless steel bolt support plate and the countersunk screws supplied, and check that the latchbolt still moves freely.
- 7Fix the strike plate to the gate post, either by welding or with screws.
Maintenance
Every 6 months: take the keypads off the lock, spray the inside of the lock through the tumbler holes at the back with WD-40 or an equivalent, and spray the fixings and the latchbolt as well. Then press every button and turn the handle a few times to check that the lock still runs smoothly.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
How do I know whether I need a left-hand or a right-hand lock?
Stand on the outside of the gate - the side you approach from. If the hinges are on your left, you need a left-hand lock; if they are on your right, a right-hand lock. Gatemaster locks in this range are reversible: you loosen the locking screw in the end of the latchbolt with the 0.118" hex key supplied, turn the bolt through 180 degrees and tighten it again.
