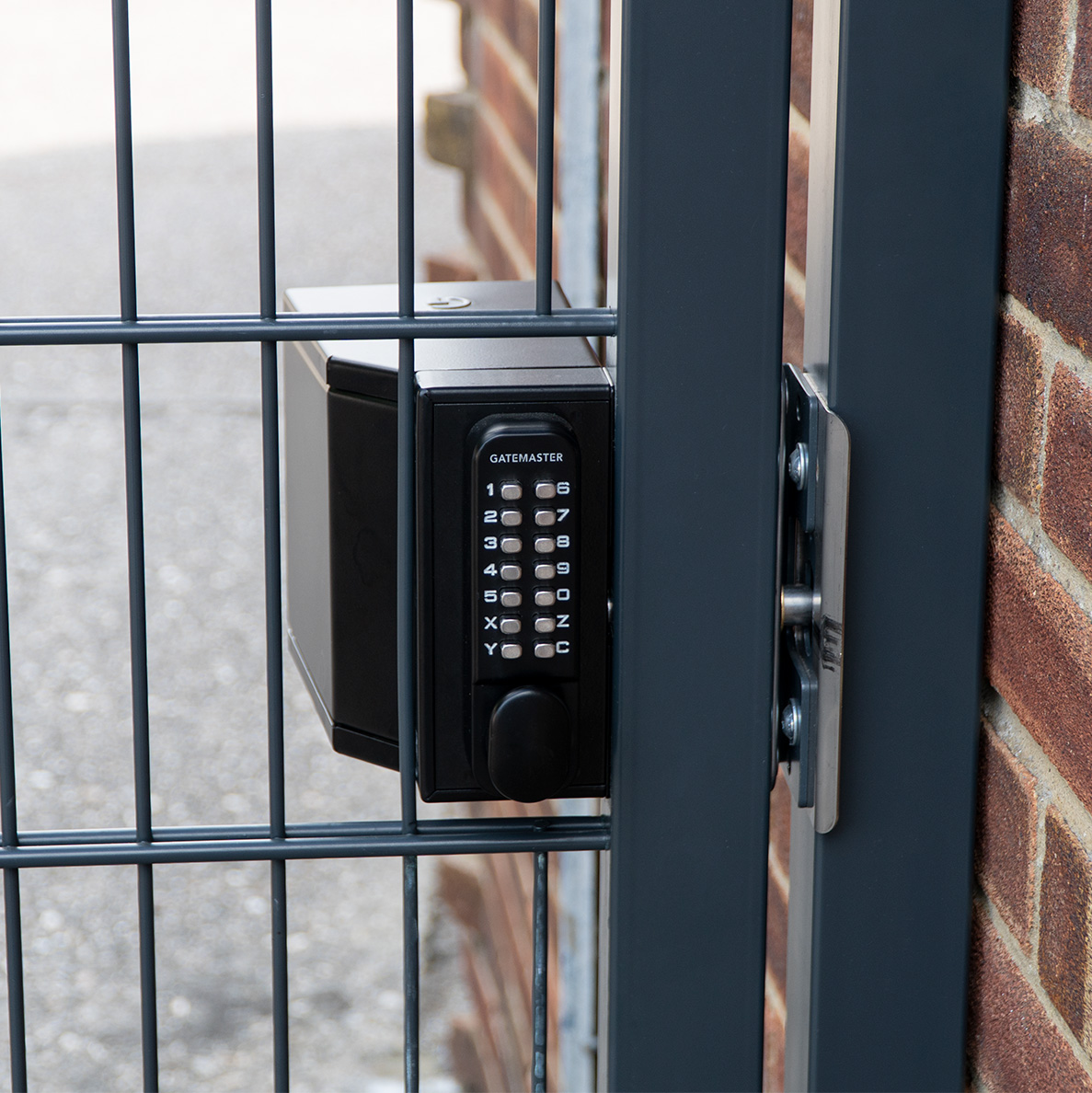

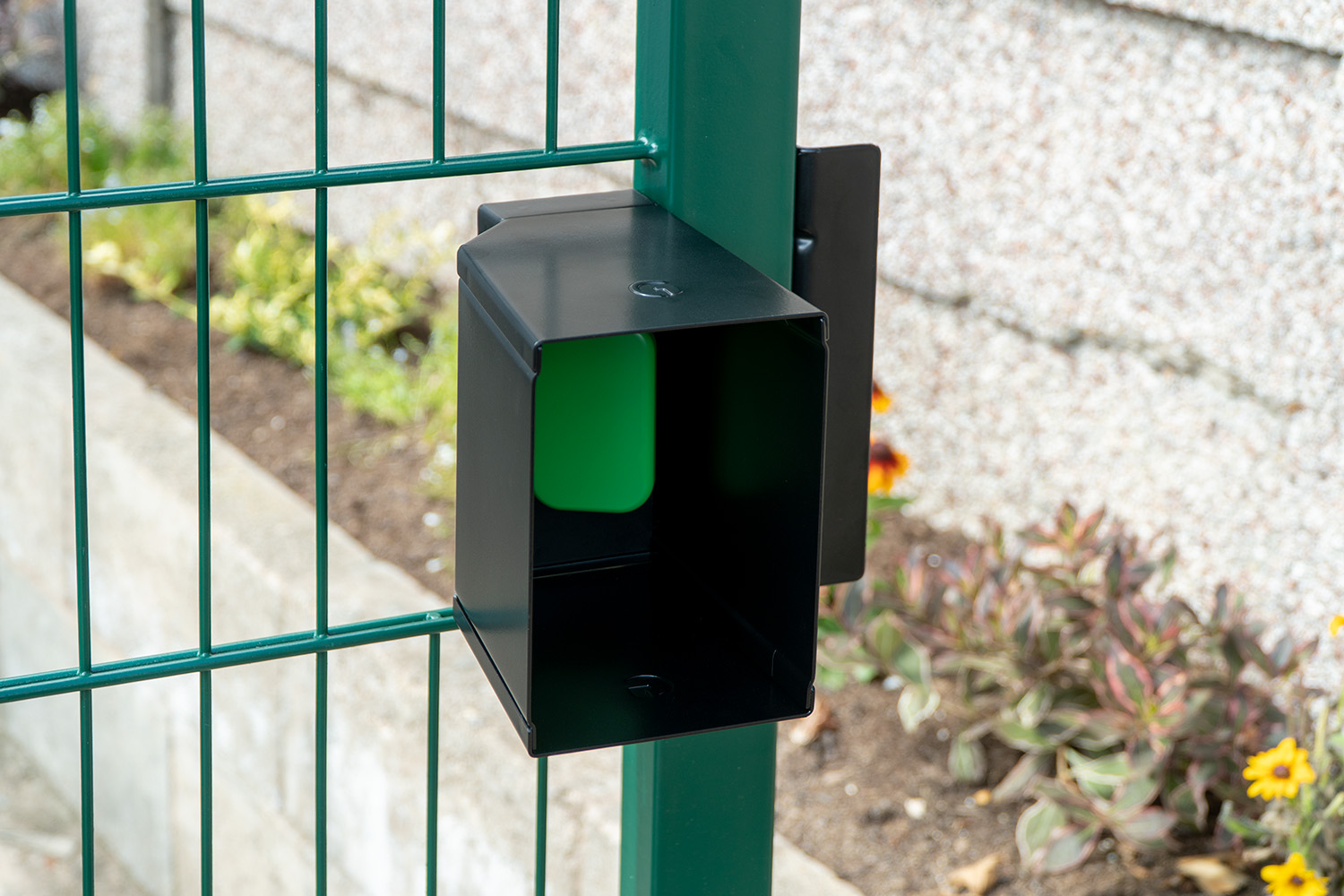

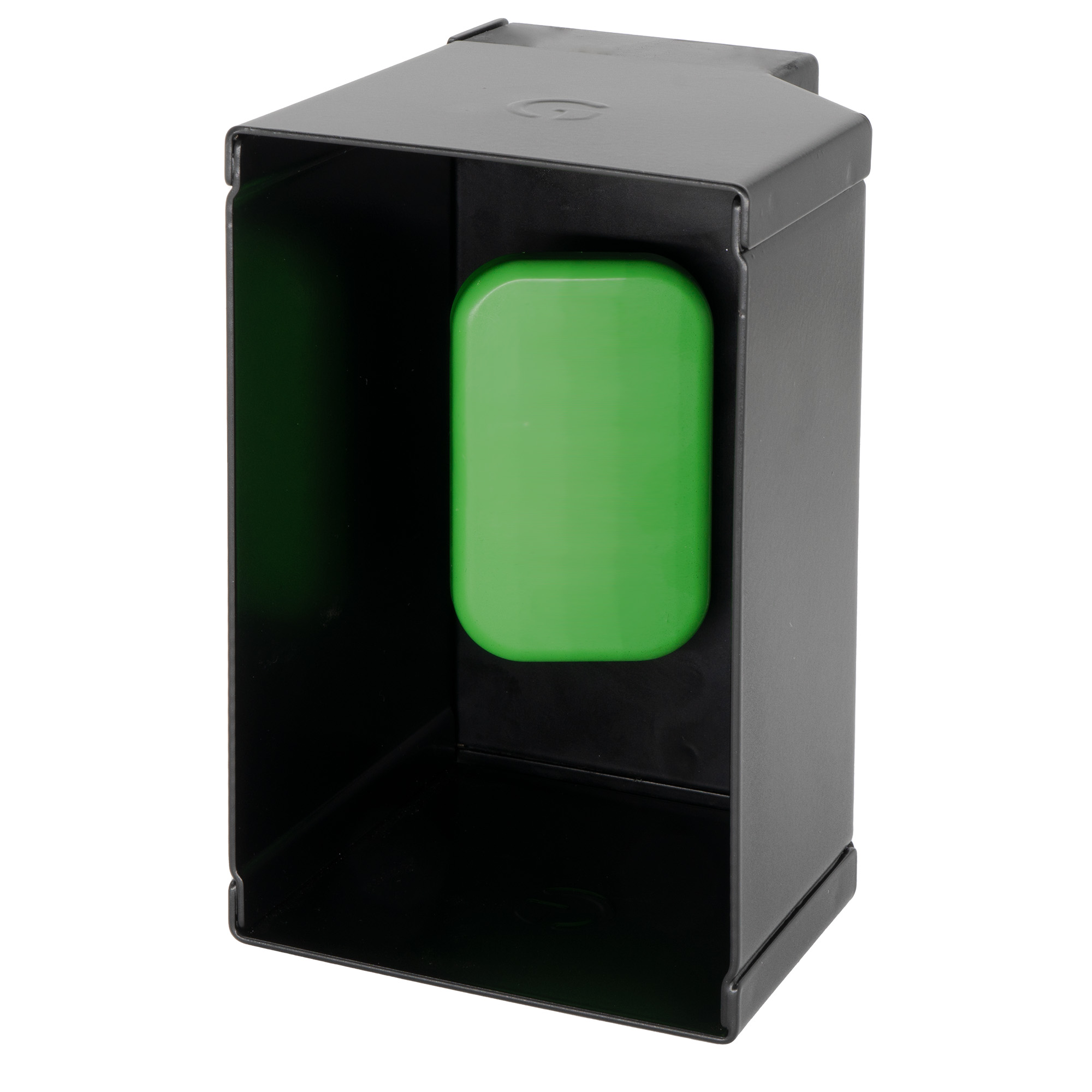

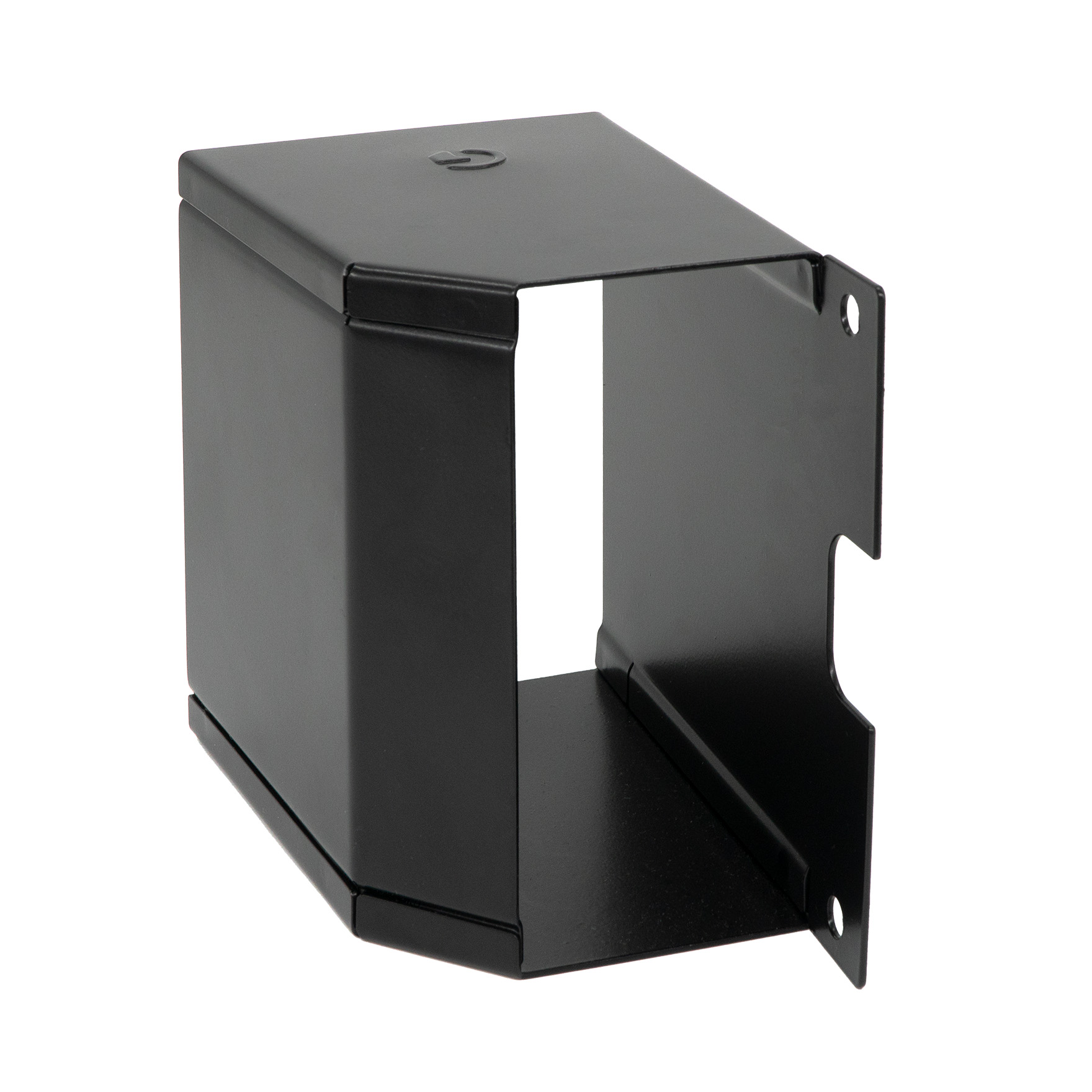

Gatemaster | Superlock Quick Exit Security Shroud
This security shroud is designed as a deterrent to restrict access from the outside of the gate, meaning that intruders cannot easily reach round and operate the lock. No fixings are required, simply bolt the shroud on in front of the lock.
This security shroud is designed as a deterrent to restrict access from the outside of the gate, meaning that intruders cannot easily reach round and operate the lock. No fixings are required, simply bolt the shroud on in front of the lock.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Weight | 4.4 lb |
Installation
- 1Check the handing of the gate. For a left-hand gate, reverse the handing as described below; for a right-hand gate, go straight to step 2.
- 2Drill two 3/8" holes at 5-1/2" centers for the fixing bolts provided
- 3Drill a 3/4" clearance hole for the latchbolt, centered 2-3/8" above the bottom fixing hole
- 4Hold the lock against the back of the box section and screw the latchbolt on through the larger hole.
- 5Lock the latchbolt by inserting the hex key supplied into the end of the latchbolt.
- 6Fix the lock in place with the stainless steel bolt support plate and the countersunk screws supplied, and check that the latchbolt still moves freely.
- 7Fix the strike plate to the gate post, either by welding or with screws.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
How fast can I change the code on a RapidReset model?
In about ten seconds, without taking the lock off the gate and without tools. That matters where the code has to change often - a building site, a holiday let, a shared bin store or after a contractor leaves. The mechanism stays mechanical, so there is still nothing to power or charge.
How do I know whether I need a left-hand or a right-hand lock?
Stand on the outside of the gate - the side you approach from. If the hinges are on your left, you need a left-hand lock; if they are on your right, a right-hand lock. Gatemaster locks in this range are reversible: you loosen the locking screw in the end of the latchbolt with the 0.118" hex key supplied, turn the bolt through 180 degrees and tighten it again.
What types of fencing products does Fenceweb offer?
Fenceweb offers a complete range of fencing products, including welded wire fence panels, chain link fence, ornamental and metal fencing, security fencing, fence posts, swing and farm gates, gate hardware and temporary fencing. We also carry trusted brands such as Locinox, Gatemaster, ZND, AES Global, D&D Technology and Tarter.
Still have questions? Call us at 214 878 1900
