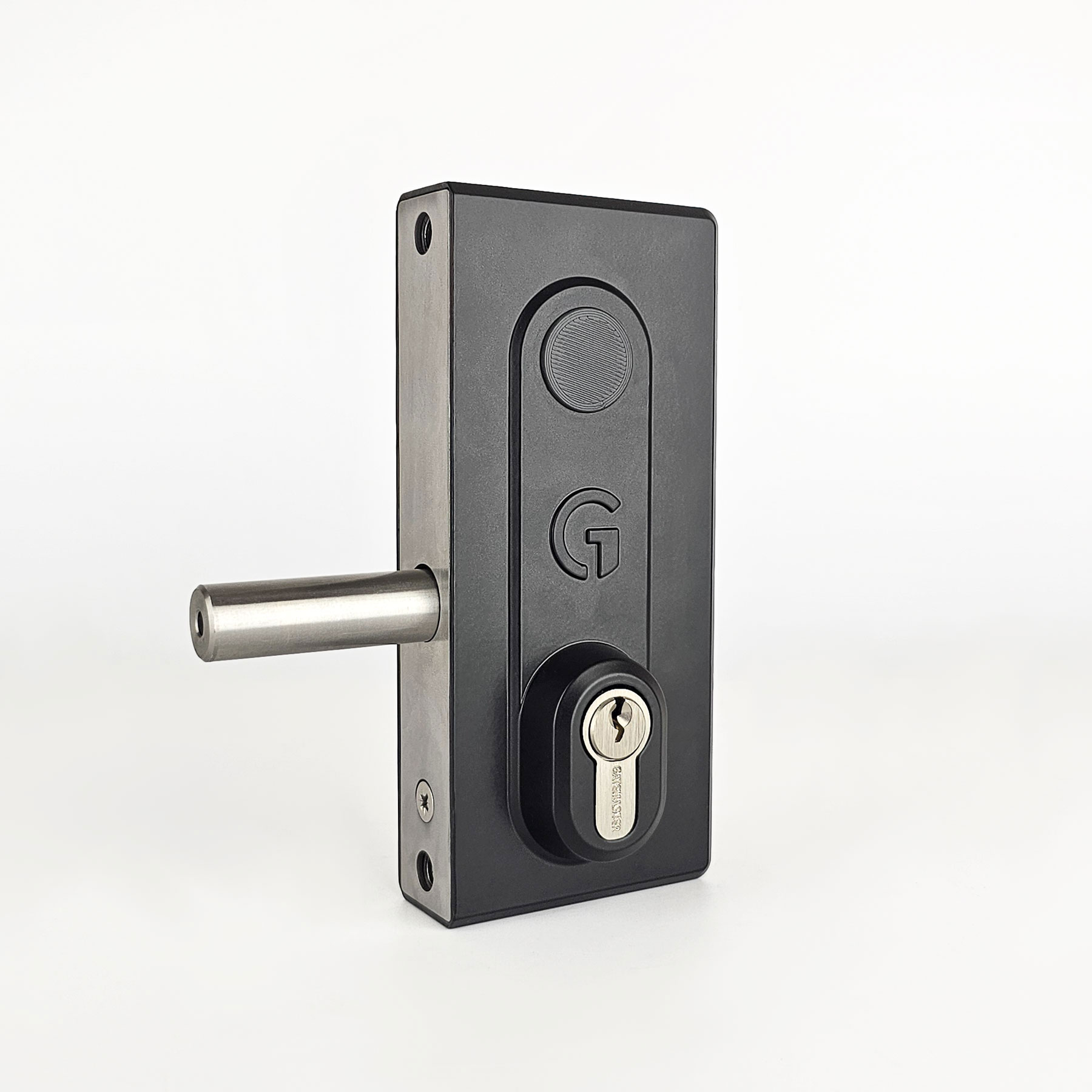

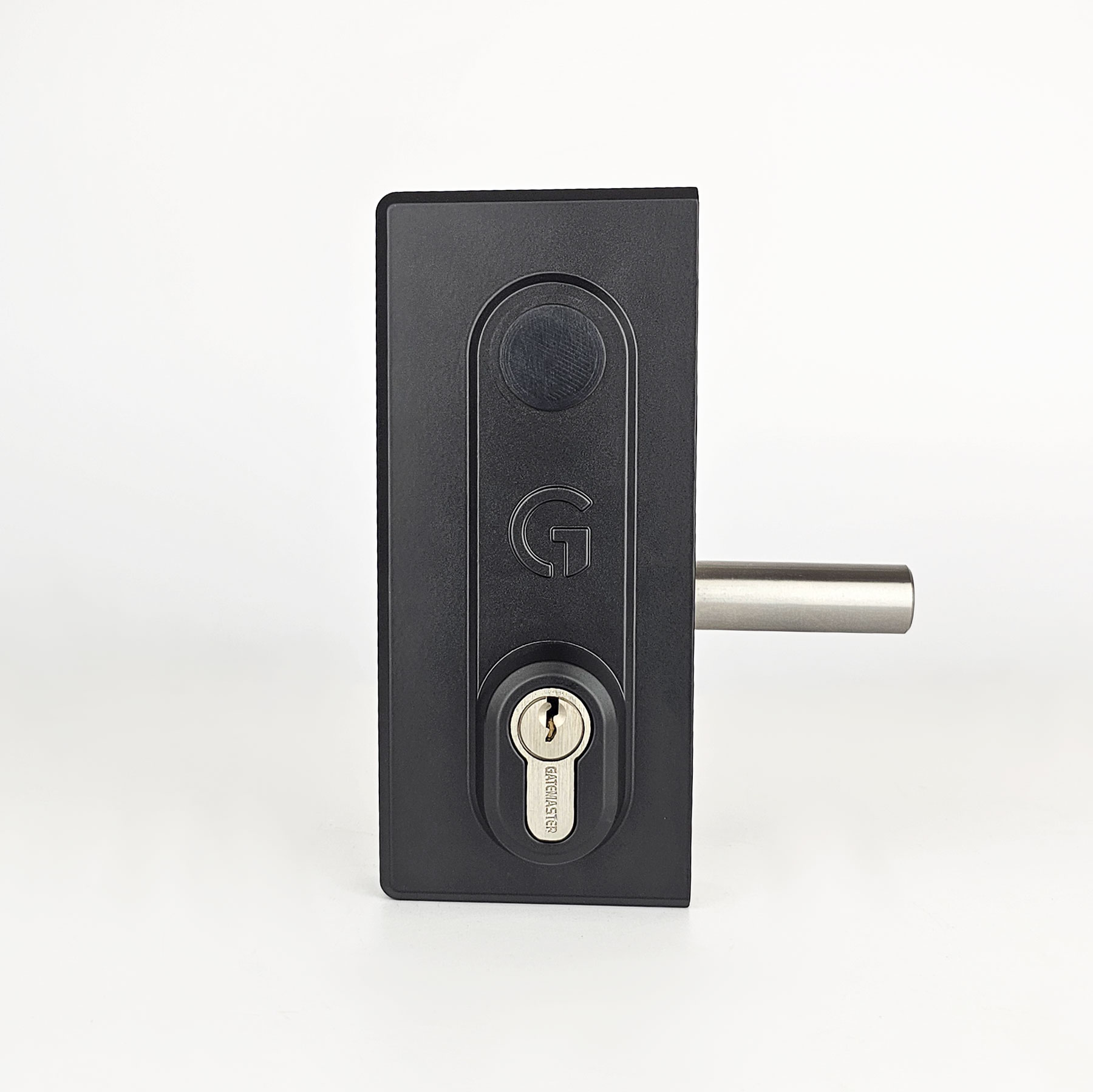

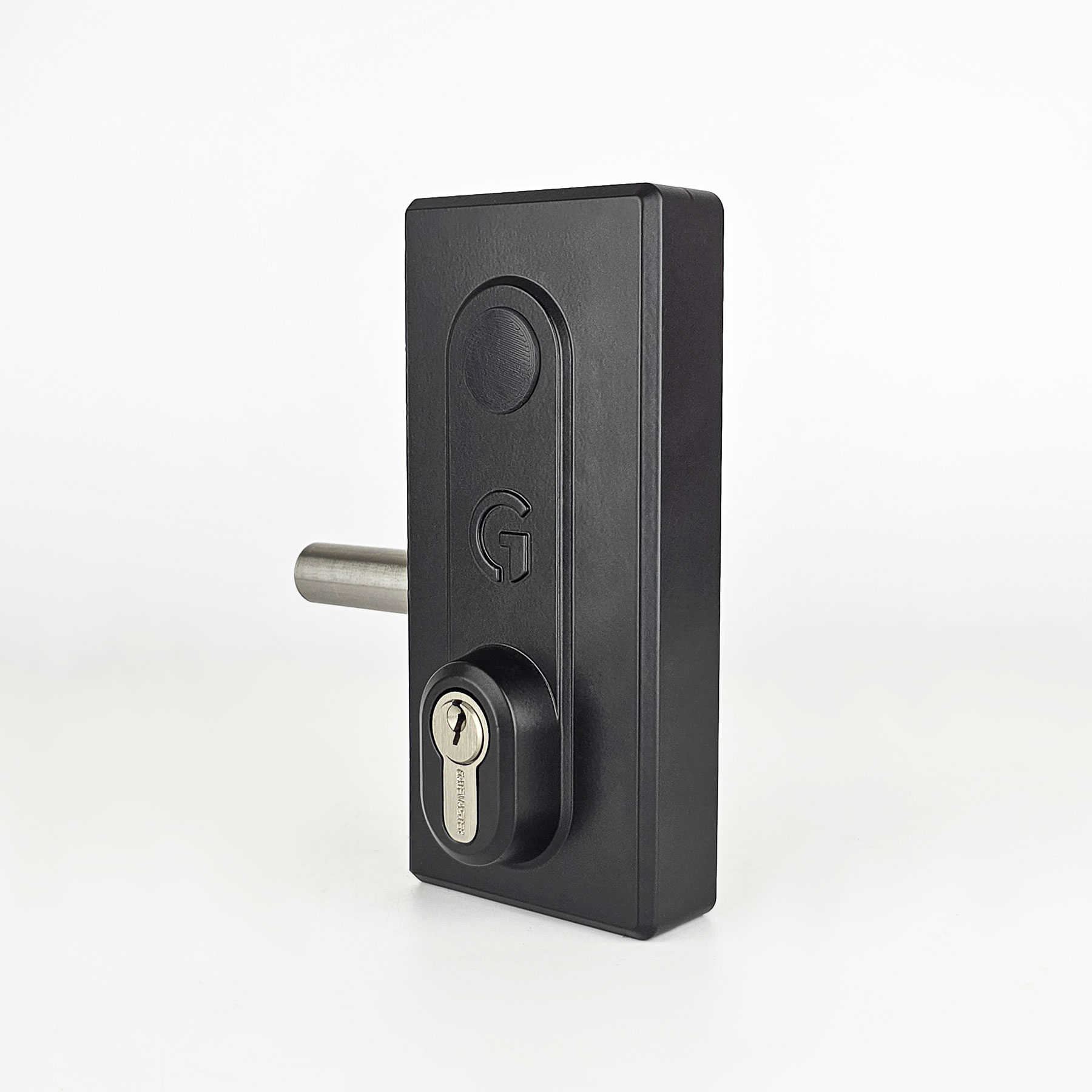

Gatemaster | Superlock 2.0 Deadlock Gate Lock | Double-Sided Key Access
The BD gate lock has a single-body design that increases durability and gives the lock a clean, professional finish. Like all our Superlocks, this new upgrade comes in two sizes: for 3/8" to 1-3/16" gate frames or for 1-9/16" to 2-3/8" gate frames.
Key features
- Simple-deadlocking action- the lock is opened and closed with a key
- Slim design - A 2-3/4" wide lock case and an adjustable, removable latch bolt make it an easy fit on gates
- Adjustable- latchbolt can be adjusted in length for a more precise fitting on site
The BD gate lock has a single-body design that increases durability and gives the lock a clean, professional finish. Like all our Superlocks, this new upgrade comes in two sizes: for 3/8" to 1-3/16" gate frames or for 1-9/16" to 2-3/8" gate frames.
This gate lock is compatible with our Superlock Gapless Keep, Superlock Interlocking Keep & Superlock Secure Keep.
- Universal- fits left and right handed gates
- Double-sided- features keyed access on both sides of the deadlock
- Supplied with bolt support plate, gate post strike plate and 3 keys

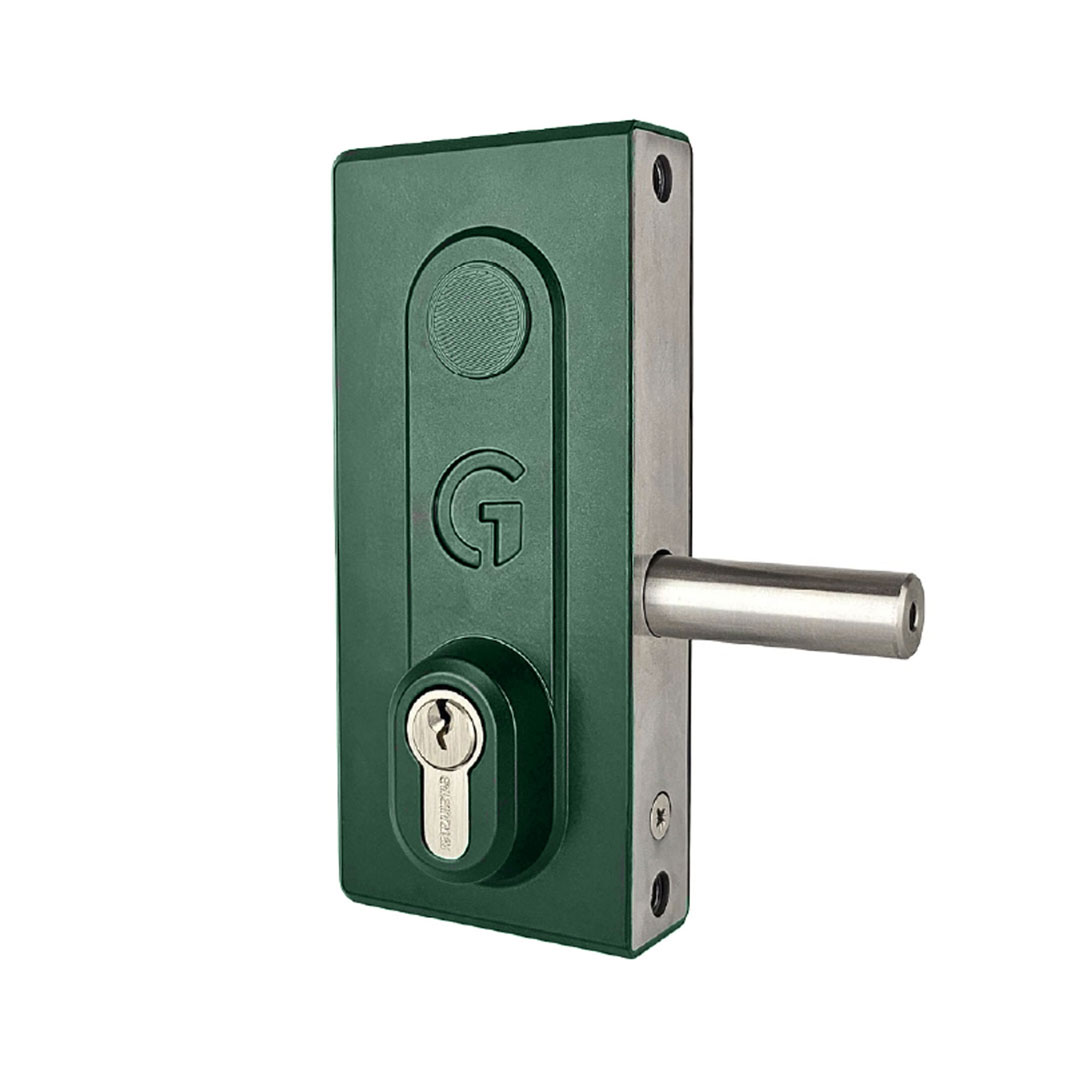

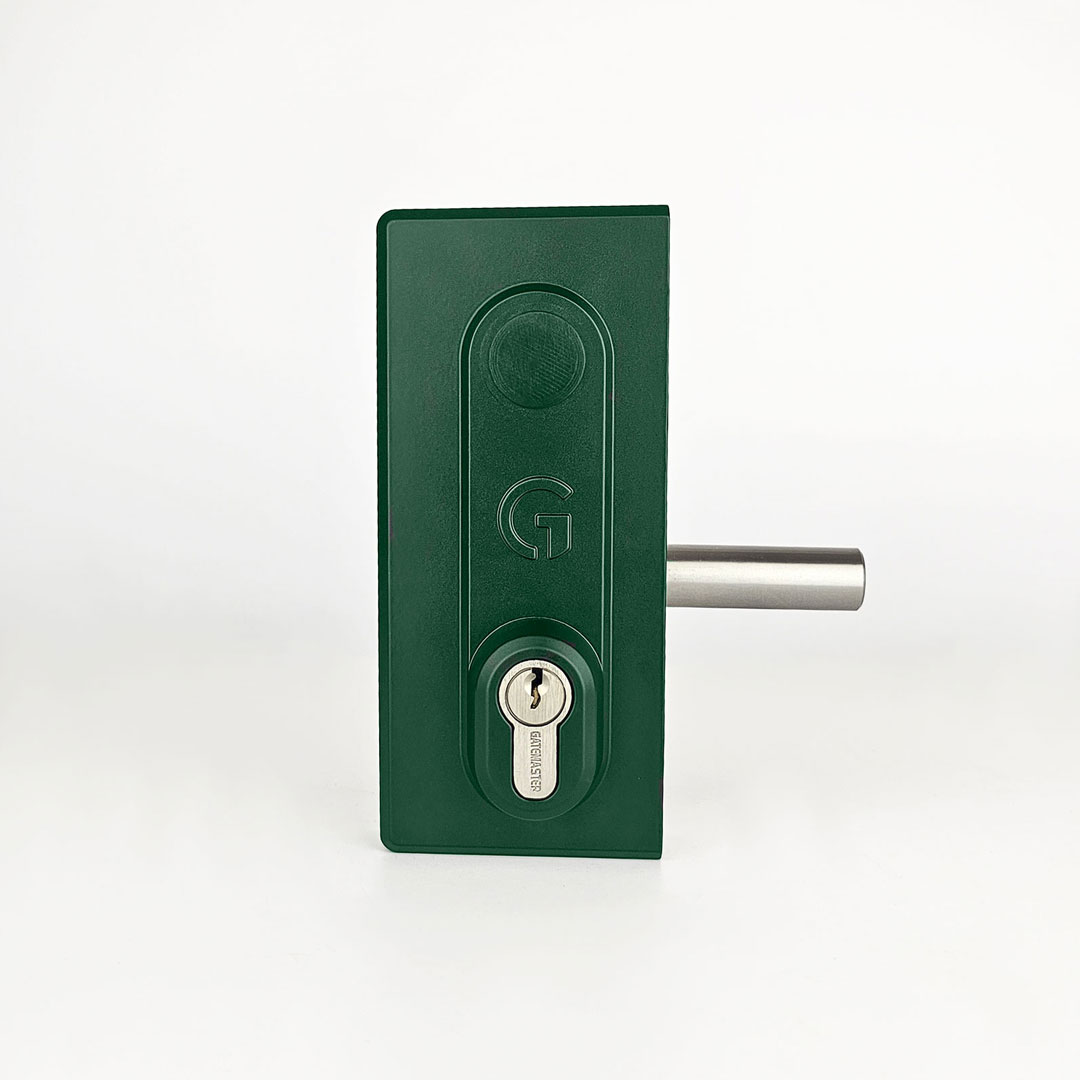

- Also available in a green casing
Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Patent | EP 3354825 |
| Finish | Black (green casing available) |
| Handing | Universal (left and right) |
| Warranty | 5 years |
| Frame width | 3/8" to 1-3/16" |
What's in the box
- 1x3mm hex key
- M8 fixing bolts
- Face plate
- Deadbolt
- Keep plate (self-drilling fasteners)
- A set of keys (3)
Article numbers
- BD1030Frame width: 3/8" to 1-3/16"$93.95Chosen
- BD4060Frame width: 1-9/16" to 2-3/8"$93.95
Installation
- 1Drill two 3/8" holes at 5-1/2" centers for the fixing bolts provided
- 2Drill a 3/4" clearance hole for the latchbolt, centered 2-3/8" above the bottom fixing hole
- 3Hold the lock against the back of the box section and screw the latchbolt on through the larger hole.
- 4Lock the latchbolt by inserting the hex key supplied into the end of the latchbolt.
- 5Fix the lock in place with the stainless steel bolt support plate and the countersunk screws supplied, and check that the latchbolt still moves freely.
- 6Fix the strike plate to the gate post, either by welding or with screws.
Maintenance
Every 6 months, lubricate the latchbolt with light oil. Once a year, dismantle the lock and spray the mechanism with light oil to get the longest life out of the product.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
How do I know whether I need a left-hand or a right-hand lock?
Stand on the outside of the gate - the side you approach from. If the hinges are on your left, you need a left-hand lock; if they are on your right, a right-hand lock. Gatemaster locks in this range are reversible: you loosen the locking screw in the end of the latchbolt with the 0.118" hex key supplied, turn the bolt through 180 degrees and tighten it again.
Which version fits my gate frame?
Measure the depth of the gate frame, the box section or flat bar the lock bolts onto. Versions are made for 3/8" to 1-3/16" and 1-9/16" to 2-3/8" frames. Pick the version that matches your frame; a lock made for a deeper frame will not sit flush on a shallow one. The product codes are BD1030 and BD4060.
