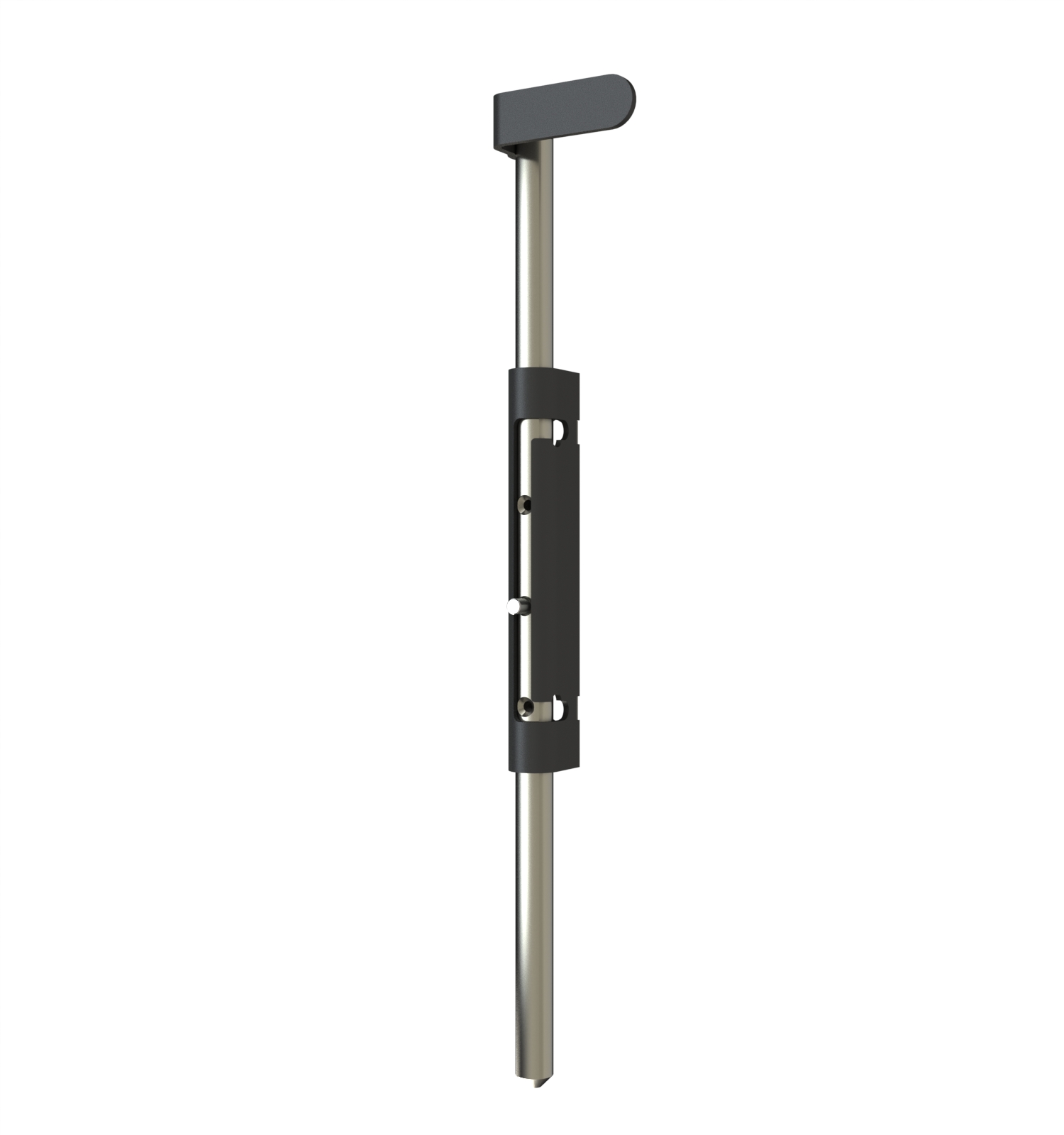

Gatemaster | Surface Fixed Locking Drop Bolt

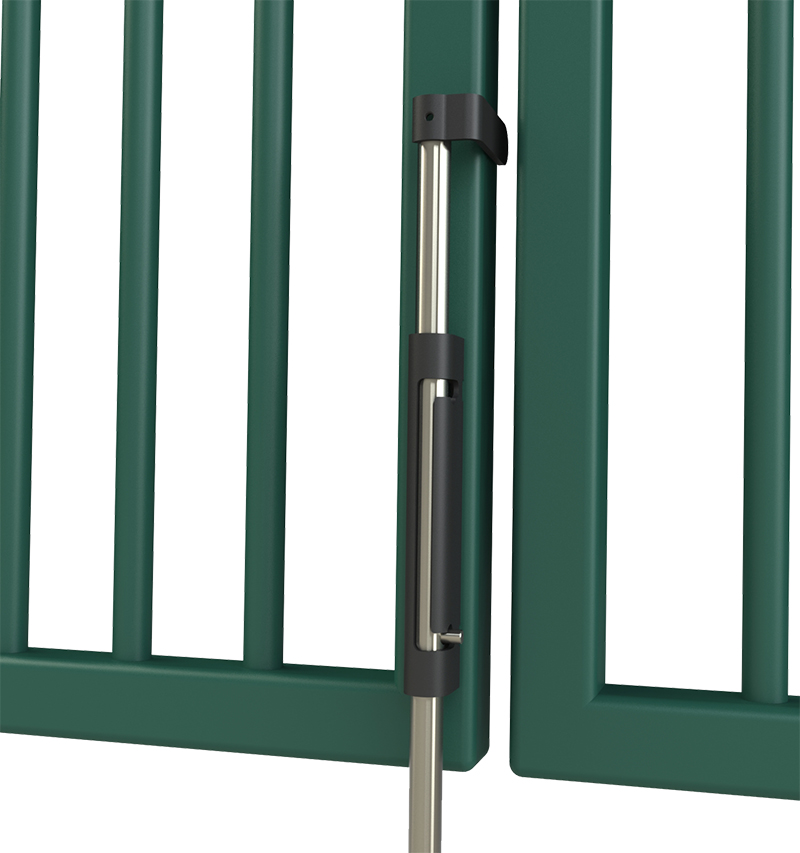

A secure locking dropbolt which is easy to fit to the gate with our expanding fasteners. Used on double gates, once the dropbolt is in the ground the locking plate is rotated around the edge of the gate. Once the second gate is closed the dropbolt cannot be lifted.
Key features
- Robust - Strongly constructed from galvanized steel, also available with a stainless steel bolt.
- Easy to fit - Needs just two 9/16" holes in the gate and is fixed with the expanding fasteners provided.
- Adaptable - Fits left and right hand gates
A secure locking dropbolt which is easy to fit to the gate with our expanding fasteners. Used on double gates, once the dropbolt is in the ground the locking plate is rotated around the edge of the gate. Once the second gate is closed the dropbolt cannot be lifted.
- Innovative and secure - Once the dropbolt is lowered and rotated, closing the second gate prevents the dropbolt from being unlocked.
- 3/4" bolt with 5-1/2" of movement.
- LDB - Aluminum drop bolt & powder coated stainless steel hardware
- LDBSS - Stainless steel drop bolt & powder coated stainless steel hardware
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Weight | 11 lb |
What's in the box
- Self-expanding fasteners
- Fixing screws
Installation
- 1Drill two 9/16" holes, 13/16" from the leading edge of the gate at 5-1/2" centers, and fix the dropbolt guide to the gate with the two expanding fasteners supplied
- 2Fit the small location pin into whichever of the 3 location holes suits best, using the smaller screw supplied.
- 3Slide the drop bolt into its guide with the location pin facing into the back corner, then twist it into position.
- 4Fix the lift plate to the drop bolt in the correct position with the screw supplied.
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
Will this work on a wooden gate?
Yes - this is a surface-mounted model designed for timber. It bolts through the face of the gate rather than into a metal frame, and the fixings allow for the swelling and shrinking that timber goes through between seasons. As standard the fixings suit gates up to 2-15/16" thick; above that you need the extension kit.
