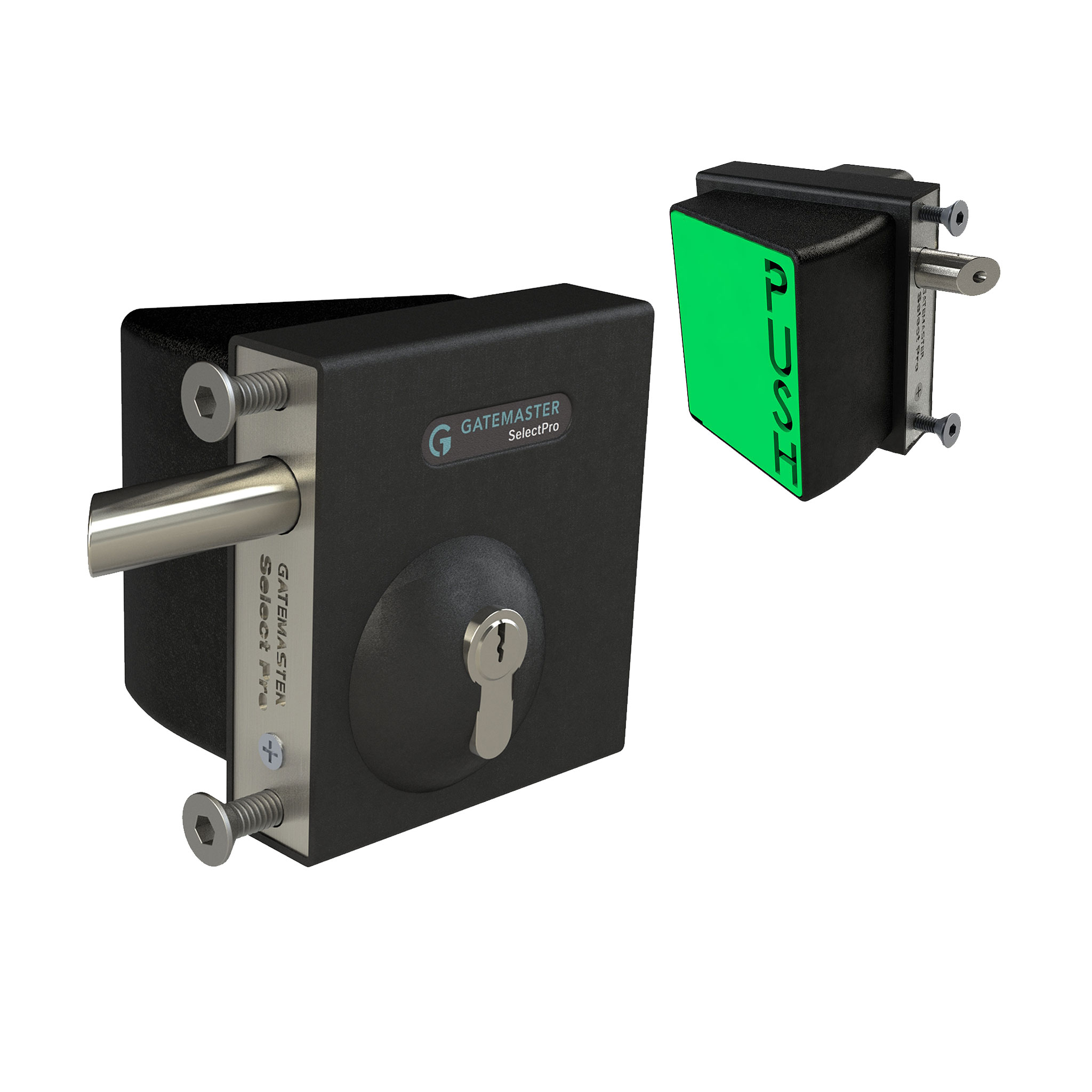

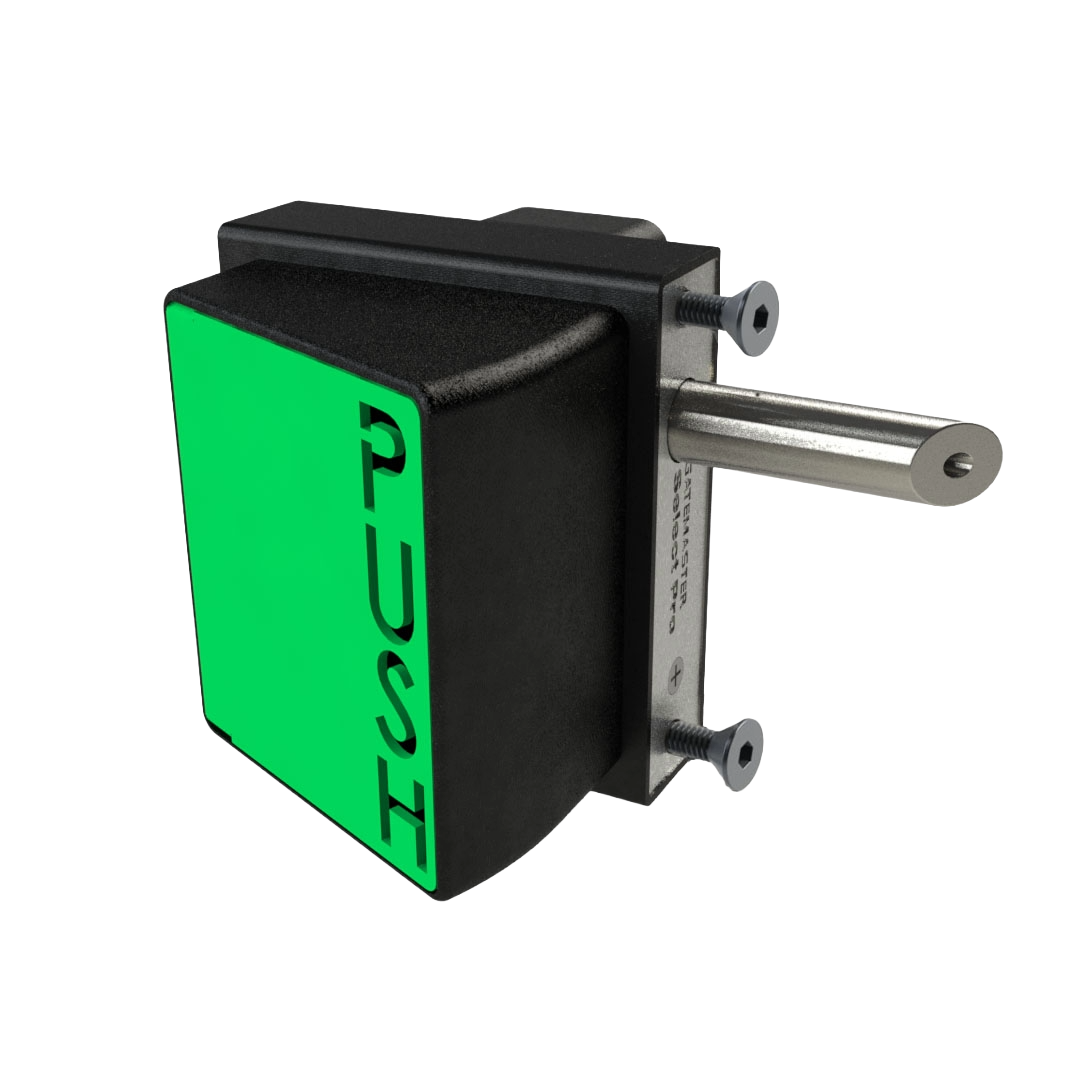

Gatemaster | Bolt on Quick Exit | Keyed Gate Lock

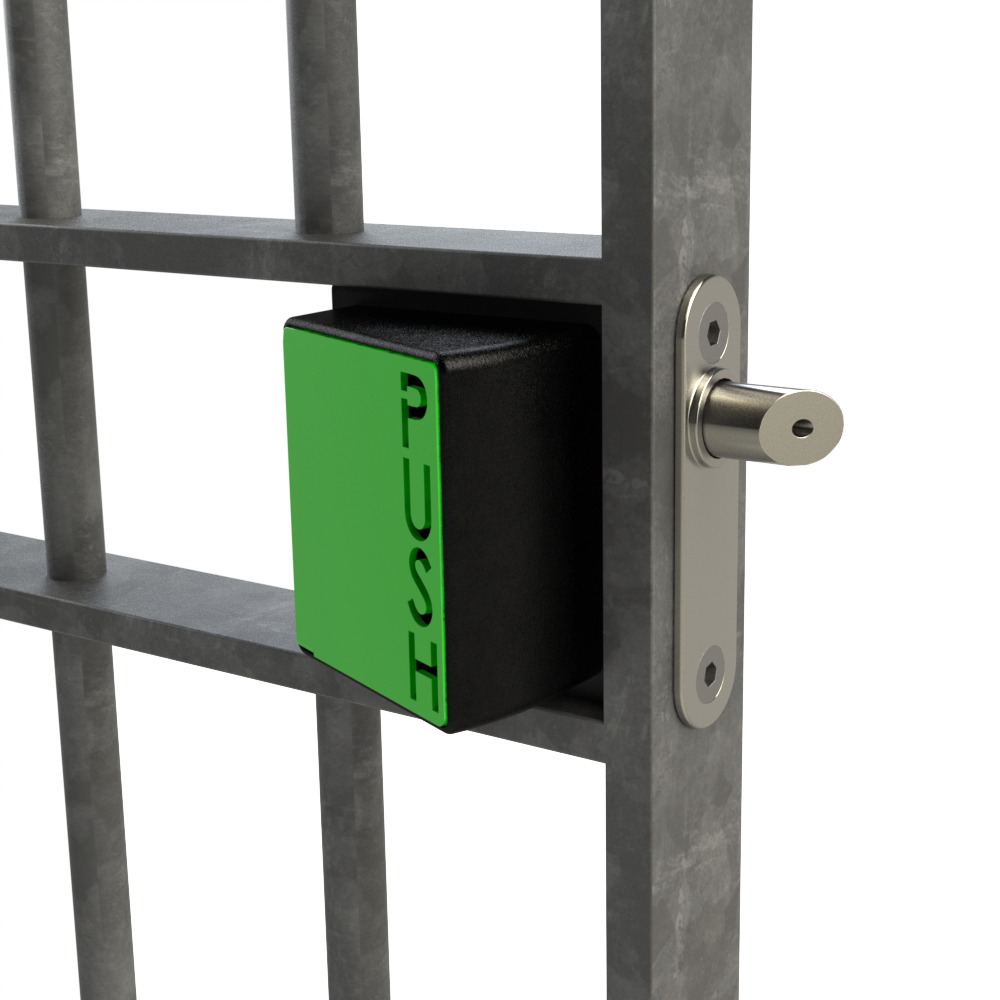

This quick exit gate lock is designed to allow rapid exits through gates. Designed specifically for metal gates, the unit is simple to install yet robust. The unit will automatically latch shut when the gate is closed.
Key features
- Quick exit gate lock is designed to allow rapid exits through gates
This quick exit gate lock is designed to allow rapid exits through gates. Designed specifically for metal gates, the unit is simple to install yet robust. The unit will automatically latch shut when the gate is closed.
- Secure - Stainless steel 5/8" latchbolt which springs 3/4" into the gate post
- Reliable - Supplied with bolt guide plate and gate post strike plate
- Adaptable - Latchbolt is adjustable in length for precise fitting on site
- Quick exit/Digital keypad combination also available

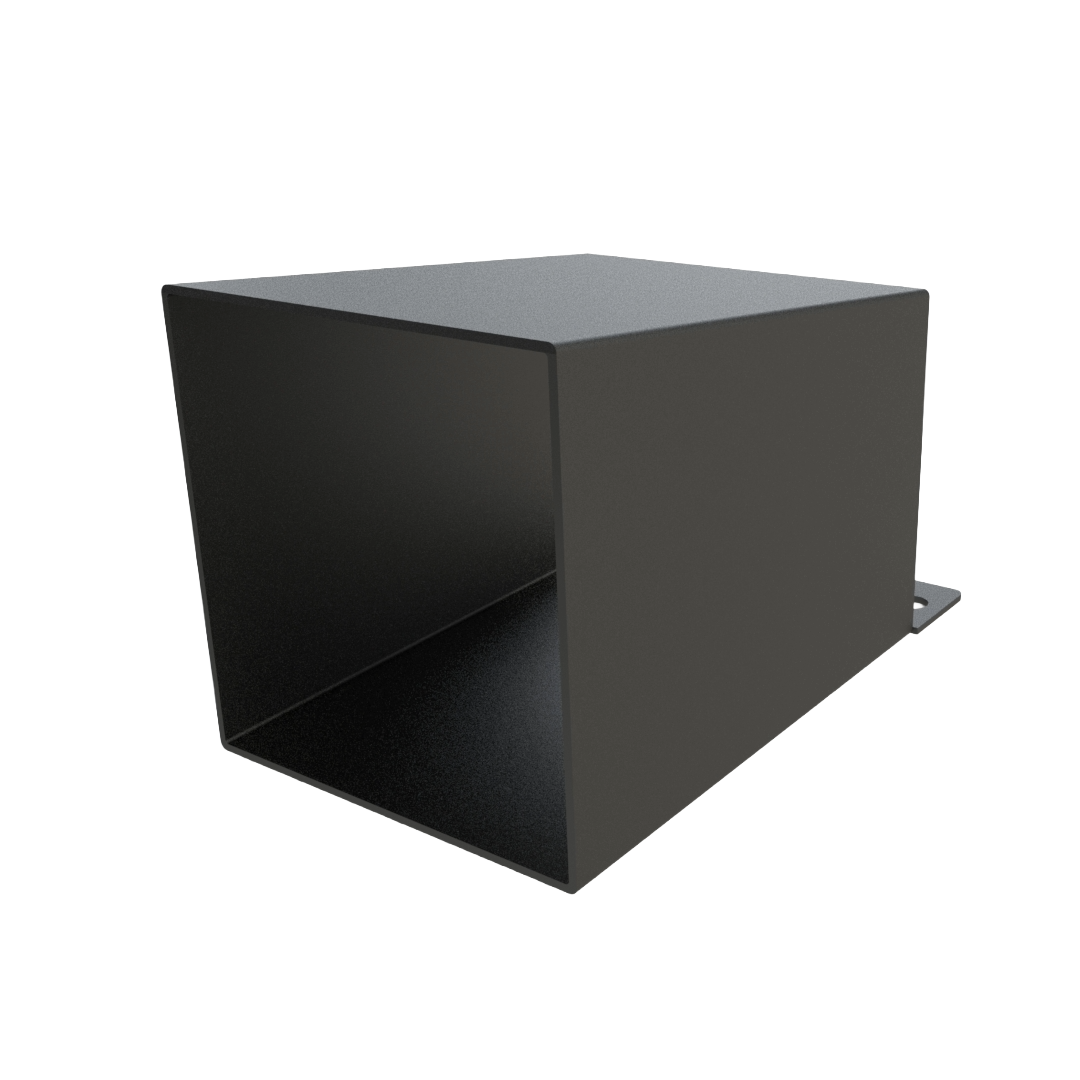

- Security shroud available to prevent access to the pad from the outside
- Pair with the Superlock Gapless Keep for extra security and protection
Certain features of this product are protected under European Patent No. 3354825. Any unauthorised reproduction, use and/or sale of this product may constitute an infringement of our patent rights.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Weight | 11 lb |
| Frame width | 3/8" to 1-3/16" |
| Hand | Left |
What's in the box
- 1x3mm hex key
- M8 fixing bolts
- Face plate
- Latchbolt
- Strike plate (self-drilling fasteners)
- A set of keys (3)
Article numbers
- SBQEKLR01Frame width: 3/8" to 1-3/16" / Hand: Right$176.95
- SBQEKLL01Frame width: 3/8" to 1-3/16" / Hand: Left$176.95Chosen
- SBQEKLL02Frame width: 1-9/16" to 2-3/8" / Hand: Left$176.95
- SBQEKLR02Frame width: 1-9/16" to 2-3/8" / Hand: Right$176.95
Installation

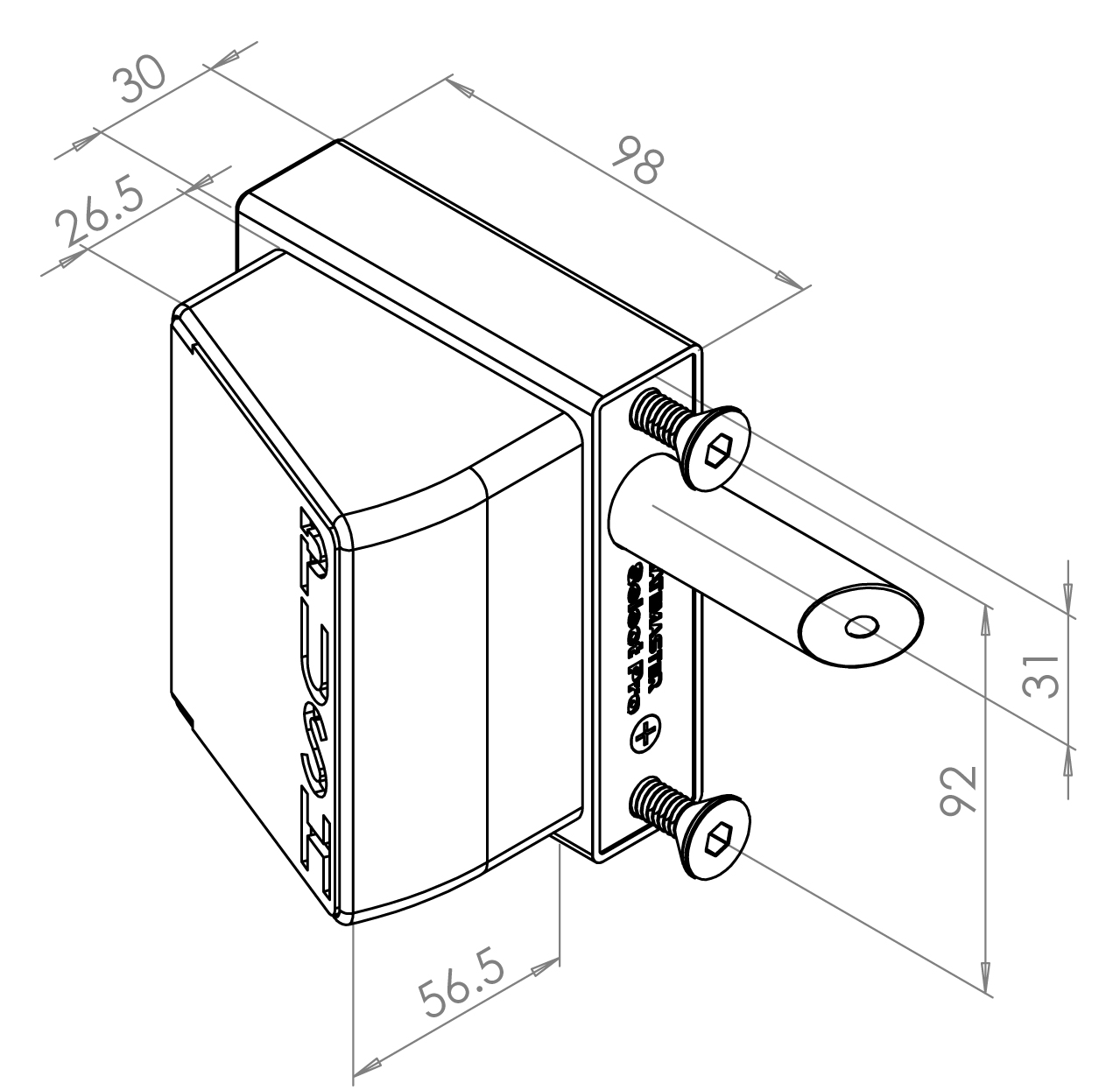

- 1Drill 2 x 9 mm diameter holes at 92 mm centres for the M8 fixing bolt.
- 2Drill an 11/16" clearance hole for the latchbolt, 7/8" below the top 0.354" hole.
- 3Fix the lock in place with the stainless steel clamp plate, the bolt support plate and the 2 stainless steel countersunk fixing bolts supplied.
- 4Drill a clearance hole in the keep or outer frame for the latchbolt. Slot the hole vertically to allow for gate sag, then fit the strike plate to the gate post by welding or screwing it on.
- 5Make sure the latchbolt moves freely without catching on the gate or frame.
Maintenance
Every 3 months: take the keypads off the lock, spray the inside of the lock through the tumbler holes at the back with WD-40 or an equivalent, and spray the fixings and the latchbolt as well. Then press every button and turn the handle a few times to check that the lock still runs smoothly.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.

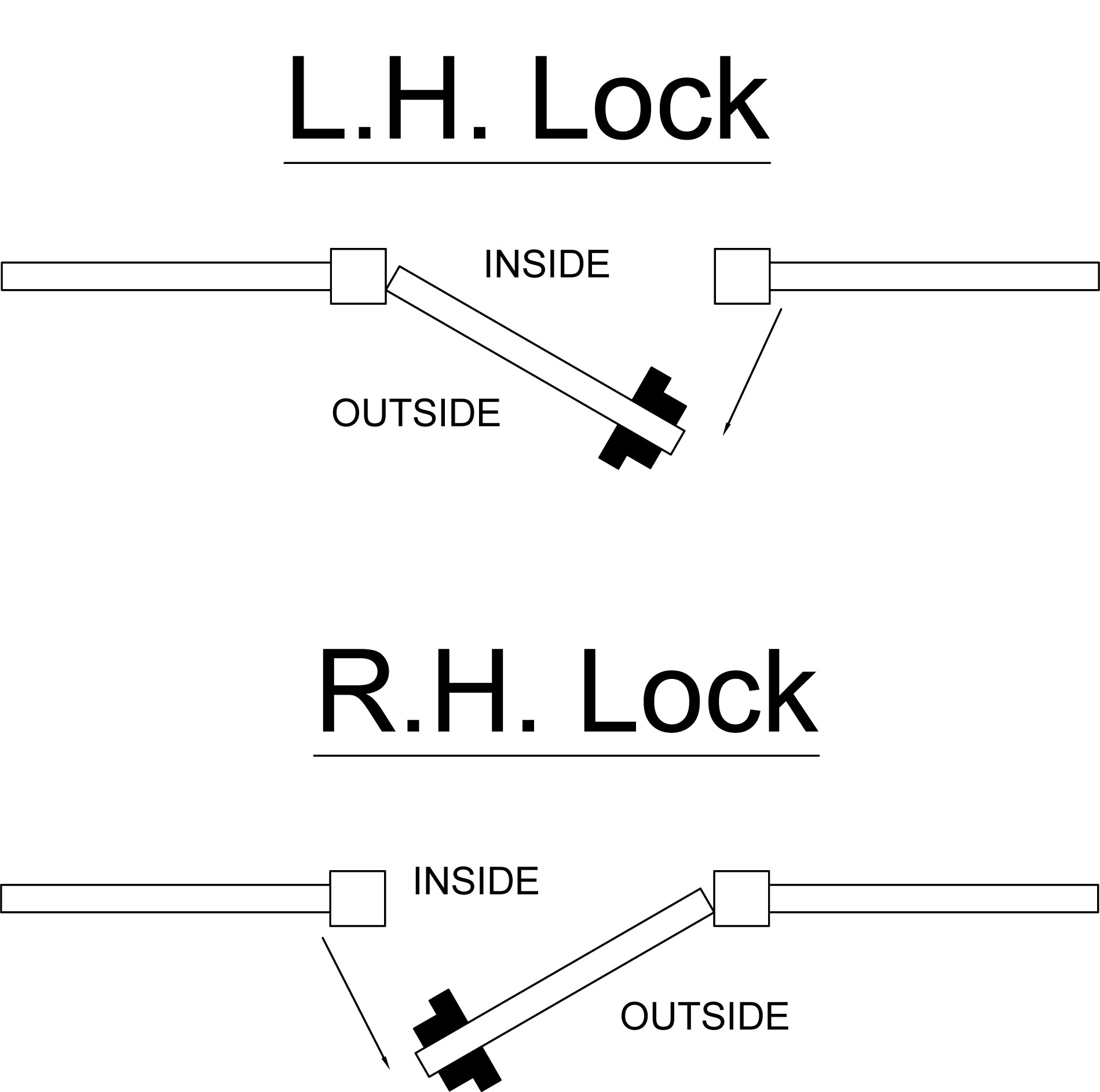

How do I know whether I need a left-hand or a right-hand lock?
Stand on the outside of the gate - the side you approach from. If the hinges are on your left, you need a left-hand lock; if they are on your right, a right-hand lock. Gatemaster locks in this range are reversible: you loosen the locking screw in the end of the latchbolt with the 0.118" hex key supplied, turn the bolt through 180 degrees and tighten it again.
