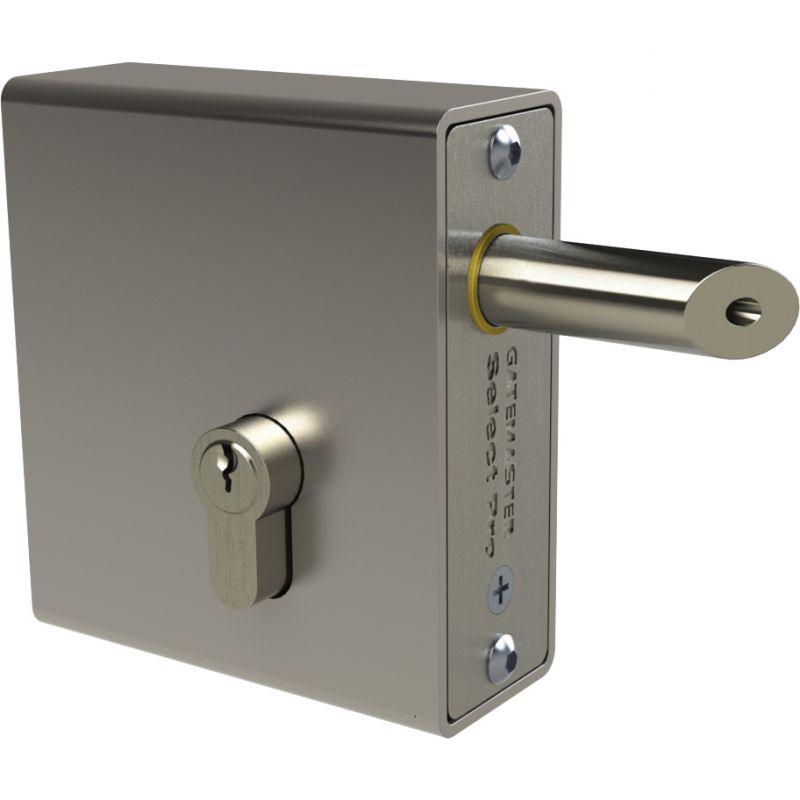

Gatemaster | Weld-in long throw keyed latch
The Select Pro Long Throw Keylatch is perfect for securing the gate every time you shut it behind you. Turn the key to open the gate and automatically locks when you close the gate. Ideal for securing communal gates every time the gate is shut. This weld-in lock can be galvanised or powder coated with the rest of the gate. Just remove the internal lock mechanism and weld the case in place before painting or powder coating.
Key features
- Secure - Gate can be slammed shut and requires the key to open every time.
- Strong - Stainless steel latchbolt springs 13/16" into the gate post; the long throw adds extra security.
- Adaptable - Latchbolt can be rotated for left and right handed gates and is adjustable in length for precise fitting on site
The Select Pro Long Throw Keylatch is perfect for securing the gate every time you shut it behind you. Turn the key to open the gate and automatically locks when you close the gate. Ideal for securing communal gates every time the gate is shut. This weld-in lock can be galvanized or powder coated with the rest of the gate. Just remove the internal lock mechanism and weld the case in place before painting or powder coating.
- Durable - Fitted with a brass latchbolt bearing to ensure long lasting, smooth action
- Available in 4 lock case widths to suit popular box section sizes. 1-3/16", 1-9/16", 1-15/16" and 2-3/8".
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Weight | 2.9 lb |
| Frame width | 1-3/16" |
What's in the box
- 1x3mm hex key
- M5 fixing bolts
- Latchbolt
- Strike plate (self-drilling fasteners)
- A set of keys (3)
Article numbers
- SWKLLT1630Frame width: 1-3/16"$135.95Chosen
- SWKLLT1640Frame width: 1-9/16"$135.95
- SWKLLT1650Frame width: 1-15/16"$139.95
- SWKLLT1660Frame width: 2-3/8"$139.95
Installation
- 1Take the lock apart: remove the 3 screws from the face plate, take the face plate off and then remove the euro cylinder (turn the key 15 degrees clockwise or anticlockwise to release it). The internals then slide out.
- 2Weld the lock case to the gate and galvanise or paint it as part of the gate.
- 3Fit the lock and the euro cylinder into the lock case and secure them with the screws.
Maintenance
Every 6 months, lubricate the latchbolt with light oil. Once a year, dismantle the lock and spray the mechanism with light oil to get the longest life out of the product.
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
Which version fits my gate frame?
Measure the depth of the gate frame, the box section or flat bar the lock is welded into. Versions are made for 1-3/16", 1-9/16", 1-15/16" and 2-3/8" frames. Pick the version that matches your frame; a lock made for a deeper frame will not sit flush on a shallow one. The product codes are SWKLLT1630, SWKLLT1640, SWKLLT1650 and SWKLLT1660.
Do I have to weld this in before galvanising or painting?
Yes, and that is the point of a weld-in lock: the case becomes part of the gate, so there is no visible fixing to attack. Weld the case into the frame first, then galvanise or paint the gate as a whole, and only fit the lock internals and the cylinder once the finish is dry.
What types of fencing products does Fenceweb offer?
Fenceweb offers a complete range of fencing products, including welded wire fence panels, chain link fence, ornamental and metal fencing, security fencing, fence posts, swing and farm gates, gate hardware and temporary fencing. We also carry trusted brands such as Locinox, Gatemaster, ZND, AES Global, D&D Technology and Tarter.
Still have questions? Call us at 214 878 1900
