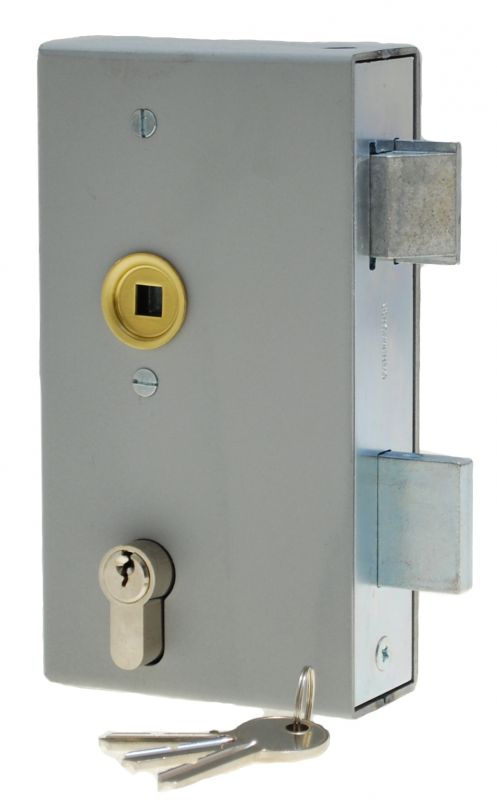

Gatemaster | Weld-in double throw latch deadlock
The double throw weld in latch deadlock is combines the convenience of a latch for day to day use with the security of a deadlock. Use the handles to operate the latch and the key to throw the deadlock bolt. Weld the lockcase into the gate and get the case galvanised and painted with the gate. The lock mechanism simply slides into the case after painting.
Key features
- Secure - Deadbolt moves 15/16" with two turns of the key
- Adaptable: the latchbolt rotates for left- or right-handed gates
- Convenient: handle and key operate from both sides
Weld the lock case into the gate and have the case galvanized and painted with the gate; the lock mechanism slides into the case after painting. Four case widths suit box sections from 30 to 2-3/8". The lock accepts standard handle designs, which are ordered separately.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Material | Pressure die-cast body, stainless steel latchbolt |
| Weight | 3.3 lb |
| Frame width | 1-3/16" |
What's in the box
- Keep plate
- A set of 3 keys
- Euro cylinder
- Countersunk screws
Article numbers
- GLD50Frame width: 1-15/16"$126.95
- GLD30Frame width: 1-3/16"$114.95Chosen
- GLD40Frame width: 1-9/16"$114.95
- GLD60Frame width: 2-3/8"$126.95
Installation
- 1Weld the outer lock case into the gate and galvanise or paint it as part of the gate.
- 2Fit the lock into the lock case and secure it with 4 countersunk screws and the euro cylinder.
- 3Drill a clearance hole in the keep or outer frame for the latchbolt, slotting the hole vertically to allow for gate sag.
- 4Make sure the latchbolt moves freely without catching on the gate or frame.
Maintenance
A spray of light oil on the latchbolt and the cylinder a few times a year keeps the lock running freely outdoors.
Related products
Frequently asked questions
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
Do I have to weld this in before galvanising or painting?
Yes, and that is the point of a weld-in lock: the case becomes part of the gate, so there is no visible fixing to attack. Weld the case into the frame first, then galvanise or paint the gate as a whole, and fit the lock internals and the cylinder once the finish is dry.
Will it survive outdoors all year?
It is built for it. The body is pressure die-cast and powder coated and the latchbolt is stainless steel, so salt air and rain are not a problem. Follow the maintenance note on this page.
