Gatemaster | Narrow Autolocking Latch
The Gatemaster narrow autolocking latch is a slim mortise gate lock for box section bigger than 1-9/16" x 1-9/16". A deadlocking mechanism stops the latch being pushed back when the gate is closed, and it comes with a 2-3/8" eurocylinder and three keys.
Key features
- Slim lock design for a neat finish
- Long throw - Hook protrudes 7/8" (22 mm) with one turn of the key
- Fits inside any box section bigger than 1-9/16" x 1-9/16"
- Supplied with a 2-3/8" eurocylinder and three keys
- Handing can be changed on site
For a neat and unobtrusive finish to your gate, the narrow hook lock can be mortised into a box section of anything bigger than 40 x 1-9/16" (40 mm) box section.
Secure - Deadlocking mechanism prevents the latch being pushed back when the gate is closed Supplied with a 2-1/4" eurocylinder and 3 keys
Security
A deadlocking mechanism prevents the latch being pushed back when the gate is closed. The handing of the latch can be changed on site: undo the slotted screw at the back of the lock, turn the latch round and tighten the screw again.

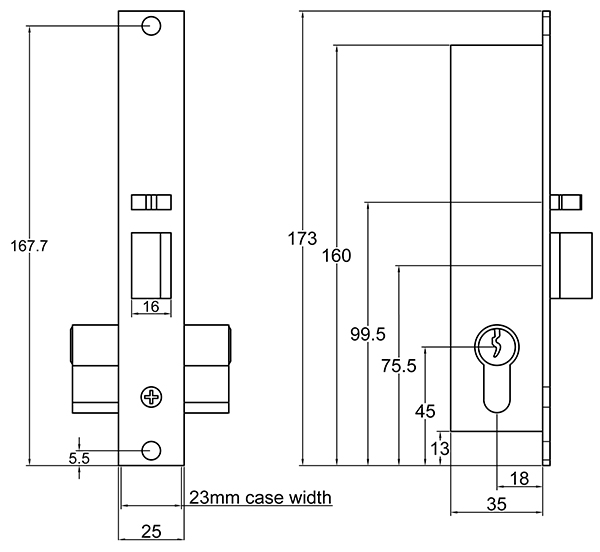

Sizes and fit
The lock fits inside any box section bigger than 1-9/16" x 1-9/16". It is supplied with a double sided 2-3/8" eurocylinder, three keys, two eurocylinder escutcheons and countersunk screws.
Installation
Slot the gate frame to take the lock body and cut two holes for the eurocylinder. Fix the lock and the forend plate in position, insert the cylinder and secure it with the M5 countersunk screw, then fit the two escutcheons and check that the lock operates smoothly.
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |

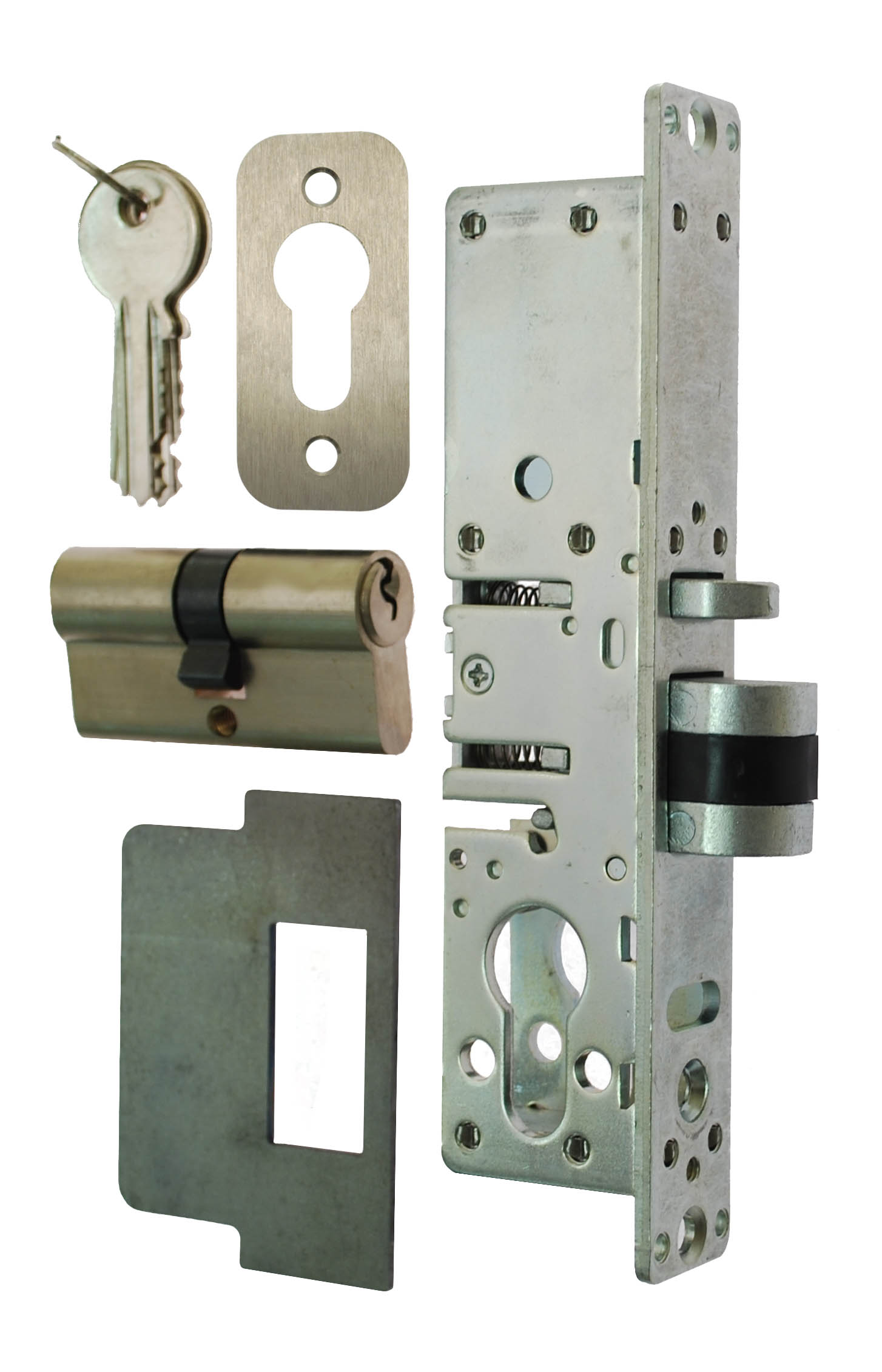

What's in the box
- Stirke plate
- A set of keys (3)
- Double sided eurocylinder
- 2 x eurocylinder escutcheons
- Countersunk screws
Installation
- 1Slot the gate frame to take the lock body and cut two holes for the euro cylinder.
- 2Fix the lock and the forend plate in position, insert the euro cylinder and secure it with the M5 countersunk screw.
- 3Fit the 2 euro cylinder escutcheons.
- 4Check that the lock operates smoothly.
- 5To change the handing of the latch: undo the slotted screw at the back of the lock, turn the latch round and tighten the screw again.
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
Can I change the handing myself?
Yes. Undo the slotted screw at the back of the lock, turn the latch round and tighten the screw again.
