Gatemaster | Weld-in keyed deadlock

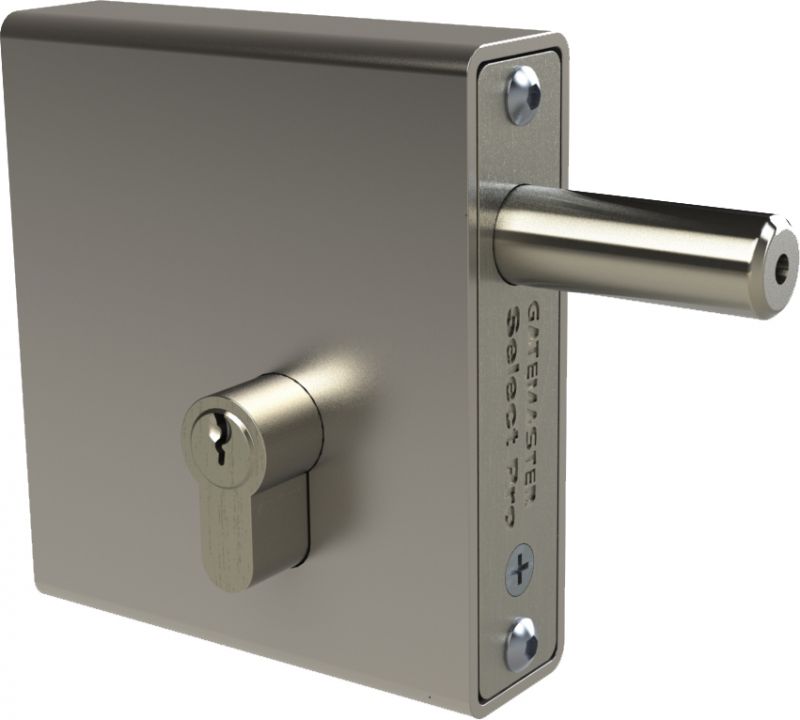

Solid and reliable lock with a single keyed deadlocking action that moves 1-3/16" with one turn of the key. This weld-in lock can be galvanized or powder coated with the rest of the gate. Just remove the internal lock mechanism and weld the case in place before painting or powder coating.
Key features
- Secure - Stainless steel deadbolt that moves 1-3/16" with one turn of the key.
- Adaptable - Deadbolt is adjustable in length for precise fitting on site.
- Keyed both sides for easy access
Solid and reliable lock with a single keyed deadlocking action that moves 1-3/16" with one turn of the key. This weld-in lock can be galvanized or powder coated with the rest of the gate. Just remove the internal lock mechanism and weld the case in place before painting or powder coating.
- Lock case is made from 0.098" steel.
- 4 lock case widths available to suit different box section sizes - 1-3/16", 1-9/16", 1-15/16" and 2-3/8".
Watch the video
Specifications
| Brand | Gatemaster |
| Manufacturer | Gatemaster |
| Weight | 2.9 lb |
| Frame width | 1-3/16" |
What's in the box
- 1x3mm hex key
- M5 fixing bolts
- Deadbolt
- Keep plate (self-drilling fasteners)
- A set of keys (3)
Article numbers
- SWD1630Frame width: 1-3/16"$96.95Chosen
- SWD1640Frame width: 1-9/16"$96.95
- SWD1650Frame width: 1-15/16"$100.95
- SWD1660Frame width: 2-3/8"$104.95
Installation
- 1Take the lock apart: remove the 3 screws from the face plate, take the face plate off and then remove the euro cylinder (turn the key 15 degrees clockwise or anticlockwise to release it). The internals then slide out.
- 2Weld the lock case to the gate and galvanise or paint it as part of the gate.
- 3Fit the lock and the euro cylinder into the lock case and secure them with the screws.
Maintenance
Every 6 months, lubricate the latchbolt with light oil. Once a year, dismantle the lock and spray the mechanism with light oil to get the longest life out of the product.
Related products
Frequently asked questions
Will it survive outdoors all year?
It is built for it. The bodies are pressure die-cast and powder-coated, latchbolts are stainless steel and the keypads are marine grade, so salt air and rain are not a problem. Follow the maintenance schedule on this page - a spray of light oil a few times a year is what keeps a gate lock feeling new after a decade outside.
What warranty comes with this product?
Gatemaster gives a 5-year warranty on the Superlock 2.0 range and a manufacturer's warranty on the rest of the program, covering defects in material and workmanship. Keep your invoice: that is the proof of purchase a claim is assessed on. Damage from forcing, from the wrong installation or from missed maintenance is not covered - which is why the maintenance schedule on this page is worth following.
Is this in stock and how fast can I get it?
Gatemaster hardware is part of our standard program, so the common versions ship from stock. If you need a quantity for a project, or you are not sure which version fits your gate, ask us for a quote - we will check the frame size and handing with you before anything is picked.
Which version fits my gate frame?
Measure the depth of the gate frame, the box section or flat bar the lock is welded into. Versions are made for 1-3/16", 1-9/16", 1-15/16" and 2-3/8" frames. Pick the version that matches your frame; a lock made for a deeper frame will not sit flush on a shallow one. The product codes are SWD1630, SWD1640, SWD1650 and SWD1660.
Do I have to weld this in before galvanising or painting?
Yes, and that is the point of a weld-in lock: the case becomes part of the gate, so there is no visible fixing to attack. Weld the case into the frame first, then galvanise or paint the gate as a whole, and only fit the lock internals and the cylinder once the finish is dry.
What types of fencing products does Fenceweb offer?
Fenceweb offers a complete range of fencing products, including welded wire fence panels, chain link fence, ornamental and metal fencing, security fencing, fence posts, swing and farm gates, gate hardware and temporary fencing. We also carry trusted brands such as Locinox, Gatemaster, ZND, AES Global, D&D Technology and Tarter.
Still have questions? Call us at 214 878 1900
