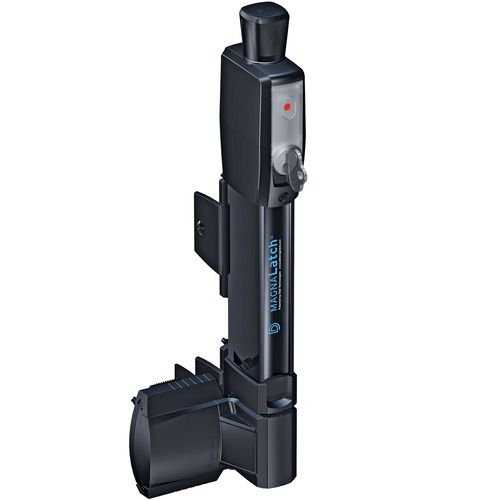

MagnaLatch SERIES 3 Vertical Pull
The MagnaLatch Series 3 Vertical Pull from D&D Technologies is a magnetic, key-lockable gate latch for pool, pet, front, side and perimeter gates. It is smaller than the Top Pull, which can suit taller pool gates, shows locked or unlocked at a glance and has a lock that can be rekeyed to your doors.
Key features
- Magnetic latching that resists jamming and sticking
- Visible locked/unlocked indicator
- Higher-security lock cylinder, rekeyable to your doors
- Smaller than the Top Pull, suits taller pool gates
- Vertically and horizontally adjustable, with adjustment marks
- Lifetime warranty
MagnaLatch Series 3 Vertical Pull: the compact magnetic gate latch
D&D Technologies invented magnetic safety gate latches in the early 1990s. The MagnaLatch Vertical Pull is the smaller sibling of the Top Pull, which can make it the better choice on taller pool gates, and D&D presents it for pool, front, pet, side and perimeter gates.
Operation and security
Magnetically triggered latching greatly reduces the chance of jamming or sticking as the gate closes. A visible indicator shows whether the latch is locked or unlocked, and the higher-security lock cylinder can be rekeyed by a locksmith to match your doors. D&D has tested the Series 3 to 2 million cycles and rates it 50% stronger than previous models.
Fit and adjustment
It suits square posts of 1 in and up on aluminum, steel and ornamental iron, wood and vinyl gates, with an ideal gate gap of 3/4 in on gates of about 3 ft wide and 5 ft high. The latch adjusts vertically and horizontally, and indicator marks show when it needs adjusting. It screws on and the fasteners are supplied.
On a pool gate, always confirm the safety requirements with your local authority before you fit it.
Watch the video
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Lock type | Rekeyable (to match door locks) |
| Fixing method | Screw-On |
| Fixings included | Yes |
| Weight | 1.4 lb |
| Warranty | Limited lifetime |
| Product line | MagnaLatch |
| Type | Latch |
| Function | Square-to-Square |
| Gate material | Aluminum, Steel/Ornamental Iron, Vinyl/PVC, Wood |
| Suitable for | Front Gate, Pet Gate, Pool Gate, Privacy Gate, Public/Commercial Gate, Security Gate, Side Gate |
| Min post size | 1"+ |
| Sold as | Each |
| Packaging | Bagged |
| Master carton | 15 pcs |
| Color | Black |
Article numbers
- ML3VPKAColor: Black$65.00Chosen
- ML3VPKAWTColor: White$68.00
Downloads
- MagnaLatch SERIES 3 Vertical Pull - installation instructions (D&D)View onlineOpens on the manufacturer's website
- MagnaLatch SERIES 3 Vertical Pull - dimensional drawing (D&D)View onlineOpens on the manufacturer's website
- MagnaLatch SERIES 3 Vertical Pull - brochure (D&D)View onlineOpens on the manufacturer's website
Frequently asked questions
Which part number do I need from the MagnaLatch SERIES 3 Vertical Pull?
Each option on this page is its own D&D part number: ML3VPKA (black), ML3VPKAWT (white). Quote that number when you order and we ship exactly that item.
Vertical Pull or Top Pull?
Both are MagnaLatch Series 3 magnetic latches. The Vertical Pull is the smaller of the two, which D&D notes can make it more suitable for taller pool gates.
Can the lock be matched to my house keys?
Yes. The lock cylinder can be rekeyed by a locksmith to match your doors.
What warranty comes with it?
D&D Technologies warrants its own products against defects in materials and workmanship to the original purchaser for as long as they own the product. Keep your proof of purchase.
