Shut It® 4" (102mm) Hardcore™ V-Groove Wheel
The Shut It Hardcore 4" V-Groove Wheel from D&D Technologies runs heavy sliding gates with a bottom rail on a V-track. Super-hard cold rolled steel, two sealed maintenance-free bearings and a 1,499 lb maximum gate weight, in models for 1-1/2" and 2" bottom rails.
Key features
- 4" V-groove wheel for gates with a bottom rail
- Super-hard cold rolled steel, 30RC rating
- Two sealed, maintenance-free bearings
- Only 1-1/8" wide to reduce friction and debris
- Load rating 1,360 kg per gate, maximum gate weight 680 kg
- Models for 1-1/2" and 2" bottom rails
Shut It 4" Hardcore V-Groove Wheel: heavy duty wheels for sliding gates
This V-groove wheel is designed for sliding gates with a bottom rail running on a V-track. It belongs to D&D Technologies' Shut It Hardcore range of sliding gate hardware and is sold as the wheel only, without carriage plates.
Materials and operation
The wheel is made from super-hard cold rolled steel with a 30RC rating. Two sealed bearings need no greasing and no maintenance. At only 1-1/8" wide, it reduces friction and problems with debris on the track.
Sizes and fit
Choose the model for your bottom rail: 38 mm or 51 mm. D&D rates the wheels at a load of 1,360 kg per gate and a maximum gate weight of 680 kg. The CI2425 model is made for wheel boxes, which makes it a good choice for retrofit and repair work.
Compatibility
Adjustable Shut It Hardcore carriage plates and a carriage cap are available separately, so you can mount the wheel inside the bottom rail and fine tune the gate. The wheel bolts in place.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Fixing method | Bolt-On |
| Weight | 4.5 lb |
| Warranty | Limited lifetime |
| Product line | Shut It HardCore |
| Type | Gate wheels |
| Function | Square-to-Square |
| Gate material | Aluminum |
| Suitable for | Privacy Gate, Public/Commercial Gate, Security Gate |
| Max gate weight | 1500 lb |
| Sealed bearings | 2 |
| Max gate load | 3000 lb |
| Wheel material | Steel |
| Sold as | Each |
| Gate frame | 1-1/2" |
Article numbers

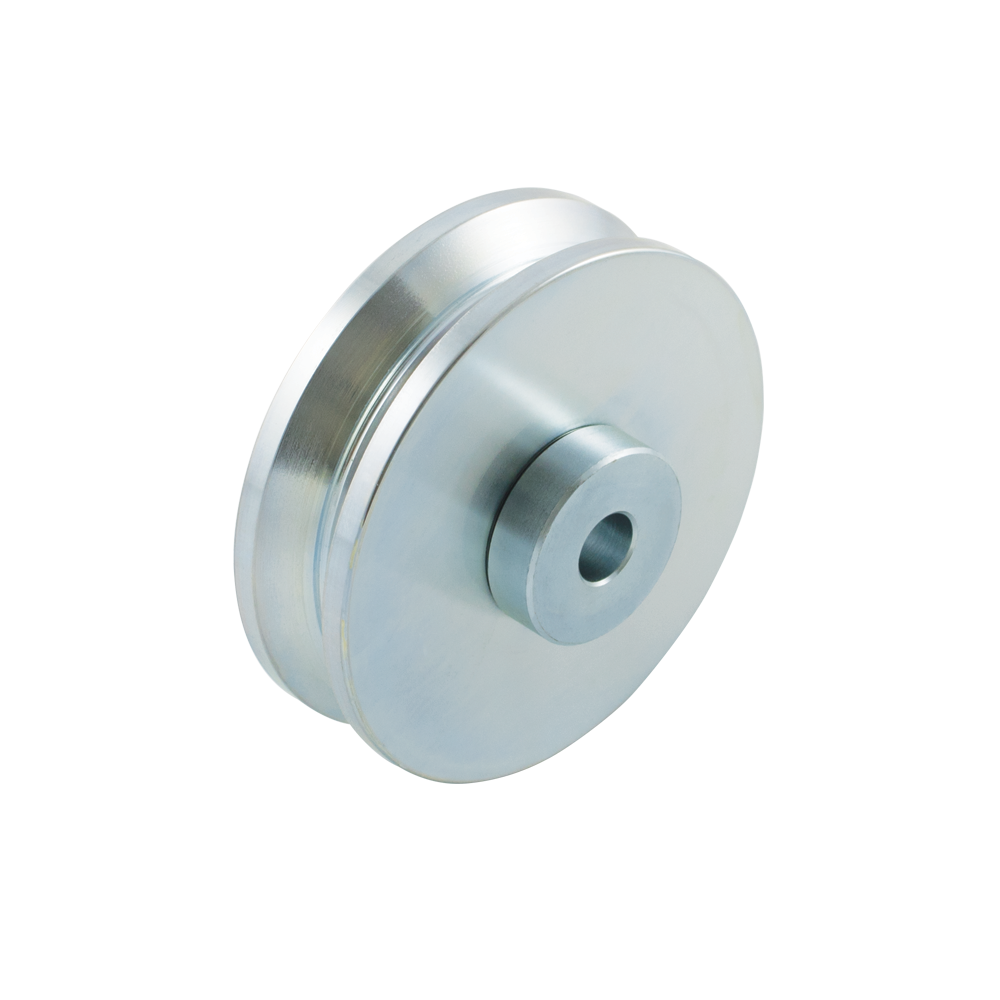

- CI2425Gate frame: 2"$47.00

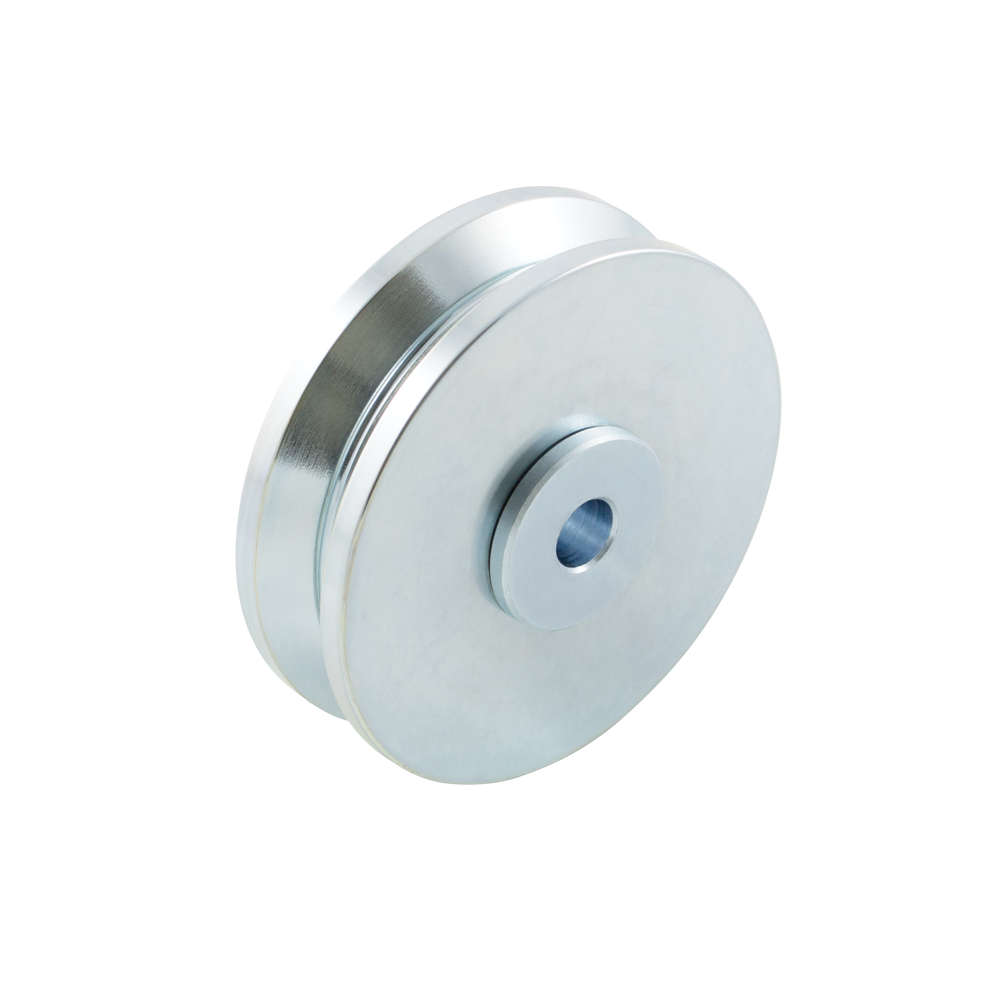

- CI2415Gate frame: 1-1/2"$47.00Chosen
Frequently asked questions
Are carriage plates included?
No. This is the wheel only. Carriage plates and a carriage cap are available separately.
Which model do I need?
Choose by the width of your gate's bottom rail: 1-1/2" or 2". The CI2425 is the model for wheel boxes, suited to retrofit and repair.
How heavy a gate can it carry?
D&D gives a maximum gate weight of 680 kg and a load rating of 1,360 kg per gate.
