Shut It® 6" (152mm) Hardcore™ V-Groove Wheel
Shut It 6" (6") Hardcore V-Groove Wheel - Designed to be used on gates with a bottom rail.
Key features
- 6" V-groove wheel for gates with a bottom rail
- Super-hard cold rolled steel, 30RC rating
- Two sealed, maintenance-free bearings
- Only 1-1/8" wide to reduce friction and debris
- Load rating 2,270 kg per gate, maximum gate weight 1,000 kg
- Models for 1-1/2" and 2" bottom rails

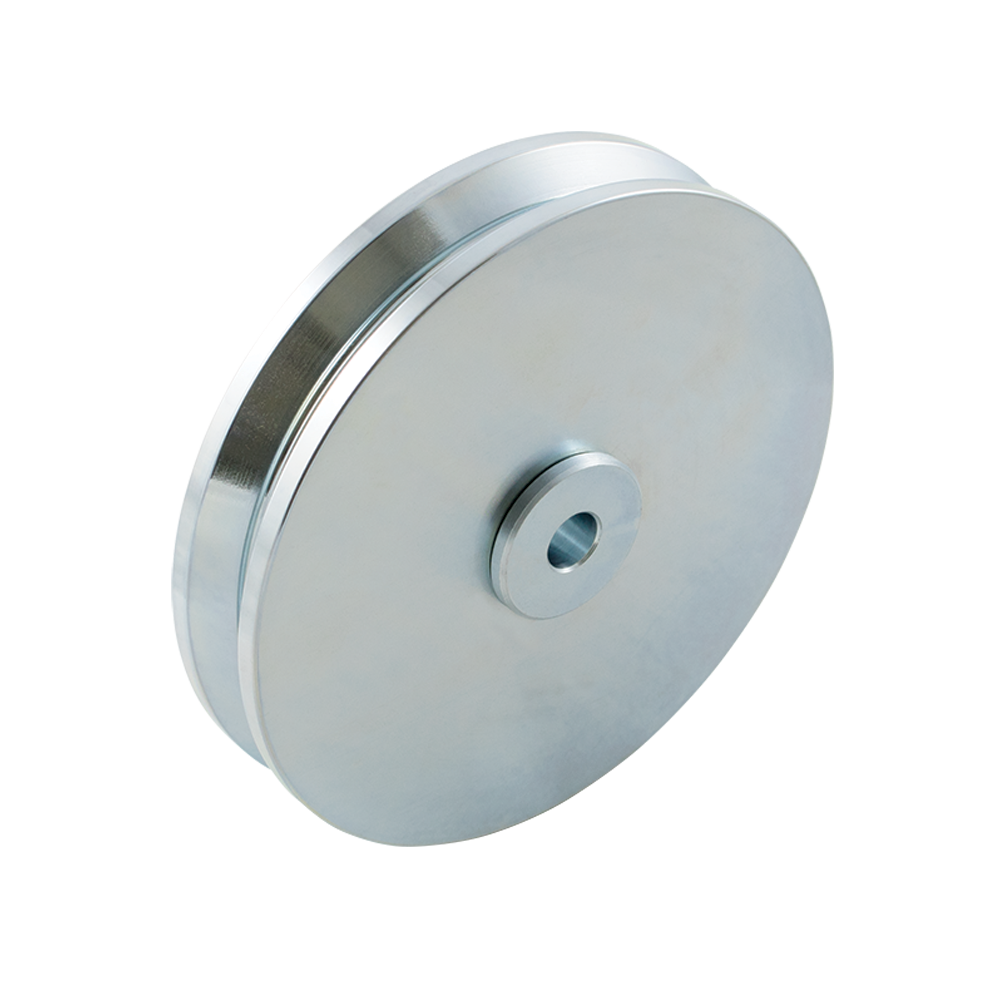

Shut It 6" Hardcore V-Groove Wheel: for heavy sliding gates
This V-groove wheel is designed for sliding gates with a bottom rail running on a V-track. It is the larger wheel in D&D Technologies' Shut It Hardcore range and is sold as the wheel only.
Materials and operation
The wheel is made from super-hard cold rolled steel with a 30RC rating. Two sealed bearings need no greasing and no maintenance. At only 1-1/8" wide, it reduces friction and problems with debris on the track.

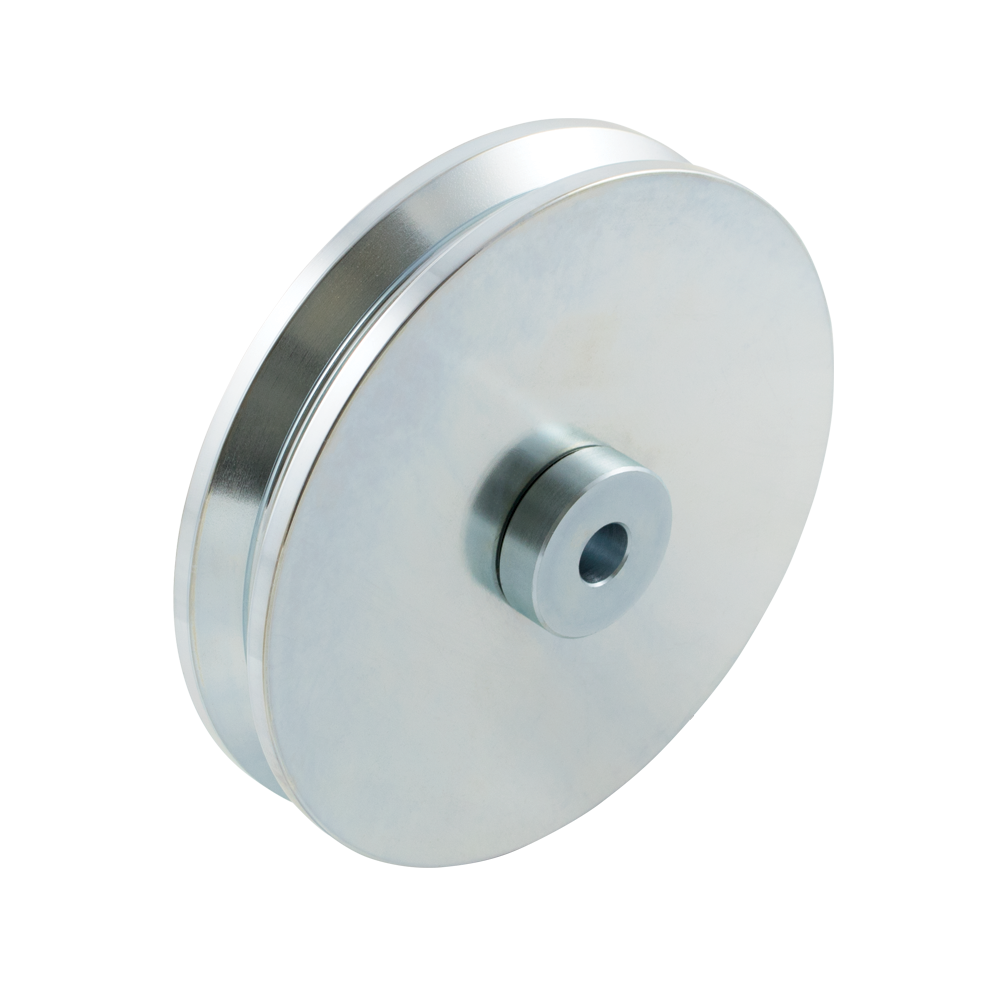

Sizes and fit
Choose the model for your bottom rail: 38 mm or 51 mm. D&D rates the wheels at a load of 2,270 kg per gate and a maximum gate weight of 1,000 kg, for privacy, security and commercial gates.
Compatibility
The wheel bolts in place. Optional adjustable Shut It Hardcore 6" carriage plates are available separately for precise installation inside the bottom rail.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Fixing method | Bolt-On |
| Weight | 9.0 lb |
| Warranty | Limited lifetime |
| Product line | Shut It HardCore |
| Type | Gate wheels |
| Function | Square-to-Square |
| Gate material | Aluminum |
| Suitable for | Privacy Gate, Public/Commercial Gate, Security Gate |
| Max gate weight | 2200 lb |
| Sealed bearings | 2 |
| Max gate load | 5000 lb |
| Wheel material | Steel |
| Sold as | Each |
| Gate frame | 1-1/2" |
Article numbers
- CI2620Gate frame: 2"$90.00
- CI2615Gate frame: 1-1/2"$90.00Chosen
Frequently asked questions
Are carriage plates included?
No. Adjustable carriage plates are an option, available separately.
How heavy a gate can it carry?
D&D gives a maximum gate weight of 1,000 kg and a load rating of 2,270 kg per gate.
Which model do I need?
Choose by the width of your gate's bottom rail: 1-1/2" or 2".
