Shut It® BadAss™ Powder Coated Face Mount Bolt-on
The Shut It BadAss Powder Coated Face Mount Bolt-On from D&D Technologies is a matte black face mount gate hinge for gates where welding is not an option. It opens to 180 degrees, allows gate gaps as small as 1/2" and carries gates up to 1,102 lb.
Key features
- Face mount, bolt-on: no welding needed
- Opens to 180 degrees
- Gate gaps as small as 1/2"
- UV-rated matte black powder coat
- Two sealed, maintenance-free bearings
- Load rating 900 kg per gate, maximum gate weight 500 kg

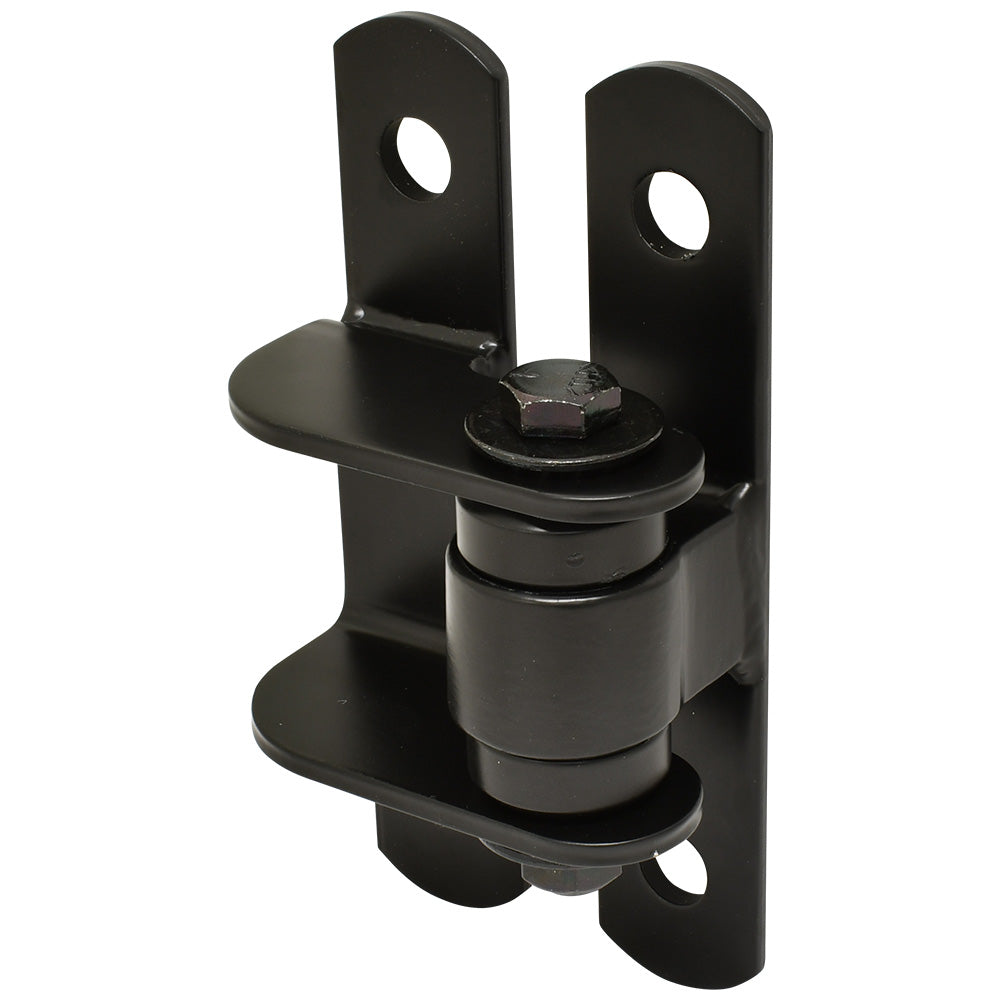

Shut It BadAss Powder Coated Face Mount Bolt-On: a full 180 degree opening in black

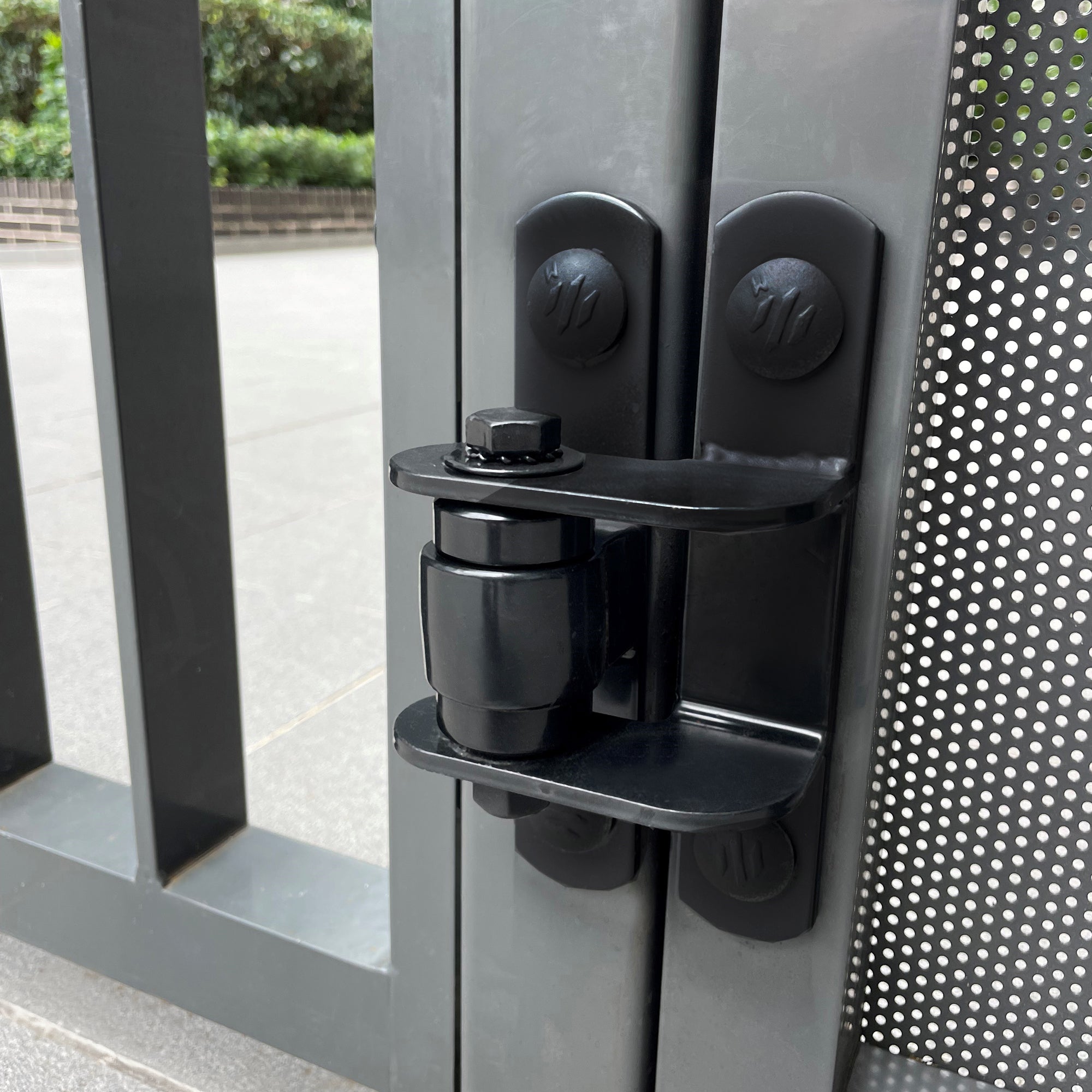

This face mount hinge bolts to the face of the gate and post, so it can be fitted where welding is not an option. It opens to 180 degrees for an unobstructed passage and lets you close the gap between gate and post to as little as 1/2".
Materials and finish
Each component is individually powder coated for full coverage, in a long-lasting, UV-rated matte black finish. The nuts, bolts and washers are black zinc plated to match the color and protect against corrosion.
Operation and durability
Two sealed bearings need no greasing and no maintenance, and D&D has tested the hinge to over 1 million open and close cycles. It is horizontally adjustable by 1/2", so the gate can be set precisely. The hinge is not self-closing.
Sizes and fit
D&D rates it at a load of 900 kg per gate and a maximum gate weight of 500 kg. The gate gap is 13 to 25 mm. It suits aluminium and steel pedestrian, pet, privacy, security and commercial gates.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technologies |
| Finish | Black Powder Coat |
| Fixing method | Weld-On |
| Weight | 2.5 lb |
| Warranty | Limited lifetime |
| Product line | Shut It BadAss |
| Type | Hinge |
| Function | Non Self-Closing, Square-to-Square |
| Gate material | Aluminum |
| Suitable for | Pedestrian Gate, Pet Gate, Privacy Gate, Public/Commercial Gate, Security Gate |
| Max gate weight | 1100 lb |
| Sealed bearings | 2 |
| Gate gap variance | 0.5 - 1.0" |
| Max gate load | 2000 lb |
| Yoke material | Steel |
| Body material | Steel |
| Sold as | Each |
Frequently asked questions
How far does the gate open?
The face mount hinge opens to 180 degrees for an unobstructed passage.
How small can the gate gap be?
As small as 1/2". The ideal gate gap is 13 to 1".
How heavy a gate can it carry?
D&D gives a maximum gate weight of 500 kg and a load rating of 900 kg per gate.
