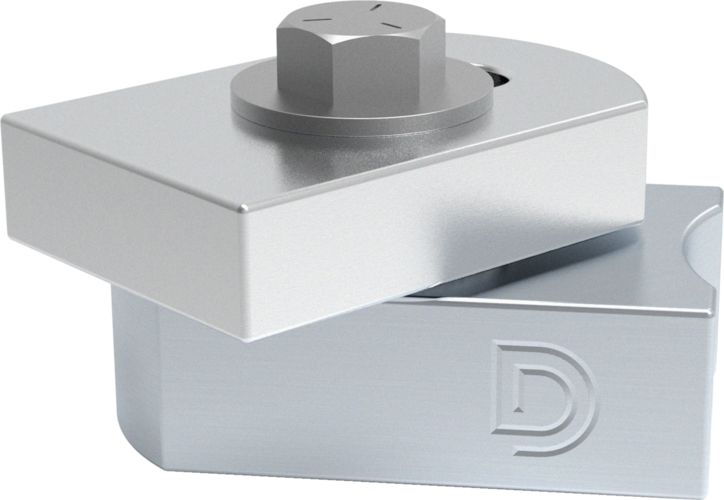

ShutIT Baby BadAss | Steel / Aluminum
The Shut It Baby BadAss from D&D Technologies is the lighter duty weld-on BadAss gate hinge, for high-end pedestrian gates and low use drive gates. A sealed maintenance-free bearing, 1/2" of horizontal adjustment and a 309 lb maximum gate weight, for square or round posts.
Key features
- Lighter duty member of the BadAss range
- Sealed bearing, safe to powder coat
- Up to 1/2" of horizontal adjustment
- For square or round posts
- Load rating 230 kg per gate, maximum gate weight 140 kg
- Weld-on
Shut It Baby BadAss: BadAss technology for lighter gates
The Baby BadAss is made with the same technology as D&D Technologies' bigger BadAss hinges, but designed for the lighter side. It is a lighter gate weight option to the Original BadAss, for high-end pedestrian gates and low use drive entry gates welded to steel end posts on site.
Materials and versions
The Baby BadAss family comes in steel, rusted, aluminum and a steel and aluminum combination. This page offers part CI3670, the steel and aluminum combination.
Operation and fit
A high temperature sealed bearing needs no greasing and no maintenance, and it is safe to powder coat with the hinges installed on the gate. The hinge gives up to 13 mm of horizontal adjustment and suits square or round post installations, with a gate gap of 64 to 76 mm. D&D rates it at a load of 230 kg per gate and a maximum gate weight of 140 kg.
Installation
The hinge is welded to the gate and post and is not self-closing.
Specifications
| Brand | D&D Technologies |
| Manufacturer | D&D Technology |
| Weight | 1.0 lb |
Frequently asked questions
How heavy a gate can it carry?
D&D gives a maximum gate weight of 140 kg and a load rating of 230 kg per gate.
Which version is sold here?
Part CI3670, the steel and aluminum combination. The Baby BadAss also exists in steel, rusted and aluminum.
Does it fit round posts?
Yes, it suits square and round post installations.
