Gardenode Posts & Base Plates
Gardenode designs modular slat fences in aluminum and composite. Fenceweb stocks the Equinox system: posts, slats, louvers, laser-cut panels, gates and every part that holds them together, in anthracite gray, quartz gray, black and teak.

Gardenode Equinox Aluminum Fence Post | 3-1/8" x 3-1/8"
from $120.00

Gardenode Equinox Aluminum Fence Post | 2-3/4" x 2"
from $50.00

Aluminum clip
from $10.00

Gardenode Aluminum Post Insert | 39-3/8" Long
Contact us for pricing

Gardenode

Base plate | 4-3/4" x 3-7/8"
from $24.95

Steel plate flat | 5-1/8" x 5-1/8"
from $30.00

Gardenode Steel Base Plate with Cover for 2-3/4" x 2" Post
Contact us for pricing
Showing 1-7 of 7 products
Highlights

Two post sizes
3-1/8" x 3-1/8" for tall runs, 2-3/4" x 2" for lower ones.

In-ground or plate
Set in concrete or stand on a steel base plate.

Insert for height
Stiffens posts for fences over 70-7/8".

Grooved for slats
Slats slide into the post grooves from the top.
Which post size do you need?
- 3-1/8" x 3-1/8" post: the top-of-the-range Equinox post, in lengths of 6'2", 7'6-1/2", 8'6-3/8" and 10'6". It comes with a cap and a clip.
- 2-3/4" x 2" post: the lighter post for lower runs, in lengths from 3'2-9/16" to 7'10-1/2". It comes with a clip; the cap is sold separately.
Both posts are extruded aluminum, powder coated in Anthracite Gray, Quartz Gray, Black or Teak, and fit every Equinox slat and panel. Choose a post long enough for the fence height plus the depth in concrete. Some length and color combinations are sold on request.
How do I set posts in concrete?
Gardenode's guide is a hole about 15-3/4" square and 19-5/8" deep, filled with concrete that is not too wet. Adjust the depth to your soil and to the local frost depth. Set the posts 72-7/8" apart on center so each slat spans one bay, and check them for plumb and height before the concrete sets.
Base plates for slabs, decks and walls
Where you cannot dig, stand the post on a powder coated steel base plate:
- Base plate 5-1/8" x 5-1/8" for the 3-1/8" x 3-1/8" post, with four screws for the post.
- Base plate 4-3/4" x 3-15/16" for the 2-3/4" x 2" post, with four screws for the post.
- Base plate with cover for the 2-3/4" x 2" post, where the cover hides the fixings.
Keep a fence on base plates to 63" tall for wind load. Anchor the plate into sound concrete or masonry with fixings that suit the base.
When do I need a post insert?

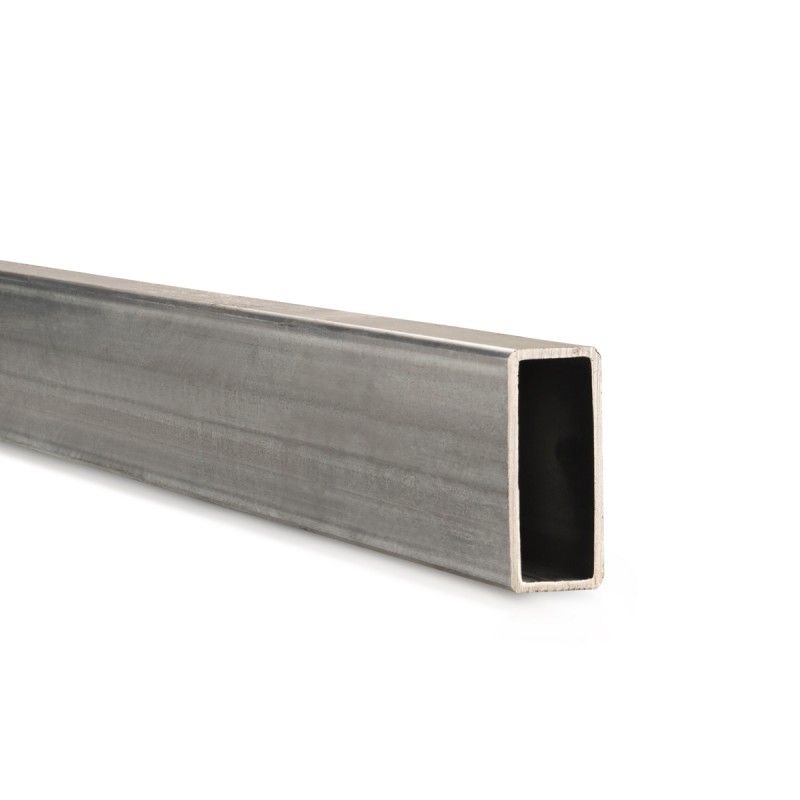

For a fence taller than 70-7/8", Gardenode recommends a post insert. The insert is raw aluminum, 39-3/8" long, and stiffens the post from the inside.
Post clips and caps
The post clip closes the open groove of a start or end post, where no slats slide in. It comes in 6'1-13/16" and 6'10-11/16" lengths in the four post colors, and one clip comes with each post. Caps for both post sizes are on the Accessories page.
How many posts do I need?
Count one post per bay plus one to finish the run. A wall start can use a starter profile instead of the first post, and corners between 45 and 135 degrees use the variable angle profile set; both are on the Accessories page.
Ordering and delivery
Fenceweb delivers to every US state and to Canada. Order posts, base plates and caps in one color with the slats and rails.
Frequently asked questions
What is the Gardenode Equinox fence system?
A modular slat fence: aluminum posts with grooves, slats that slide in from the top, and rails, profiles and caps that finish each bay. Slats come in aluminum and composite, in solid, louver and openwork styles, plus laser-cut aluminum panels.
Can I mix aluminum and composite slats?
Yes. Both are 70-7/8" long and 13/16" thick and slide into the same posts, so you can combine them in one bay or change from bay to bay.
How far apart are the posts?
72-7/8" on center. Every slat is 70-7/8" long and spans exactly one bay.
How deep do the posts go?
Gardenode's guide is a hole about 15-3/4" square and 19-5/8" deep, filled with concrete that is not too wet. Your soil and local frost depth decide the final depth.
Can I install Gardenode on a patio or low wall?
Yes, on steel base plates: 5-1/8" x 5-1/8" for the 3-1/8" post, 4-3/4" x 3-7/8" or a plate with cover for the 2-3/4" x 2" post. Keep a fence on base plates to 63" tall for wind load.
Do composite slats need a brace?
Yes: a galvanized steel brace in every third solid composite slat and in every composite louver and openwork slat. Aluminum slats need none.
Does the post come with a cap?
The 3-1/8" x 3-1/8" post comes with one cap and one clip. The 2-3/4" x 2" post comes with one clip; order its cap separately.
Can Gardenode parts be combined with other fence systems?
Assume not. The grooves, clips and profiles are made for the Gardenode system, so order posts, slats and accessories from the same range.
